Panduit 4 Post Adjustable Depth Rack
Adjust Rails To The Depth You Need
PAN-R4P23
What's special about this open frame 4-point rack?
- Open frame 4-post rack features adjustable mounting rails that give you the freedom of customize a solution for your specific application.
- Innovative design works perfectly with cable managers and ladders by providing numerous mounting holes in top flanges and along rails.
- Durable steel construction is rated to hold over 2000 lbs; perfect for high-density applications.
- Click for More Features
Panduit’s Adjustable Rail Network Rack is the perfect solution for applications with numerous switches and other devices whose depths vary per manufacturer. Independent front and rear mounting rails adjust from 3.25” to as much as 42” to accommodate most network components.
| 23" Deep 4-Post Rack | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part # | IMG | Rms | Racking Height | Racking Width | Racking Depth | Rail Type | Weight | Price |
| PAN-R4P23 |  |
45 | 84" | 19" | 23" | #12-24 Threaded Rails | 101 lbs | Manufacturer Direct
|
| PAN-R4P2396 |  |
52 | 96" | 19" | 23" | #12-24 Threaded Rails | 111 lbs | Manufacturer Direct
|

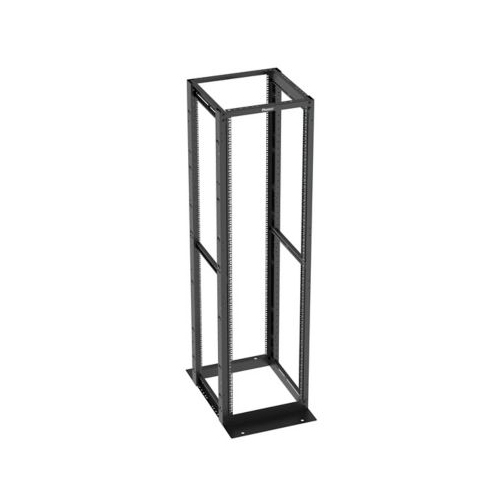

| PAN-R4P23CN |  |
45 | 84" | 19" | 23" | Cage Nut Rails | 92 lbs | Manufacturer Direct
|
| PAN-R4P23CN96 |  |
52 | 96" | 19" | 23" | Cage Nut Rails | 102 lbs | Manufacturer Direct
|
| 30" Deep 4-Post Rack | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part # | IMG | Rms | Racking Height | Racking Width | Racking Depth | Rail Type | Weight | Price |
| PAN-R4P |  |
45 | 84" | 19" | 30" | #12-24 Threaded Rails | 105 lbs | Manufacturer Direct
|
| PAN-R4P96 |  |
52 | 96" | 19" | 30" | #12-24 Threaded Rails | 116 lbs | Manufacturer Direct
|
| PAN-R4PCN |  |
45 | 84" | 19" | 30" | Cage Nut Rails | 96 lbs | Manufacturer Direct
|
| PAN-R4PCN96 |  |
52 | 96" | 19" | 30" | Cage Nut Rails | 106 lbs | Manufacturer Direct
|
| 36" Deep 4-Post Rack | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part # | IMG | Rms | Racking Height | Racking Width | Racking Depth | Rail Type | Weight | Price |
| PAN-R4P36 |  |
45 | 84" | 19" | 36" | #12-24 Threaded Rails | 109 lbs | Manufacturer Direct
|
| PAN-R4P3696 |  |
52 | 96" | 19" | 36" | #12-24 Threaded Rails | 120 lbs | Manufacturer Direct
|
| PAN-R4P36CN |  |
45 | 84" | 19" | 36" | Cage Nut Rails | 100 lbs | Manufacturer Direct
|
| PAN-R4P36CN96 |  |
52 | 96" | 19" | 36" | Cage Nut Rails | 110 lbs | Manufacturer Direct
|
| 41.5" Deep 4-Post Rack | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part # | IMG | Rms | Racking Height | Racking Width | Racking Depth | Rail Type | Weight | Price |
| PAN-R4P42 |  |
45 | 84" | 19" | 41.5" | #12-24 Threaded Rails | 112 lbs | Manufacturer Direct
|
| PAN-R4P4296 |  |
52 | 96" | 19" | 41.5" | #12-24 Threaded Rails | 123 lbs | Manufacturer Direct
|

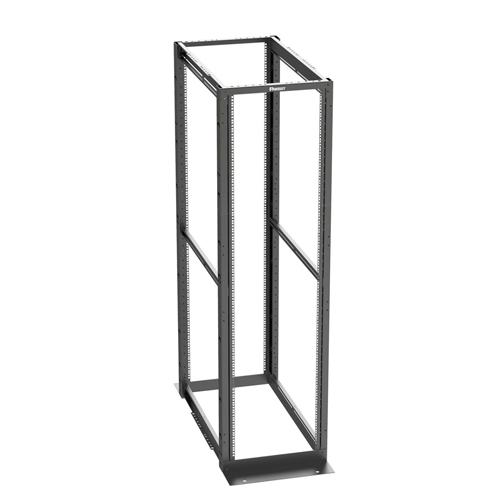

| PAN-R4P42CN |  |
45 | 84" | 19" | 41.5" | Cage Nut Rails | 103 lbs | Manufacturer Direct
|
| PAN-R4P42CN96 |  |
52 | 96" | 19" | 41.5" | Cage Nut Rails | 113 lbs | Manufacturer Direct
|
All assembly hardware included:
| Part # | RMS | Overall Dimensions | Racking Dimensions | Rail Type | Material | Load Rating | |||||
| Height | Width | Depth | Height | Width | Depth | ||||||
| PAN-R4P23 | 45 | 84" | 23.3" | 23.2" | 84" | 19" | 23" | #12-24 Threaded Rails | STEEL | 2500 lbs | |
| PAN-R4P2396 | 52 | 96" | 23.3" | 23.2" | 96" | 19" | 23" | #12-24 Threaded Rails | STEEL | 2501 lbs | |
| PAN-R4P23CN | 45 | 84" | 23.3" | 23.2" | 84" | 19" | 23" | Cage Nut Rails | STEEL | 2502 lbs | |
| PAN-R4P23CN96 | 52 | 96" | 23.3" | 23.2" | 96" | 19" | 23" | Cage Nut Rails | STEEL | 2503 lbs | |
| PAN-R4P | 45 | 84" | 23.3" | 30.2" | 84" | 19" | 30" | #12-24 Threaded Rails | STEEL | 2504 lbs | |
| PAN-R4P96 | 52 | 96" | 23.3" | 30.2" | 96" | 19" | 30" | #12-24 Threaded Rails | STEEL | 2505 lbs | |
| PAN-R4PCN | 45 | 84" | 23.3" | 30.2" | 84" | 19" | 30" | Cage Nut Rails | STEEL | 2506 lbs | |
| PAN-R4PCN96 | 52 | 96" | 23.3" | 30.2" | 96" | 19" | 30" | Cage Nut Rails | STEEL | 2507 lbs | |
| PAN-R4P36 | 45 | 84" | 23.3" | 36.2" | 84" | 19" | 36" | #12-24 Threaded Rails | STEEL | 2508 lbs | |
| PAN-R4P3696 | 52 | 96" | 23.3" | 36.2" | 96" | 19" | 36" | #12-24 Threaded Rails | STEEL | 2509 lbs | |
| PAN-R4P36CN | 45 | 84" | 23.3" | 36.2" | 84" | 19" | 36" | Cage Nut Rails | STEEL | 2510 lbs | |
| PAN-R4P36CN96 | 52 | 96" | 23.3" | 36.2" | 96" | 19" | 36" | Cage Nut Rails | STEEL | 2511 lbs | |
| PAN-R4P42 | 45 | 84" | 23.3" | 41.7" | 84" | 19" | 41.5" | #12-24 Threaded Rails | STEEL | 2512 lbs | |
| PAN-R4P4296 | 52 | 96" | 23.3" | 41.7" | 96" | 19" | 41.5" | #12-24 Threaded Rails | STEEL | 2513 lbs | |
| PAN-R4P42CN | 45 | 84" | 23.3" | 41.7" | 84" | 19" | 41.5" | Cage Nut Rails | STEEL | 2514 lbs | |
| PAN-R4P42CN96 | 52 | 96" | 23.3" | 41.7" | 96" | 19" | 41.5" | Cage Nut Rails | STEEL | 2515 lbs | |
