PANDUIT® Pan-Way® T-70 Cable Raceway

Aesthetically Pleasing Great Quality Wire Channels

PAN-T70BCWH-X
Qty:

What's special about these PANDUIT® T-70 raceways?

  • Available accessories make the Pan-Way T-70 one of the most versatile and economical raceways.
  • Snap-on faceplates for data and power applications for quick and easy set up.
  • Satisfies 1" bend radius requirement preventing potential cable degradation.
  • Click for More Features
CSA Approved

The PANDUIT® Pan-Way® T-70 Surface Raceway System is a non-metallic multi-channel capable surface raceway that can be used to route, protect, and conceal data, voice, video, fiber optic and power cabling with a rating of up to 600 volts. Made from impact resistant material that is sure to last a long time without peeling or corroding, these raceways are a must have investment.

Custom colors are available upon request.

ACCESSORIES
Part # Image Description Weight Price

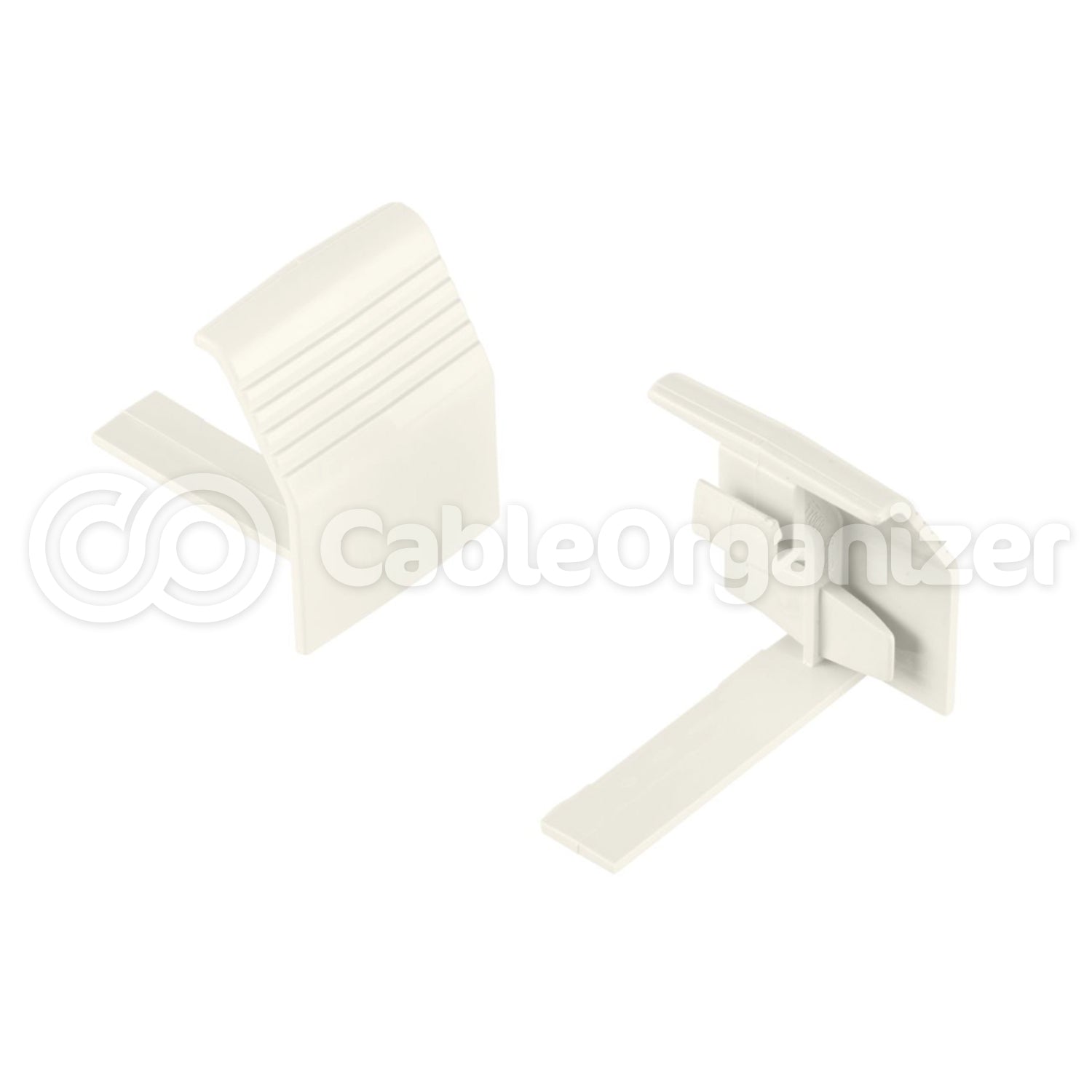

PAN-T70BCWH-X PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70BCWH-X T-70 Raceway - Base Coupling
(pack of 10)
0.05 lb.
Qty:
Quick Ship
PAN-T70CCWH-X PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70CCWH-X T-70 Raceway - Cover Coupling
(pack of 10)
0.30 lb.
Qty:
Quick Ship
PAN-T70OCWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70OCWH T-70 Raceway - Outside Corner Fitting 0.46 lb.
Qty:
Manufacturer Direct
PAN-T70ICWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70ICWH T-70 Raceway - Inside Corner Fitting 0.4 lb.
Qty:
Manufacturer Direct
PAN-T70RAWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70RAWH T-70 Raceway - Right Angle Fitting 0.64 lb.
Qty:
Quick Ship
PAN-T70ECWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70ECWH T-70 Raceway - End Cap Fitting 0.1 lb.
Qty:
Quick Ship
PAN-T70EEWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70EEWH T-70 Raceway - Entrance End Fitting 0.69 lb.
Qty:
Quick Ship
PAN-T70TWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70TWH T-70 Raceway - Tee Fitting 0.57 lb.
Qty:
Quick Ship
PAN-T70TRWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70TRWH T-70 Raceway - Transition Fitting Base/Cover 0.32 lb.
Qty:
Quick Ship
PAN-T70TRCWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70TRCWH T-70 Raceway - Transition Fitting Cover Only 0.21 lb.
Qty:
Quick Ship
PAN-T70WR PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70WR T-70 Raceway - Wire retainer (pack of 10) 0.02 lb.
Qty:
Quick Ship
PAN-T70DB PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70DB T-70 Raceway - Device Bracket 0.05 lb.
Qty:
Quick Ship
PAN-T70SDB-X PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70SDB-X T-70 Raceway - Standard Faceplate Bracket
(pack of 10)
0.50 lb.
Qty:
Quick Ship
PAN-T70HB3GFCI PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70HB3GFCI T-70 Raceway - GFCI Three Sided Hanging Box 0.15 lb.
Qty:
Quick Ship
PAN-T70WCWH PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70WCWH T-70 Raceway - Workstation Outlet Center™
Offset Box
0.4 lb.
Qty:
Manufacturer Direct
PAN-T70BFI PANDUIT® Pan-Way® T-70 Cable Raceway PAN-T70BFI T-70 Raceway - Backfeed Fitting Insert 0.06 lb.
Qty:
Manufacturer Direct
PAN-DCT PANDUIT® Pan-Way® T-70 Cable Raceway PAN-DCT Panduct Hand-Held Duct Cutting Tool 0.71 lb
Qty:
Quick Ship
wire loom
  • Suitable up to 600 volts for electric applications
  • 70mm opening accepts any NEMA standard communication faceplate
  • Optimized for use with the PANDUIT® Pan-Net® Communication System
  • Available in various colors for color coding your installation
  • Construction of UL94V0 PVC
  • UL 95425 and UL E116129
  • Conforms to CSA C22.2 No 62.1-03 600V



Open Channel 40% Cable Fill Capacity
Cable Type: # of Cables
12 AWG 20
Cat 6 Cables 41
Cat 5e Cables 55
2 Strand Fiber Optic Cable 86
Material: Rigid PVC
Flammability: UL94V-0
Voltage rating: UL-5A 600VAC; CSA C22.2 No. 62.1-03 600V
Approvals: UL Listed 95425 (raceway); UL Listed E116129 (fittings)
NEC: Article 388
Color: White
CSI spec form: LP-CSISPEC-T70-1



Click here for more technical specs PDF
