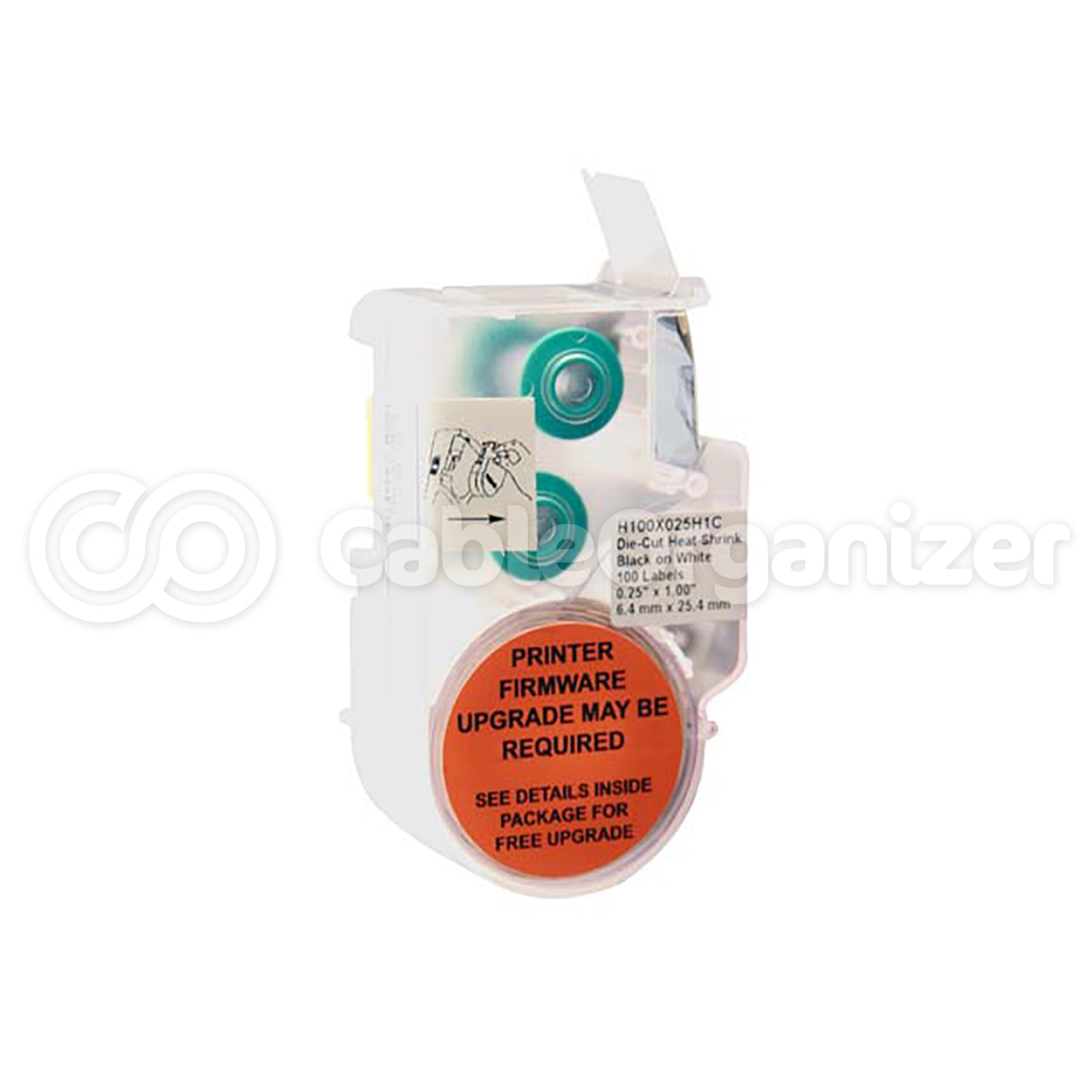

• PANDUIT P1 Die-Cut Heat Shrink Label Cassette - icon
  • top of tape in PANDUIT P1 Die-Cut Heat Shrink Label Cassette - icon
  • back of tape in PANDUIT P1 Die-Cut Heat Shrink Label Cassette - icon
  • PANDUIT P1 Die-Cut Heat Shrink Label being shrunk onto cable - icon
  • PANDUIT P1 Die-Cut military grade Heat Shrink Labels in use on cables - icon
    • |||videoviewer>player|||

PANDUIT® P1™ Die-Cut Heat Shrink Label Cassettes

Durable Military Grade Heat Shrink Labels

PAN-H100X025
Qty:

What's special about these heat shrinkable labels?

  • Made from durable flattened polyolefin material to ensure longevity, even in unfavorable environments.
  • 3:1 Shrink ratio allows for use with a greater range of AWG wire sizes.
  • Available in white or yellow print on colors to meet specific applications or standards.
  • Click for More Features
    •
  • RoHS CompliantUL

Panduit’s Military Grade labels are designed to meet today’s toughest standards and environments. These heat shrinkable labels are made from a durable polyolefin material to ensure the stability of the label and the legibility of the legends printed on them for years to come.

Part # Supported Wires Width Colors Labels/ Roll Price
PAN-H100X025 22 - 16 AWG 0.50" White, Yellow 100
Qty:
Manufacturer Direct
PAN-H100X034 18 - 22 AWG 0.50" White, Yellow 100
Qty:
Manufacturer Direct
PAN-H100X044 16 - 10 AWG 0.50" White, Yellow 100
Qty:
Quick Ship
PAN-H100X084 8 - 1 AWG 1" White, Yellow 75
Qty:
Manufacturer Direct

For fast and easy installation, these labels are designed to be reduced using most brands of gun style heat guns or torches, and because they use Panduit's P1T cassettes, you can get to printing even faster. The P1T cassette combines both the heat shrink label material and the ribbon into a single, easy to install cassette, so you won't waste time messing around with extra parts or steps.

  • Designed for use with the Panduit Panther™ LS8E Thermal Transfer Printer.
  • P1™ label cassettes contain an integrated memory device that allows the cassette to automatically format to your Panther™ LS8E printer, keep track of remain label count, and recall's the last legend used.
  • Cassette style printing combined with die-cut labels ensures your labels with be clean, consistent and legible every time for providing a high level of aesthetic quality and appearance.
  • Meets UL standard 224 for flammability
  • Military Rated MIL-M-81531 and MIL-STD-202F Method 215A, Solution A, C, and D
  • RoHS Compliant
  • Material Temperature Range: -22°F to 220°F (-30°C to 105°C)

    • Material Temperature Range: -22°F to 220°F (-30°C to 105°C)

    PART # SUPPORTED WIRES DIAMETER WIDTH
    		 LENGTH
    		 LABELS/
    ROLL    		 COLORS CABLE DIAMETER
    Min. Max.
    PAN-H100X025 22 - 16 AWG 1/8" 0.25" 1" 100 White, Yellow 0.04" 0.13"
    PAN-H100X034 18 - 22 AWG 3/16" 0.34" 1" 100 White, Yellow 0.06" 0.19"
    PAN-H100X044 16 - 10 AWG 1/4" 0.44" 1" 100 White, Yellow 0.08" 0.25"
    PAN-H100X084 8 - 1 AWG 1/2" 0.84" 1" 75 White, Yellow 0.17" 0.5"
