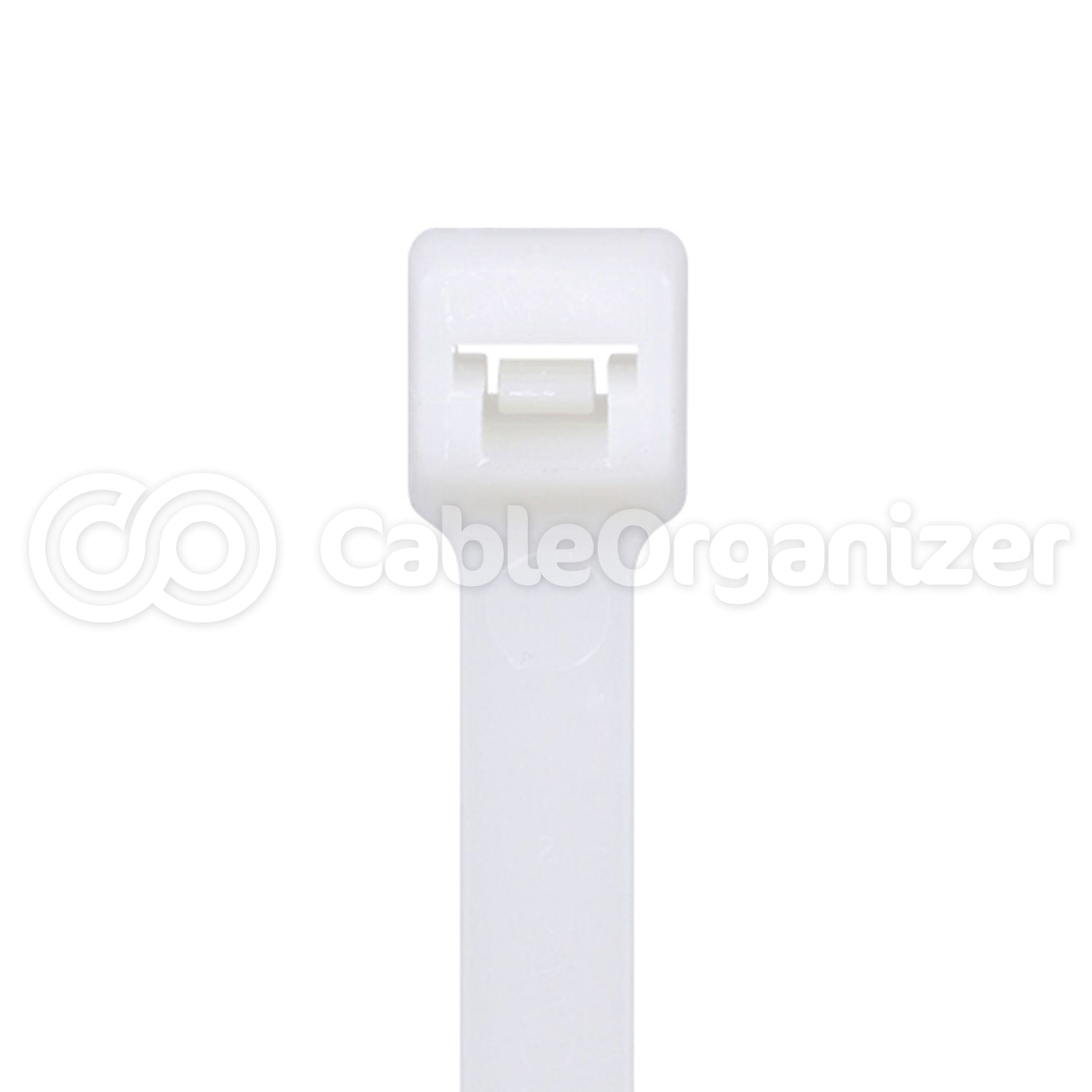

Panduit® Cable Ties


CTPAN-PLT1M-C
Qty:

What's special about these cable ties from Panduit®?

  • One piece construction for high performance and reliability.
  • Bundle diameters up to 13" (330mm) or even larger when linked together.
  • RoHS Compliant
  • Click for More Features
  •
  • CEULCSA Approved

Panduit Pan-Ty® Nylon Cable Ties can be used in countless applications from projects in your garage to bundling wires together in the house. These zip ties have sturdy one-piece construction, which provides you with a reliable hold and consistent performance.

Natural Colored Cable Ties
Part # Length Qty/Pack Weight Max. Bundle Diameter Minimum Tensile Strength Price
CTPAN-PLT1M-C 3.9" 100 0.25 lb 0.87" 18 lbs
Qty:
Quick Ship
CTPAN-PLT2S-C 7.4" 100 0.25 lb 1.88" 50 lbs
Qty:
Quick Ship

These nylon cable ties are adaptable to any environment and can be used both inside and outside of the house. Pan-Ty cable ties are made with a one piece construction to provide consistent performance and reliability. Cable bundles for these panduit cable ties can have a diameter up to 13" or 330mm or can be linked together to house even larger bundles.

The Pan-Ty® nylon cable ties are UL-94V-2 rated and have a maximum continuous operating temperature of 185° F. They also have the lowest threading force of any other cable tie currently on the market. Using these cable ties in conjunction with our adhesive mounting bases make a perfect cable securing wire management solution.

  • Countless Applications
  • One piece construction for high performance and reliability
  • Bundle diameters up to 13" (330mm) or even larger when linked together
  • High strength and low thread force
  • Material: Nylon 6.6
  • Operating temperature 185° F
  • UL94V-2 rating
  • CSA certified to meet standards of Canadian Standards Association for electronic and telecommunications equipment
  • CE Compliant and Marked
  • Military Spec Grade
  •

    Item Military Spec Length Cross Section Width Head Height Head Width Max. Bundle
    Diameter
    Min Tensile
    Strength
    CTPAN-PLT1M-C - 3.9" 0.098" (2.5mm) 0.154" (3.99mm) 0.180" (4.6mm) 0.87" 18 lbs.
    CTPAN-PLT1M-M MS3367-4-9 3.9" 0.098" (2.5mm) 0.154" (3.99mm) 0.180" (4.6mm) 0.87" 18 lbs.
    CTPAN-PLT2S-C MS3367-1-9 7.4" 0.190" (4.8mm) 0.220" (5.6mm) 0.337" (8.6mm) 1.88" 50 lbs.
    CTPAN-PLT4S-M MS3367-2-9 14.5" 0.190" (4.8mm) 0.220" (5.6mm) 0.337" (8.6mm) 4" 50 lbs.



    Material Nylon 6.6
    Rating UL-94V-2
    Max Continuous Operating Temp 185° F
    Bundle Diameter Up to 13" (330 mm)
    RoHS Compliancy Status Compliant
    Mil. Std. Part Number MS3367-4-9
    UL Listed (File #E56854) Yes
    UL Recognized (File #E56854) Yes
    Material Flammability Rating UL 94V-2
