Panduit® Surface Mount Boxes


PAN-CBX2
Qty:

What's special about these surface mount boxes?

    Mini-Com:

  • Compatible with Panduit® Mini-Com® connector modules.
  • Supplied with two #6-32 x 1” combination slot/Phillips screws.
  • Compatible with Panduit Pan-Way LD3 and LD5 surface raceways
  • CBX2 includes built-in removable blank to add a second module.
  • Cable entry from side and rear knockouts and from opening in center of base.
  • NetKey:

  • Accept NetKey┬« Modules
  • Mount easily with supplied mounting screws, adhesive tape or optional magnet (CBM-X)
  • Optional adhesive labels available
  • Click for More Features
  •
  • ULCSA Approved

Panduit surface mount boxes are made for mounting RJ45 connectors into. For installation instructions, click here.

Part # Description Dimensions Color Price

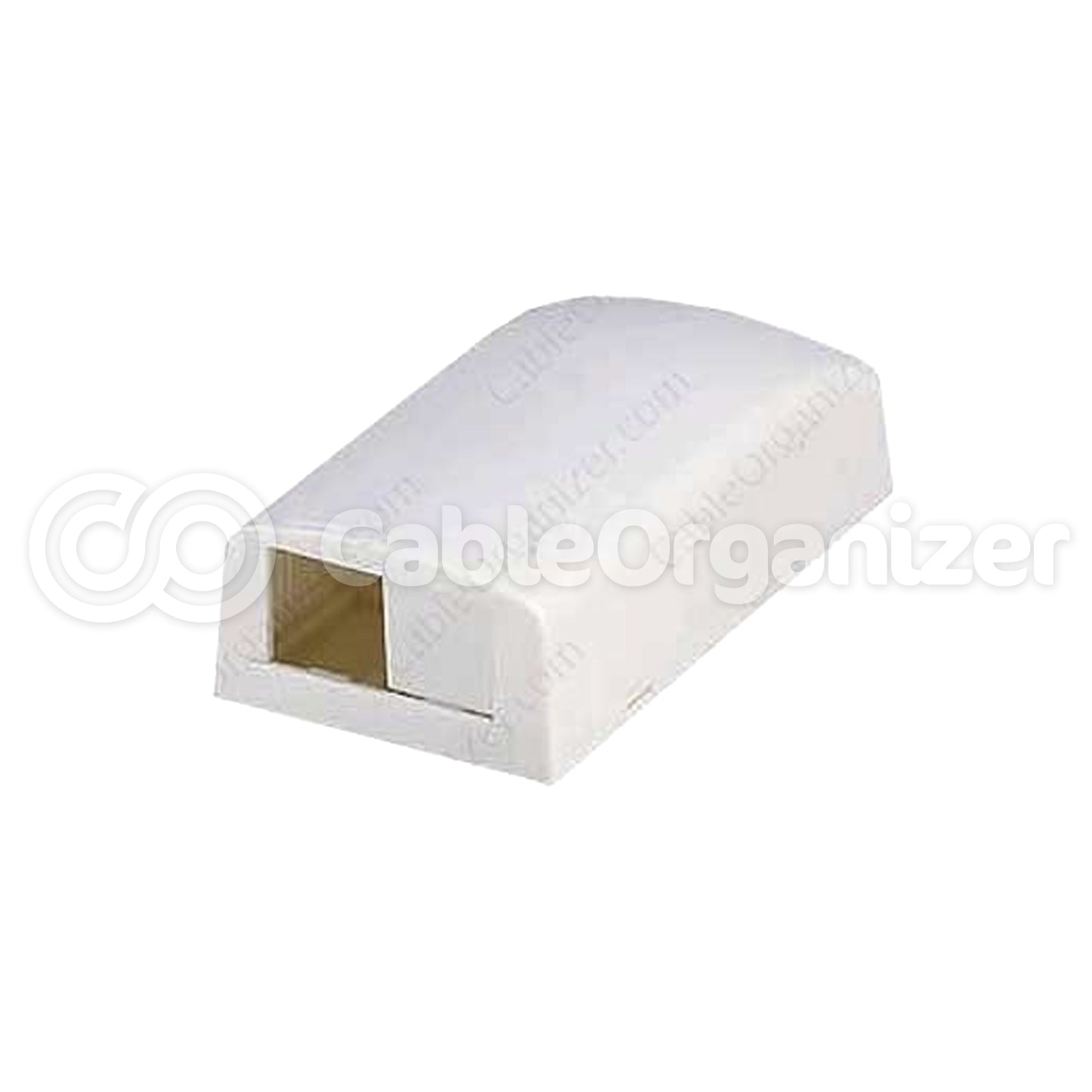

PAN-CBX2 2 Module Surface Mount Box 1.06" H x 1.95" W x 3.65" L
(26.92mm x 49.53mm x 92.71mm)
Black, Electric Ivory, Off-White
Qty:
Manufacturer Direct
PAN-CBX4 4 Module Surface Mount Box
Provides slots that accept cable ties
for strain relief.
Supplied with label holder/ screw cover.
1.1" H x 2.9" W x 4.5" L
(27.94mm x 73.66mm x 114.30mm)
Off-White White
Qty:
PAN-CBXF12IW-AY Surface Mount Box, 12 Port, Multimedia 1.81"H x 4.71"W x 6.67"L
(46mm x 120mm x 170mm)
Off White
Qty:
Quick Ship
PAN-NK2BXIW-A NK 2-port surface mount box - Off White
Qty:
Quick Ship
PAN-NK4BXIW-AY NK 4-port surface mount box - Off White
Qty:
Quick Ship
PAN-NK6BXIW-AY NK 6-port surface mount box - Ivory
Qty:
Quick Ship
PAN-NK6BXWH-AY NK 6-port surface mount box - White
Qty:
Quick Ship
  • Surface mount box is compatible with Panduit® Mini-Com® connector modules.
  • Optional magnet (CBM-X) adheres to box base for mounting on metal surfaces.
  • Supplied with two #6-32 x 1” combination slot/Phillips screws.
  • Compatible with Panduit Pan-Way LD3 and LD5 surface raceways.
  • CBX2 includes built-in removable blank to add a second module.
  • Cable entry from side and rear knockouts and from opening in center of base.
  •

    spec for surface mount spec for panduit surface mount
    CBX2 2-Module CBX 4-Module
    Related Articles






    How-To Corner







    PART # RACEWAY BREAK OUT
    PAN-CBX2 LDP3/ LD3 A
    PAN-CBX4 LDP5/ LD5 B

    mini-com mounting directions

    installation image
