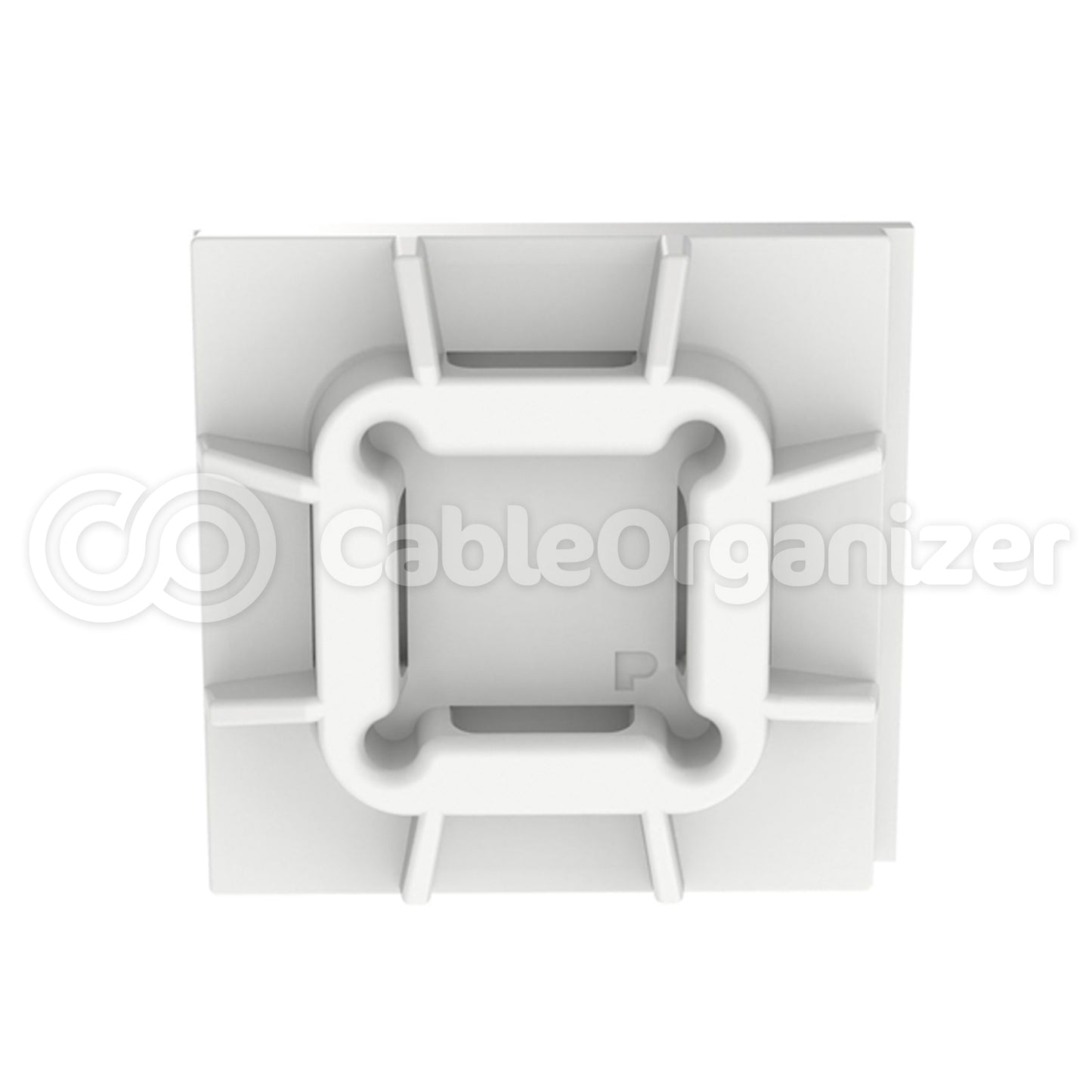

Panduit Super-Grip™ 4 Way Adhesive Backed Cable Tie Mounts

Neatly Secure Wire or Cable Without Drilling Any Holes


PAN-SGABM20-A-C
Qty:

What's special about these adhesive mounting clips?

  • Adhesive backing allows routing of wires and cables where mounting holes cannot be drilled.
  • Mounts take up very little room with its low profile design.
  • 4-way cable tie entry, each 1/4" wide, makes installation fast and easy.
  • Click for More Features
  •
  • RoHS Compliant

Choose Panduit's Super Grip 4 Way adhesive mounts whenever you require cable bundling to be mounted and holes cannot be drilled onto the mounting surface. You can apply onto steel or painted surfaces following the surface cleaning instructions provided. For small spaces, these mounts take up very little room and are easy to use.

Part # Description L X W Color Quantity / Pack Weight Price / Pack
PAN-SGABM20-A-C Panduit Adhesive Back Mounts 0.75" x 0.75" White 100 0.14 lb
Qty:
Quick Ship
PAN-SGABM20-A-C-10 Panduit Adhesive Back Mounts 0.75" x 0.75" White 10 0.014 lb
Qty:
Quick Ship
PAN-SGABM20-AT-C0 Panduit Adhesive Back Mounts 0.75" x 0.75" Black 100 0.14 lb
Qty:
Manufacturer Direct
PAN-SGABM25-A-C Panduit Adhesive Back Mounts 1.00" x 1.00" White 100 0.29 lb
Qty:
Quick Ship
PAN-SGABM25-A-C-10 Panduit Adhesive Back Mounts 1.00" x 1.00" White 10 0.029 lb
Qty:
Quick Ship
PAN-SGABM25-AT-C0 Panduit Adhesive Back Mounts 1.00" x 1.00" Black 100 0.29 lb
Qty:
Manufacturer Direct
  • Each size comes with optional mounting hole for drilling.
  • Use with cable ties to mount on most clean surfaces including metal and painted areas.
  • The adhesive backed mounts are small in size to allow use wherever space is limited.
  • Available in both indoor and weather resistant nylon.
  • Mounts will attach indefinitely if installation instructions are followed.
  • Multiple sizes available based on your cable tie size and static load requirements.
  • RoHS Compliant
  • Indoor adhesive mounts are made of white nylon 6.6 with a rubber based adhesive, designed for use with any powder-coated surface.
  • Outdoor adhesive mounts are made of weather resistant nylon 6.6 with an acrylic based adhesive and can be used on any powder coat or steel surface.
  • Weather resistant acrylic tape mounts can be used up to 180°F
  • Panduit's adhesive backed mounts are designed to hold 0.5 lbs for a 1" square mount.
  • Panduit products are manufactured and registered as ISO 9001:2000 quality certified.
  •

    PART # MAX STATIC LOAD MATERIAL L x W QUANTITY COLOR
    PAN-SGABM20-A-C 127 lbs Nylon 6.6 0.75" x 0.75" 100 White
    PAN-SGABM20-AT-C0 127 lbs Weather Resistant Nylon 6.6 0.75" x 0.75" 100 Black
    PAN-SGABM25-A-C 227 lbs Nylon 6.6 1.00" x 1.00" 100 White
    PAN-SGABM25-AT-C0 227 lbs Weather Resistant Nylon 6.6 1.00" x 1.00" 100 Black
    Manuals




    Related Articles





    How-To Corner







    IMPORTANT INFORMATION:
    • For best results clean the panel with a 50/50 mix of alcohol and water, remove the liner and apply pressure for at least 5 seconds.
    • Rubber based adhesive tape mounts should be set in place for 2 hours before attaching a cable bundle.
    • Acrylic based tape mounts should be set in place for 8 hours before attaching a cable bundle.
    • You can determine mount spacing by dividing the weight of your wire bundle per foot by the mount's static load rating.
    • Storage in opened containers is not recommended. It is best to keep the product in its original packaging. Adhesive products should never be stored near heating vents or other heat sources. Storage in lower temperatures may increase shelf life.
