Panduit Open Access Horizontal D-ring Cable Managers

An Economical Cable Management Solution for Current and Future Applications

PAN-CMPH1
Qty:

What's special about this Open-Access System?

  • D-rings come pre-assembled on panels to reduce installation time.
  • Mounts on the front and rear of any standard EIA 19" rack and cabinet for standardization.
  • Sturdy structure provides durability while lightweight for ease of use.
  • Click for More Features

Panduit makes high quality products for wiring and communications applications. The unique open access horizontal D-ring cable manager provides a solution for managing cable on any standard EIA 19" rack or cabinet.

Open-Access Horizontal Panel D-Ring - Front & Rear
Part # RMS/U Front Rear Height Depth Width Weight Price
PAN-CMPH2 2U 3" x 3" 3" x 5" 3.47" 8.58" 19" 2.09 lbs
Qty:
Manufacturer Direct
Open-Access Horizontal Panel D-Ring - Front Only
Part # RMS/U Front Rear Height Depth Width Weight Price
PAN-CMPHF1 1U 1.5" x 3" x 1.72" 3.42" 19" 0.92 lb
Qty:
Quick Ship
PAN-CMPHHF1 1U 1.5" x 5" x 1.72" 5.38" 19" 1.18 lbs
Qty:
Manufacturer Direct

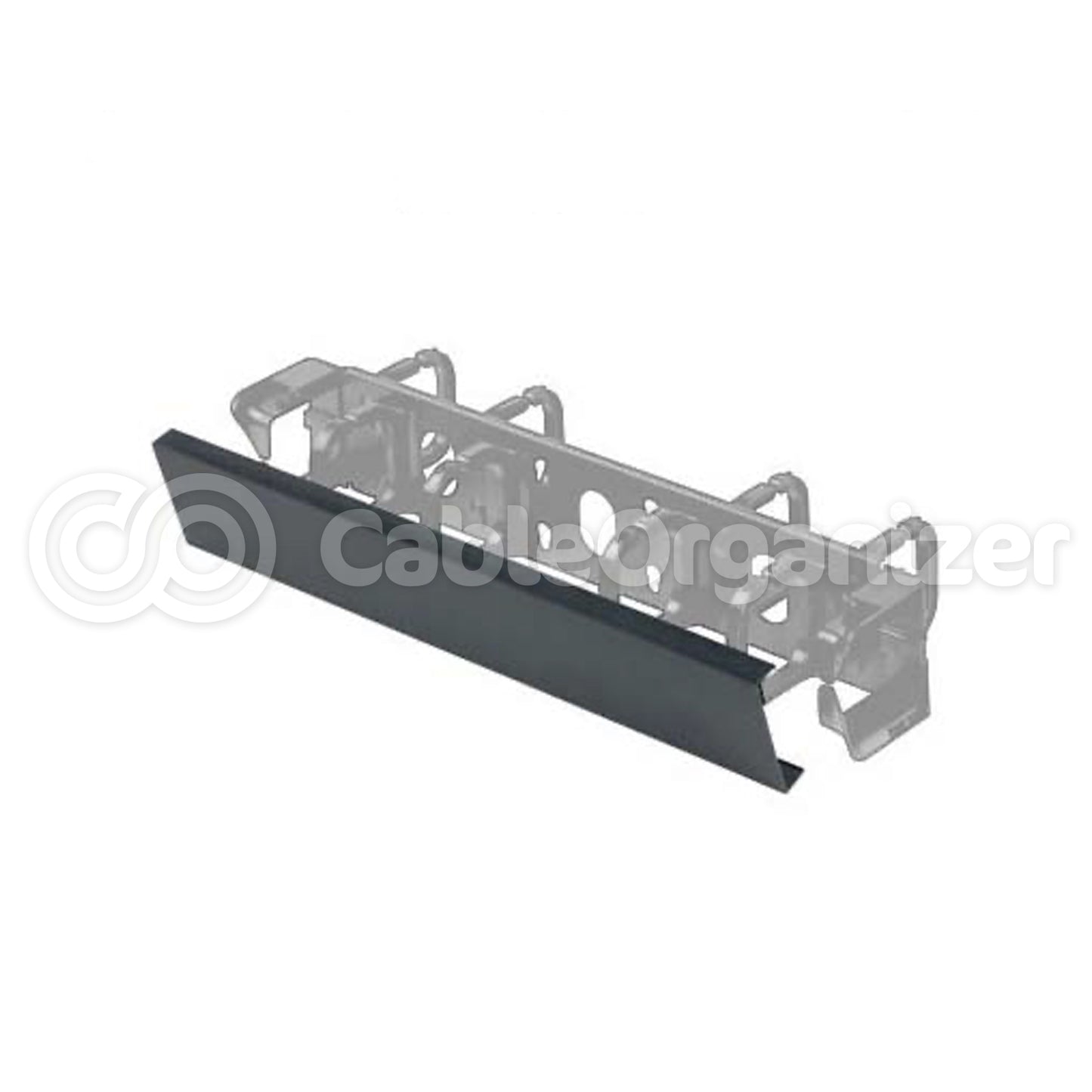

Snap-On Replacement Covers
Part # RMS/U Weight Price
PAN-CMPH2C 2U 0.34 lb
Qty:
Quick Ship

If you are looking for and open and efficient way to manage cable, these easy to install D-ring panels offer a versatile solution now and in the future. Made in a variety of styles, they are suitable for both large and small cabling installations.

  • Modular and Snap in design for ultimate flexibility and easy installation.
  • D-rings are rounded to prevent cables from snagging.
  • Flexible construction makes access to cables for moves, additions, and changes, easy.
  • Front to rear cabling made possible by pass-through holes.
  • Suitable for multi-media applications that have coax, copper and fiber optic cables.
  • Panels constructed of steel for durability and D-rings made of lightweight plastic for flexibility.
  • RoHs Compliant to reduce risks to installers.
  • Hardware Included - four (4) #12-24 x 0.5" in each kit
  • Open access cable management system can be used with NetKey® Metal Modular Patch Panels and NetRunner™ Vertical Cable Management for a total system solution.



DRAWING DIMENSIONS -
