What's special about these butt connectors?
- Made with Crystal Clear™ heat shrink tubing to allow full visual inspection of splices prior to crimping.
- Lined with a hot melt adhesive to completely seal out dust, dirt, and water, protecting the integrity of your splice.
- Color-coded strips on the connector barrel indicate which wire gauge to be used with the connector.
- 2.5:1 shrink ratio accommodates wires of various sizes.
- Click for More Features
OptiSeal heat shrink butt splices are made with a specially formulated crystal clear heat shrink tubing to provide a clear view of connections prior to crimping. This additional clarity ensures that your splices are crimped correctly and will work as they should.
|Part #||Tubing Diameter||Color Code||Max. Expanded Id||Min. Recovered Id||Package||Price|
|NSPA-OS55-16||18-22 AWG||Red||0.260"||0.045"||50 pcs||

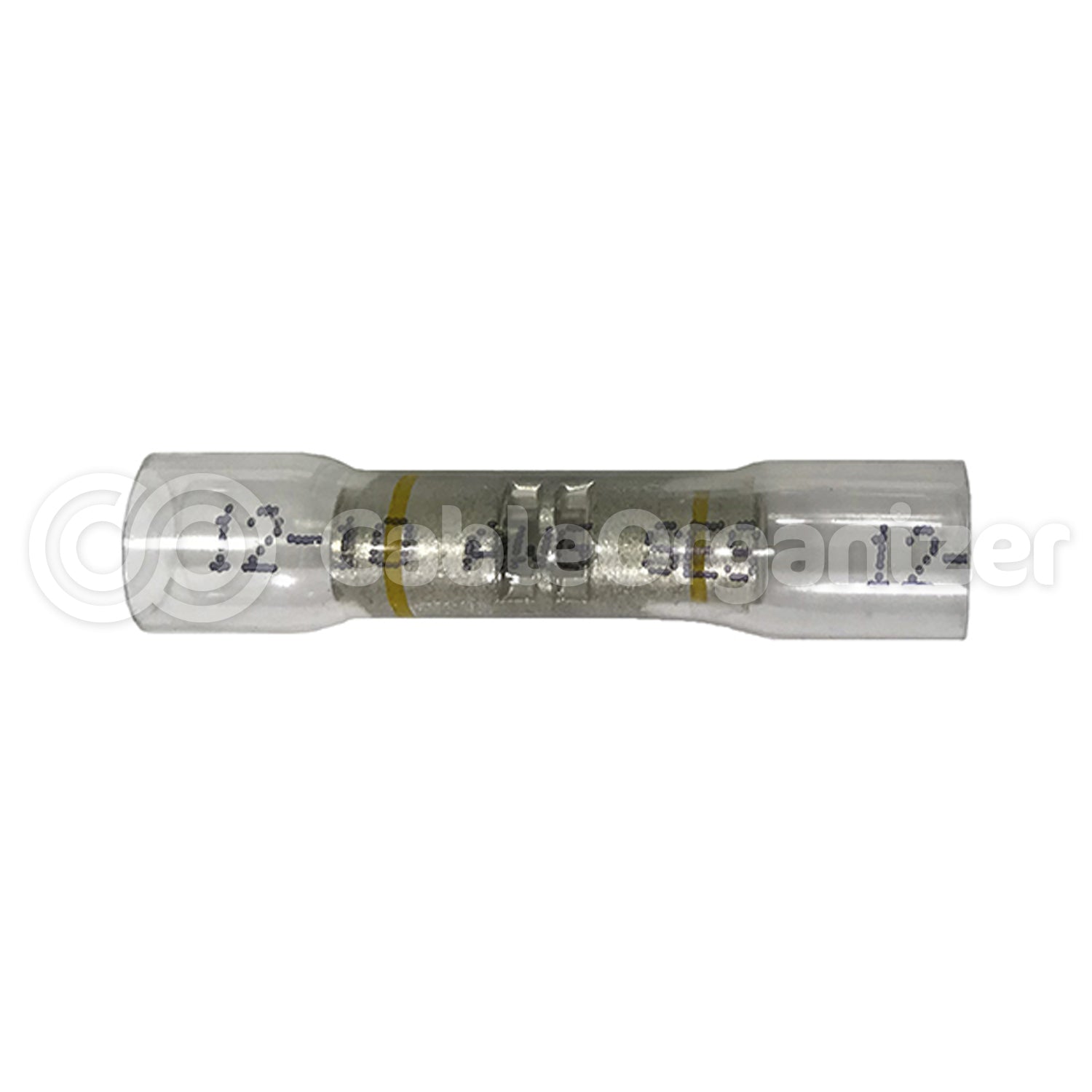

|NSPA-OS55-10||10-12 AWG||Yellow||0.375"||0.100"||50 pcs||
- One-piece, seamless design provides greater conductivity.
- Equipped with a wire stop to prevent over-inserting of wires when crimping.
- Heat shrink is made of a specially formulated cross-linked ionic polymer for extreme strength.
- High tensile strength to resist breakage
- RoHS Compliant
|Material||Cross-linked ionic polymer|
|Shrink Ratio||Exceeds 2.5 to 1|
|Shrink/Recovery Temperature||194° F (90° C)|
|Continuous Operating Temp||-67° to 257° F (-55° to 125° C)|
|Flammability||Passed (FMVSS 302 test)|
|Tensile Strength||4,000 PSI|
|Longitudinal Change||+1/-10% Max|
|Dielectric Strength||750 V/Mil (30KV/MM)|
