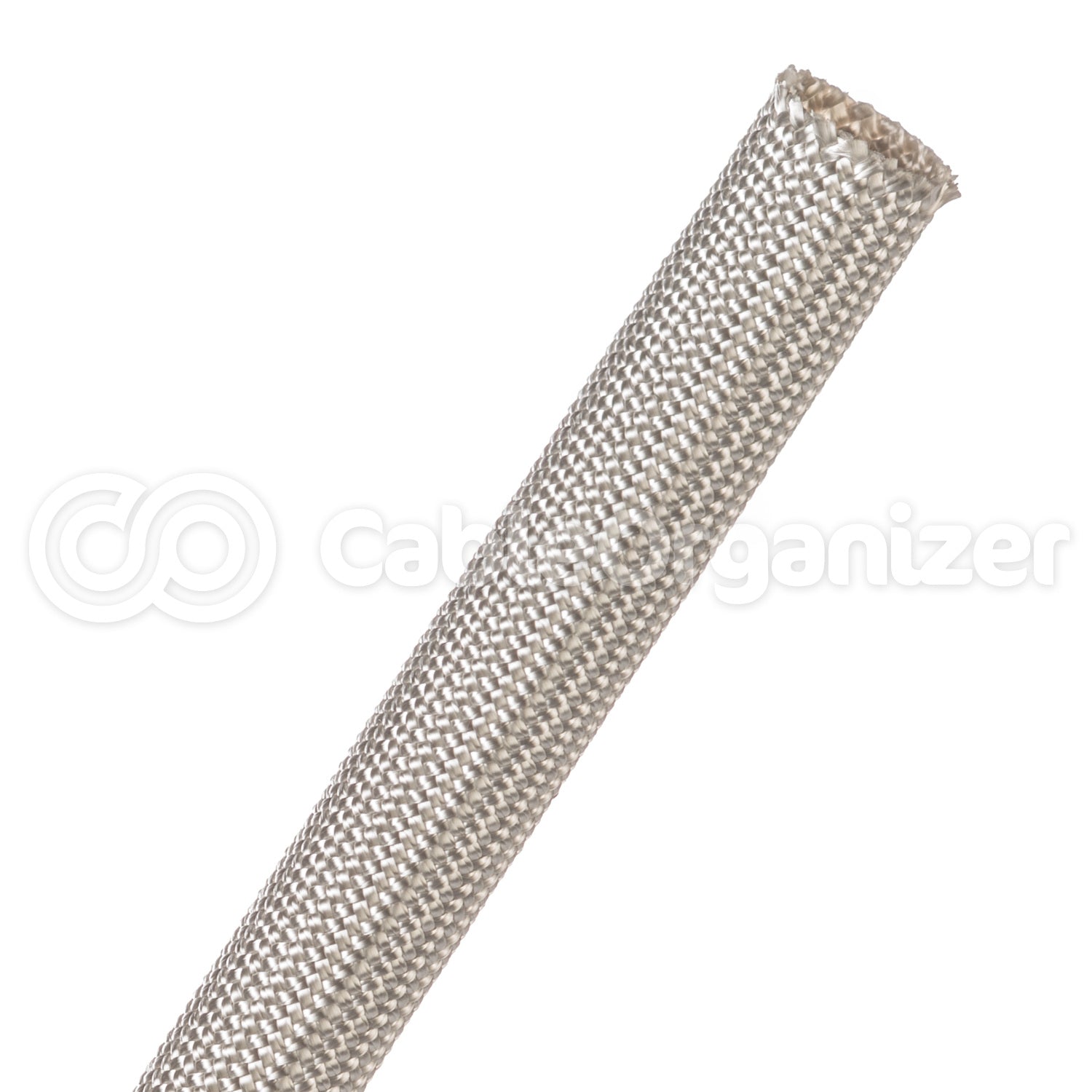

Insultherm® Ultra Flex® Pro

Heavy Wall Construction


FHH0.50-50FT
Qty:

What's special about Insultherm® Ultra Flex® Pro?

  • Provides Professional Look on Products
  • Resists Common Chemicals, Solvents, and UV Damage
  • Protects against oils and water
  • Withstands extreme high temperatures
  • Cut and Abrasion Resistant
  • Click for More Features
  • RoHS Compliant CSA Approved UL Recognized Component Mark

The heavy wall construction, large available diameters and high expandability of Ultra Flex® PRO provides a high level of protection and ease of installation when used to insulate pipes and hoses subject to abrasion and vibration. Ultra Flex® Pro cuts easily with scissors, and special heat treated construction minimizes fraying and dusting during assembly. Increased wall thickness adds value to insulation. Ultra Flex® is available in Natural.

1/2" Diameter
Color Part # Length Price
FHH0.50-50ft 50'
Qty:
FHH0.50-100ft 100'
Qty:
3/4" Diameter
Color Part # Length Price
FHH0.75-50ft 50'
Qty:
FHH0.75-100ft 100'
Qty:
1" Diameter
Color Part # Length Price
FHH1.00-25ft 25'
Qty:
FHH1.00-50ft 50'
Qty:
1-1/4" Diameter
Color Part # Length Price
FHH1.25-25ft 25'
Qty:
FHH1.25-50ft 50'
Qty:
1-1/2" Diameter
Color Part # Length Price
FHH1.50-25ft 25'
Qty:
FHH1.50-50ft 50'
Qty:
  • Braided From 0.006" PET Fibers
  • Halogen Free - RoHS Compliant
  • FAR 25, FMVSS 302 Approved
  • Melt Temp: 482°F/250°C
  • Operating Temps: -94°F to 257°F (-70°C to 125°C)
  •

    PHYSICAL PROPERTIES OPERATING TEMPERATURES CHEMICAL RESISTANCE
    Monofilament Diameter Wall thickness Abrasion Resistance Temp. Range Melt Point Chlorinated Solvents Strong Acids
    0.010" 0.025" High -70°C – 125°C 250°C Affected Affected

    View Measurement Conversion Chart



    Nominal Size Expansion Range Available Colors Weight per 100'
    Min. Max.
    3/8" 1/4" 5/8" Camouflage, Desert Camouflage, Denim, Fire, Jungle 0.490 lb
    1/2" 5/8" 3/8" Camouflage, Desert Camouflage, Denim, Fire, Jungle 0.740 lb
    3/4" 1 3/16" 5/8" Camouflage, Desert Camouflage, Denim, Fire, Jungle 0.990 lbs
    1" 1 1/2" 7/8" Camouflage, Desert Camouflage, Denim, Fire, Jungle 1.320 lbs
    1-1/4" 1 3/4" 1-1/8" Camouflage, Desert Camouflage, Denim, Fire, Jungle 1.340 lbs
    1-1/2" 2 3/8" 1 3/8" Camouflage, Desert Camouflage, Denim, Fire, Jungle 1.960 lbs
