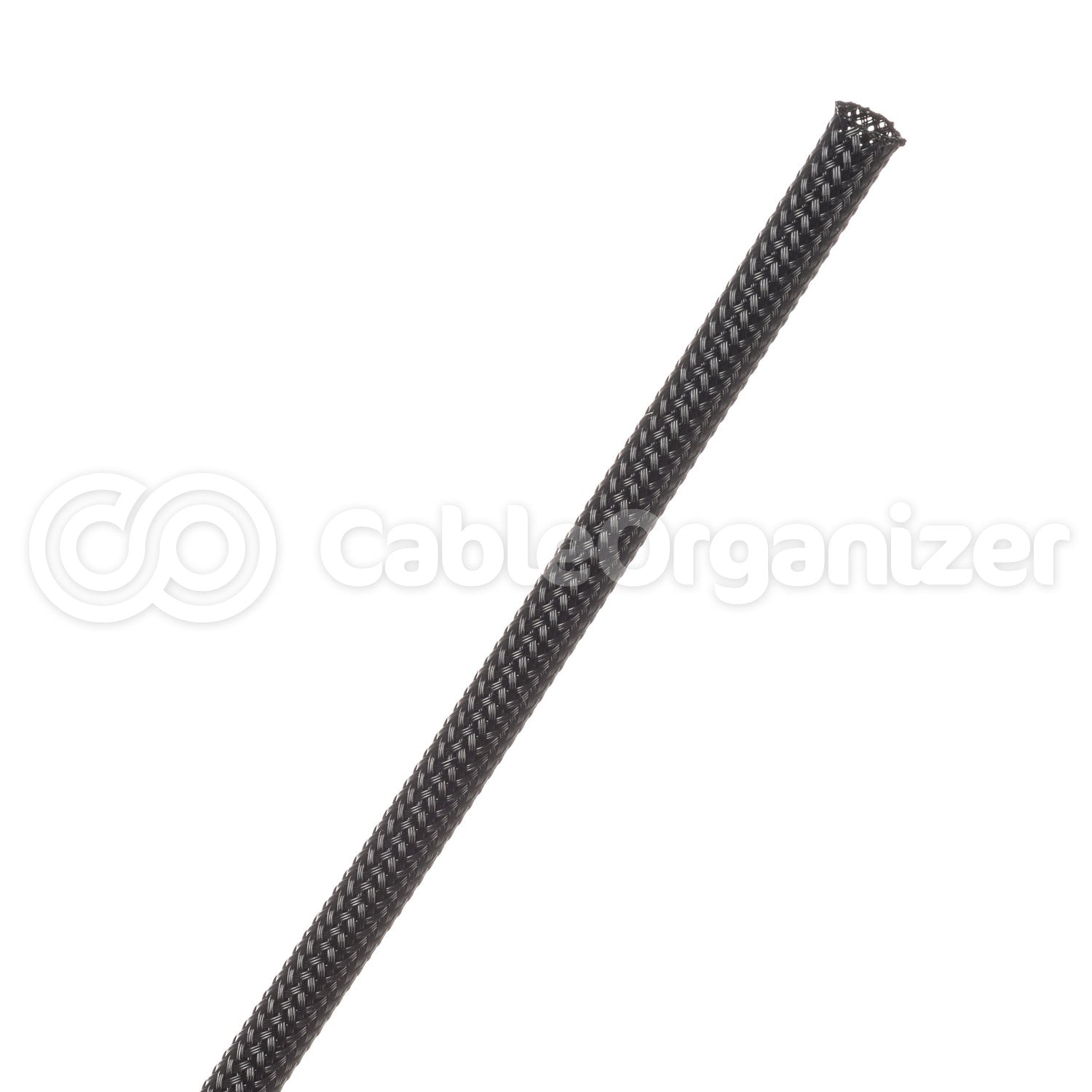

Techflex® Flexo® Clean Cut® Easy-to-cut Braided Cable Sleeving

Tough, Easy-to-cut Sleeving Designed for the Field

SPCC0125-10FT
Qty:

What's special about a non-fray expandable sleeving?

  • Available in standard PET and FR (Fire Retardant) grades.

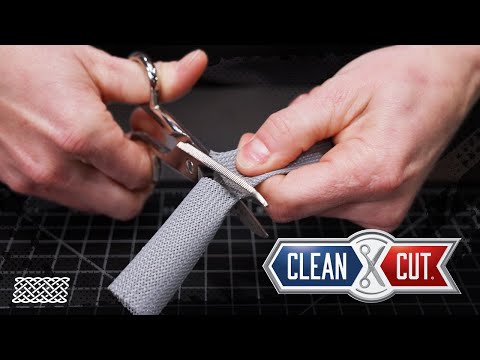

  • Cuts cleanly with scissors for easy installation in the field or when a hot knife is unavailable
  • Monofilament size: 0.008" FR version meets UL VW-1
  • Max. continuous operating temp.: 257°F (125°C)
  • High abrasion resistance and increased braid density for fuller coverage.
  • Fray resistant construction
  • Click for More Features
  • RoHS Compliant

Techflex® Flexo® Clean Cut is an innovative fray resistant coverings for wires, cables, and hose assemblies. This sleeving is ideal for field installers and other situations where access to a hot knife is impossible.The fray resistant properties allows frequent expansion of the cut end without unraveling and when cut with a hot knife, it produces a clean, smooth and virtually frayless end.

Splice Free Spooling:
Some splices are normal during the braiding process. Usually, not more than one or two splices will be on any given spool. Ordering splice-free spools guarantees the maximum continuous yield on your spools. This option is suggested when ordering large lengths of sleeving or for important and precise projects. This treatment is most applicable in lengths that exceed 100 feet. In general, shorter lengths will be splice free as they come off the spools.

1/8" Diameter
Color Part # Length Price
SPCC0125-10FT 10'
Qty:
SPCC0125-25FT 25'
Qty:
SPCC0125-100FT 100'
Qty:
SPCC0125-1000FT 1000'
Qty:
SPCC0125-3000FT 3000'
Qty:
1/4" Diameter
Color Part # Length Price
SPCC025-10FT 10'
Qty:
SPCC025-25FT 25'
Qty:
SPCC025-100FT 100'
Qty:
SPCC025-1000FT 1000'
Qty:
SPCC025-3000FT 3000'
Qty:
3/8" Diameter
Color Part # Length Price
SPCC0375-10FT 10'
Qty:
SPCC0375-25FT 25'
Qty:
SPCC0375-100FT 100'
Qty:
SPCC0375-500FT 500'
Qty:
SPCC0375-2000FT 2000'
Qty:
1/2" Diameter
Color Part # Length Price
SPCC050-10FT 10'
Qty:
SPCC050-25FT 25'
Qty:
SPCC050-100FT 100'
Qty:
SPCC050-500FT 500'
Qty:
SPCC050-2000FT 2000'
Qty:
3/4" Diameter
Color Part # Length Price
SPCC075-10FT 10'
Qty:
SPCC075-25FT 25'
Qty:
SPCC075-75FT 75'
Qty:
SPCC075-250FT 250'
Qty:
SPCC075-1500FT 1500'
Qty:
1" Diameter
Color Part # Length Price
SPCC100-10FT 10'
Qty:
SPCC100-25FT 25'
Qty:
SPCC100-50FT 50'
Qty:
SPCC100-250FT 250'
Qty:
SPCC100-1000FT 1000'
Qty:
1 1/4" Diameter
Color Part # Length Price
SPCC125-10FT 10'
Qty:
SPCC125-25FT 25'
Qty:
SPCC125-50FT 50'
Qty:
SPCC125-250FT 250'
Qty:
SPCC125-1000FT 1000'
Qty:
1 1/2" Diameter
Color Part # Length Price
SPCC150-10FT 10'
Qty:
SPCC150-25FT 25'
Qty:
SPCC150-50FT 50'
Qty:
SPCC150-250FT 250'
Qty:
SPCC150-1000FT 1000'
Qty:
1 3/4" Diameter
Color Part # Length Price
SPCC175-10FT 10'
Qty:
SPCC175-25FT 25'
Qty:
SPCC175-50FT 50'
Qty:
SPCC175-200FT 200'
Qty:
SPCC175-750FT 750'
Qty:
2" Diameter
Color Part # Length Price
SPCC200-10FT 10'
Qty:
SPCC200-25FT 25'
Qty:
SPCC200-50FT 50'
Qty:
SPCC200-200FT 200'
Qty:
SPCC200-750FT 750'
Qty:

The unique design offers full coverage, flexibility, excellent abrasion protection and a finished end that resists fraying. Available in standard & FR grades, PET NF is braided from durable, high temperature resistant .008 in. polyethylene terephthalate monofilament, the PET NF grade braided sleeving is readily used in the automotive, A/V, industrial, marine, military, racing, wire and cable, and computer industries.

  1. Available in standard PET and FR (Fire Retardant) grades.
  2. Monofilament size: .008"
  3. FR version meets UL VW-1
  4. Max. continuous operating temp.: 257°F (125°C)
  5. Fray resistant construction
  6. Can be cut with a hot knife or scissors for a clean finished end
  7. 2-1 expansion
  8. Uses no chemical coatings to provide fray resistance
  9. Allows for frequent expansion at the cut ends without unraveling
  10. High abrasion protection
  11. Very full coverage
  12. Easy use and installation in the shop or on the field
  13. Light weight, tough flexible covering
  14. UV light resistant
  15. Chemical resistant
  16. Moisture resistant
  17. Allows moisture to dissipate from assembly
  18. Compliant with European Union's Restrictions on the use of Hazardous Substances (RoHS) Directive
  19. Conforms to ASTM and MIL standards
PHYSICAL PROPERTIES OPERATING TEMPERATURES CHEMICAL RESISTANCE
Monofilament Diameter Wall thickness Abrasion Resistance Temp. Range Melt Point Chlorinated Solvents Strong Acids
0.008 0.024 High -75°C – 125°C 230°C Affected Affected

View Measurement Conversion Chart



Nominal Size Expansion Range Available Colors Weight per 100'
Min. Max.
1/8" 1/8" 1/4" Black, Gray 0.40 lb
1/4" 5/32" 7/16" Black, Gray 0.46 lb
3/8" 3/16" 5/8" Black, Gray 0.74 lb
1/2" 1/4" 3/4" Black, Gray 0.82 lb
3/4" 5/8" 1" Black, Gray 1.11 lbs
1" 3/4" 1-3/16" Black, Gray 1.24 lbs
1-1/4" 1" 1-1/2" Black, Gray 1.56 lbs
1-1/2" 1-1/4" 2" Black, Gray 1.85 lbs
