Great Lakes Compact E Series Enclosures

Full Size Protection in Less Space


QGL-300E-2432S
Qty:

What's special about these compact sized, rackmount enclosures?

  • Versatile design provides full scale mounting options and equipment protection, in an economical size that is ideal for a wide range of applications with space limitations.
  • Complete 30”, 48” or 60” high enclosures with a variety of accessories, doors, side panels, and top panels available for allowing for customization and design options.
  • Fully welded steel construction has increased weight capacity for mounting and storing heavy networking and telecommunications equipment.
  • Click for More Features
  •
  • RoHS CompliantUL Classified

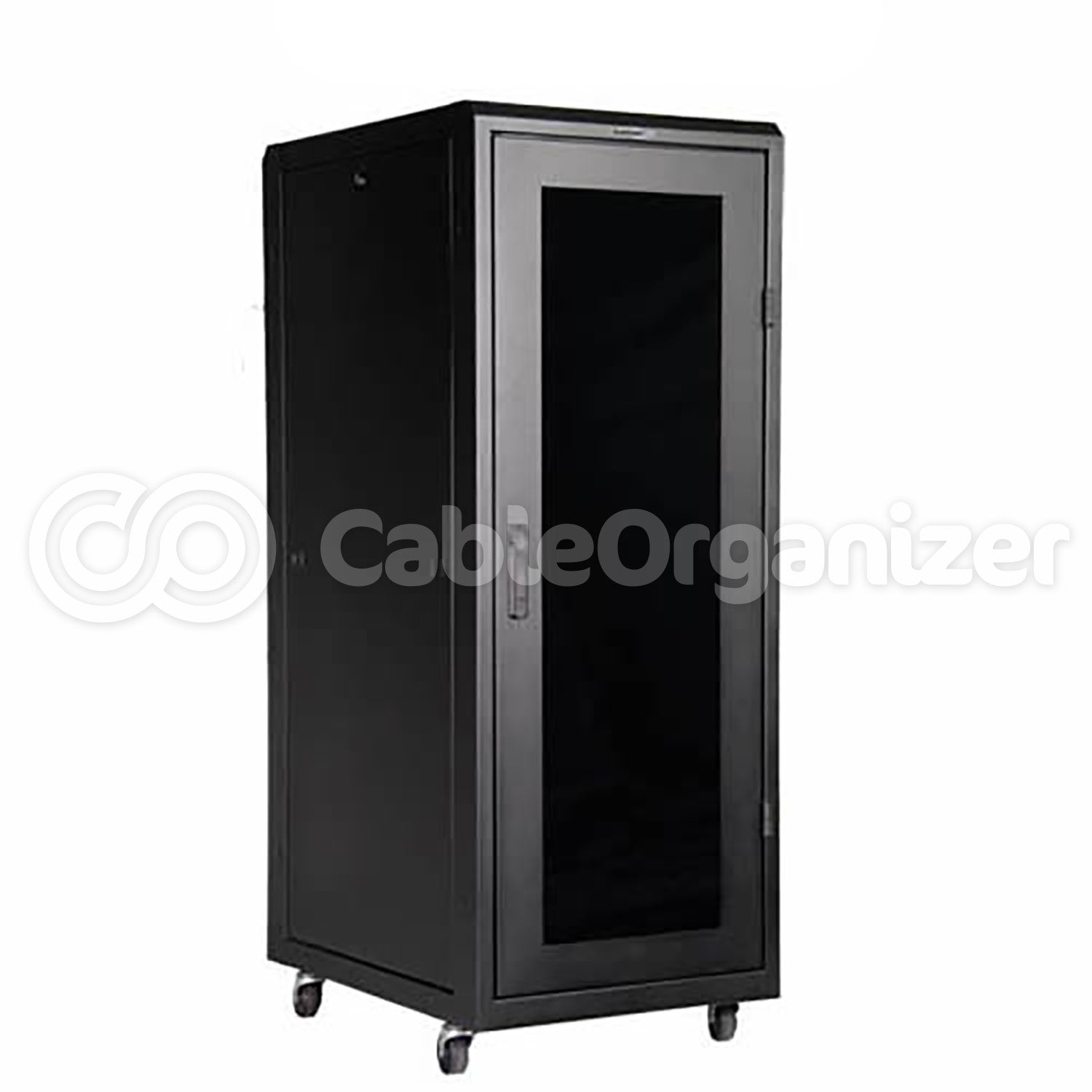

The Great Lakes E Series Compact Enclosures provide installers and users with a complete rackmount solution for space limited applications. These enhanced enclosures provide all the protection of a full sized enclosure, and feature increased weight capacity for rack mounting a wide range of heavy networking equipment and accessories. With lockable doors, side panels and a durable 16 gauge fully welded steel construction, these enclosures withstand fast paced environments while keeping valuable equipment safe and protected.

Color Options: black, advantage gray, nitro blue

13 RMU Enclosures
Part # Description Dimensions Shipping Weight Load Capacity Price
QGL-300E-2432S Complete Enclosure with Solid Top Panel (TPE-24S) 30" H x 24" W x 32" D 160 lbs 300 lbs.
Qty:
Manufacturer Direct
QGL-300E-2432P Complete Enclosure with Vented Top Panel (TPE-24P) 30" H x 24" W x 32" D 160 lbs 300 lbs.
Qty:
Manufacturer Direct
QGL-300E-2432F Complete Enclosure with Three Fan Top Panel (TPE-24F) 30" H x 24" W x 32" D 160 lbs 300 lbs.
Qty:
Manufacturer Direct
QGL-300E-2432F10 Complete Enclosure with Large Fan Top Panel (TPE-24F10) 30" H x 24" W x 32" D 160 lbs 300 lbs.
Qty:
Manufacturer Direct
24 RMU Enclosures
Part # Description Dimensions Shipping Weight Load Capacity Price
QGL-480E-2432F Complete Enclosure with Three Fan Top Panel (TPE-24F) 48" H x 24" W x 32" D 210 lbs 600 lbs.
Qty:
Manufacturer Direct
QGL-480E-2432F10 Complete Enclosure with Large Fan Top Panel (TPE-24F10) 48" H x 24" W x 32" D 210 lbs 600 lbs.
Qty:
Manufacturer Direct
QGL-480E-2432S Complete Enclosure with Solid Top Panel (TPE-24S) 48" H x 24" W x 32" D 210 lbs 600 lbs.
Qty:
Manufacturer Direct
QGL-480E-2432P Complete Enclosure with Vented Top Panel (TPE-24P) 48" H x 24" W x 32" D 210 lbs 600 lbs.
Qty:
Manufacturer Direct
31 RMU Enclosures
Part # Description Dimensions Shipping Weight Load Capacity Price
QGL-600E-2432F Complete Enclosure with Three Fan Top Panel (TPE-24F) 60" H x 24" W x 32" D 250 lbs 600 lbs.
Qty:
Manufacturer Direct
QGL-600E-2432F10 Complete Enclosure with Large Fan Top Panel (TPE-24F10) 60" H x 24" W x 32" D 250 lbs 600 lbs.
Qty:
Manufacturer Direct
QGL-600E-2432S Complete Enclosure with Solid Top Panel (TPE-24S) 60" H x 24" W x 32" D 250 lbs 600 lbs.
Qty:
Manufacturer Direct
QGL-600E-2432P Complete Enclosure with Vented Top Panel (TPE-24P) 60" H x 24" W x 32" D 250 lbs 600 lbs.
Qty:
Manufacturer Direct

Accessories

Cable Management
Part # Image Description Dimensions Price
QGL-CM-05 Great Lakes Compact E Series Enclosures QGL-CM-05 Single Sided Cable Organizer, 5 horizontal rings 1.30" W x 1.80" D / 2 RMU
Qty:
Manufacturer Direct
QGL-CM-09 Great Lakes Compact E Series Enclosures QGL-CM-09 Double Sided Cable Organizer, 4 horizontal rings and 4 vertical rings 1.75" W x 3.75" D / 2 RMU
Qty:
Manufacturer Direct
Power Solutions
Part # Image Number Of Receptacles Type Of Receptacles Type Of Plug Surge Protection Price
QGL-7219 Great Lakes Compact E Series Enclosures QGL-7219 6 5-15R 5-15P No
Qty:
Manufacturer Direct
QGL-7219-SR14 Great Lakes Compact E Series Enclosures QGL-7219-SR14 6 Front / 8 Back 5-15R 5-15P Yes
Qty:
Manufacturer Direct
Rackmount Shelving and Keyboard Trays
Part # Image Description Dimensions Weight Capacity Ru Price
QGL-7206-SL Great Lakes Compact E Series Enclosures QGL-7206-SL Sliding Shelf 16.34"W x 17.50"D 40 lbs. 3 RMU
Qty:
Manufacturer Direct
QGL-7206-EIA Great Lakes Compact E Series Enclosures QGL-7206-EIA Stationary Shelf 17.47"W x 18.00"D 80 lbs. 2 RMU
Qty:
Manufacturer Direct
QGL-7206-14 Great Lakes Compact E Series Enclosures QGL-7206-14 Stationary Shelf 17.50"W x 14.00"D 80 lbs. 2 RMU
Qty:
Manufacturer Direct
QGL-7206-FM Great Lakes Compact E Series Enclosures QGL-7206-FM Stationary Shelf 17.25"W x 18.00"D 60 lbs. 2 RMU
Qty:
Manufacturer Direct
QGL-1984-KM Great Lakes Compact E Series Enclosures QGL-1984-KM Keyboard Shelf with Pivoting Mouse Tray 19.00"W x 8.00"D 110 lbs. 2 RMU
Qty:
Manufacturer Direct
QGL-1984ST09 Great Lakes Compact E Series Enclosures QGL-1984ST09 Single Sided Heavy Duty Shelf 19.00"W x 9"D 75 lbs. 3 RMU
Qty:
Manufacturer Direct
QGL-1984ST15 Great Lakes Compact E Series Enclosures QGL-1984ST15 Single Sided Heavy Duty Shelf 19.00"W x 15"D 75 lbs. 3 RMU
Qty:
Manufacturer Direct
  • Universal M6 rails for mounting a wide range of accessories, patch panels, and cable management solutions.
  • Horse shoe style cutouts on top panel for easy pass through cable management, while allowing you to change or remove top panel without interfering with preexisting cable bundles.
  • Fully reversible doors for accommodating limited spacing, equipment specifications, or preexisting racks/enclosures.
  • Lockable side panels for increased security and equipment protection.
  • Mounting rails feature built-in cable management holes and cable tie-down slots, with infinitely adjustable positions.
  • Networkable for medium and large scale applications.
  • Multiple ground stud locations
  • 19” EIA 310-E compliant
  • cULus listed UL 60950-1
  • RoHS compliant
  •

    Includes:

    QGL-300E-2432

  • Enclosure frame with two 2 pair of black powder coated, universal M6 19" mounting rails and package of M6 hardware
  • One set of 4 Adjustable Levelers (2.50" H)
  • Plexiglas front door with locking swing handle
  • Perimeter vented steel rear door with locking swing handle
  • Pair of solid lift-off side panels with lock
  • 6 position, 15 amp Power Strip with circuit breaker and 15 ft. cord for 19" mounting
  • Removable top panel (varies per model)
  • QGL-480E-2432

  • Enclosure frame with two 2 pair of black powder coated, universal M6 19" mounting rails and package of M6 hardware
  • One set of 4 Adjustable Levelers (2.50" H)
  • Plexiglas front door with locking swing handle
  • Perimeter vented steel rear door with locking swing handle
  • Pair of solid lift-off side panels with lock
  • 6 position, 15 amp Power Strip with circuit breaker and 15 ft. cord for 19" mounting
  • Removable top panel (varies per model)
  • QGL-600E-2432:

  • Enclosure frame with two 2 pair of black powder coated, universal M6 19" mounting rails and package of M6 hardware
  • One set of 4 Adjustable Levelers (2.50" H)
  • Plexiglas front door with locking swing handle
  • Perimeter vented steel rear door with locking swing handle
  • Pair of solid lift-off side panels with lock
  • 6 position, 15 amp Power Strip with circuit breaker and 15 ft. cord for 19" mounting
  • Removable top panel (varies per model)
  •

    DRAWING DIMENSIONS -

  • 300E-2432 Drawing Specs (PDF) PDF
  • 480E-2432 Drawing Specs (PDF) PDF
  • 600E-2432 Drawing Specs (PDF) PDF
  •

    PART # QGL-300E-2432 QGL-480E-2432 QGL-600E-2432
    Racks Spaces: 31 RMU, 19" EIA 310-D Compliant 31 RMU, 19" EIA 310-D Compliant 31 RMU, 19" EIA 310-D Compliant
    Height: 30.00" 48.00" 60.00"
    Width: 24.00" 24.00" 24.00"
    Depth: 32.00" 32.00" 32.00"
    Inside Height: 24.25" 42.25" 54.25"
    Inside Width: 17.75" 17.75" 17.75"
    Construction: Fully Welded Steel Construction #16 Gauge Steel Fully Welded Steel Construction #16 Gauge Steel Fully Welded Steel Construction #16 Gauge Steel
    Rails: Universal M6 Cage Nut Rails Standard #12 Gauge Steel Universal M6 Cage Nut Rails Standard #12 Gauge Steel Universal M6 Cage Nut Rails Standard #12 Gauge Steel
    Finish: Durable Powder Coat Finish Durable Powder Coat Finish Durable Powder Coat Finish
    Weight Capacity: 300 lbs. 600 lbs. 600 lbs.
    RoHS: Compliant Compliant Compliant
    cULus: UL 60950-1 UL 60950-1 UL 60950-1
