Corning UniCam® Pretium™ Performance Multimode Connectors

High Performance Connectors Can Install in 45 Seconds

CN-95-050-99-X

What's special about UniCam Pretium Connectors?

Best in class optical Pretium performance connectors.
Ideal for fiber deployments in local area networks (LAN's), data centers, and campuses.
Excellence guaranteed .1 typical dB/.5 dB maximum insertion loss per connector pair.
Patented high precision ceramic ferrule are 100% tested to meet insertion loss.
Use with the UniCam Pretium Tool Kit for fastest most precise installation.
Click for More Features

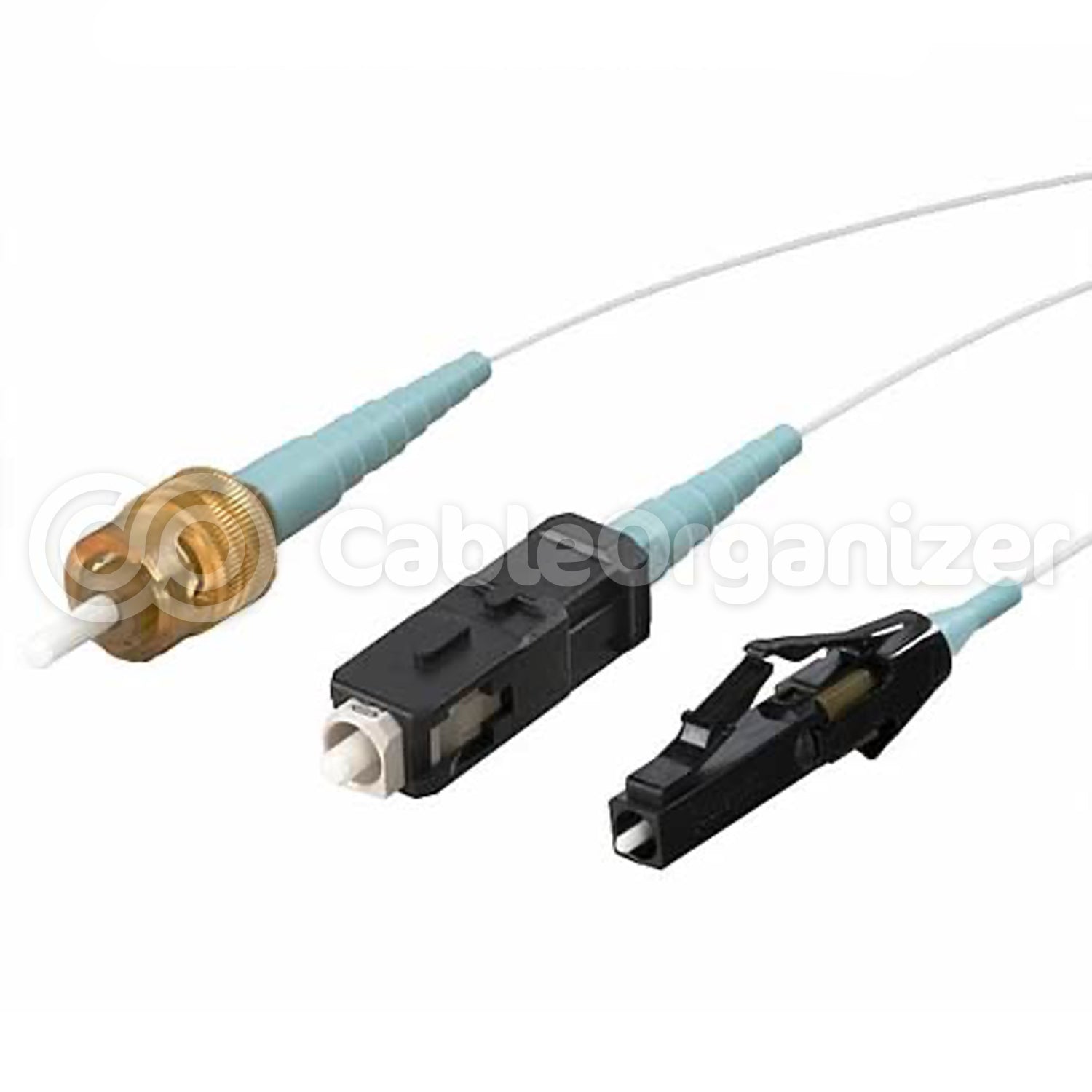

Corning UniCam Pretium connectors are available with a ceramic ferrule in LC-, SC-, and ST-compatible connector styles. The Connectors are no-epoxy, no-polish connectors that install quickly and easily in the field. The cost of installation is greatly reduced based on the quick 45-second installation time using the Pretium Tool Kit.

LC Connector
Part #	Description	Qty	Price
CN-95-050-99-X	UniCam Pretium-Performance LC Connector 50µm LOMMF, Ceramic Ferrule, Logo, Single Pack	1	Qty: Manufacturer Direct
CN-95-050-99	UniCam Pretium-Performance LC Connector 50µm, MMF Ceramic Ferrule, Logo, Single Pack	1	Qty: Manufacturer Direct
CN-95-000-99	UniCam Pretium-Performance LC Connector 62.5µm, Ceramic Ferrule, Logo, Single Pack	1	Qty: Manufacturer Direct

SC Connector
Part #	Description	Qty	Price
CN-95-050-41-X	UniCam Pretium-Performance SC Connector 50µm LOMMF, Ceramic Ferrule, Logo, Single Pack	1	Qty: Manufacturer Direct
CN-95-050-41	UniCam Pretium-Performance SC Connector 50µm, MMF Ceramic Ferrule, Logo, Single Pack	1	Qty: Quick Ship
CN-95-000-41	UniCam Pretium-Performance SC Connector 62.5µm, MMF Ceramic Ferrule, Logo, Single Pack	1	Qty: Manufacturer Direct

ST Connector
Part #	Description	Qty	Price
CN-95-050-51-X	UniCam Pretium-Performance ST Connector 50µm LOMMF, Ceramic Ferrule, Logo, Single Pack	1	Qty: Manufacturer Direct
CN-95-050-51	UniCam Pretium-Performance ST Connector 50µm, MMF Ceramic Ferrule, Logo, Single Pack	1	Qty: Manufacturer Direct
CN-95-000-51	UniCam Pretium-Performance ST Connector 62.5µm, MMF Ceramic Ferrule, Logo, Single Pack	1	Qty: Manufacturer Direct

100% guaranteed by Corning Cable Systems to meet insertion loss specification.

Operating temperature ranges from -40° to +75° C to accommodate indoor or outdoor use in an enclosure.

Pretium performance can be achieved with the UniCam Pretium Tool Kit or the standard UniCam Connector Toolkit.

No consumables needed

Fast installation lowers labor costs.

The UniCam Pretium-Performance Multimode Connectors are 100% guaranteed for meeting an installation specification of 0.1 dB typical and 0.5 dB maximum insertion. They also meet TIA/EIA-568 B.3 specifications for insertion loss and return loss at temperatures of -40° to +75° C, which allows the connectors to be used outdoors when enclosed in environmentally protected hardware.

Connector Type	Fiber	Insertion Loss Typical / Maximum (dB)	Reflectance (dB)	Housing Color	Boot Color
LC	62.5 µm MM	0.1 / 0.5	≤ -20	Beige	Beige
LC	50 µm MM	0.1 / 0.5	≤ -20	Black	Black
LC	50 µm LOMMF	0.1 / 0.5	≤ -26	Black	Aqua
SC	62.5 µm MM	0.1 / 0.5	≤ -20	Beige	Beige
SC	50 µm MM	0.1 / 0.5	≤ -20	Black	Black
SC	50 µm LOMMF	0.1 / 0.5	≤ -26	Black	Aqua
ST Compatible	62.5 µm MM	0.1 / 0.5	≤ -20	Amber	Beige
ST Compatible	50 µm MM	0.1 / 0.5	≤ -20	Amber	Black
ST Compatible	50 µm LOMMF	0.1 / 0.5	≤ -26	Amber	Aqua

Note: LOMMF = Laser-optimized multimode fiber
1 LC Connectors are sold with one 900 µm boot, one 2.0/1.6 boot, and one 2.9 mm boot; SC and ST Compatible connectors are sold with one 900 µm boot and one 2.9 mm boot.

Parameter	Description
Intermateability	Connectors are FOCIS compliant with TIA/EIA 604-10A (LC); TIA/EIA 604-3 (SC); TIA/EIA 604-2 (ST Compatible)
Qualification	Passed EIA/TIA 568-B.3
Durability	0.2 dB change, 500 rematings, FOTP-21
Tensile Strength	10 lb ≤ 0.2 dB change on jacketed cable; 0.5 lb change on 900 µm cable; FOTP-6
Operating Temperature	-40° to +75°C, exceeding EIA/TIA 568-B.3
