Smartbox™ Series

The box that cuts its own hole!

GI-MSB1G

What's special about Smartbox™ Products?

The box that cuts its own hole! Location accuracy makes this ideal for pendant lighting and wall sconces.
Joist mounted and extra-deep, our ceiling boxes are great for light fixtures, ceiling fans, and more.
The large capacity and low voltage divider makes this box optimal for flat screen TVs & home theatres.
Depth adjustable boxes are ideal for kitchens, baths and specialty wall surfaces.
Horizontal boxes have side mounting ability, making it optimal for subway tile and base boards.
Low voltage boxes have a unique leveling tab that allows for easy alignment to existing boxes.

The Romex® Brand SmartBox™ Original Device Boxes are unmatched in versatility in new work locations where you cannot swing a hammer, or where final wall surfaces are uncertain, like kitchens and baths. They are unmatched in old or retrofit work applications because they are always mounted to a stud.

Device Box
IMG	Part #	Description	Price
	GI-MSB1G	1 GANG DEVICE BOX 18.5 CU IN	Qty:
	GI-MSB1G4PK	1 GANG DEVICE BOX 18.5 CU IN 4 PK	Qty:
	GI-MSB2G	2 GANG DEVICE BOX 38 CU IN	Qty:
	GI-MSB3G	3 GANG DEVICE BOX 57 CU IN	Qty:
	GI-MSB4G	4 GANG DEVICE BOX 74 CU IN	Qty:
	GI-MSBHZ	1 GANG HORIZONTAL DEVICE BOX	Qty:

Multi Mount Device Box
IMG	Part #	Description	Price
	GI-MSBMMT1G	1 GANG MULTI MOUNT DEVICE BOX	Qty:
	GI-MSBMMT3G	3 GANG MULTI MOUNT DEVICE BOX	Qty:
	GI-MSBMMT4G	4 GANG MULTI MOUNT DEVICE BOX	Qty:
	GI-MSBMMT5G	5 GANG MULTI MOUNT DEVICE BOX	Qty:
	GI-MSBMMT6G	6 GANG MULTI MOUNT DEVICE BOX	Qty:

Other
IMG	Part #	Length	Price
	GI-MSBFAN	FAN SUPPORT 50/LB. MAX. CARTON	Qty:
	GI-MSBLV1G	1 GANG LOW VOLTAGE DEVICE RING	Qty:
	GI-MSBLV2G	2 GANG LOW VOLTAGE DEVICE RING	Qty:

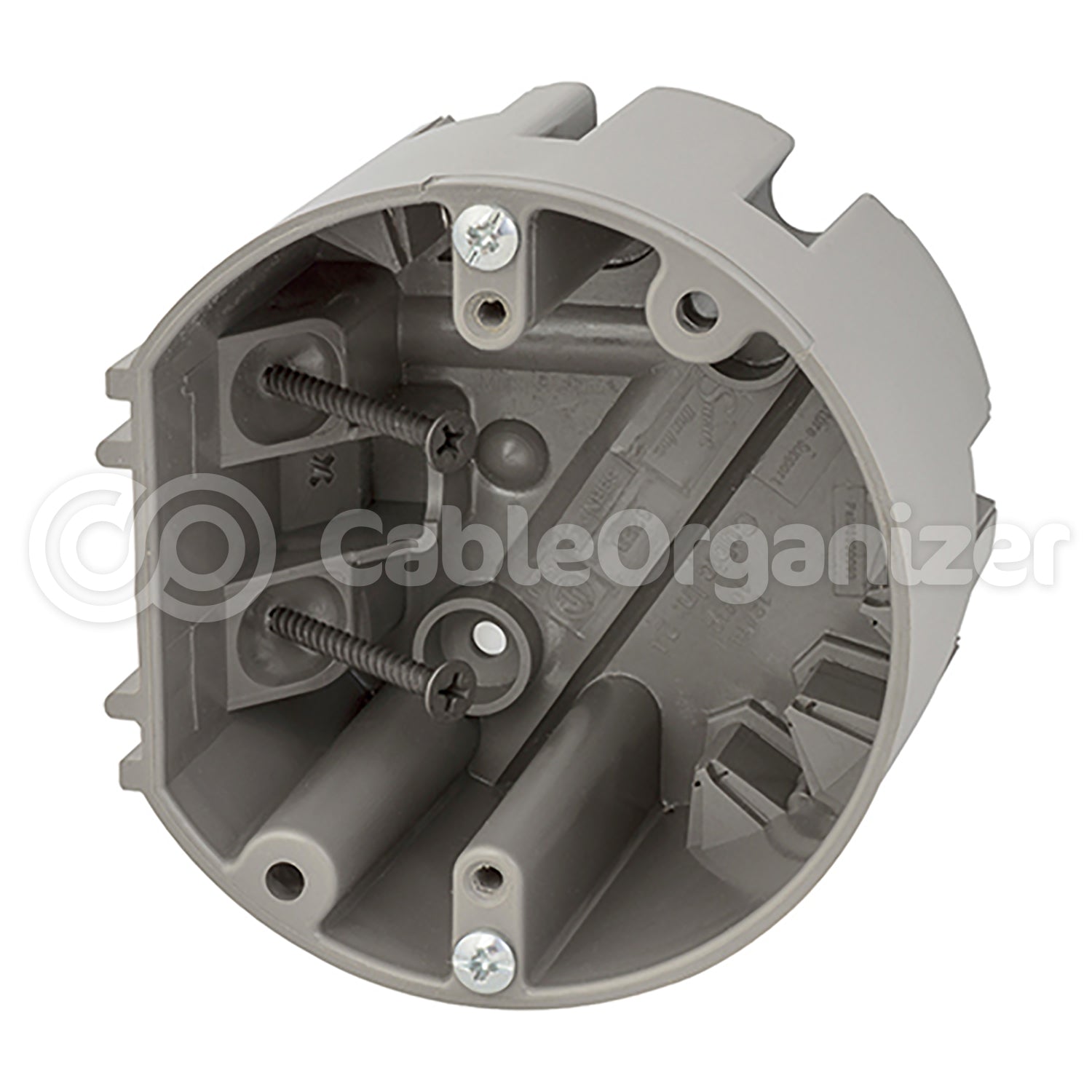

	GI-MSBRND	CEILING BOX 50/LB. FIXTURE ONLY	Qty:
	GI-MSBST250	RND BOX, SHARK TOOTH 2.5" DEEP	Qty:

The box that cuts its own hole! Location accuracy makes this ideal for pendant lighting and wall sconces.

Joist mounted and extra-deep, our ceiling boxes are great for light fixtures, ceiling fans, and more.

The large capacity and low voltage divider makes this box optimal for flat screen TVs & home theatres.

Depth adjustable boxes are ideal for kitchens, baths and specialty wall surfaces.

Horizontal boxes have side mounting ability, making it optimal for subway tile and base boards.

Low voltage boxes have a unique leveling tab that allows for easy alignment to existing boxes.

Part #	Description	Height	Width	Depth	Weight	Material	Cubic Capcity
GI-MSB1G	1 GANG DEVICE BOX 18.5 CU IN	3.7 in	2.4 in	3.8 in	0.2 lbs	PVC	18.5 (303.2)
GI-MSB1G4PK	1 GANG DEVICE BOX 18.5 CU IN- 4 Pack	3.7 in	2.4 in	3.8 in	0.8 lbs	PVC	18.5 (303.2)
GI-MSB2G	2 GANG DEVICE BOX 38 CU IN	3.82 in	4.2 in	3.4 in	0.447 lbs	PVC	38.0 (622.8)
GI-MSB3G	3 GANG DEVICE BOX 57 CU IN	3.81 in	6.02 in	3.26 in	0.588 lbs	PVC	57.0 (934.1)
GI-MSB4G	4 GANG DEVICE BOX 74 CU IN	3.1 in	3.6 in	7.5 in	0.55 lbs	PVC	74.0 (1212.7)
GI-MSBFAN	FAN SUPPORT 50/LB. MAX. CARTON	3.7 in	4.0 in	4.0 in	0.55 lbs	Polycarbonate	24.0 (393.3)
GI-MSBHZ	1 GANG HORIZONTAL DEVICE BOX	3.6 in	2.3 in	3.7 in	0.25 lbs	PVC	18.5 (303.2)
GI-MSBLV1G	1 GANG LOW VOLTAGE DEVICE RING	2.0 in	4.5 in	6.5 in	0.2 lbs	PVC	10.75 (176.16)
GI-MSBLV2G	2 GANG LOW VOLTAGE DEVICE RING	3.8 in	4.19 in	1.77 in	0.213 lbs	PVC	20.84 (341.51)
GI-MSBMMT1G	1 GANG MULTI MOUNT DEVICE BOX	3.82 in	2.4 in	3.5 in	0.24 lbs	Polycarbonate	21.0 (344.2)
GI-MSBMMT3G	3 GANG MULTI MOUNT DEVICE BOX	3.4 in	4.4 in	7.5 in	0.4 lbs	Polycarbonate	55.0 (901.3)
GI-MSBMMT4G	4 GANG MULTI MOUNT DEVICE BOX	3.5 in	4.3 in	9.6 in	0.8 lbs	Polycarbonate	67.0 (1097.9)
GI-MSBMMT5G	5 GANG MULTI MOUNT DEVICE BOX	3.5 in	4.2 in	9.2 in	0.75 lbs	Polycarbonate	91.5 (1499.5)
GI-MSBMMT6G	6 GANG MULTI MOUNT DEVICE BOX	3.5 in	3.8 in	12.5 in	1.05 lbs	Polycarbonate	110.0 (1802.6)
GI-MSBRND	CEILING BOX 50/LB. FIXTURE ONLY	2.5 in	3.5 in	3.5 in	0.25 lbs	Polycarbonate	24.0 (393.3)
GI-MSBST250	RND BOX, SHARK TOOTH 2.5" DEEP	4.3 in	4.0 in	4.0 in	0.3 lbs	Polycarbonate	16.3 (267)
