FSR FL-500P Floor Box
Versatile In-floor Power and Data Access
Box w/ Temporary Construction Cover
Cover
Accessories
FSR-FL-500P-225
Cover
FSR-FL-500P-B-C
Accessories
FSR-FL-GRD2
What's special about this FSR floor box?
- Ideal for creating in floor power access in just about any application
- 10 different cover designs available for custom look
- Low profile edging prevents tripping hazards on installed floors
- Available in 6 box depths for use in many different floors
- Constructed of sturdy 11-gauge steel
- Click for More Features
This versatile FSR FL-500P floor box allows you to install power, audio, video, telecommunications, and data ports all in one location. Can be easily converted to a wall box using model JL cover.
Please Note: These products ship in 2 weeks
| Back Boxes - Includes Temporary Steel Construction Cover | ||||
|---|---|---|---|---|
| Part # | Image | Description | Weight | Price |
| FSR-FL-500P-225 | FL-500P Back Box - 2.25 " Deep (Different Internal Brackets) | 8 lbs | Manufacturer Direct | |
| FSR-FL-500P-3 | FL-500P Back Box - 3" Deep (Different Internal Brackets) | 9 lbs | Manufacturer Direct | |
| FSR-FL-500P-4 |  | FL-500P Back Box - 4 " Deep | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-6 | | FL-500P Back Box - 6 " Deep | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-8 | | FL-500P Back Box - 8" Deep | 10 lbs | Manufacturer Direct |
| Covers - UL Scrub Water Rated for Tile and Carpet Installations | ||||
|---|---|---|---|---|
| Part # | Image | Description | Weight | Price |
| FSR-FL-500P-B-C |  | Cover With 1/2" Brass Carpet Flange (Lift off door) | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-BLP-C |  | Cover With 1/4" Brass Carpet Flange (Lift off door) | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-BSQ-C |  | Cover With 1/4" Square Brass Flange (Lift off door) | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-S-C |  | Cover With 1/2" Aluminum Carpet Flange (Lift off door) | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-SLP-C |  | Cover With 1/4" Aluminum Carpet Flange (Lift off door) | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-SSQ-C |  | Cover With 1/4" Square Aluminum Flange (Lift off door) | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-PLP-GRY-C |  | Cover with 1/4"Painted Carpet Flange - Gray (Lift off door) | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-PLP-CLY-C | | Cover with 1/4"Painted Carpet Flange - Clay (Lift off door) | 10 lbs | Manufacturer Direct |
| Flat Covers – Non UL Rated | ||||
|---|---|---|---|---|
| Part # | Image | Description | Weight | Price |
| FSR-FL-500P-BLK-C |  | Cover (No Flange) With Hinged Door in Black Sandtex | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-OAK-C |  | Cover (No Flange) With Hinged Door in Lt. Oak Sandtex | 10 lbs | Manufacturer Direct |
| FSR-FL-500P-SS-C | Stainless Steel Cover (No Flange) with Hinged Door | 10 lbs | Manufacturer Direct | |
| Flat Covers Wall Box – Non UL Rated | ||||
|---|---|---|---|---|
| Part # | Image | Description | Weight | Price |

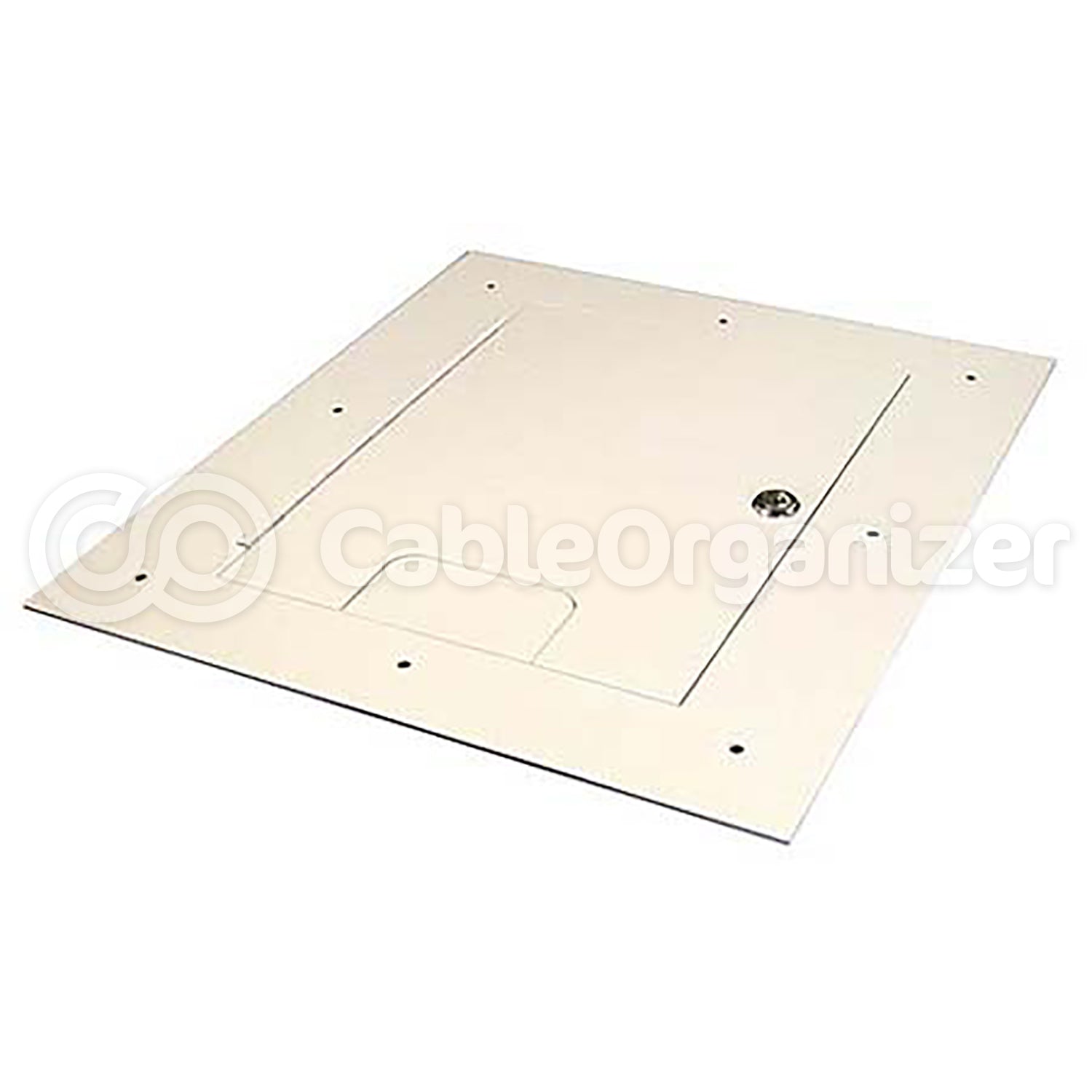

| FSR-FL-500P-JL |  | Hinged cover with lock and cable exit door | 10 lbs | Manufacturer Direct |
| Pour Pan Accessory for Grade Installations | ||||
|---|---|---|---|---|
| Part # | Image | Description | Weight | Price |
| FSR-FL-GRD2 |  | 2" Grade Mounting Kit | 8.55 lbs | Manufacturer Direct |
| FSR-FL-GRD4 | | 4" Grade Mounting Kit | 12.05 lbs | Manufacturer Direct |
- Covers available with mitered edges (allowing you to install carpeting, wood, or tile on top of the cover) or flat cover for low profile uniform surfaces
- Cover lifts off for full access to internal connector plates and stored cables
- Completely closed cover allows you to travel freely over the box with only the decorative surface visible
- Leveling feet are attached for a sturdy and professional installation
- Equipped with 1" and 1.25" knockouts for inserting conduit
- Boxes are UL514A listed to prevent water from entering or accumulating in the box
- Ideal for conference rooms, auditoriums, courtrooms, hotel lobbies, places of worship, & much more!
- FL-500P Specifications (PDF)
- FL-500P-JL Wall Box Specifications (PDF)
- FL-500P 2.5" Gang Configurations (PDF)
- FL-500P 3" Gang Configurations (PDF)
- Mounting Kit Specifications for Grade Installations (PDF)
| Mitered Edges Install Carpet, Wood, or Tile onto the cover for a uniform look |
||||||
| IMAGE | PART # | DOOR TYPE | COLOR | DEPTH OF MITERED EDGE | DIMENSIONS | APPLICATION |
|
FSR-FL-500P-B-C | Lift Off Door | Brass | 1/2" | 10.5” x 12.5” x 0.125” | Thick Carpeting |
|
FSR-FL-500P-BLP-C | Lift Off Door | Brass | 1/4" | 10.5” x 12.5” x 0.125” | Low Profile Carpeting |
|
FSR-FL-500P-BSQ-C | Lift Off Door | Brass | 1/4" | 10.5” x 12.5” x 0.125” | Wood or Tile Inserts |
|
FSR-FL-500P-S-C | Lift Off Door | Aluminum | 1/2" | 10.5” x 12.5” x 0.125” | Thick Carpeting |
|
FSR-FL-500P-SLP-C | Lift Off Door | Aluminum | 1/4" | 10.5” x 12.5” x 0.125” | Low Profile Carpeting |
|
FSR-FL-500P-SSQ-C | Lift Off Door | Aluminum | 1/4" | 10.5” x 12.5” x 0.125” | Wood or Tile Inserts |
|
FSR-FL-500P-PLP-GRY-C | Lift Off Door | Gray | 1/4" | 10.5” x 12.5” x 0.125” | Low Profile Carpeting, Wood, Tile |
| FSR-FL-500P-PLP-CLY-C | Lift Off Door | Clay | 1/4" | 10.5” x 12.5” x 0.125” | Low Profile Carpeting, Wood, Tile | |
| Flat Covers (Without Mitered Edge) | ||||||
| IMAGE | PART # | DOOR TYPE | COLOR | DIMENSIONS | APPLICATION | |
|
FSR-FL-500P-BLK-C | Hinged Door | Black | 10.5” x 12.5” x 0.125” | Tile, Carpeted, and Wood Floors | |
|
FSR-FL-500P-OAK-C | Hinged Door | Oak | 10.5” x 12.5” x 0.125” | Tile, Carpeted, and Wood Floors | |
| no image available | FSR-FL-500P-SS-C | Hinged Door | Stainless Steel | 10.5” x 12.5” x 0.125” | Tile, Carpeted, and Wood Floors | |
| Floor to Wall Box Conversion | ||||||
| IMAGE | PART # | DOOR TYPE | COLOR | DIMENSIONS | APPLICATION | |
|
FSR-FL-500P-JL | Hinged cover with lock and cable exit door | Stainless Steel | 10.5” x 12.5” x 0.125” | Converting FL-500P from Floor to Wall Box | |
| FL-500 P Back Boxes | ||||||
| IMAGE | PART # | DEPTH | DIMENSIONS | |||
| no image available | FSR-FL-500P-2.25 | 2.25" | 10” x 12” x 2.25" | |||
| no image available | FSR-FL-500P-3 | 3" | 10” x 12” x 3 " | |||
|
FSR-FL-500P-4 | 4" | 10” x 12” x 4 " | |||
| FSR-FL-500P-6 | 6" | 10” x 12” x 6 " | ||||
| FSR-FL-500P-8 | 8" | 10” x 12” x 8 " | ||||
| Mounting Kit for Installing in Concrete, Sand, or Gravel |
||||||
| IMAGE | PART # | DESCRIPTION | ||||
|
FSR-FL-GRD2 | 2" Grade Mounting Kit | ||||
| FSR-FL-GRD4 | 4" Grade Mounting Kit | |||||
MANUALS -
- FL-500P Installation Instructions (PDF)
- Floor box Fire Rating and Load Testing (PDF)
- UL 514A listed, fire rated (PDF)
