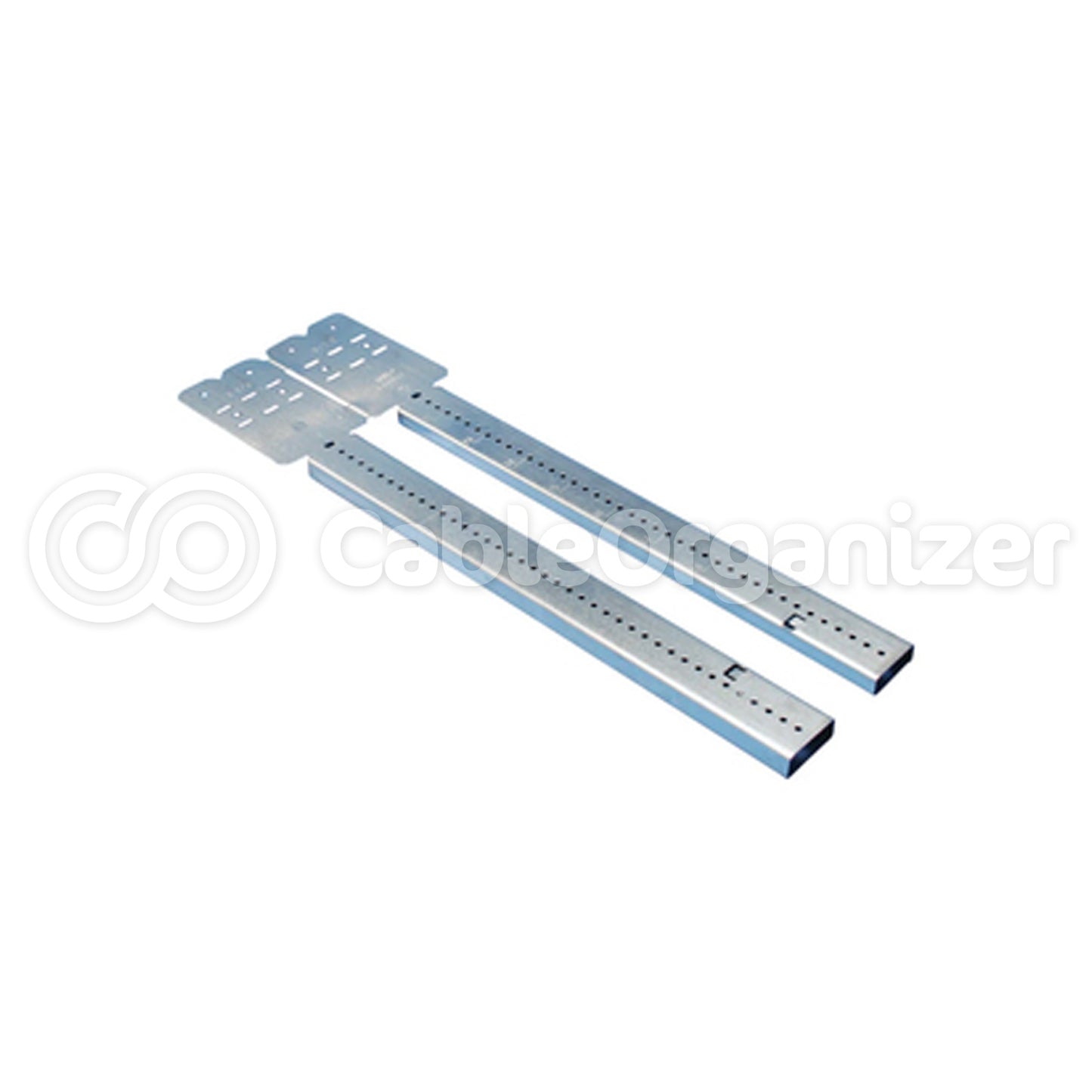

Caddy® Adjustable Box Mounting Brackets
Precisely Mount Boxes and Conduit Between Studs
ER-TSGB16
What's special about these telescopic stud brackets?
- Adjustable brackets mount electrical boxes between studs, providing precision placement that is hard to achieve with non-adjustable brackets; ideal for use in non-standard installations.
- Can be used in conjunction with the Conduit Support Bracket (CCSS812) to achieve perfect conduit alignment for the most accurate install possible.
- Foldable end tabs for mounting on the sides of studs, providing freedom to mount to any desired depth.
- Adjustability makes them highly salvageable, saving supply costs on custom renovations.
- Click for More Features
-
Correctly installing boxes between studs can be tricky, even for seasoned contractors. With their fully adjustable rails, marked measurements and conduit mounting options, Caddy’s Telescopic Mounting Brackets help to create the most structurally sound and professional box installs around.
| Part # | IMG | Description | Box Depth | Stud Spacing | Qty | Weight | Price |
|---|---|---|---|---|---|---|---|
| ER-TSGB16 |  |
16" Adjustable Box Mount Bracket | 1-1/2" to 2-1/8" [38 to 54 mm] |
11" to 18" [280 to 458 mm] |
50 | 20.4 lbs | Manufacturer Direct
|
| ER-TSGB24 |  |
24" Adjustable Box Mount Bracke | 1-1/2" to 2-1/2" [38 to 63.5 mm] |
17" to 26" [432 to 660 mm] |
50 | 31.4 lbs | Manufacturer Direct
|
| Accessories | |||||||
|---|---|---|---|---|---|---|---|
| Part # | IMG | Description | Application | Qty | Weight | Price | |
| ER-CCS812 |  |
Conduit Support Bracket | Supports up to 3 rows of Conduit | 100 | 0.12 lb | Manufacturer Direct
|
|
| ER-TSGLDR1 |  |
Glider Box Attachment | Allows for sliding of Electrical Boxes | 100 | 0.1 lb | Quick Ship
|
|
| ER-SMS8 |  |
Stud Wall Screws | Low Profile, Prevents Drywall Bulge | 1,000 | 0.5 lb | Manufacturer Direct
|
|
| Part # | TSGB16 | TSGB24 |
|---|---|---|
| Box Depth | 1-1/2" to 2-1/8" [38 to 54 mm] | 1-1/2" to 2-1/2" [38 to 63.5 mm] |
| Finish | Electroplated zinc | Electroplated zinc |
| Stud Spacing | 11" to 18" [280 to 458 mm] | 17" to 26" [432 to 660 mm] |
| Boxed Quantity | 50 | 50 |
| Ultimate Static Load | 50 lbs [22.68 kg] | 50 lbs [22.68 kg] |
| Patent Number | 5,386,959 | 5,386,959 |
Manuals
Related Articles
How-To Corner
Request A Quote
Did you know that we can give you a quote for most of our products, including shipping?
You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)
Questions & Answers
Are the TSGB brackets listed for wall use only or can they be used in ceiling applications for light weight fixtures?
- The manufacturer recommends this for between stud applications.
