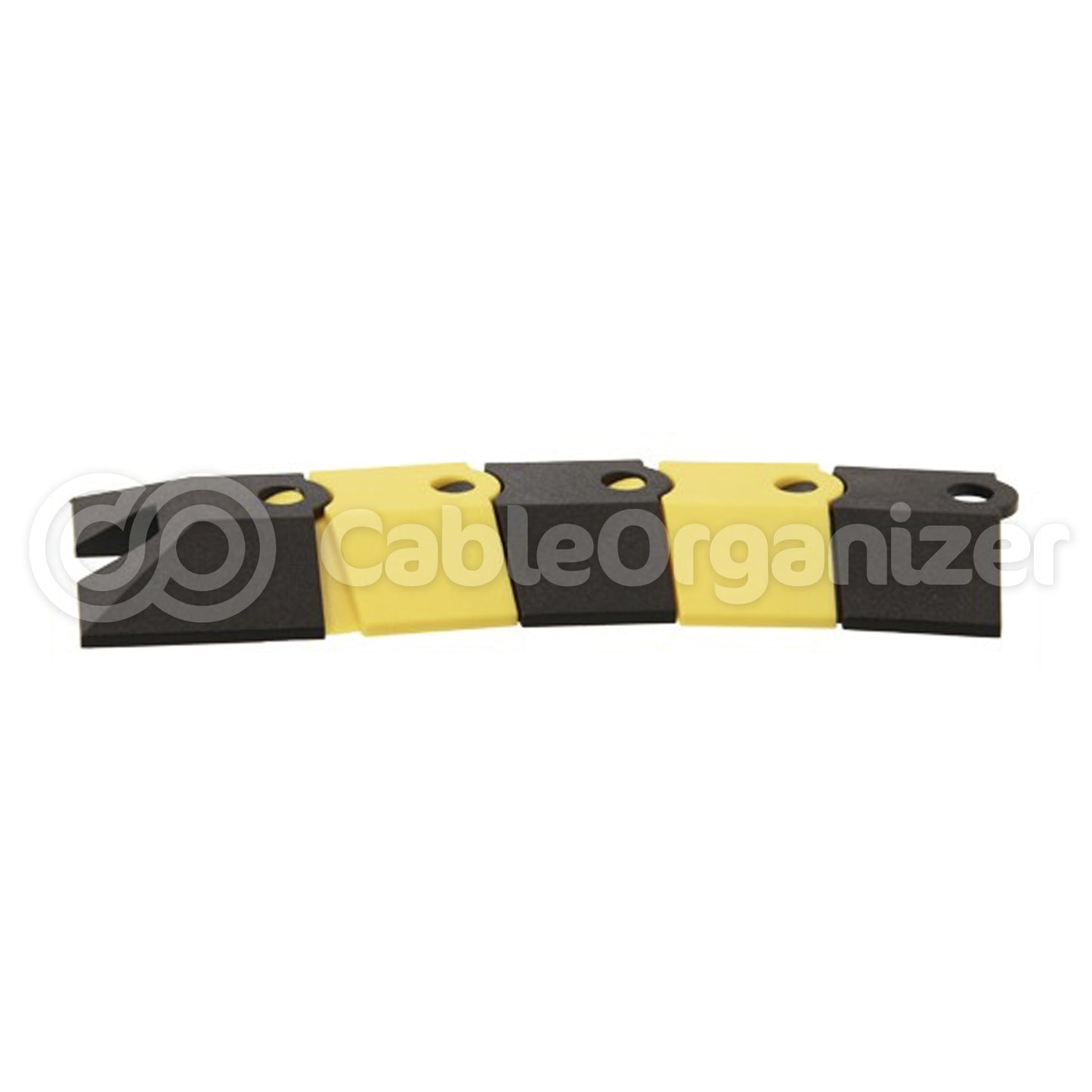

SideWinder Cable Protection Systems™
A Flexible Cord Cover In A "Snap"
UT-1800
What's special about the SideWinder cable protector?
- Protects cables and cords from damage caused by pedestrians or light vehicular traffic.
- Features articulating segments that bend left or right to go around corners or small office obstacles.
- Can be assembled or disassembled for transport or making adjustments, using no specialty tools or accessories.
- Click for More Features
The SideWinder Cable Protection System™ provides a flexible and simple cord protection solution. The 1.5" segments bend side to side to maneuver around corners while still providing drop over safety for your cables.
3 FT SIDEWINDER
| SMALL | |||||
|---|---|---|---|---|---|
| Part # | Dimensions | Channel Width | Channel Height | Color | Price |
| UT-1800 | 36" L x 2-1/2" W x 3/4" H | 3/4" | 3/8" | Black & Yellow | Quick Ship
|
| UT-1802 | 36" L x 2-1/2" W x 3/4" H | 3/4" | 3/8" | Black | Quick Ship
|
| UT-1804 | 36" L x 2-1/2" W x 3/4" H | 3/4" | 3/8" | Brown | Quick Ship
|
| UT-1806 | 36" L x 2-1/2" W x 3/4" H | 3/4" | 3/8" | Gray | Manufacturer Direct
|
| Medium | |||||
|---|---|---|---|---|---|
| Part # | Dimensions | Channel Width | Channel Height | Color | Price |
| UT-1830 | 36" L x 9-3/4" W x 1-3/8" H | 3" | 3/4" | Black & Yellow | Manufacturer Direct
|
| UT-1832 | 36" L x 9-3/4" W x 1-3/8" H | 3" | 3/4" | Black | Quick Ship
|
| Large | |||||
|---|---|---|---|---|---|
| Part # | Dimensions | Channel Width | Channel Height | Color | Price |
| UT-1840 | 36" L x 13-5/8" W x 2-1/8" H | 3" | 1-1/2" | Black & Yellow | Quick Ship
|
| UT-1842 | 36" L x 13-5/8" W x 2-1/8" H | 3" | 1-1/2" | Black | Quick Ship
|
Extra Lengths
| SMALL | |||||
|---|---|---|---|---|---|
| Part # | Dimensions | Channel Width | Channel Height | Color | Price |
| UT-1801 | 1' L x 2.5" W x 3/4" H | 3/4" | 3/8" | Black & Yellow | Quick Ship
|
| UT-1803 | 1' L x 2.5" W x 3/4" H | 3/4" | 3/8" | Black | Quick Ship
|
| UT-1805 | 1' L x 2.5" W x 3/4" H | 3/4" | 3/8" | Brown | Quick Ship
|
| MEDIUM | |||||
|---|---|---|---|---|---|
| Part # | Dimensions | Channel Width | Channel Height | Color | Price |
| UT-1831 | 1' L x 9-3/4" W x 1-3/8" H | 3" | 3/4" | Black & Yellow | Quick Ship
|
| UT-1833 | 1' L x 9-3/4" W x 1-3/8" H | 3" | 3/4" | Black | Quick Ship
|
| Large | |||||
|---|---|---|---|---|---|
| Part # | Dimensions | Channel Width | Channel Height | Color | Price |
| UT-1843 | 1' L x 13-5/8" W x 2-1/8" H | 3" | 1-1/2" | Black | Manufacturer Direct
|
Warning:
Jointed areas cause a pinch point hazard, it is recommended that protective gloves be worn when handling this cord cover system
- Can be extended or shortened in 1.5" segments for customized length.
- Available in 4 different colors:
- Black and Yellow to warn you about the danger of the cables or a potential tripping hazard.
- Black, Gray, and Brown to blend with office flooring or décor.
- Low profile design to avoid tripping hazards.
- Equipped with rubber tabs to securely hold cables in place and prevent the cord cover from moving while in use.
- Constructed of sturdy ABS for durability.
- Strong material is resistant to multiple solvents and chemicals, so it can be used in areas where chemical exposure is evident (please note: does not protect cables from chemical or temperature exposure).
- Maintains cable bend radius to prevent data or power loss while in use.
- Easy to use design simply goes over cables and holds them in place while protecting them from above traffic.
- Can be used as a temporary or permanent cord cover solution in home or office settings.
- Includes no sticky adhesive so it leaves no residue behind.
- Supports up to 4000 lbs of weight at a time for ultimate durability and cord protection (Not designed for use as a foundation for ladders or scaffolding, OR regular use by motor vehicles, pickup trucks, or any item with rigid wheels moving more than 5 mph).
Ideal for use:
- In offices
- Power cables
- Networking cables
- Conference rooms
| Size | Small | Medium | Large |
|---|---|---|---|
| Operating Temperature | -40° to 120° F ( -40° to 49° C) | ||
| Material | ABS | ||
| Laod Capacity | 2,000 lbs / in2 [140.6 kg / cm2] | 260 lb / in2 [18.3 kg / cm2] | 260 lb / in2 [18.3 kg / cm2] |
| Load Rating Per Axle | 32,000 lbs [14,515 kg] | 13,500 lbs [6,123 kg] | 13,500 lbs [6,123 kg] |
| Chemical Resistance | aqueous acids, alkalis, concentrated hydrochloric and phosphoric acids, alcohols and animal, vegetable and mineral oils, but is damaged by glacial acetic acid, carbon tetrachloride, aromatic hydrocarbons, concentrated sulfuric, nitric acids, esters, ketones and ethylene dichloride | ||
| # of Links (per 3ft) | 26 (including end caps) | ||
| Weight (per 1 ft) | 0.5 lb | 2.0 lbs | 4.5 lbs |
| Colors | Black, Black & Yellow, Brown, Gray | ||
| Overall Dimensions | |||
| Width | 2-1/2" | 9-3/4" | 13-5/8" |
| Height | 3/4" | 1-3/8" | 2-1/8" |
| Channel Dimensions | |||
| Width | 3/4" | 3" | 3" |
| Height | 3/8" | 3/4" | 1-1/2" |
| Suggested Applications | [1] 3/8" Extension Cord (9.5mm) | [18] 3/8" Extension Cords (9.5mm) or [4] 3/4" Air Hoses (19mm) or [3] 5/8" Garden Hoses (16mm) |
[32] 3/8" Extension Cords (9.5mm) or [8] 3/4" Air Hoses (19mm) or [3] 5/8" Garden Hoses (16mm) or 5/8" to 1-1/2" Large Industrial Cables (16-38mm) |
| Compliance | 29 CFR 1910.304 / 29 CFR 1910.305 / NEC Doce Section 525.6 | ||
