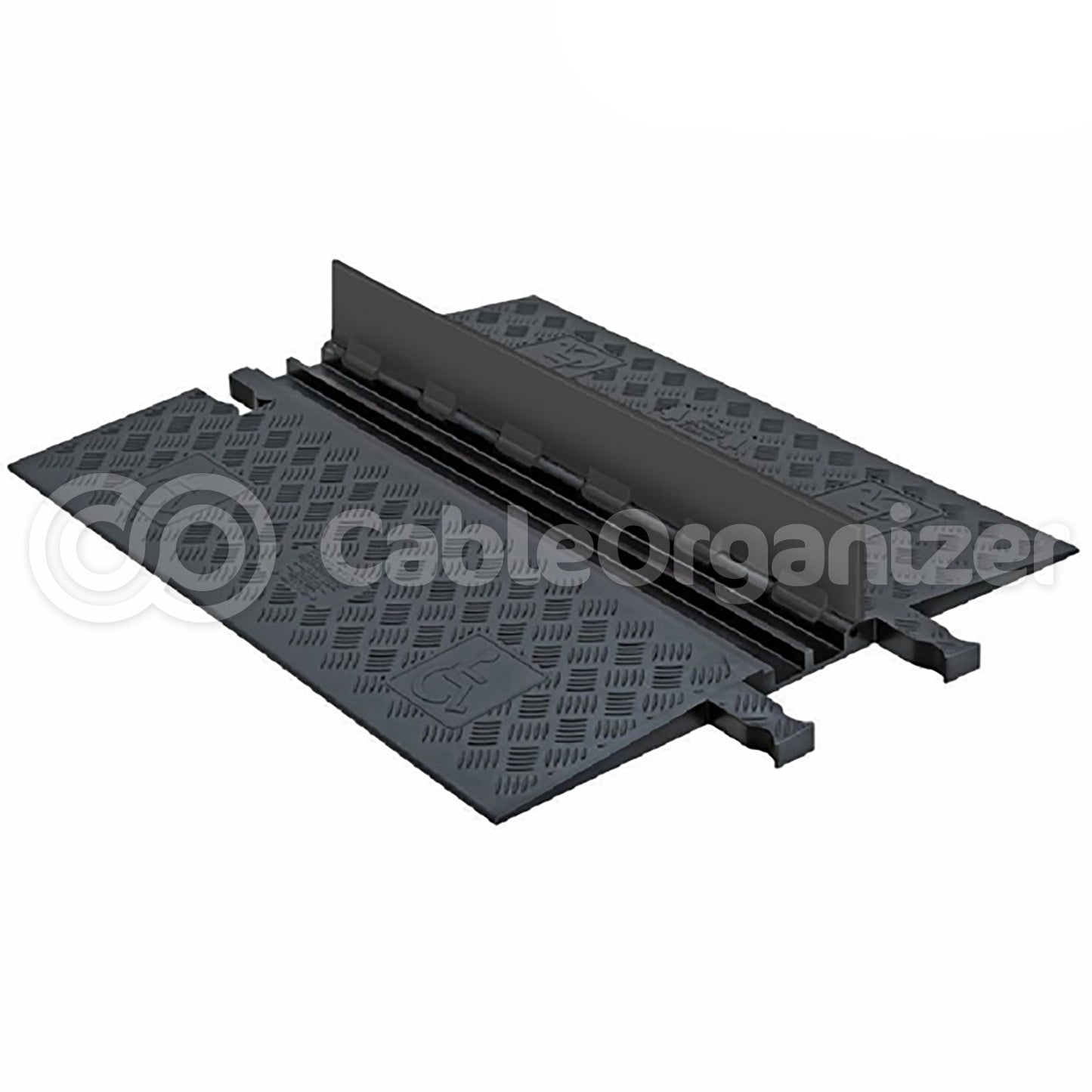

Guard Dog® 2 Channel Low Profile Standard & ADA Compliant Cable Protectors

Heavy Duty, Low Profile Cable Protection in High Traffic Environments

CK-GD2X75-ST-O/B
Qty:

What's special about these low profile cord covers?

  • 2 channel, heavy-duty construction allows cable/hose lines up to 0.75” in diameter to be separated into their own individual protected channels to greatly reduce wear and tear.
  • 1.25” high, low profile design helps limit accidental tripping and provides effortless crossing during high-traffic events, such as fairs, amusement parks, carnivals and similar applications.
  • Available in either a low-angle ADA compliant ramp for non-strenuous crossing of handicapped or disabled pedestrians, or a standard low profile ramp which provides affordable and safe cable management.
  • Click for More Features

Exposed cables pose a real threat to anyone who crosses them, whether it's accidental tripping or the risk of electrical shock. Using cord covers or cable guards to manage and protect exposed cables provides a quick, safe, and easy to install solution for permanent and nonpermanent cable crossing alike. The Guard Dog® 2 Channel Low Profile Standard and ADA Compliant Cable Protectors offer solutions for high traffic events, by providing safe cable management and effortless crossing for children, elderly, and disabled persons.

Please Note: These products ship in 4-6 weeks

Standard Low Profile Cable Protector
Part # Color Channel Size Overall Dimensions Weight Price
CK-GD2X75-ST-O/B Orange Lid / Black Ramps 1.5" W x 0.75" H 36" L x 10.9" W x 1.25" H 7.5 lbs
Qty:
Manufacturer Direct
CK-GD2X75-ST-B/B Black Lid / Black Ramps 1.5" W x 0.75" H 36" L x 10.9" W x 1.25" H 7.5 lbs
Qty:
Manufacturer Direct
Low Profile Cable Protector with ADA Compliant Ramps
Part # Color Channel Size Overall Dimensions Weight Price
CK-GD2X75-O/B Orange Lid / Black Ramps 1.5" W x 0.75" H 36" L x 28.6" W x 1.25" H 18.3 lbs
Qty:
Manufacturer Direct
CK-GD2X75-B/B Black Lid / Black Ramps 1.5" W x 0.75" H 36" L x 28.6" W x 1.25" H 18.3 lbs
Qty:
Manufacturer Direct
CK-GD2X75-O/BLU Orange Lid / Blue Ramps 1.5" W x 0.75" H 36" L x 28.6" W x 1.25" H 18.3 lbs
Qty:
Manufacturer Direct
  • Traction-increasing tread and electrical warning symbols molded into the lid to provide clear indications of possible dangers for crossing pedestrians.
  • ADA compliant symbols are molded into each ADA compliant ramp to ensure that the product meets accessibility guidelines for the disabled.
  • Heavy-duty “Dog Bone” connectors provide easy setup and secure interconnection for multiple cable protector runs.
  • 5-bar tread plate surface provides maximum traction to help avoid accidental slipping in normal and unfavorable environmental conditions.
  • Durable hinged cover with a reinforced fiberglass pin provides easy cable placement and protection from crossing vehicles and heavy machinery.
  • High load capacity: 13,000 lb. per tire or 26,000 lb. per axle.
  • Strong polyurethane construction satisfies state and federal regulatory agencies.
  • Modular interlocking design is easy to setup, breakdown and store.
  • Meets NEC article 525 requirements.
  • Meets Americans with Disabilities Act. guidelines for ADA accessibility.

    •

    Standard Low Profile 2 Channel

    standard low profile 2 channel drawing

    Part # A
    Length    		 B
    Width    		 C
    Height    		 D
    Channel Width    		 E
    Channel Height    		 Weight Color
    CK-GD2X75-ST-O/B 36"
    914.4mm    		 12.0"
    304.8mm    		 1.25"
    31.8mm    		 1.5"
    38mm    		 0.75"
    19mm    		 7.5 lbs
    3.4 kg    		 Orange Lid
    Black Ramp



    Low Profile 2 Channel with ADA Compliant Ramps

    ada compliant 2 channel low profile drawing

    Part # A
    Length    		 B
    Width    		 C
    Height    		 D
    Channel Width    		 E
    Channel Height    		 Weight Color
    CK-GD2X75-O/B 36"
    914.4mm    		 28.6"
    727mm    		 1.25"
    31.8mm    		 1.5"
    38mm    		 0.75"
    19mm    		 18.3 lbs
    8.3 kg    		 Orange Lid
    Black Ramp
    CK-GD2X75-B/B 36"
    914.4mm    		 28.6"
    727mm    		 1.25"
    31.8mm    		 1.5"
    38mm    		 0.75"
    19mm    		 18.3 lbs
    8.3 kg    		 Black Lid
    Black Ramp
    CK-GD2X75-O/BLU 36"
    914.4mm    		 28.6"
    727mm    		 1.25"
    31.8mm    		 1.5"
    38mm    		 0.75"
    19mm    		 18.3 lbs
    8.3 kg    		 Orange Lid
    Blue Ramp



    Specifications

    Material Polyurethane (UV stabilized)
    Operating Temperature -40° to 120° F (-40° to 48° C)
    Hinge Pin Material Reinforced fiberglass
    Safety Symbols Per ANSI Z535.3-1991

    Load Capacity
      2 Channel Max Load at 70° F (21° C)
    Per Tire 36,000 lbs (16.330 kg)
    Per Axle 72,000 lbs (32,660 kg)

    Symbols Molded onto Lid  trip hazard symbol   symbol for electrical hazard
