Defender Midi Cord Cover

Reliable Cable Protector Systems

85300
Qty:

What's special about this cord cover?

  • Versatile - Designed for maximum routing versatility and secure crossing
  • Many Uses - Ideal for usages. From construction sites to shopping malls.

The Defender® MIDI cable protection system has been designed for maximum routing versatility and secure crossing. Featuring a low profile, 5 t per 20 x 20 cm load capacity, integrated connectors and handles the straight ramp, 45° curve and end ramps are easily linked to form a continuous cable guard while five 34 x 36 mm channels allow for individual sound, lighting and power line arrangement. Defender® MIDI cable protectors are ideal for a multitude of usages such as heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls, broadcasting and music events.

Defender Midi
Item Part # Description Price
85300Defender Midi - 5 Channels - Heavy Duty, Yellow/Black
Qty:
85300BLUEDefender Midi - 5 Channels - For Wheelchair Ramp, Blue
Qty:
85301Defender Midi 4C - 4 Channel - Heavy Duty, Yellow/Black
Qty:
85308Defender Midi - End Ramp, Black
Qty:

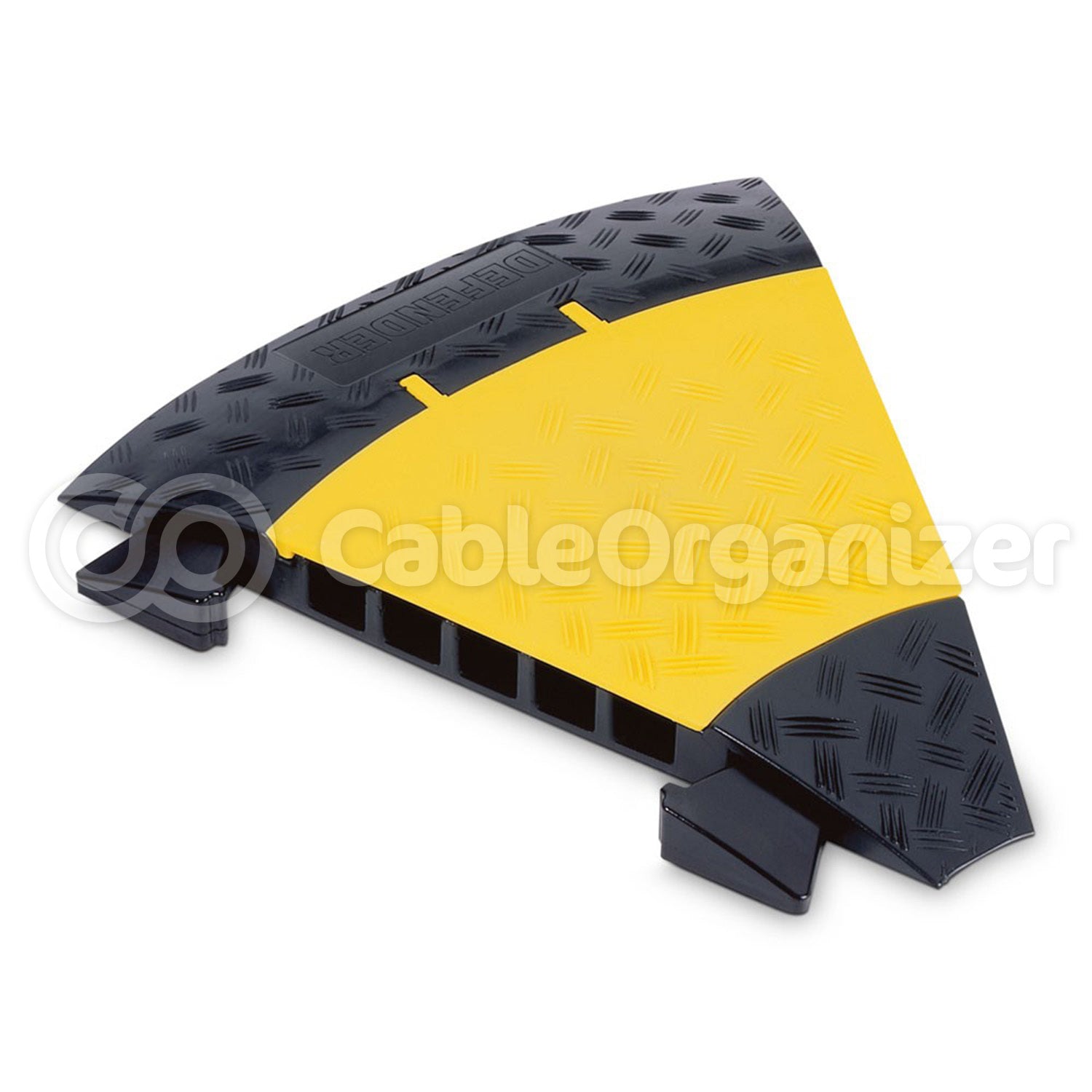

85310Defender Midi - 45 Degree Curve, Black
Qty:
Defender Midi - ADA Ramps
Part # Colors Description Price
85305SETDefender Midi 5- 5 Channels - WheelChair Ramp Set, Blue
Qty:
85306Defender Midi 5 - Wheelchair Ramp Module, Blue
Qty:
85307LDefender Midi 5 - Wheelchair Ramp Left Side Piece, Blue
Qty:
85307RDefender Midi 5 - Wheelchair Ramp Right Side Piece, Blue
Qty:
  • PVC-Free - DEFENDER products contain no environmentally harmful PVC.
  • After processing the raw material from our german certified suppliers, the granulate remains in our recycling loop. At the end of their life-cycle, cable protectors are reprocessed into new granulate and the whole is repeated.
  • These covers are conveniently dropped over cables without having to uninstall them.
  • Non-slip surface safely allows foot traffic
  • Easy Lock System - A simple yet efficient locking system that enables the cover to be opened and closed with minimum effort and without tools.
  • DEKRA-Certified - Regularly tested and certified by Dekra to ensure an optimal working environment.
  • Hi-Tech Raw material - Made from extrememly durable TPU (thermoplastic polyurethane).
  • Easy Transportation - The heaviest DEFENDER cable protection systems all come with carrying handles.
  • Modular Systems - Can adapt your cable protection to each location.

    •

    85300

  • Channels: 5
  • Dimensions: 87 x 54.2 x 5.2 cm; Weight 11.5 kg
  • Channel Width: 5 channels 34 x 36 mm
  • Max Load: approx. 5 t / 20 x 20 cm
  • Special Features: DEKRA-certified

    • 85300BLUE

  • Channels: 5
  • Dimensions: 87 x 54.2 x 5.2 cm; Weight 11.5 kg
  • Channel Width: 5 channels 34 x 36 mm
  • Max Load: Not suitable for motor vehicles
  • Special Features: DEKRA-certified

    • 85301

  • Channels: 4
  • Dimensions: approx. 5 t / 20 x 20 cm
  • Channel Width: 1 channel 80 x 36 mm (for C-pressure hoses) and 3 channels 34 x 36 mm
  • Max Load: approx. 5 t / 20 x 20 cm
  • Special Features: DEKRA-certified

    • 85305SET

  • Channels: 5
  • Dimensions: Drive-over width 80 cm; 30.05kg
  • Channel Width: 34mm wide by 36mm tall
  • Max Load: not suitable for motor vehicles
  • Special Features: set includes 1 pre-drilled cable bridge with blue polyurethane cover, 6 ramp elements and 4 side slopes

    • 85306

  • Channels: N/A
  • Dimensions: 250 mm long; 4.91 kg
  • Channel Width: N/A
  • Max Load: N/A
  • Special Features: Ramp Module

    • 85307L

  • Channels: N/A
  • Dimensions: 90 mm long; 0.63 kg
  • Channel Width: N/A
  • Max Load: N/A
  • Special Features: Wheelchair-ramp System

    • 85307R

  • Channels: N/A
  • Dimensions: 90 mm long; 0.63 kg
  • Channel Width: N/A
  • Max Load: N/A
  • Special Features: Wheelchair-ramp System

    • 85308

  • Channels: N/A
  • Dimensions: 125 mm long; 1.07 kg
  • Channel Width: N/A
  • Max Load: approx. 5 t / 20 x 20 cm
  • Special Features: End Piece

    • 85310

  • Channels: 5
  • Dimensions: 3.55 kg
  • Channel Width: N/A
  • Max Load: approx. 5 t / 20 x 20 cm
  • Special Features: 45 Degree Curve
