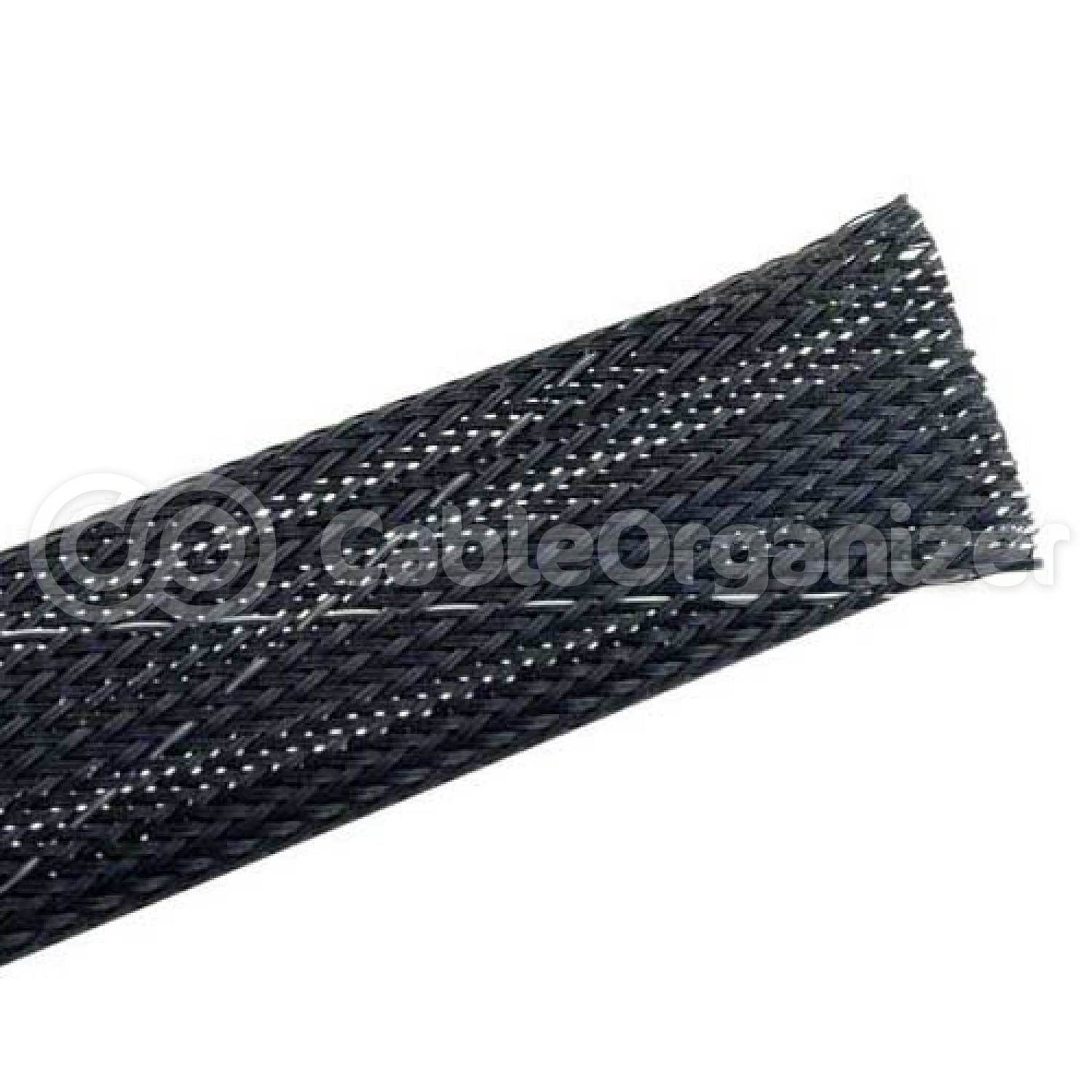

Bentley-Harris Expando® FR Plus
Self-fitting Protective Oversleeve
What's special about this braided sleeving?
- Rated to 125°C (257°F)
- Low temperature flexibility to -70°C (-94°F)
- VW-1
- Click for More Features
-
Bentley-Harris® Expando products are tough, lightweight oversleeves used to protect cable assemblies, hoses and wire harnesses from chafing, cutting and abrading. The open-weave construction of Expando products enables each size to expand to fit several application shapes and sizes. This open-weave construction also makes them highly flexible and resistant to trapping water, heat and humidity.
Please Note: These products ship within 5 weeks
| Part # | Nominal Size | Minimum Diameter | Maximum Diameter | Feet Per Spool | Colors | Price |
|---|---|---|---|---|---|---|
| BSBHFRP-0125 | 1/8" | 3/32" | 1/4" | 2,000 | Black w/ white tracer White w/ black tracer |
Manufacturer Direct
|
| BSBHFRP-025 | 1/4" | 1/8" | 7/16" | 1,000 | Black w/ white tracer |
Manufacturer Direct
|
| BSBHFRP-0375 | 3/8" | 1/4" | 1/2" | 500 | Black w/ white tracer White w/ black tracer |
Manufacturer Direct
|
| BSBHFRP-050 | 1/2" | 1/4" | 3/4" | 500 | Black w/ white tracer White w/ black tracer |
Quick Ship
|
| BSBHFRP-075 | 3/4" | 1/2" | 1-1/4" | 500 | Black w/ white tracer White w/ black tracer |
Manufacturer Direct
|
| BSBHFRP-125 | 1-1/4" | 3/4" | 1-3/4" | 250 | Black w/ white tracer White w/ black tracer |
Manufacturer Direct
|
| BSBHFRP-175 | 1-3/4" | 1-1/4" | 2-3/4" | 250 | Black w/ white tracer White w/ black tracer |
Manufacturer Direct
|
| BSBHFRP-200 | 2" | 1-1/2" | 3-1/2" | 250 | Black w/ white tracer White w/ black tracer |
Quick Ship
|
| BSBHFRP-250 | 2-1/2" | 1-3/4" | 4-1/2" | 250 | Black w/ white tracer White w/ black tracer |
Manufacturer Direct
|
| RELATED ITEM | ||||||
|---|---|---|---|---|---|---|
| Part # | Description | Nominal Size | Min. Diameter | Max. Diameter | Color | Price Per Ft |
| BSBHFR0125-BW | Bentley Harris Expando FR | 1/8" | 3/32" (2 mm) | 1/4" (6mm) | Black with White | Quick Ship
|
For a lower cost alternative, click here to see our Non-Fray Flame Retardant PET
Expando® FR Plus is a braided, flame-retardant polyester (PET) sleeving designed for applications up to 125ºC. This product is UL recognized as a VW-1 component, and has F.A.R. Part 25 approval. A general purpose industrial/commercial product, Expando FR Plus balances the properties of mechanical and thermal stability with economy.
- Rated to 125ºC
- Low temperature flexibility to -70ºC
- VW-1
- F.A.R. Part 25
- UL Recognized Component
- CSA File #LR52852
- Does not trap heat or humidity
- Rot-free
- Self-fitting over many shapes and sizes
- Cost effective
- Fray Resistant
The patented Bentley-Harris Plus treatment makes end termination neater and easier. The Plus treatment creates a webbing between the filaments of the sleeving to reduce end fray during installation and through the life of the product. Because of the fray-resistant properties of Expando FR Plus, it can be cut with ordinary scissors, which reduces assembly time and eliminates the need for proper ventilation equipment required for hot-knife cutting.
Expando® FR Plus protective oversleeve has many applications in the aeronautical, marine, electronic and general manufacturing industries. The ability of Expando FR Plus to retain flexibility at low temperatures makes it ideal for exposed applications in weather stations, navigation beacons, radar antennas, airborne and space systems.
*All Bentley Harris products are RoHS compliant and have an indefinite shelf life. ISO 14001 & TS16949 certified.
View RoHS Certificate - PDF
Performance Data - Expando® FR Plus
| Property | Test Method | Value |
| Filament Diameter | - | .010" |
| Melt Temperature | ASTM D-2117 | 239ºC |
| Low Temperature Flexibility | MIL-DTL-23053E | -70ºC |
| Flammability | UL 1441 | VW-1 |
| Flammability | F.A.R. Part 25 | Pass |
| Smoke Density | ASTM E-1354 | Dmc = 5.72 |
| Copper Corrosivity | MIL-I-23053 | No Effect |
Manuals
Related Articles
How-To Corner
Request A Quote
Did you know that we can give you a quote for most of our products, including shipping?
You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)
Questions & Answers
Shelf Life of Expando HR Plus - Could you please advise the shelf life of the Bentley Harris Expando HR Plus?
- Bentley Harris lists the shelf life of the Expando FR Plus line at ten years. Please contact our sales team for more detailed information about the remaining shelf life of an item stocked in our facility.
