Leviton Structured Media™ Center Expansion Boards and Modules
Upgrade or Expand Upon Preexisting Structured Media Equipment
LE-47605-C5B
What's special about these expansion boards?
- Expansion boards allow the user to configure and expand any Structured Media panel to accommodate your specific needs
- Available in a Cat 5e voice and data board or a 1x9 bridge telephone board, with or without mounting bracket, offering a complete telecom/datacom solution for meeting today’s demanding home network and communication needs
- Designed to fit easily into any Leviton Structured Media™ panel, or mount onto a bracket for use inside any Structured Media Enclosure
- Click for More Features
Leviton expansion boards and modules for Structured Media Centers offer the perfect solution for networking your home or small office voice and data equipment. These small, versatile boards give the user countless possibilities for upgrading and expanding future systems when it inevitably becomes time to update your equipment.

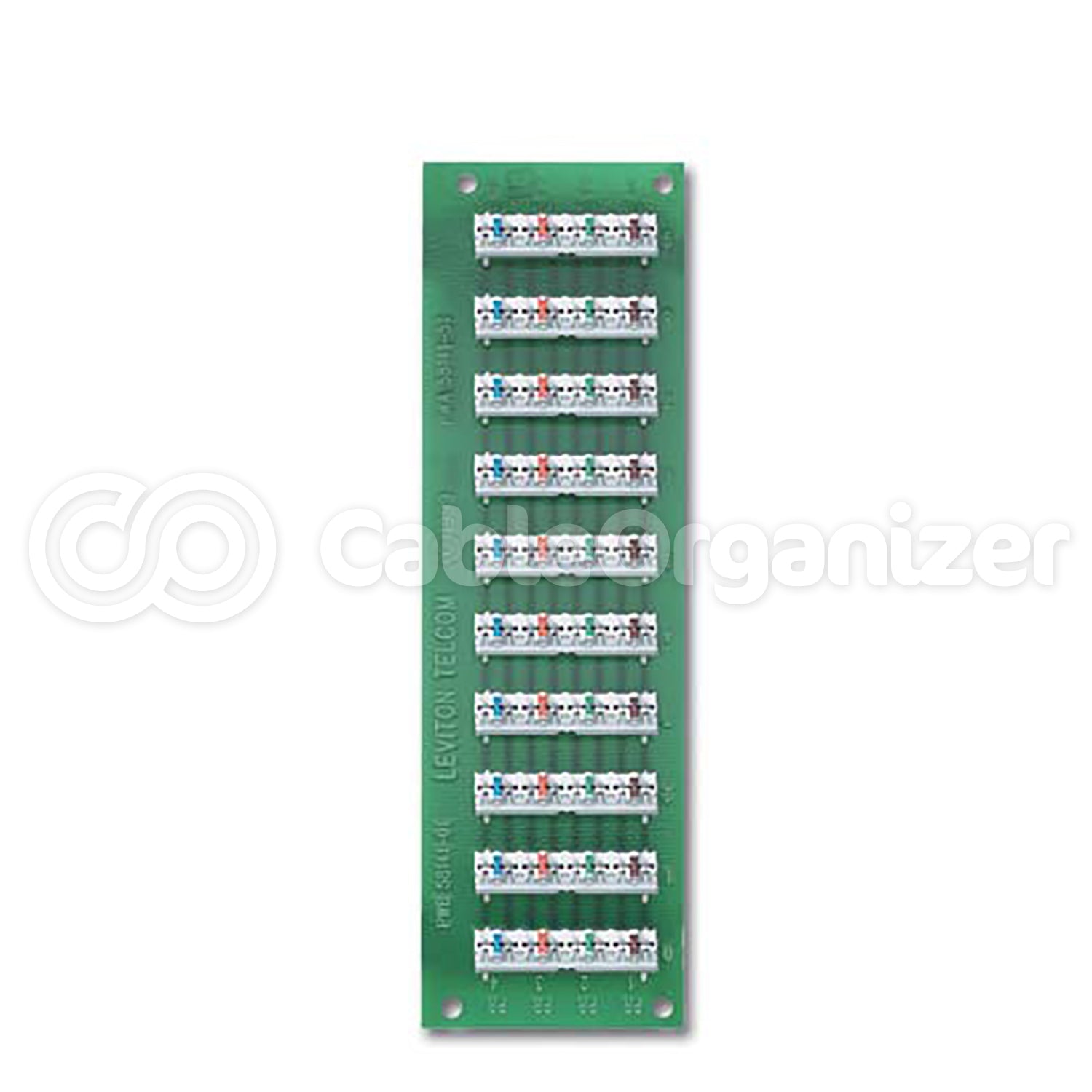

| Part # | Description | Dimensions | Weight | Price |
|---|---|---|---|---|
| LE-47605-C5B | Category 5 Voice & Data Module 6-Port, with bracket | 6"L x 2.132"W x 2.225"D | 0.50 lb | Manufacturer Direct |
| LE-47611-C6 | Category 6 board. pkd: 1/small box, 4/master carton. | - | 0.5 lbs | Manufacturer Direct |
| LE-47609-EMP | Telephone Patching Expansion Board Specs: One 110-Type IDC Bridged to 7 8P8C/RJ45 Conn | 5.75" H x 1.75" W x 0.63" D | 0.21 lb | Manufacturer Direct |
| LE-47603-110 | 1x9 Bridged Telephone Expansion Board | 5.75"L x 1.75"W x 0.685"D | 0.33 lb | Quick Ship |
- Modules can be used as a stand-alone unit or as an expansion to preexisting voice and data boards/panels
- Cat 5e voice and data board can be used to patch data or telephone service to 6 remote locations
- 1x9 telephone board bridges up to 4 telephone lines to 9 separate locations throughout your home or office
- Mounting bracket is made from durable ABS plastic to withstand changing weather climates and continuous use
- 2-year limited manufacturer's warranty
Category 5e Data Expansion Board Drawing Dimensions
1x9 Bridged Telephone Expansion Module Drawing Dimensions
| ITEM | LE-47603-110 | LE-47605-C5B | LE-47603-C5 |
| Mechanical Specifications: | |||
| Telephone Bridge: | (10) bridged 4-pair 110-type IDC connectors | — | — |
| Cat 5e Voice Data: | — | (6) category 5e ports and (6) 110-IDC connectors | (6) category 5e ports and (6) 110-IDC connectors |
| Structured Media Component | |||
| 1 x 9 Bridged Telephone Module: | 1 | — | — |
| Cat 5e Voice Data Module: | — | 1 | 1 |
| White ABS Plastic Mounting Bracket: | — | 1 | 1 |
| Standards and Certifications | |||
| CULUS Listed: | E109712 | ||
| TIA/EIA: | 568A | ||
| FCC Rated: | Part 68 Compliant | ||
| Dimensional Data: | 5.75"H x 1.75"W x 0.685"D | 6.57"H x 2.13"W x 2.185"D | 5.75"H x 1.75"W x 0.685"D |
MANUALS & USER GUIDES -
- Leviton Structured Category 5e Voice and Data Expansion Board Instructions (PDF)
- Leviton 1x9 Bridged Telephone Expansion Module Instructions (PDF)
- Telephone Patching Expansion Instruction Sheet (PDF)
