CAT 5e GigaMax 110-Style Wiring

Provide Fixed High Speed Data Cross Connect Terminations

LE-41DW1-050
Qty:


LE-49104-IDC
Qty:

What's special about these Cat5E 110-Style Wiring Products?

  • Compact design compatible with any existing 110 installation
  • Rack mount bases mount to any 19" frame or hinged wall mount bracket
  • Meets all Category 5E standards including TIA/EIA 568-B.2 & FCC Part 6
  • Click for More Features
ULFCC

Leviton Category 5E GigaMax® 110 Style Cross connect products include wall and rack mount wiring bases, blocks, clips and kits. They provide fixed terminations that support high-speed category 5E data, voice, and security applications. These wiring boxes are available in 50, 100 and 300 pair designs with or without legs. They are made of fire retardant plastic UL listed 94V-0 and comply with TIA/EIA-568-B2 requirements and meet FCC Part 68.

Category 5E 110-Style Wall Mount Wiring Blocks
Part # Description Dimensions Pairs Price
LE-41AW2-300 GigaMax CAT5E 110 Style Wiring Block Wall-Mount with Legs 10.83" H x 10.7" W x 3.3" D 300 Pair
Qty:
Manufacturer Direct
LE-41DW1-050 GigaMax CAT5E 110 Style Wiring Block Wall-Mount without Legs 1.66" H x 8.51" W x 1.42" D 50 Pair
Qty:
Quick Ship

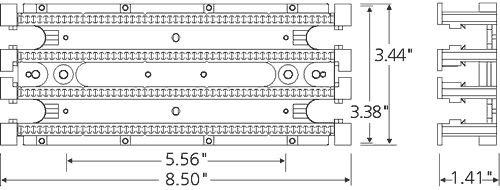

LE-41DW2-100 GigaMax CAT5E 110 Style Wiring Block Wall-Mount without Legs 3.44" H x 8.51" W x 1.42" D 100 Pair
Qty:
Manufacturer Direct
Category 5E 110-Style Wall Mount Kits
Part # Description Dimensions Pairs Price
LE-41AW2-300 GigaMax CAT5E 110 Style Wiring Block Wall-Mount with Legs 10.83" H x 10.7" W x 3.3" D 300 Pair
Qty:
Manufacturer Direct
LE-41DW1-050 GigaMax CAT5E 110 Style Wiring Block Wall-Mount without Legs 1.66" H x 8.51" W x 1.42" D 50 Pair
Qty:
Quick Ship
LE-41DW2-100 GigaMax CAT5E 110 Style Wiring Block Wall-Mount without Legs 3.44" H x 8.51" W x 1.42" D 100 Pair
Qty:
Manufacturer Direct
LE-41AB2-3F5 GigaMax CAT5E 110 style Wiring Block Wall-Mount
with Legs Kit. Includes C-5 clips
10.83" H x 10.7"W x 3.3" D 300 Pair
Qty:
Manufacturer Direct
Category 5E 110-Style Rack Mount Wiring Blocks
Part # Description Dimensions Pairs Price
LE-41DR2-200 GigaMax CAT5E 110 style Wiring Block, Rack-Mount 3.46" H x 19" W x 1.75" D 200 Pair
Qty:
Manufacturer Direct
LE-41DR2-300 GigaMax CAT5E 110 style Wiring Block, Rack-Mount 5.23" H x 19" W x 1.75" D 300 Pair
Qty:
Manufacturer Direct
Category 5E 110-Style Rack Mount Kits
Part # Description Dimensions Pairs Price
LE-41DBR-1F4 GigaMax CAT5E 110 style Wiring Block Rack-Mount Kit
Includes C-4 clips
1.75" H x 19" W x 1.75" D 100 Pair
Qty:
Quick Ship
LE-41DBR-1F5 GigaMax CAT5E 110 style Wiring Block Rack-Mount Kit
Includes C-5 clips
1.75" H x 19" W x 1.75" D 100 Pair
Qty:
Manufacturer Direct
LE-41DBR-2F4 GigaMax CAT5E 110 style Wiring Block Rack-Mount Kit
Includes C-4 clips
3.46" H x 19" W x 1.75" D 200 Pair
Qty:
Manufacturer Direct
LE-41DBR-2F5 GigaMax CAT5E 110 style Wiring Block Rack-Mount Kit
Includes C-5 clips
3.46" H x 19" W x 1.75" D 200 Pair
Qty:
Manufacturer Direct
LE-41DBR-3F4 GigaMax CAT5E 110 style Wiring Block Rack-Mount Kit
Includes C-4 clips
5.23" H x 19" W x 1.75" D 300 Pair
Qty:
Manufacturer Direct
LE-41DBR-3F5 GigaMax CAT5E 110 style Wiring Block Rack-Mount Kit
Includes C-5 clips
5.23" H x 19" W x 1.75" D 300 Pair
Qty:
Manufacturer Direct
Category 5E 110 Connector Clips
Part # Description Dimensions Pairs Price
LE-49104-IDC C-4 Connector Clips 0.926" H x 1.20" W x 0.3" D 10
Qty:
Quick Ship
LE-49104-I50 C-4 Connector Clips 0.926" H x 1.20" W x 0.3" D 50
Qty:
Quick Ship
  • Components are UL listed UL94V-0 ensures they are made of fire retardant plastic.
  • Legs allow cables to be run underneath the units or route cables adjacent to the wiring bases.
  • Available as a rack mount and wall mount installation so you can install in any 19" rack or wall or backboard.
  • Rack mount versions are available in 100, 200, and 300 pair densities.
  • Rack mount Kits include the panel back plate, fire retardant C-4 or C-5 connecting clips, label holders, and labels.
  • Wall mount versions are available in 50, 100, 300 pair densities.
  • Wall mount kits include bases, C-4 or C-5 connecting blocks, label holders and labels.
  • Manufactured in Leviton's own ISO 9001 registered factory for quality assurance.



Uses/Application

Use a Cat 5 E 110 style base or kit in telecommunications equipment rooms including building entrance faculties or small telecom closets to provide a fixed cross connect termination for high speed data, voice or security applications when using category 5E cable.

The 110 racks mount bases mount to any 19” distribution frame or hinged wall mount bracket.
The wall mount bases mount to walls or backboards.

110 Style Connector Clips (Blocks)

Use these 110 style connector clips(also called blocks) to securely seat wires with leviton’s 110 wiring bases for a Category 5e high performance connection.

Features & Benefits

  • Available in three pair count sizes : C-3, C-4, C-5 to support terminations for voice, security, category 5e data when used with category 5e cable.
  • These clips meet or exceed standards for category 5e compliance including TIA/EIA-568-B and FCC Part 68.
  • Made of UL rated 94V-0 fire retardant plastic with solder plated IDC’s(insulation displacement connectors).
  • Clips provide a gas tight IDC connection and can withstand 200 re-terminations.
