Signamax™ Wallmount Mini Patch Panels

Small-Form, Wall-Mountable Patching Systems for Places Where Space is Limited

SX-12458M-C5E
Qty:

What's special about these 12-port patch panels?

  • Preloaded, 12-port mini patch panels available with either CAT5e or CAT6 jacks, designed to exceed TIA/EIA specifications for high-performance networking applications.
  • Small form design provides installers and users with a compact patching solution for when space is very limited and racks or enclosures cannot be used.
  • Available in a hinged version, or mounted to an 89D bracket for easy wallmount installation on most flat surfaces or backboards.
  • Click for More Features
    •
  • ULFCC

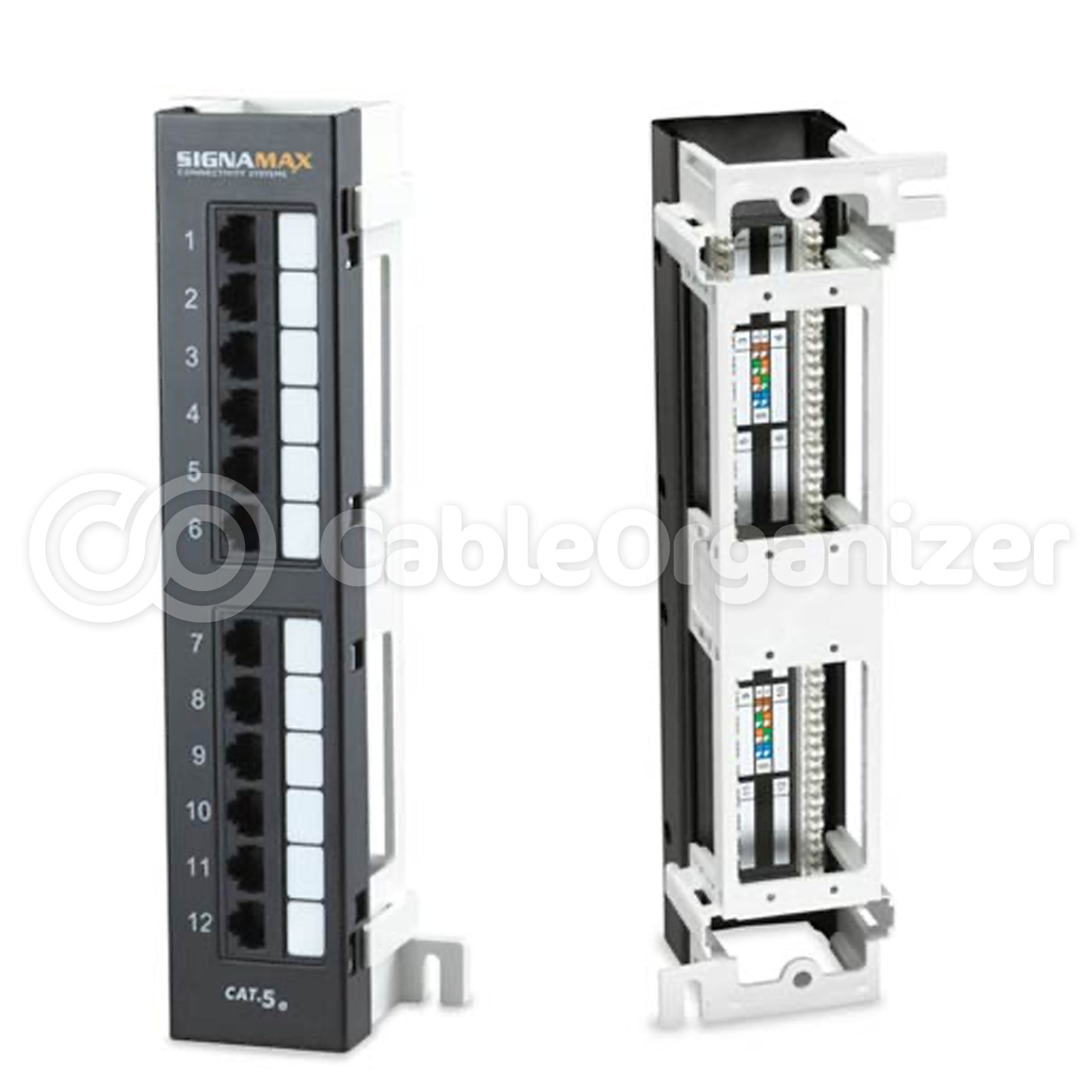

Signamax™ 12-Port Mini Patch Panels provide technicians and premise network installers with the ultimate solution for expanding a network in locations where space is at a premium. These compact, wall mountable patch panels are available in either Cat 5e or Cat 6 styles, which are compatible with both T568A and T568B wiring configurations to provide greater flexibility in accommodating any type of performance specification.

CAT 5e Patch Panels
Part # Description Ports Weight Price
SX-12458M-C5E Mini CAT5e Panel with 89D Bracket 12 1.25 lb
Qty:
Manufacturer Direct
CAT 6 Patch Panels
Part # Description Ports Weight Price
SX-12458M-C6C Mini CAT6 Panel with 89D Bracket 12 1.25 lb
Qty:
Manufacturer Direct
  • Features 4-pair inline 110 type connectors for easy termination using any industry standard single-position 110 or Krone termination tool.
  • Easy to remove bracket or hinged panel provide convenient access to rear termination blocks to greatly reduce labor and installation time.
  • Keystone jacks are specially engineered to provide enhanced plug-to-jack connection integrity, while protecting against damage from the improper insertion of 4 or 6 position connectors.
  • Each jack has been rated to withstand at least 750 connector insertions to ensure the highest level of connectivity and system reliability.
  • Constructed from high-quality steel, to provided maximum strength and durability for fast-paced environments.
  • Features a front labeling area and individually-numbered ports for quick and easy identification.
  • UL listed
  • FCC rated
  • IEC and EN compliant
  • Exceeds ANSI/TIA/EIA specifications

    •

    Transmission Performance
    ANSI/TIA/EIA-568-C.2: Exceeds Category 6 (1–250 MHz) component level specifications
    ANSI/TIA/EIA-568-B.2: Exceeds Category 5e (1 – 100 MHz) component level specifications
    ISO/IEC 11801 2nd Ed., CENELEC EN 50173: Exceeds Category 5 (1 – 100 MHz) component level specifications

    Transmission Media Unshielded twisted pair (UTP)

    Jack Type 8p8c (8-position, 8-contact) “RJ45” type

    Wiring Scheme
    ANSI/TIA/EIA-568-B.2: T568A & T568B
    ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

    Wire Gauge 22-26 AWG (0.643 – 0.404 mm)

    Jack Contacts Phosphor bronze, nickel plating with a minimum of 50 micro inches of gold plating in contact area

    IDC Contacts 110 type, phosphor bronze, nickel plating

    Dimensions Standard 66 block / 89F bracket footprint

    Operating -14°F – 140°F (-10°C – 60°C)

    Compliance ANSI/TIA/EIA-568-B.2, ISO/IEC 11801 2nd Ed., CENELEC EN 50173, FCC Part 68, UL 1863, IEC 60603-7

    Applications X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

    Warranty
    5-year limited component warranty
    25-year system warranty
