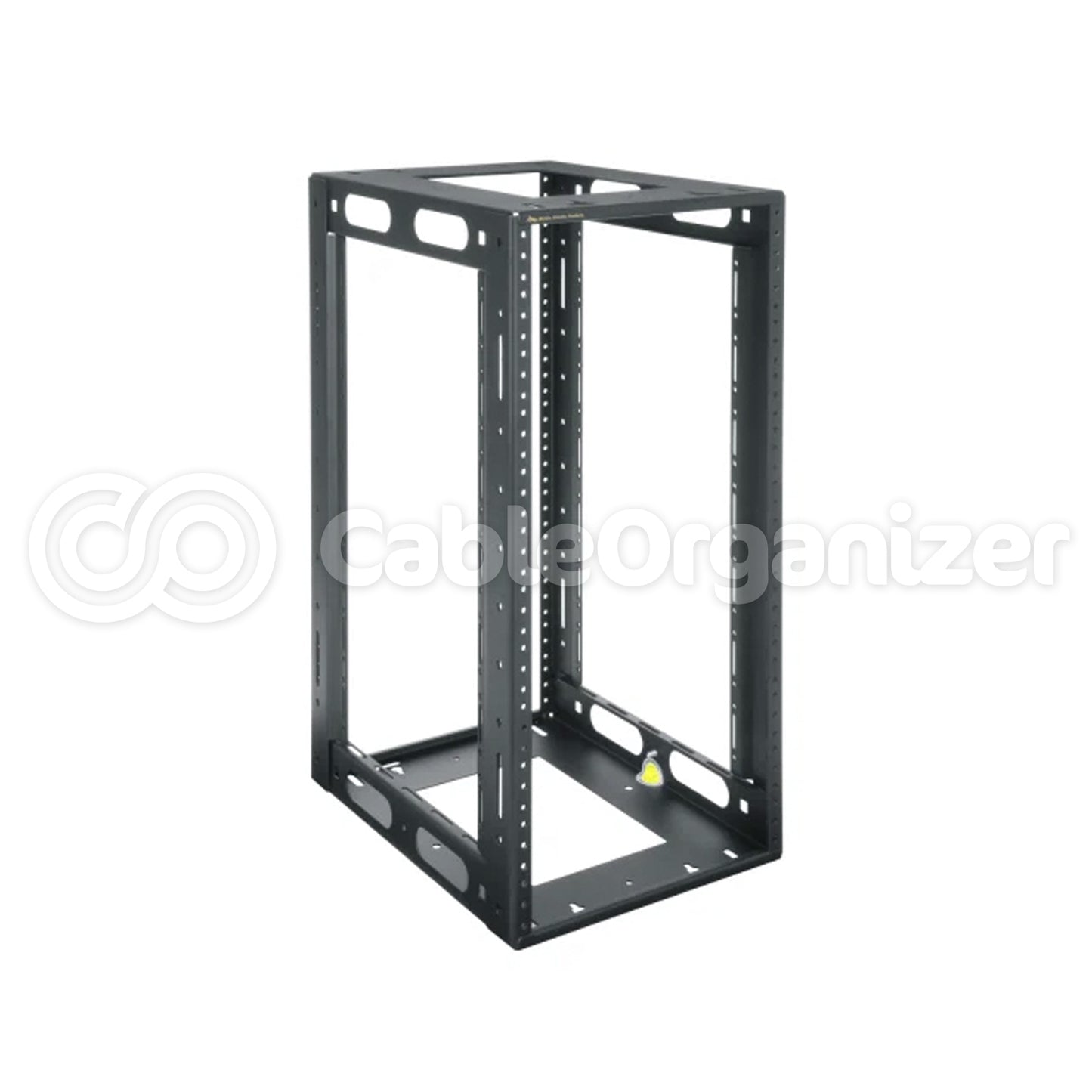

Middle Atlantic® HRF Series Open Frame Half Rack

Reliable Accommodation for a Growing Standard


What's special about this 4 post rack?

  • Houses half rack equipment from many manufacturers.
  • Low-profile and compact dimensions make the half-rack a great option for space efficiency wherever needed.
  • Internal lacing/cable tie points facilitate proper cable management.
  • Welded steel construction ensures durability for years; backed by a Lifetime Warranty.
  • RoHS CompliantULGreenguard Certification

Half-rack equipment is often mounted side-by-side inside of standard racks, but you may need a separate rack in many situations. This open frame half-rack by Middle Atlantic provides 8-12 spaces in a minimal design, maximizing space efficiency. Expect top performance and durability from its 12 gauge welded steel construction that's backed by a Lifetime Warranty.

Part # IMG Rack Space Overall Dimensions Weight Price
MA-HRF-814 8U 14.94" H x 10.65" W x 14" D 13.47 lbs
Manufacturer Direct
MA-HRF-1214 12U 21.94" H x 10.65" W x 14" D 16.24 lbs
Manufacturer Direct

HRF Series Technical Drawing (PDF) PDF

Property Value
Weight Capacity 125 lbs
Finish Black Powder Coat
Rail Tap 10-32
Dimensions 8U: 14.94" H x 10.65" W x 14" D
12U: 21.94" H x 10.65" W x 14" D
Weight 8U: 13.47 lbs
12U: 16.24 lbs
Material 12ga Steel
Mounting Horizontal
Ratings UL1678
UL E173107
Related Articles


How-To Corner


Request A Quote

Did you know that we can give you a quote for most of our products, including shipping?

You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)

Questions & Answers


Equipments that can be mounted - Hi, I want to order Middle Atlantic® HRF Series Open rack for my home lab. Can you please confirm if the following equipment can be mounted. Frame Half Rack. Cisco Router Cisco UCS Servers Thanks

Asked by Anonymous user on 09.53 AM Friday, 18 December, 2015

  • - This open rack is designed to be used in areas of limited space. As with all our wall mount products, the installer will restricted by the dimensions of the rack. The HRF model does not conform to the 19" wide rack standard and standard rack mount equipment will not fit in this cabinet. If the equipment is suited for mounting in a Half-Rack, then the next limitation is typically the depth of the rack. In this case, nothing greater than 14" will fit in this rack.

    Steve S. on 06.33 PM Wednesday, 02 March, 2016
