Great Lakes Casters, Levelers and Anchors for Enclosures
A Variety of Accessories to Keep Your Enclosure Level, Secure or Mobile
QGL-7208-ES
What's special about these cabinet accessories?
- Casters come in a variety of sets that include combinations of locking, non-locking, regular and heavy-duty styles
- Anti-tip legs ensure that the enclosure will remain stable even with heavy servers pulled out
- Keep the cabinet safe from minor earthquakes with a seismic anchor kit
- Use adjustable levelers to balance cabinets or enclosures in rooms with slightly unlevel floors
- Click for More Features

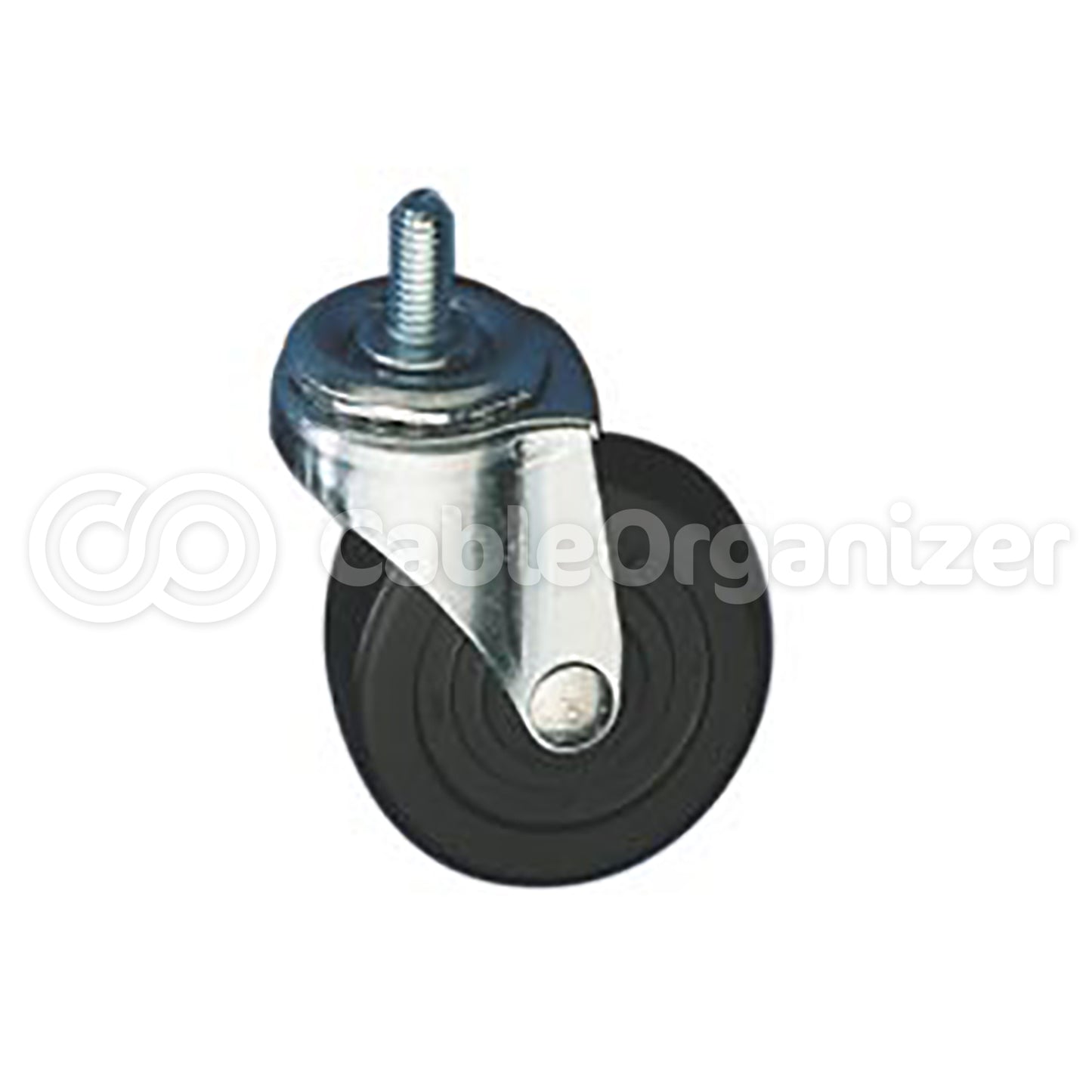

With these sturdy rack accessories from Great Lakes, server cabinets can be made either mobile or secure. Casters are available in kits that are made up of all locking, or a combination of locking and non-locking, styles. Standard hard rubber casters are built to support a minimum of 1,000 lbs; the heavy duty casters can support up to 1,500 lbs and are made of Duratex.
CASTERS | ||||
---|---|---|---|---|
Part # | Description | Load Capacity | Weight | Price |
QGL-7208-ES | 4 Non-Locking | 1,000 lbs | 5 lbs | Manufacturer Direct |
QGL-7208-E | 2 Locking, 2 Non-Locking | 1,000 lbs | 5 lbs | Manufacturer Direct |
QGL-7208-EALL | 4 Locking | 1,000 lbs | 5 lbs | Manufacturer Direct |
QGL-7208-EHD | 4 Heavy Duty Locking | 1,500 lbs | 8 lbs | Manufacturer Direct |
ANTI-TIP-LEGS | ||||
---|---|---|---|---|
Part # | Description | Load Capacity | Weight | Price |
QGL-AT1 | Anti-Tip Legs for ES Enclosures | 2,000 lbs | 11 lbs | Manufacturer Direct |
QGL-AT2 | Anti-Tip Legs for E Enclosures | 2,000 lbs | 11 lbs | Manufacturer Direct |
SEISMIC ANCHORS | |||
---|---|---|---|
Part # | Description | Weight | Price |
QGL-AK101 | Seismic Anchor Kit | 2 lbs | Manufacturer Direct |
ADJUSTABLE LEVELERS | |||
---|---|---|---|
Part # | Description | Weight | Price |
QGL-7209-N | (4) at 2-1/2" Height | 1 lb | Manufacturer Direct |
QGL-7209-N4 | (4) at 4" Height | 2 lbs | Manufacturer Direct |
- Casters support 1000 to 1500 lbs and available either locking, or locking and non-locking
- Anti-tip legs prevent the enclosure from leaning too far when servers or switches are extended forward
- Use the seismic anchor kit when installing a network enclosure in earthquake-prone areas
- Levelers help keep your server rack or cabinet in balance, even if the floor isn't perfectly flat
Casters
Part # | QGL-7208-E | QGL-7208-EALL | QGL-7208-EHD |
---|---|---|---|
Contents | 2 Locking, 2 Non-Locking | 4 Locking | 4 Heavy Duty Locking |
Load Capacity | 1,000 lbs | 1,000 lbs | 2,000 lbs |
Material | Wheel: Hard Rubber Stem: Steel |
Wheel: Hard Rubber Stem: Steel |
Wheel: Duratex Stem: Steel |
Wheel Diameter | 3" | 3" | 3" |
Anti-Tip Legs
Load Capacity | 2,000 lbs |
---|---|
Length | 20" |
Construction | Steel tubing with leveling guide |
Cabinets | E or ES |
Seismic Anchors
Hole Depth | 4.13" [105 mm] |
---|---|
Anchor Length | 5.47" [139 mm] |
Anchor Size | 0.47" - 1.10" [12 - 28 mm] |
Drill Bit Diameter | 0.71" [18 mm] |
Wrench Size | 0.75" [19 mm] |
Baseplate Clearance Hole | 0.79" [20 mm] |
Recommended Installation Torque | 60 ft-lb (81 Nm) |
Listings/Approvals | ICC-ES ESR-1917 FM (Factory Mutual) UL NQA-1 |
International Building Codes | 2003 IBC Compliant Anchor 2006 IBC Compliant Anchor |
Meets | Seismic qualifications with ACI 355.2 and ICC-ES AC 193 Ductility requirements of 318 D.3.3 |
Levelers
Part # | QGL-7209-N | QGL-7209-N4 |
---|---|---|
Overall Height | 3.375" | 4.75" |
Max Cabinet Height | 2.5" | 4" |
Load Capacity | 2,000 lbs | 2,000 lbs |
Material | Stem: Steel Pad: Polyethylene |
Stem: Steel Pad: Polyethylene |
