Signamax™ Ultra High-Density 1U Fiber Optic Patch Panels

Ultimate Optical Fiber Patching Solution for When Rack Space is at a Premium


What's special about these rackmount fiber optic patch panels?

  • Affordable, high fiber count patch panels preloaded with either SC- or LC-style adapters to offer installers a greater range of flexibility when designing or upgrading network infrastructures.
  • Utilizes only 1.75" (1 RU) of rack space to provide installers with the perfect solution for limited-space environments like wallmount enclosures or remote fiber hubs.
  • 48 modular ports support both SC simplex and LC duplex keystone jacks to provide more fiber terminations (up to 96 fibers) than standard patch panels.
  • Click for More Features

Signamax™ High-Density 48- or 96-Fiber Patch Panels come pre-equipped with either LC or SC HD keystone jacks to offer installers an economical, high-density fiber termination solution that doesn't take up much space. These ultra-compact patch panels mount easily in any standard 19” rack or enclosure to provide technicians with a cost-effective, easy to install solution for fiber optic cross-connections.

Part # Description Adapter Type Fiber Count Rack Height Price

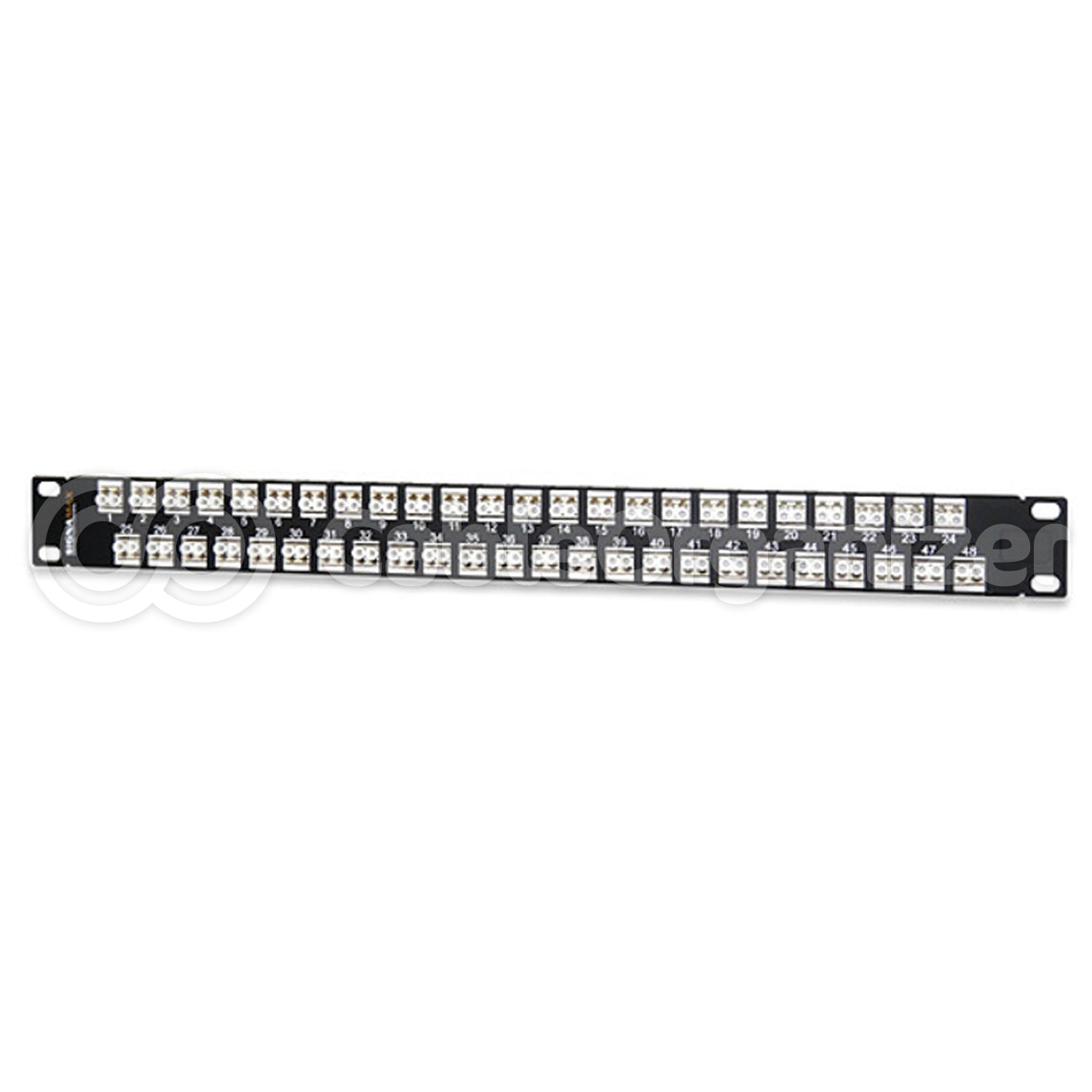

SX-48HD1SC-FT Signamax 48 Port High Density SC Patch Panel SC Multimode 48-Fiber 1 RU / 1.75"
Manufacturer Direct
SX-48HD1LC-FT Signamax 48 Port High Density LC Patch Panel LC Multimode 96-Fiber 1 RU / 1.75"
Manufacturer Direct
  • Available with either single mode or multimode keystone jacks to accommodate the specific requirements of your network infrastructure.
  • Includes a rear strain-relief bar to help maintain proper cable bend radii, while providing additional support for bulky trunk cables when needed.
  • Each port is individually numbered for fast and easy identification.
  • Constructed from high-quality die cast steel to provide maximum strength and durability.
  • High-impact, black epoxy-powder finish provides excellent corrosion and scratch resistance.
  • Port Quantity: 48 48 48 48
    Fiber Quantity: 48 48 96 96
    Connector Quantity: 48 48 48 48
    Connector Type: SC Simplex SC Simplex LC Duplex LC Duplex
    Connector Mode: Multimode Single Mode Multimode Single Mode
    Connector Gender: Female Both Sides Female Both Sides Female Both Sides Female Both Sides
    Product Material: Die Cast Steel Die Cast Steel Die Cast Steel Die Cast Steel
    Rack Mounting Height: 1U / 1.75" 1U / 1.75" 1U / 1.75" 1U / 1.75"
    Rack Mounting Width: 19" 19" 19" 19"
