What's special about these clips?
- The different fastening orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters.
-
HellermannTyton’s edge clips are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. These edge clips are molded to a tape bar, which can be secured to cables with cable ties or tape. The clip is easy to secure, and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.
| Part # | IMG | Description | Panel Thickness | Length | Material, Color, Qty. | Price |
|---|---|---|---|---|---|---|
| HT-151-03402 |  |

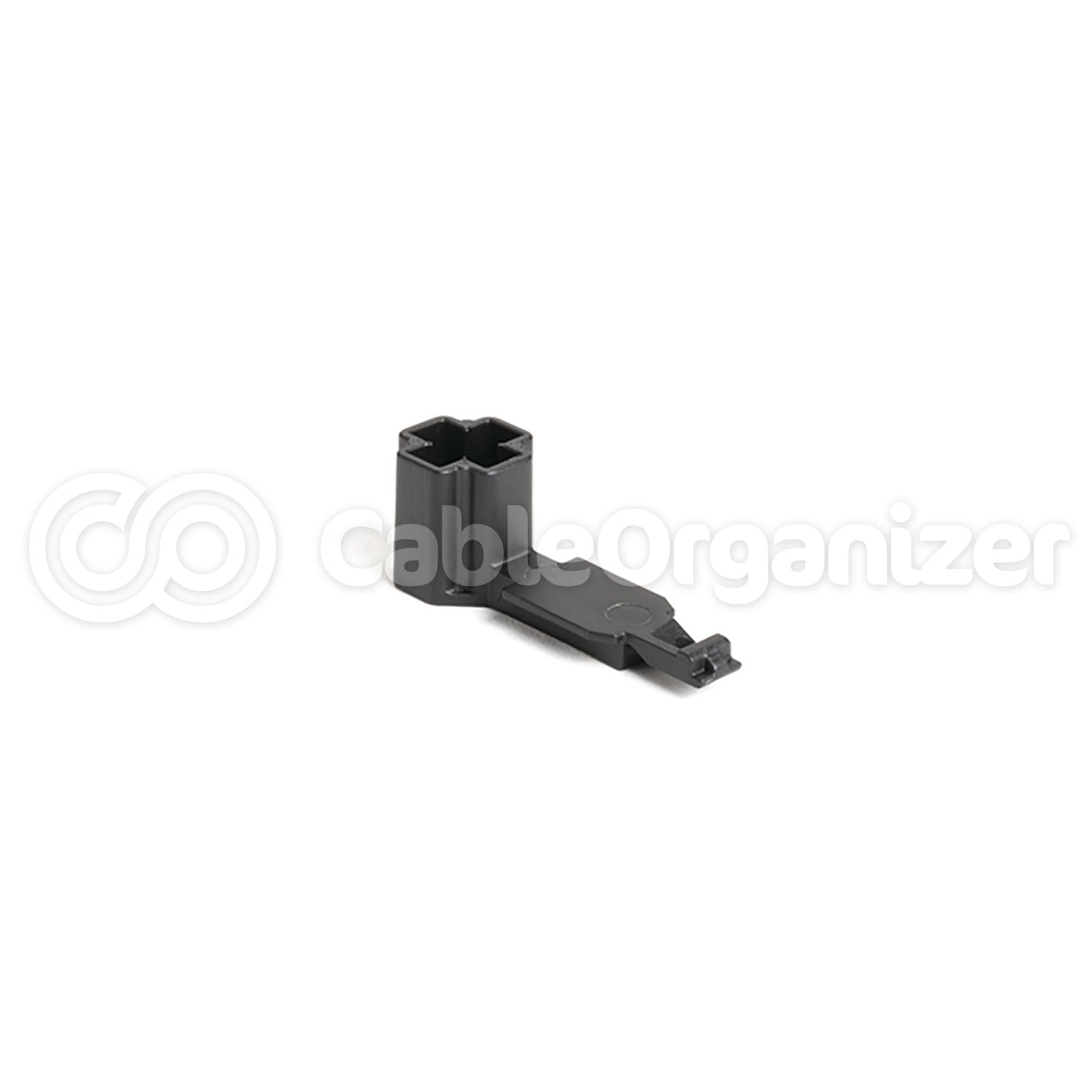

Edge Clip and Tape Clip EC16 | 0.04" - 0.12" | 1.6" Long | PA66HIRHS, Black, 500/pkg | Quick Ship
|
| HT-151-03403 |  |
Edge Clip and Tape Clip, EC17 | 0.04" - 0.12" | 1.8" Long | PA66HIRHS, Black, 500/pkg | Quick Ship
|
| HT-133-03399 |  |
Edge Clip and Tape Clip | .03" - .08" | 1.43" Long | PA66HIRHSUV, Gray, 4000/ctn | Quick Ship
|
| HT-133-03524 |  |
Edge Clip and Tape Clip | .03" - .08" | 1.43" Long | PA66HIRHSUV, Black, 4000/ctn | Quick Ship
|
| HT-133-03800 |  |
Edge Clip and Tape Clip | .03" - .08" | 1.43" Long | PA66HIRHS, Cream, 4000/ctn | Quick Ship
|
| HT-133-04257 |  |
Edge Clip and Tape Clip | .06" - .08" | 1.43" Long | PA66HIRHSUV, Black, 4000/ctn | Quick Ship
|
| HT-133-04243 |  |
Edge Clip and Tape Clip | .06" - .11" | 1.43" Long | PA66HIRHSUV, Black, 4000/ctn | Quick Ship
|
| HT-133-04383 |  |
Edge Clip and Tape Clip | .06" - .11" | 1.78" Long | PP, Black, 3000/ctn | Quick Ship
|
| HT-133-04486 |  |
Edge Clip and Tape Clip | .11" - .12" | 1.43" Long | PA66HIRHS, Gray, 3000/ctn | Quick Ship
|
| Part # | Description | Panel Thickness | Length X Height (Imperial) | Material, Color, Qty. | Flammability | Operating Temp. | UV resistnat | Reach Compliant (Article 33) |
|---|---|---|---|---|---|---|---|---|
| HT-151-03402 | Edge Clip and Tape Clip EC16 | 0.04" - 0.12" | 1.6" x 0.51" | PA66HIRHS, Black, 500/pkg | UL 94 HB | -40°F to +221°F (-40°C to +105°C) | No | Yes |
| HT-151-03403 | Edge Clip and Tape Clip, EC17 | 0.04" - 0.12" | 1.8" x 0.51" | PA66HIRHS, Black, 500/pkg | UL 94 HB | -40°F to +221°F (-40°C to +105°C) | No | Yes |
| HT-133-03399 | Edge Clip and Tape Clip | .03" - .08" | 1.43" x 0.3" | PA66HIRHSUV, Gray, 4000/ctn | - | - | Yes | Yes |
| HT-133-03524 | Edge Clip and Tape Clip | .03" - .08" | 1.43" x 0.3" | PA66HIRHSUV, Black, 4000/ctn | - | - | Yes | No |
| HT-133-03800 | Edge Clip and Tape Clip | .03" - .08" | 1.43" x 0.3" | PA66HIRHS, Cream, 4000/ctn | - | - | No | No |
| HT-133-04257 | Edge Clip and Tape Clip | .06" - .08" | 1.43" x 0.38" | PA66HIRHSUV, Black, 4000/ctn | - | - | Yes | No |
| HT-133-04243 | Edge Clip and Tape Clip | .06" - .11" | 1.43" x 0.43" | PA66HIRHSUV, Black, 4000/ctn | - | - | Yes | No |
| HT-133-04383 | Edge Clip and Tape Clip | .06" - .11" | 1.78" x 0.43" | PP, Black, 3000/ctn | - | - | No | Yes |
| HT-133-04486 | Edge Clip and Tape Clip | .11" - .12" | 1.43" x 0.19" | PA66HIRHS, Gray, 3000/ctn | - | - | No | Yes |
