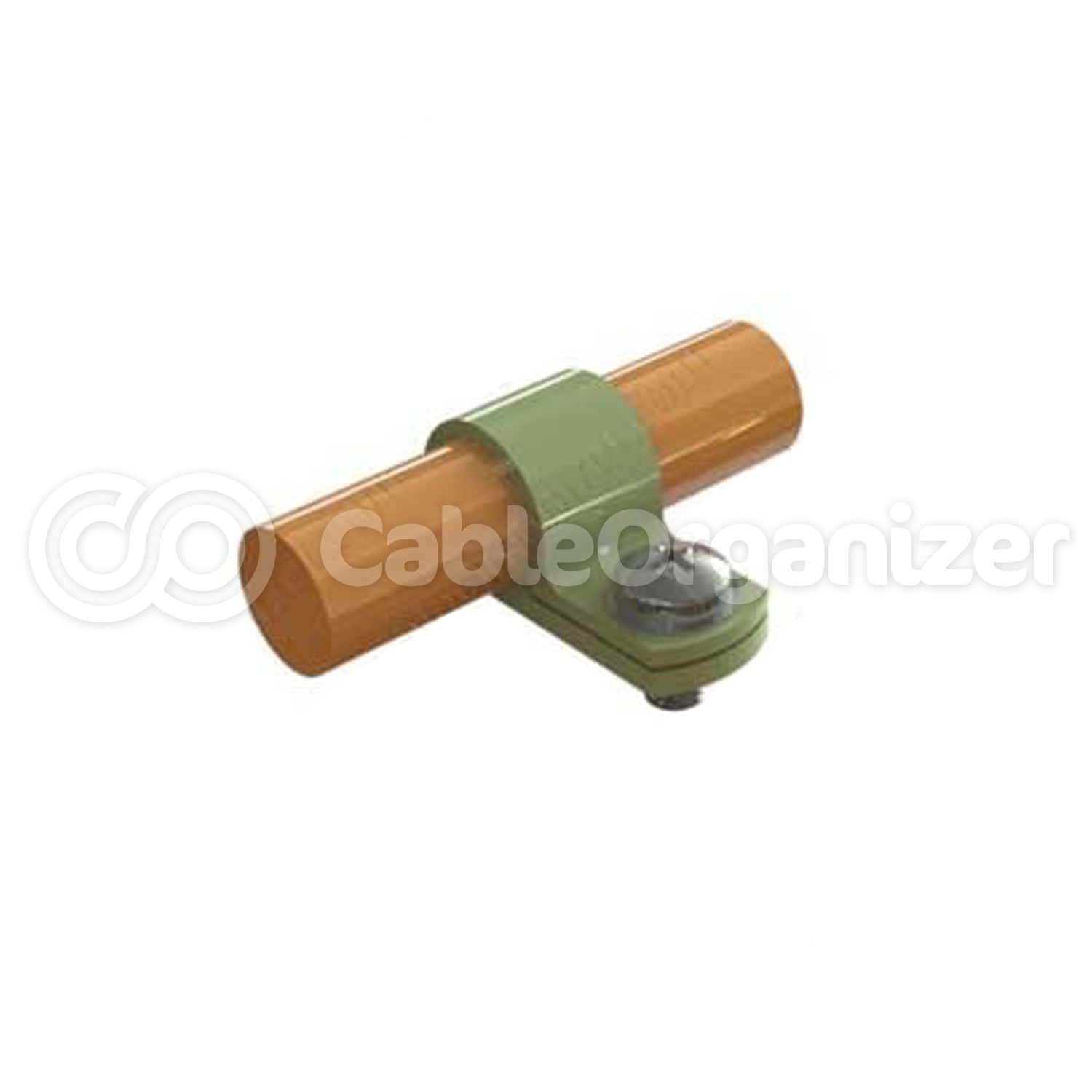

Cable Clamps with Eyelets

Heavy Duty Cable Management for Wires, Cables, Pipes or Hoses


What's special about these cable brackets?

  • Designed for tough conditions where extra holding power is needed to prevent cables from disconnecting due to vibration
  • Perfect for keeping heavy, thick or cumbersome cables securely in place and working properly
  • Aluminum eyelet in the mounting hole provides a higher tensile strength, and spreads the pressure of cables evenly for less stress
  • Ribbed inner ring firmly grasps hoses or cables to prevent slipping
  • Click for More Features
RoHS Compliant

These NM Series Cable Clamps by Richco are perfect for heavy-duty cable management especially when vibration is involved. This one piece design is manufactured from Nylon 6.6 and will hold securely without cutting or damaging hoses, pipes or wiring.

Part #Cable Bundle SizeColorWeightQty Per PackPrice
RI-NM-6-R63/8" [9.5mm]Natural0.5 lb500
Manufacturer Direct
RI-NM-12-R123/4" [19.1mm]Natural0.8 lb500
Manufacturer Direct
RI-NM-18-R181-1/8" [28.6mm]Natural1 lb500
Manufacturer Direct
RI-NM-20-R201-1/4" [31.75mm]Natural1 lb100
Manufacturer Direct
RI-NM-24-R241-1/2" [38.1mm]Natural1.1 lbs100
Manufacturer Direct
  • Manufactured of UL94-V2 Nylon 6.6 which eliminates galvanic corrosion on pipes such as cooper or aluminum for years of uninterrupted use
  • Recommended #10 or M5 mounting screw prevents opening or unraveling
  • Strong and flexible enough to adapt to any condition hot, dry or wet
  • Clamps will not cut, score, bend or crush delicate tubing as metal clamps are notorious for
  • SAE AS25281
  • Approved and listed on QPL 23190
  • RoHS compliant
  • MIL-M-20693/ASTM D-4066
  • Eyelet: Aluminum, RMS-31, Anodized in accordance with MIL-A-8625



clamp dimension

Part # MS Part # Cable Dia.
"E" "F" "P" "R" "T" "W" "X" "Y"
RI-NM-6-R6 MS25281-R6 3/8" 0.578" (14.7mm) 0.250" (6.4mm) 0.250" (6.4mm) 0.062" (1.57mm) 0.068" (1.7mm) 0.503" (12.8mm) 0.065" (1.7mm) 0.093" (2.4mm)
RI-NM-10-R10 MS25281-R10 5/8" 0.706" (17.9mm) 0.285" (7.2mm) 0.300" (7.6mm) 0.109" (2.77mm) 0.068" (1.7mm) 0.503" (12.8mm) 0.065" (1.7mm) 0.108" (2.74mm)
RI-NM-12-R12 MS25281-R12 3/4" 0.816" (20.7mm) 0.285" (7.2mm) 0.300" (7.6mm) 0.109" (2.77mm) 0.068" (1.7mm) 0.503" (12.8mm) 0.065" (1.7mm) 0.108" (2.74mm)
RI-NM-16-R16 MS25281-R16 1" 0.941" (23.9mm) 0.285" (7.2mm) 0.300" (7.6mm) 0.109" (2.77mm) 0.068" (1.7mm) 0.503" (12.8mm) 0.065" (1.7mm) 0.108" (2.74mm)
RI-NM-18-R18 MS25281-R18 1-1/8" 0.983" (25mm) 0.285" (7.2mm) 0.300" (7.6mm) 0.109" (2.77mm) 0.068" (1.7mm) 0.503" (12.8mm) 0.065" (1.7mm) 0.108" (2.74mm)
RI-NM-20-R20 MS25281-R20 1-1/4" 1.066" (27.1mm) 0.285" (7.2mm) 0.300" (7.6mm) 0.109" (2.77mm) 0.120" (3mm) 0.553" (4.05mm) 0.090" (2.3mm) 0.125" (3.2mm)
RI-NM-24-R24 MS25281-R24 1-1/2" 1.170" (29.7mm) 0.285" (7.2mm) 0.300" (7.6mm) 0.109" (2.77mm) 0.120" (3mm) 0.553" (4.05mm) 0.090" (2.3mm) 0.125" (3.2mm)
