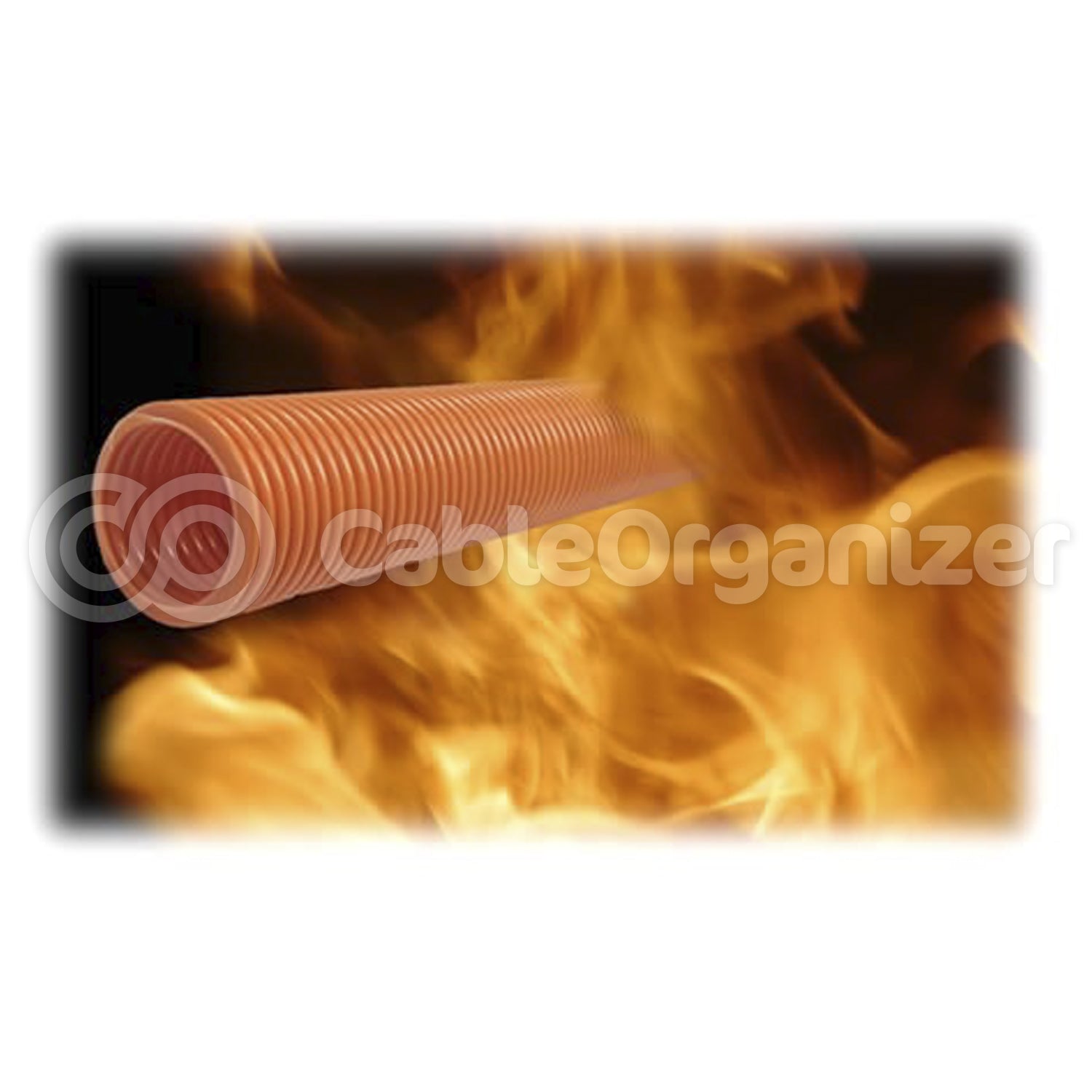

Riser Convoluted Raceway

Wire Protection for Extreme Conditions


BFTRI050-250FT
Qty:

What's special about riser corrugated tubing?

  • Hides and protects cables, wires, and hoses from damage in a building’s riser shaft.
  • Integrated UL Listed Kevlar® pull wire saves time and money over using outside products.
  • This heat and cold resistant wire loom prevents multi-level spread of fire, protecting personnel and equipment from damage.
  • Ideal for wire installation in horizontal areas between floors.
  • Click for More Features
  •
  • UL

When installing wires into buildings, personnel and equipment safety is partly dependent on proper wire installation. Convoluted Riser Raceway is designed to be installed in riser shafts in new construction or retrofit applications. This tubing protects from dust, abrasion, heat, and other elements that can harm cables.

Please Note: These products ship in 2 weeks
For reels longer than 250ft, please call for price quote

Part # Nominal Size Id Od Length Colors Price / Coil
BFTRI050-250FT 1/2" 0.65" 0.85" 250 FT Orange, White
Qty:
Manufacturer Direct
BFTRI075-250FT 3/4" 0.87" 1.125" 250 FT Orange, White
Qty:
Manufacturer Direct
BFTRI100-250FT 1" 1.10" 1.35" 250 FT Orange, White
Qty:
Manufacturer Direct
BFTRI125-250FT 1-1/4" 1.25" 1.60" 250 FT Orange, White
Qty:
Manufacturer Direct
BFTRI150-250FT 1-1/2" 1.50" 2.00" 250 FT Orange, White
Qty:
Manufacturer Direct
BFTRI200-250FT 2" 2.00" 2.50" 250 FT Orange, White
Qty:
Manufacturer Direct
  • Rugged, impact-resistant design is still flexible enough to go around bends without becoming damaged.
  • Compatible with optical fibers, this tubing will protect even the most sensitive cables.
  • Sequential footmarks ensure you will not over or undercut the amount needed for the job, creating perfect runs every time.
  • Nylon Resin construction does not become brittle in cold weather.
  • Material Corrugated Nylon Resin
    Pull Line / Cable Pre-Installed Kevlar pull tape or cable (up to 7/16" in diameter)

    UL Standard 2024 (UL Test 1666)
    Acceptance Criteria Test Method Value
    Maximum Flame Propagation UL 2024, Sec. 9 4.25 ft
    Maximum Damage Height UL 2024, Sec. 9 6.75 ft

    Mechanical Properties
    Acceptance Criteria Test Method Value
    Tensile Strength, Yield ASTM D638 7,800 PSI
    Flexural Strength ASTM D790 9,200 PSI

    Thermal Properties
    Acceptance Criteria Test Method Value
    Melting Point ASTM D789 420° F (215° C)

    NOTE: The use of Riser Raceway does not eliminate the need for Riser rated cable.
