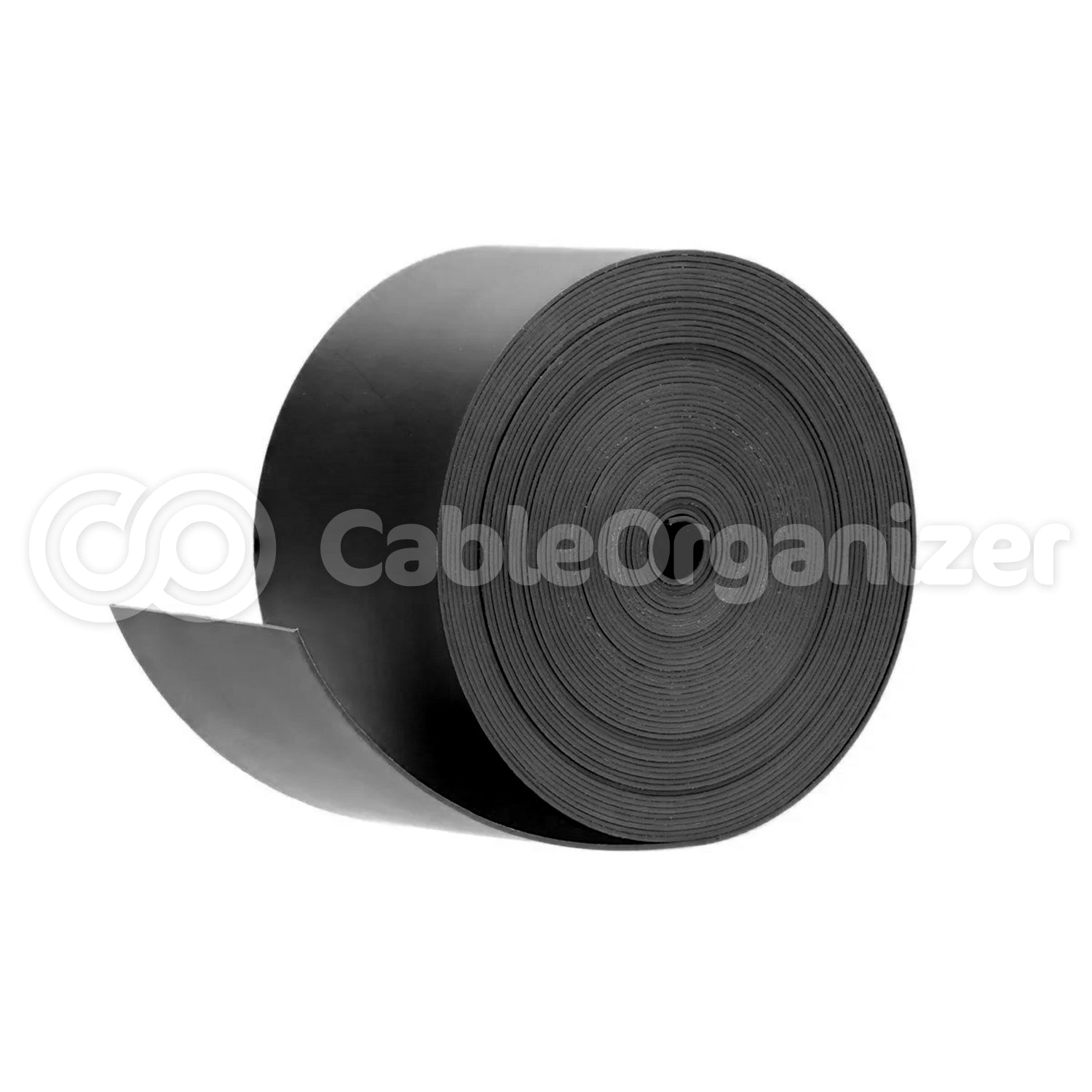

Adhesive Lined Heat Shrinkable Tape (Cross-Linked)

Shrink to Fit on Cables without Disconnecting Them

GM-FIX-105-25
Qty:

What's special about this adhesive heat shrink tape?

  • Allows you to use heat shrink when disconnecting cables or hoses is not possible.
  • Creates custom splicing on damaged cables
  • Withstands high temperatures so it can be used in various locations.
  • Waterproof material and adhesive create watertight seals
  • Click for More Features

Heat shrinkable tape is an environmentally friendly heat melted adhesive lined polyolefin tape. This heat shrink wrap tape is primarily used for repair of electrical cabling and insulation, particularly when they can't be disconnected, but has many other uses as well.

Part # Description Tape Length Colors Price
GM-FIX-105-25 1 inch Standard Wall Heat Shink Tape 25 ft Black, Red
Qty:
GM-FIX-105HW-25 1 inch Heavy Wall Heat Shrink Tape 25 ft Black
Qty:
GM-FIX-105-50 2 inch Standard Wall Heat Shink Tape 25 ft Black, Red
Qty:
GM-FIX-105HW-50 2 inch Heavy Wall Heat Shrink Tape 25 ft Black
Qty:
GM-FIX-105-100 4 inch Standard Wall Heat Shink Tape 25 ft Black, Red
Qty:

For a large selection of Heat Guns - CLICK HERE

  • Available in either standard or heavy wall construction
  • Seals to most electrical cables and pipes
  • Withstands temperatures between -67°F (-55°C) and 221°F (105°C)
  • Ideal for:
  • Insulation for Bus Bars in Switch Gear Cupboards and
  • Water Proofing
  • Repair for Damaged Cables
  • Offers Protective Layered Insulation for cable joints
  • Protects Against Corrosion on Pipes
  • RoHS compliant
    • Temperature Rating Full Recovery: 105°C
    Continuous Operating: -55° C to 105° C
    Minimum Shrink Temperature: 212° F (100° C)
    Completely Shrink at 105° C
    Wall Thicknesses Standard Wall (GM-FIX-105-25): 0.031" Heavy Wall (GM-FIX-105HW-25): 0.04"

      PHYSICAL PROPERTIES
       PROPERTY    TEST METHOD    STANDARD
    Tensile Strength ASTM D638 ≥ 12 MPa
    Tensile Strength after Thermal Aging ASTM D2671 (120°C / 168 hrs) ≥ 10 MPa
    Elongation ASTM D638 ≥ 400%
    Elongations after Thermal Aging ASTM D 2671 (120°C / 168 hrs) ≥ 350%
    Volume Resistance IEC 93 ≥ 10ˆ14 Ω .cm
    Dielectric Strength IEC 243 ≥ 20kv/mm
    Related Articles



    How-To Corner



    Request A Quote

    Did you know that we can give you a quote for most of our products, including shipping?

    You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)

    Questions & Answers

    Question:

    How much overlap of the tape is required to have a strong adhesive grip when it is heated?

    Asked by Anonymous user on 03.53 PM Tuesday, 31 January, 2017

    Question:

    What is the voltage rating on this product? 300 volts, 600 volts?

    Asked by Anonymous user on 10.05 AM Monday, 24 July, 2017

    Answer:

    • - Hello, This has a 600 voltage rating.

      andrew b. on 10.10 AM Thursday, 24 August, 2017
    Question:

    how wide is the tape? can it be wrapped around a 1/4 inch diamete cable

    Asked by Anonymous user on 06.34 PM Sunday, 08 July, 2018

    Answer:

    • - Hello, This tape is 1" wide and 25 feet long.

      Anonymous user on 04.34 PM Tuesday, 10 July, 2018
