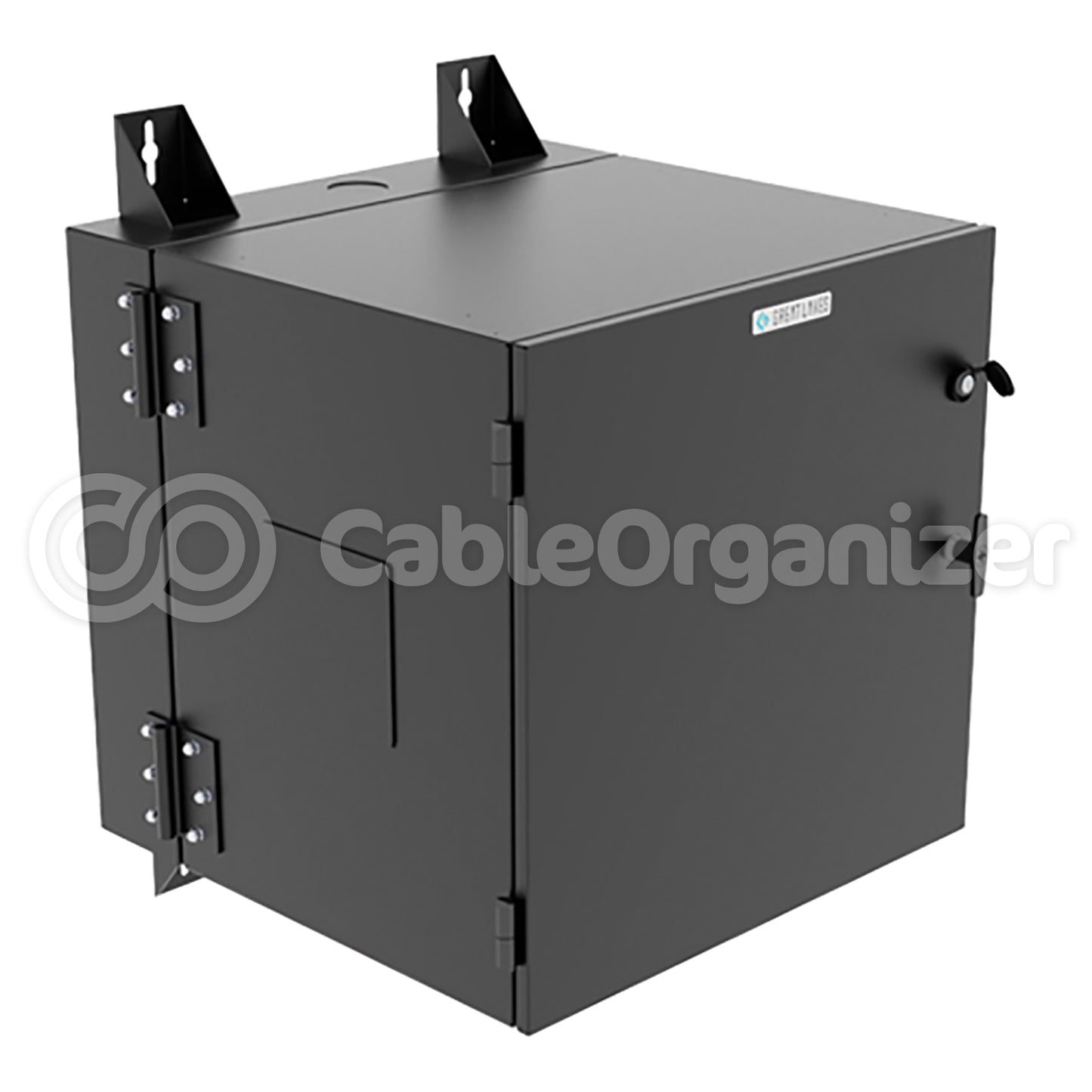

Great Lakes NEMA Type 12 Swing Out Wall Mount Enclosures
RU Style Wall Mounts for Networking Equipment
What's special about NEMA rated swing out cabinets?
- Constructed to NEMA type 12 standards for protecting delicate equipment from dust, airborne fibers, falling debris, and non-corrosive liquids.
- Reversible-style mounting to accommodate different environmental factors such as limited work space, overcrowded equipment rooms, or pre-existing supplies and equipment.
- 19" EIA compliant 12-24 threaded mounting rails are adjustable from front to back to securely install servers, PDUs, patch panels and other rack style components.
- Click for More Features
Warehouses, machine shops and other indoor environments with heavy machinery are notorious for being dusty, grimy, and full of airborne contaminants. This is generally only a mild annoyance for most people, but can potentially have disastrous effects on vital server and networking equipment used for controlling machinery.
| Part # | RU | Cooling | Dimensions | Load Capacity | Weight | Price |
|---|---|---|---|---|---|---|
| QGL-GL240N12 | 12U | Side Panel accepts (1) QGL-FFKN12-A4 Fan (sold separately) | 24" H x 24" W x 24" D | 150 lbs | 105 lbs | Manufacturer Direct |
| QGL-GL240N12A | 12U | Side Panel accepts GL1000MMR or GL1300MMR AC Unit (sold separately) | 24" H x 24" W x 24" D | 150 lbs | 105 lbs | Manufacturer Direct |
| QGL-GL360N12 | 19U | Side Panel accepts (2) QGL-FFKN12-A4 Fans (sold separately) | 36" H x 24" W x 24" D | 250 lbs | 140 lbs | Manufacturer Direct |
| QGL-GL360N12A | 19U | Side Panel accepts GL1000MMR or GL1300MMR AC Unit (sold separately) | 36" H x 24" W x 24" D | 250 lbs | 140 lbs | Manufacturer Direct |
| QGL-GL480N12 | 26U | Side Panel accepts (3) QGL-FFKN12-A4 Fans (sold separately) | 48" H x 24" W x 24" D | 300 lbs | 175 lbs | Manufacturer Direct |
| QGL-GL480N12A | 26U | Side Panel accepts GL2200MMR AC Unit (sold separately) | 48" H x 24" W x 24" D | 300 lbs | 175 lbs | Manufacturer Direct |
| ACCESSORIES | ||
|---|---|---|
| Part # | Description | Price |
| QGL-FFKN12-A4 | Fan Assembly with Exhaust Filter, 28 CFM, 115V | Manufacturer Direct |
| QGL-FILTER-10 | Package of 5 Exhaust Fan Filters | Manufacturer Direct |
| QGL-GL1000MMR | 1,000 BTU ice Qube AC Unit for GL240N12A or GL360N12A Enclosure | Manufacturer Direct |
| QGL-GL1300MMR | 1,300 BTU ice Qube AC Unit for GL240N12A or GL360N12A Enclosure | Manufacturer Direct |
| QGL-GL2200MMR | 2,200 BTU ice Qube AC Unit for GL480N12A | Manufacturer Direct |
Using a NEMA type 12 enclosure instead of traditional racks and enclosures can help prevent costly and time consuming system shut downs due to equipment failure from dust build-up or small water particles.
Great Lakes Swing-Out Wall Mounts have been independently tested and certified to the National Electrical Manufacturers Association's Type 12 standard. These wall mount enclosures are especially designed for housing rack mount style equipment, and keeping them safe in NEMA-12 specified indoor environments. Equipped with T-handle compression latches and keyed locks, these wall mounts stay sealed and deter unwarranted access while remaining easily accessible to authorized technicians.
- Keyed locks are equipped with dust covers to prevent airborne contaminates from building up inside the chamber or entering the enclosure.
- Top, side and bottom panel include cable access knock-outs for accommodating 1", 2" and 3" diameter conduit.
- Removable gland plates allow you to add optional fans, so you can increase airflow and exhaust without compromising NEMA 12 compliance.
- Constructed from strong cold-rolled North American steel and finished in a durable black powder coat finish to provide long-lasting quality and craftsmanship.
- cULus listed UL 60950-1
- RoHS Compliant
Custom NEMA Solutions are available upon request. Please call us at 1-833-3CABLEORG (1-833-322-2536).
| Part # | QGL-GL240N12 | QGL-GL240N12A | QGL-GL360N12 | QGL-GL360N12A | QGL-GL480N12 | QGL-GL480N12A |
|---|---|---|---|---|---|---|
| Outside Height: | 24" | 24" | 36" | 36" | 48" | 48" |
| Outside Width: | 24" | 24" | 24" | 24" | 24" | 24" |
| Outside Depth: | 24" | 24" | 24" | 24" | 24" | 24" |
| Weight: | 105 lbs. | 105 lbs. | 140 lbs. | 140 lbs. | 175 lbs. | 175 lbs. |
| RU: | 12 | 12 | 19 | 19 | 26 | 26 |
| Rails: | 19" EIA Compliant with 12-24 Threaded Holes | 19" EIA Compliant with 12-24 Threaded Holes | 19" EIA Compliant with 12-24 Threaded Holes | 19" EIA Compliant with 12-24 Threaded Holes | 19" EIA Compliant with 12-24 Threaded Holes | 19" EIA Compliant with 12-24 Threaded Holes |
| Cooling Units Supported: | 1 FFKN12-A4 Fan Assembly | 1,000 or 1,300 BTU AC unit | 2 FFKN12-A4 Fan Assemblies | 1,000 or 1,300 BTU AC unit | 3 FFKN12-A4 Fan Assemblies | 2,200 BTU AC unit |
| Number of Cable Access Knockouts: | 6 | 6 | 6 | 6 | 6 | 6 |
| Cable Access Knockouts Conduit Support: | 1", 2", 3" | 1", 2", 3" | 1", 2", 3" | 1", 2", 3" | 1", 2", 3" | 1", 2", 3" |
| Construction | ||||||
| Weight Capacity: | 150 lbs. | 150 lbs. | 250 lbs. | 250 lbs. | 300 lbs. | 300 lbs. |
| Color: | Black Powder Coat Finish | Black Powder Coat Finish | Black Powder Coat Finish | Black Powder Coat Finish | Black Powder Coat Finish | Black Powder Coat Finish |
| Body and Rear Hatch: | 14 Gauge Cold Rolled Steel | 14 Gauge Cold Rolled Steel | 14 Gauge Cold Rolled Steel | 14 Gauge Cold Rolled Steel | 14 Gauge Cold Rolled Steel | 14 Gauge Cold Rolled Steel |
| Mounting Rails: | 12 Gauge Cold Rolled Steel | 12 Gauge Cold Rolled Steel | 12 Gauge Cold Rolled Steel | 12 Gauge Cold Rolled Steel | 12 Gauge Cold Rolled Steel | 12 Gauge Cold Rolled Steel |
| Front Door: | 16 Gauge Cold Rolled Steel | 16 Gauge Cold Rolled Steel | 16 Gauge Cold Rolled Steel | 16 Gauge Cold Rolled Steel | 16 Gauge Cold Rolled Steel | 16 Gauge Cold Rolled Steel |
| Drawing |  |
|
|
|
|
|
Comparison Chart
