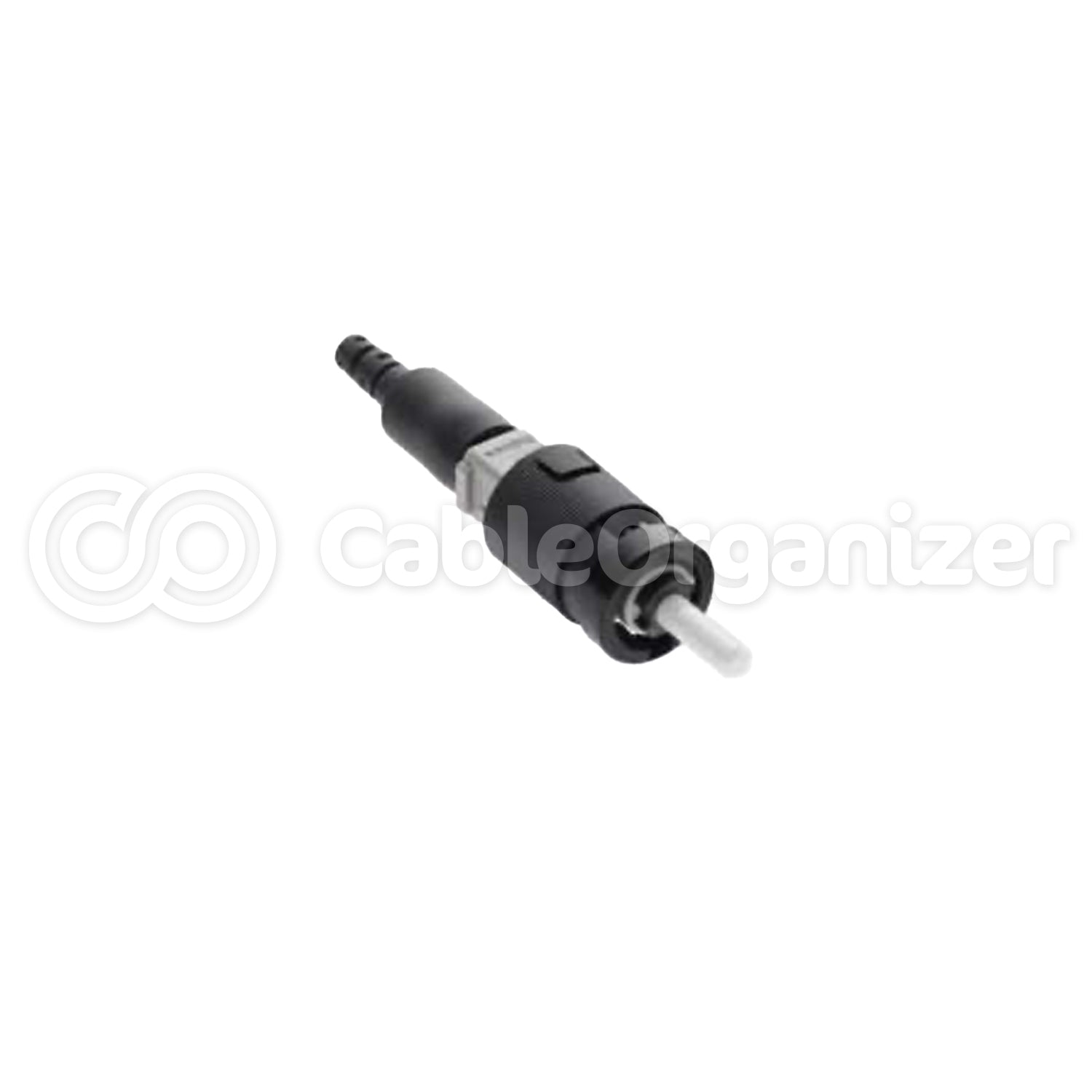

FastCAM Fiber Connectors and Installation Kits

Use in Virtually Any Application Requiring a Fast Data Network

LE-49991-5SC
Qty:

What's special about them?

  • Precision mechanical termination
  • Field proven mechanical splice technology.
  • Easy assembly process – no polishing, epoxy curing, proprietary tools, or electrical power needed.
  • Click for More Features

Leviton’s new FastCAM pre-polished connectors and installation kits provide precision mechanical termination of single –mode or multimode fiber. No proprietary tools, epoxy, or time-consuming hand polishing are required.

SC
Part # Description Color Price
LE-49991-5SC FastCAM SC Multimode 50 μm Black
Qty:
Quick Ship
LE-49991-SSC FastCAM SC Singlemode Blue
Qty:
Manufacturer Direct
LC
Part # Description Color Price
LE-49991-LLC FastCAM LC Multimode 50 μm LO Aqua
Qty:
Manufacturer Direct
Installation Kits
Part # Description Price
LE-49800-MSK KIT TOOL CLEAVER LYNX
Qty:
Manufacturer Direct
  • Low insertion loss connection (.2db MM and SM).
  • Multiple configurations available.
  • Singlemode and multimode versions available.
  • Can be reused once.  Made of zirconia ceramic.
  • Easy assembly process-no polishing, epoxy curing, proprietary tools, or electrical power needed
  • Multiple configurations available
  • Single-mode and multimode versions available
  • Precision mechanical termination
  • Meets TIA/EIA 568-B.3 performance requirements and
    TIA/EIA 604-2 (ST), -3(SC), -10A(LC) Connector Intermateability Standards
  • Low insertion loss connection (.2db MM and SM)
  • Connectors are made of zirconia ceramic and can be reused once
  • Uses field proven mechanical splice technology

    •

    Strip the buffer, cleave and insert the fiber into the FastCAM connector, release the factory installed wedge clip, and you have immediate, low insertion-loss connection.

    FastCAM connectors are available in LC, SC, or ST, Single-mode or Multimode (standard 50/125µm, 62.5/125µm and Laser Optimized 50/125µm configurations terminated on 250 or 900µm buffered fiber.

    They can be installed in all types of premise and fiber to the subscriber applications including  fiber to the desk, patch panels, telecommunications closets, direct equipment terminations, repairs, data centers or virtually any application requiring a fast data network.
    Not recommended for outside plant use.



    FastCAM Installation  Kits

    FastCAM Installation Kits contain everything needed for quick and simple installations. They include a cleaver, fiber stripper, and both dry and alcohol moistened cleaning wipes. Just strip the buffer, cleave and insert the fiber into the pre-polished connector, release the factory wedge clip and you have a perfect low insertion loss connection in less than one minute!
