FSR T3 Cable Pull Table Boxes
Convenient Power, Data, Video and Sound Integrated into Your Home Office or Conference Table
What's special about these table top power and data distribution grommets?
- Stylish desk grommets designed to provide users with convenient access to network, AC power and computer audio/video connections.
- Integral pull-out Cat 5e and audio/video cables supply a fast, worry-free solution for linking a laptop or computer to an external video display and network.
- Lid features a "mouse hole" style opening that allows cables to remain in use when cover is closed, while the smooth beveled edging of the cutout protects cables from abrasion and friction damage.
- Click for More Features
Having network and power connections readily available during an important meeting or presentation is a good way to keep things running smoothly. Even with preinstalled data and video jacks, if the user forgets to bring along the proper cabling, they can be stranded and possibly embarrassed.
Please Note: These products ship in 2 weeks

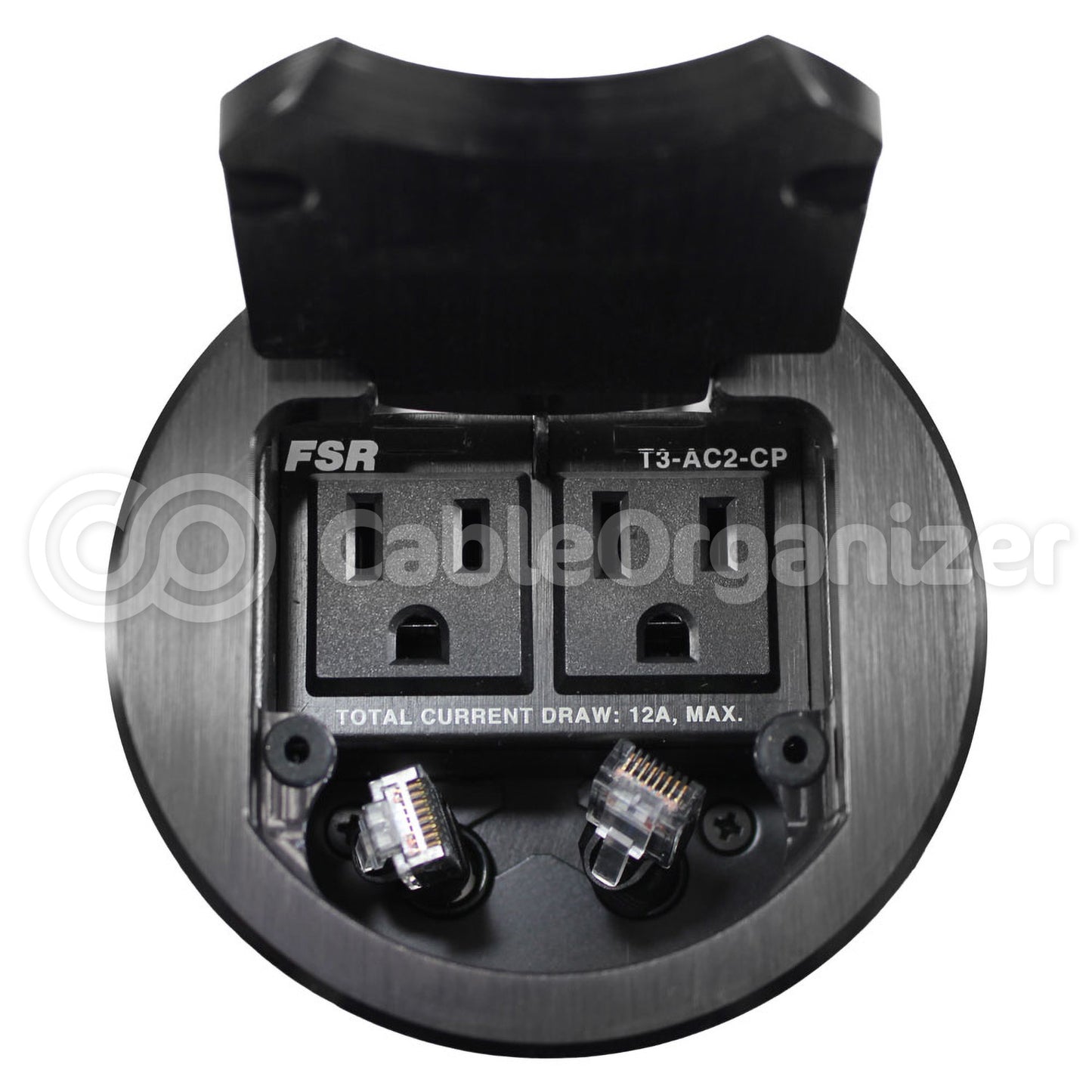

| T3 Cable Pull Table Box with Dual Data and Power (FSR-T3-AC2) | ||||||
|---|---|---|---|---|---|---|
| Part # | Connections | Power Connection | Cover Plate | Finishes | Weight | Price |
| FSR-T3-AC2-CP | 2-AC / 2-RJ45 Cat 5E | Standard 3 Prong NEMA 5-15 Plug | Round | Aluminum, Black, Brass | 1.2 lbs | Manufacturer Direct
|
| FSR-T3-AC2-CP-HW | 2-AC / 2-RJ45 Cat 5E | Hard Wired Electric Feed | Round | Aluminium, Black, Brass | 1.2 lbs | Manufacturer Direct
|
| FSR-T3-AC2-CP-SQ | 2-AC / 2-RJ45 Cat 5E | Standard 3 Prong NEMA 5-15 Plug | Square | Aluminium, Black, Brass | 1.2 lbs | Manufacturer Direct
|
| FSR-T3-AC2-CP-HW-SQ | 2-AC / 2-RJ45 Cat 5E | Hard Wired Electric Feed | Square | Aluminium, Black, Brass | 1.2 lbs | Manufacturer Direct
|
| T3 Cable Pull Table Box with Dual Data and Single Power (FSR-T3-PC1) | ||||||
|---|---|---|---|---|---|---|
| Part # | Connections | Power Connection | Cover Plate | Finishes | Weight | Price |
| FSR-T3-PC1-CP | 1-AC / 2-RJ45 Cat 5E / 1- HD15 Video / 1-Audio | Standard 3 Prong NEMA 5-15 Plug | Round | Aluminium, Black, Brass | 1.2 lbs | Manufacturer Direct
|
| FSR-T3-PC1-CP-HW | 1-AC / 2-RJ45 Cat 5E / 1- HD15 Video / 1-Audio | Hard Wired Electric Feed | Round | Aluminium, Black, Brass | 1.2 lbs | Manufacturer Direct
|
| FSR-T3-PC1-CP-SQ | 1-AC / 2-RJ45 Cat 5E / 1- HD15 Video / 1-Audio | Standard 3 Prong NEMA 5-15 Plug | Square | Aluminium, Black, Brass | 1.2 lbs | Manufacturer Direct
|
| FSR-T3-PC1-CP-HW-SQ | 1-AC / 2-RJ45 Cat 5E / 1- HD15 Video / 1-Audio | Hard Wired Electric Feed | Square | Aluminium, Black, Brass | 1.2 lbs | Manufacturer Direct
|
With FSR's new line of T3 Cable Pull Boxes, the user will have instant access to power and data connections, and will never have to worry about being cable-less again. These stylish metal table boxes feature preinstalled pull-out cables and occupy a very small, unobtrusive foot print to complement any surface or décor.
- Round or square covers are available in a stylish brushed black, brushed aluminum or brushed brass finish designed to match or complement nearly any décor.
- Requires a standard power drill and 3-1/2” hole saw for simple and flexible installation in tables ranging from ¾” to 2-1/2” thick.
- Cables extend out to reach equipment for convenience, yet remain irremovable to preventtheft or unintentional disappearance.
- Precision CNC milled solid metal covers are built withstand busy office environments.
- Hardware and tie wraps included for easy mounting and cable management after installation.
- Rugged chassis is constructed from durable 16 gauge galvanized steel.
- Noise reduction rubber grommets provide ultra quiet closure to eliminate distracting metal on metal clashing, so important clients are able to focus on your presentation, and not “where is that noise coming from?”.
- Cover stays open at a 96° angle to prevent annoying accidental closures.
- Cables come pre-installed, greatly simplifying installation.
FSR-T3-PC1-CP Models Include:
- 1 AC power outlet with 9' cord and plug
- 1 HD15 male to HD15 male computer video cable 5'
- 1 Stereo mini jack male to stereo mini jack male cable 5'
- 2 RJ-45 to RJ-45 CAT-5e (EIA/TIA568B) cables 9'
FSR-T3-PC1-CP Models Include:
- 2 AC power outlet with 9' cord and plug
- 2 RJ-45 to RJ-45 CAT-5e (EIA/TIA568B) cables 9'
- FSR T3 Round Cable Pull Table Box with Dual Data and Power Drawing Dimensions (PDF)
- FSR T3 Square Cable Pull Table Box with Dual Data and Power Drawing Dimensions (PDF)
- FSR T3 Round Cable Pull Table Box with Dual Data and Single Power Drawing Dimensions (PDF)
- FSR T3 Square Cable Pull Table Box with Dual Data and Single Power Drawing Dimensions (PDF)
| Table Thickness: | 0.75" min. - 2.50" max. |
|---|---|
| Beneath Bottom of Table: | 4.31" max. |
| Hole Diameter: | 3.50" max. |
| Bezel Diameter: | 3.88" Round or 3.88" Square |
| Cable Length: | 9’ AC Power Cord and Plug 5’ HD15 Male to HD15 Male Computer Video Cable 5’ Stereo Mini Jack Male to Stereo Mini Jack Male Cable 9’ RJ-45 to RJ-45 CAT-5e (EIA/TIA568B) Cable |
MANUALS & USER GUIDES -
RELATED ARTICLES -
- What Is The Difference Between Cat 5, Cat 5e, and Cat 6 Cable?
- 5 Tips on How to Choose the Right Desk Grommet
- Smart Cable Management for School and Universities
HOW-TO CORNER -
Did you know that we can give you a quote for most of our products, including shipping?
You can also call us toll free 1-833-3CABLEORG (1-833-322-2536)>
Questions & Answers
FSR-T3-PC1 VGA connector - The picture shows a male 15 pin video connector build into the box, but the description says that it comes with a male to male cable, which would not work with this connector. Is the connector in the box actually a female connector?
- Thank you for your question. The picture seems to be from a custom order, the actual unit would have a female connector.
