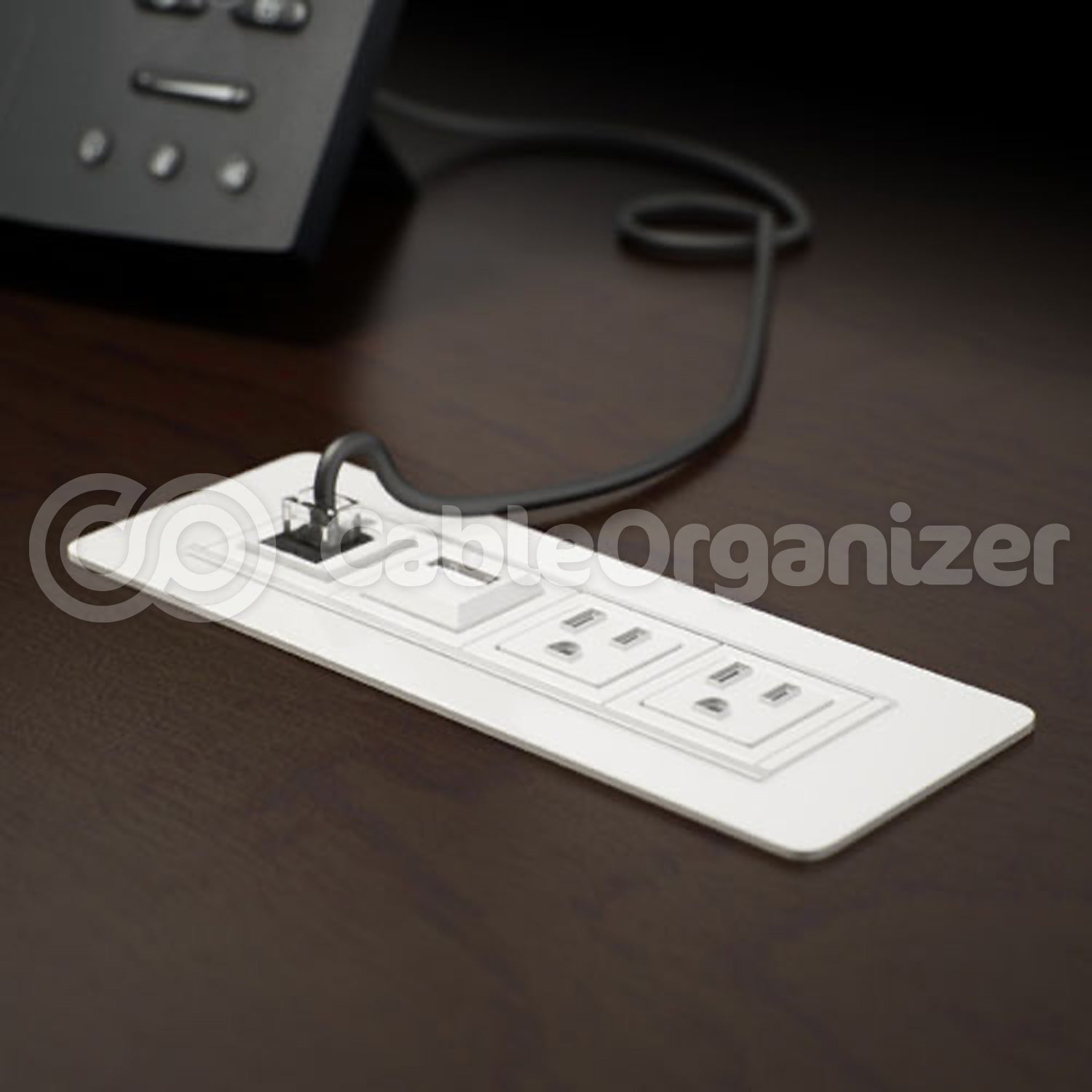

AXIL™ Z Flush Mount Desk Outlet

Safely Bring Needed Connections to Your Workstation

BY-BE02520-2-2-Z-Z06-72
Qty:


Available Jacks for Open Ports
BY-BE03844-AV-72
Qty:

What's special about this flush mount desk outlet?

  • Provides the power, data and A/V connections you need on your desktop, workstation or conference table
  • Patented waterproof receptacles stand up to accidental spills, preventing electrical shock, fire and equipment malfunction
  • Anodized aluminum housing with painted steel faceplate ensure high durability and smooth modern looks
  • Ideal for bringing a plethora of electrical, data, and A/V connections to any workstation
  • Works with tabletops 3/4" to 1-3/4" thick
  • Click for More Features
UL

We've all had those times where we've had so much coffee that we can't even hold the cup anymore. The last thing that you want in the event of such a minor misstep is electrocution or fire! A stained shirt is quite bad enough. Still, you'll need your power and data connections at your fingertips to keep your workflow smooth. Big ugly power strips and random data couplers need not apply. The AXIL Z flush mount desk outlet leaves nothing out with all these things in mind.

NOTE: No returns accepted unless defective

Jacks / Couplers are sold separately
Please Note: These units are made to order and ship within 1-2 weeks

2 POWER / 2 OPEN PORTS
Part #Cord LengthDimensionsColorWeightPrice
BY-BE02520-2-2-Z-Z06-7272"7" W x 2.25" H x 3.5" DBlack3.2 lbs
Qty:
Manufacturer Direct
BY-BE02520-2-2-Z-Z07-7272"7" W x 2.25" H x 3.5" DWhite3.2 lbs
Qty:
Manufacturer Direct
BY-BE02520-2-2-Z-Z06-120120"7" W x 2.25" H x 3.5" DBlack3.6 lbs
Qty:
Manufacturer Direct
BY-BE02520-2-2-Z-Z07-120120"7" W x 2.25" H x 3.5" DWhite3.6 lbs
Qty:
Manufacturer Direct
BY-BE02598-2-2-Z-Z06-7272" Hardwire7" W x 2.25" H x 3.5" DBlack4.2 lbs
Qty:
Manufacturer Direct
BY-BE02598-2-2-Z-Z07-7272" Hardwire7" W x 2.25" H x 3.5" DWhite4.2 lbs
Qty:
Manufacturer Direct
2 POWER / 1 USB CHARGER / 1 OPEN DATA
Part #Cord LengthDimensionsColorWeightPrice
BY-BE02520-2-2-Z-Z06-U1-7272"7" W x 2.25" H x 3.5" DBlack3.2 lbs
Qty:
Manufacturer Direct
BY-BE02520-2-2-Z-Z07-U1-7272"7" W x 2.25" H x 3.5" DWhite3.2 lbs
Qty:
Quick Ship
BY-BE02520-2-2-Z-Z06-U1-120120"7" W x 2.25" H x 3.5" DBlack3.6 lbs
Qty:
Manufacturer Direct
BY-BE02520-2-2-Z-Z07-U1-120120"7" W x 2.25" H x 3.5" DWhite3.6 lbs
Qty:
Manufacturer Direct
BY-BE02598-2-2-Z-Z06-U1-7272" Hardwire7" W x 2.25" H x 3.5" DBlack4.2 lbs
Qty:
Manufacturer Direct
BY-BE02598-2-2-Z-Z07-U1-7272" Hardwire7" W x 2.25" H x 3.5" DBlack4.2 lbs
Qty:
Manufacturer Direct
3 POWER / 3 OPEN PORTS
Part #Cord LengthDimensionsColorWeightPrice
BY-BE02520-3-3-Z-Z06-7272"10" W x 2.25" H x 3.5" DBlack4.4 lbs
Qty:
Manufacturer Direct
BY-BE02520-3-3-Z-Z07-7272"10" W x 2.25" H x 3.5" DWhite4.4 lbs
Qty:
Manufacturer Direct
BY-BE02520-3-3-Z-Z06-120120"10" W x 2.25" H x 3.5" DBlack4.8 lbs
Qty:
Manufacturer Direct
BY-BE02520-3-3-Z-Z07-120120"10" W x 2.25" H x 3.5" DWhite4.8 lbs
Qty:
Manufacturer Direct
BY-BE02598-3-3-Z-Z06-7272" Hardwire10" W x 2.25" H x 3.5" DBlack5.2 lbs
Qty:
Manufacturer Direct
BY-BE02598-3-3-Z-Z07-7272" Hardwire10" W x 2.25" H x 3.5" DWhite5.2 lbs
Qty:
Manufacturer Direct
Retrofit USB Chargers
Part #ImageType/FeaturesCord LengthPrice
BY-BE03844-AV-72AXIL™ Z Flush Mount Desk Outlet BY-BE03844-AV-72Retrofit USB Simplex ChargerWhite
Qty:
Manufacturer Direct
BY-BE03844-C-72AXIL™ Z Flush Mount Desk Outlet BY-BE03844-C-72Retrofit USB Simplex ChargerBlack
Qty:
Manufacturer Direct
  • UL 962A Listed power/data center installs parallel to any work surface for a clean flush look
  • Included instruction manual with cut-out instructions to help you easily install this desk outlet
  • Includes a Voice/Data adapter kit, so you can plug and play with your favorite brand of keystone jack and couplers
  • Available in Black or White to compliment or blend in with the rest of your décor
  • Choose between a 72" or 120" power cord, based on placement distance
  • Waterproof electrical connections to prevent electrical shock in the event of accidental spills
PART # PRODUCT DIMENSIONS HOLE DIMENSIONS FRAME FACEPLATE CORD LENGTH Color
HEIGHT WIDTH DEPTH WIDTH LENGTH
2 POWER / 2 OPEN PORTS
BY-BE02520-2-2-Z-Z06-72 2.25" 7" 3.5" 2.0" 6.75" Aluminum Steel 72" Glossy Black
BY-BE02520-2-2-Z-Z07-72 2.25" 7" 3.5" 2.0" 6.75" Aluminum Steel 72" Glossy White
BY-BE02520-2-2-Z-Z06-120 2.25" 7" 3.5" 2.0" 6.75" Aluminum Steel 120" Glossy Black
BY-BE02520-2-2-Z-Z07-120 2.25" 7" 3.5" 2.0" 6.75" Aluminum Steel 120" Glossy White

3 POWER / 3 OPEN PORTS
BY-BE02520-3-3-Z-Z06-72 2.25" 10" 3.5" 2.0" 9.75" Aluminum Steel 72" Glossy Black
BY-BE02520-3-3-Z-Z07-72 2.25" 10" 3.5" 2.0" 9.75" Aluminum Steel 72" Glossy White
BY-BE02520-3-3-Z-Z06-120 2.25" 10" 3.5" 2.0" 9.75" Aluminum Steel 120" Glossy Black
BY-BE02520-3-3-Z-Z07-120 2.25" 10" 3.5" 2.0" 9.75" Aluminum Steel 120" Glossy White
