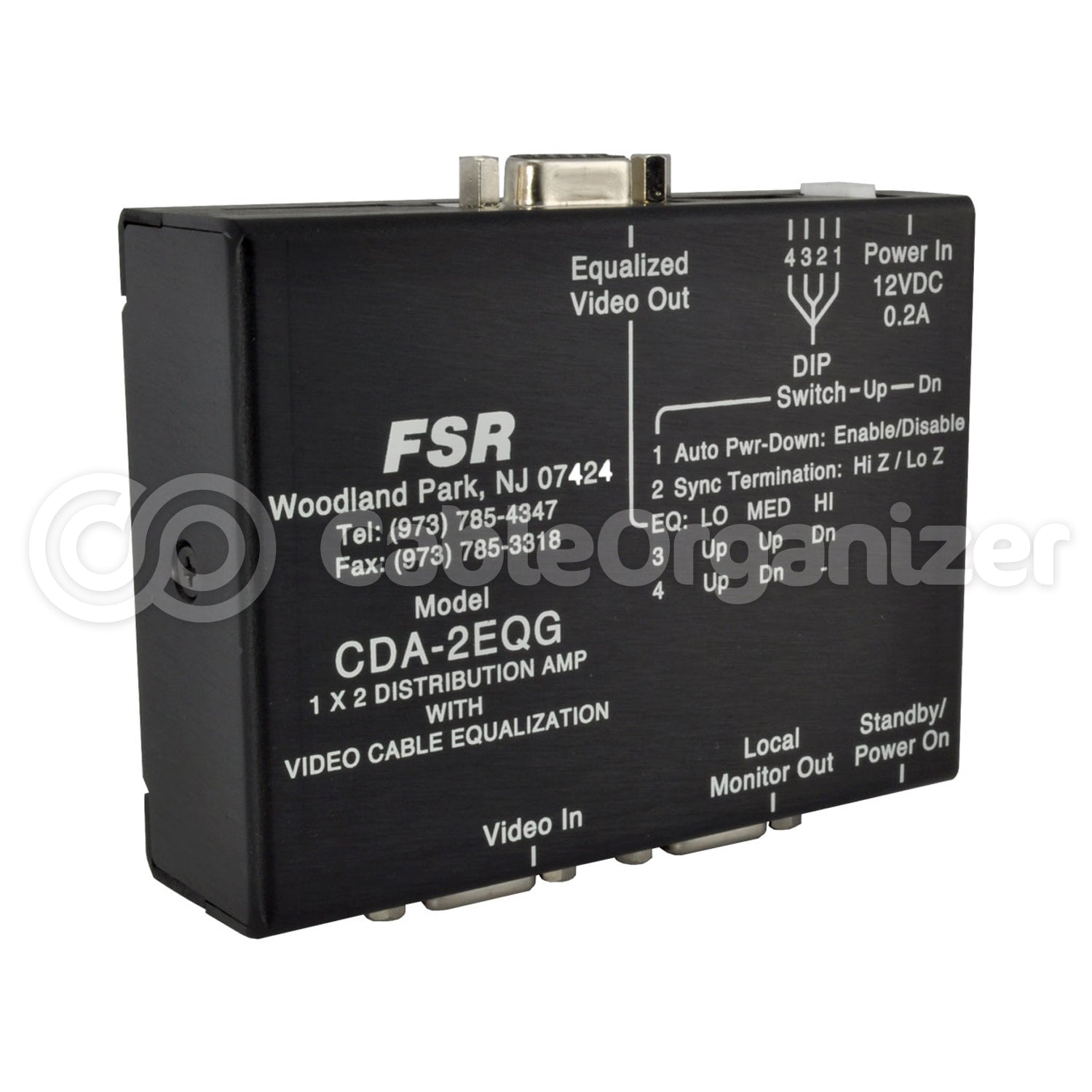

FSR Computer Video Distribution Amplifier

Conveniently Split Your Video Signal To Fit Your Needs


Qty:

What's special about these amplifiers?

  • Splits video image to be used by a projector and a monitor at the same time.
  • Buffers data for better quality images at receiving point.
  • Can drive any >VGA, Super VGA, XGA or QXGA computer video signal.
  • Click for More Features

FSR 's CDA-2 Computer Video Distribution Amplifier is a convenient splitter for when you need two buffered video signal outputs.

Please Note: These products ship in 2 weeks

Part # Description Dimensions Weight Price
FSR-CDA-2 1x2 Computer Video Distribution Amplifier 3.6"H x 2.6"W x 1"D 0.9 lb.
Qty:

The signal outputs are individually buffered for a much higher quality image display. The CDA-2 comes enclosed in a compact metal case to provide superior shielding. Rubber mounting feet are provided to prevent damage to furniture. This product is an ideal addition for LCD panels, projectors, screens, and monitors in a conference room, classroom, or other setting where high quality image splitting is needed.

  • 300 MHz to handle a larger bandwidth
  • Locking power connector provides a safer connection
  • HD 15-pin 5' male-to-male monitor cable included to ease installation
  •

    dimensions for video splitter amplifier



    Bandwidth: >300MHz supporting up to 2048 x 1536 @ 60Hz) QXGA
    Power AC Input: 115VAC, 50/60 Hz, 20 Watts
    Mounting: Table top
    Enclosure Material: Metal
    Dimensions: 3.6"H x 2.6"W x 1"D
    Weight: 0.9 lb.
    VIDEO INPUT
    Number/type: 1 RGB + Sync
    Connectors: 15-pin HD female
    Level (nominal): Analog 0.7V p-p
    Level (maximum): 2V p-p
    Impedance: 75 ohms
    Horizontal frequency: 15 kHz - 200 kHz
    Vertical frequency: 30 Hz - 150 Hz
    VIDEO OUTPUT
    Number/type: 2 RGB + Sync
    Connectors: 15-pin HD female
    Level (nominal): Unity
    Impedance: 75 ohms
    SYNC
    Input/output type: Sync On Green, Composite Sync, Separate Sync (same as input)
    Input level: 3.0V to 5.0V p-p
    Output level: TTL to 5.0V p-p
    Input Impedance: 510 ohms
    Output impedance: 75 ohms
    Propagation delay (max): 58 nS
    Rise/fall time (max): 2 nS
    Polarity: Positive or negative
