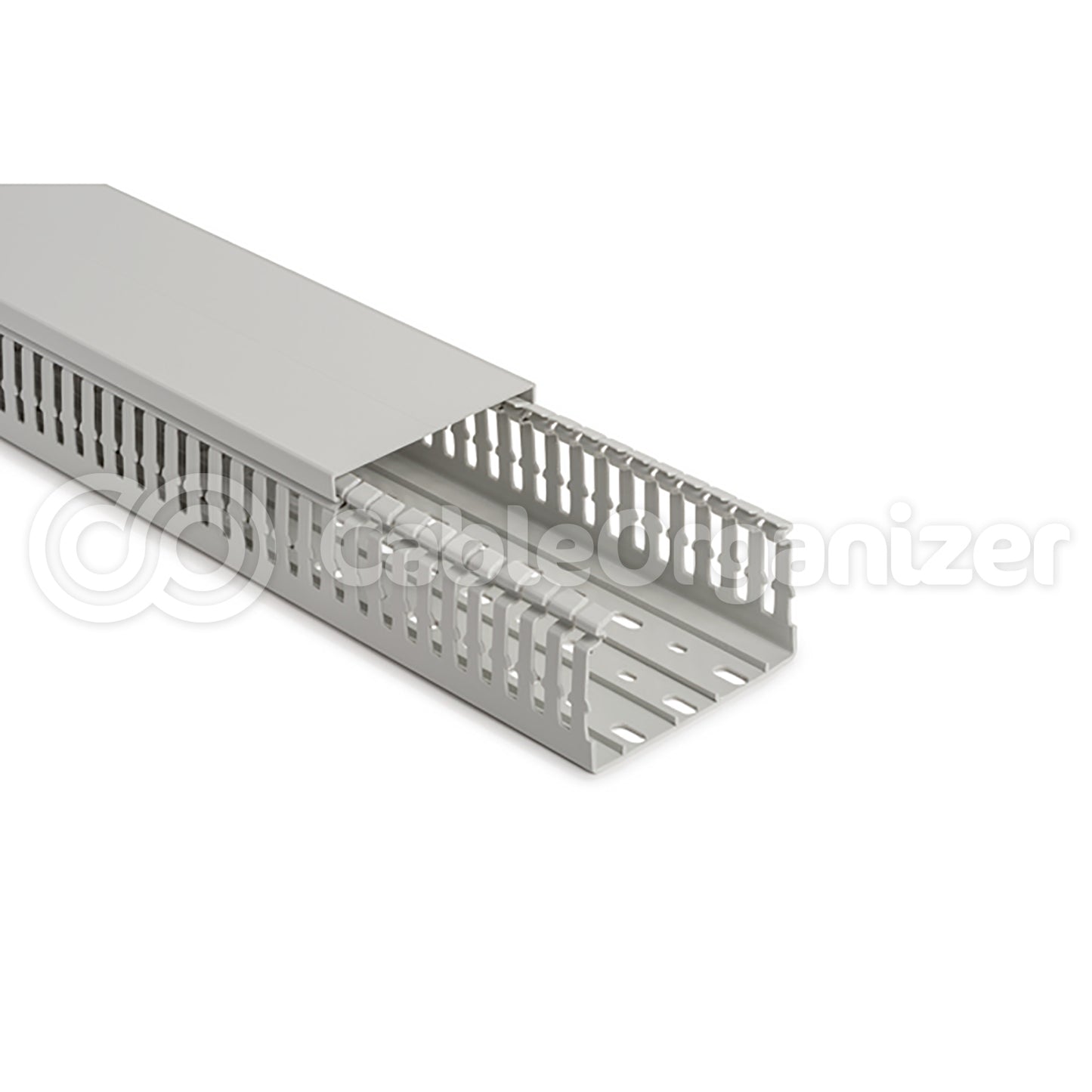

HellermannTyton® Slotted Wall Wiring Duct - 4in
HT-181-42005
What's special about these wiring ducts?
- Strong fingers prevent unwanted breaking.
- Fingers are easily deflected outward, allowing ready positioning of the wires within the slotted wall duct.
- Restricted opening design in the finger of the duct helps keep wires in place.
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Supplied with mounting holes to streamline installation.
- Optional covers enhance protection and appearance.
-
HellermannTyton Slotted Wall Wiring Duct features break-away fingers that provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a greater opening is required. The lower score line allows the sidewall to be smoothly cut for joints and T’s.
| 4" Duct - Non-Adhesive - Slotted Wiring Duct | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | Dimensions | Material, Color | Quantity | Price | ||
| HT-181-42005 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-42006 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-42008 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-42010 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-42020 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, Black | 140ft/Carton | Manufacturer Direct
|
||
| HT-181-00210 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, Intrinsic Blue | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-43003 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-43004 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-43005 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-43006 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-44019 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Black | 30ft/Box | Manufacturer Direct
|
||
| HT-181-44020 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-44024 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Intrinsic Blue | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-44025 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-44027 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-44030 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-44031 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-44050 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Gray | 70 ft/carton | Manufacturer Direct
|
||
| HT-181-45002 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 5" | PVC, Black | 60ft/Carton | Manufacturer Direct
|
||
| HT-181-45010 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 5" | PVC, Gray | 60ft/Carton | Manufacturer Direct
|
||
| HT-181-45011 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 5" | PVC, White | 60ft/Carton | Manufacturer Direct
|
||
| 4" Duct - Adhesive - Slotted Wiring Duct | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | Dimensions | Material, Color | Quantity | Price | ||
| HT-181-42012 | Slotted Wall Wiring Duct, Adhesive | 4" x 2" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-00595 | Slotted Wall Wiring Duct, Adhesive | 4" x 4" | PVC, Black | 120ft /Carton | Manufacturer Direct
|
||
| HT-181-00680 | Slotted Wall Wiring Duct, Adhesive | 4" x 4" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-44033 | Slotted Wall Wiring Duct, Adhesive | 4" x 4" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| 4in Slotted Wiring Duct | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part # | Description | SIZE DUCT | Material, Color | Quantity | UV Resistant | Operating Temp. | Reach Compliant (Article 33) | Certification/Specification | |
| HT-181-42005 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-42006 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-42008 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-42010 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-42020 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 2" | PVC, Black | 140ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-00210 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, Intrinsic Blue | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-43003 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, Gray | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-43004 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-43005 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-43006 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 3" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-44019 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Black | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-44020 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-44024 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Intrinsic Blue | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-44025 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Gray | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-44027 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-44030 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-44031 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-44050 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 4" | PVC, Gray | 70 ft/carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-45002 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 5" | PVC, Black | 60ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-45010 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 5" | PVC, Gray | 60ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-45011 | Slotted Wall Wiring Duct, Non-Adhesive | 4" x 5" | PVC, White | 60ft/Carton | No | +122°F (+50°C) | No | EN 50085-2-3_1A CSA EN 50085-1:2005 + A1:2013 UL | |
| HT-181-42012 | Slotted Wall Wiring Duct, Adhesive | 4" x 2" | PVC, Gray | No | +122°F (+50°C) | No | CSA EN 50085-1:2005 + A1:2013 EN 50085-2-3_1A UL | ||
| HT-181-00595 | Slotted Wall Wiring Duct, Adhesive | 4" x 4" | PVC, Black | 120ft /Carton | No | +122°F (+50°C) | No | CSA EN 50085-1:2005 + A1:2013 EN 50085-2-3_1A UL | |
| HT-181-00680 | Slotted Wall Wiring Duct, Adhesive | 4" x 4" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | CSA EN 50085-1:2005 + A1:2013 EN 50085-2-3_1A UL | |
| HT-181-44033 | Slotted Wall Wiring Duct, Adhesive | 4" x 4" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | CSA EN 50085-1:2005 + A1:2013 EN 50085-2-3_1A UL | |
