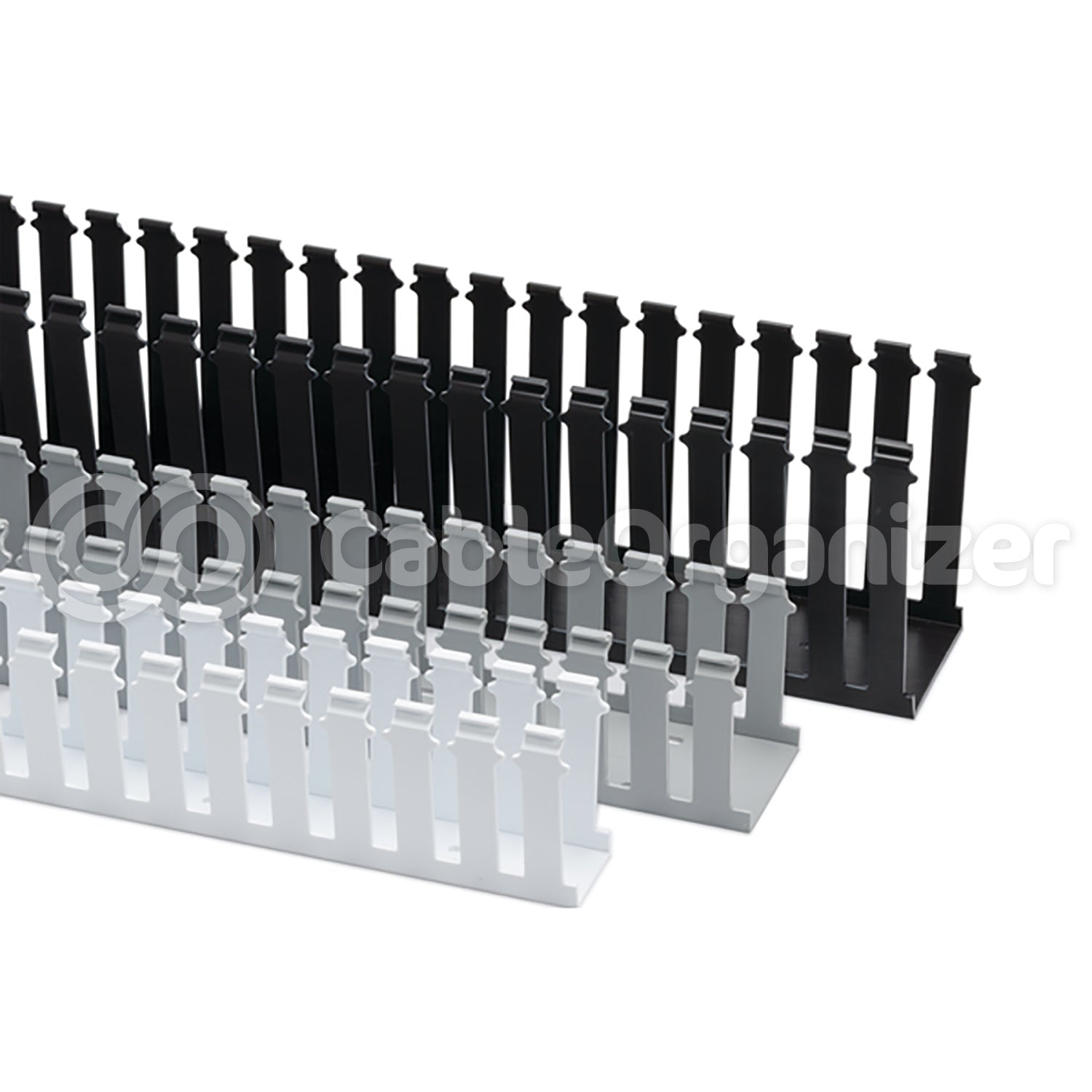

HellermannTyton® Slotted Wall Wiring Duct - 3in
HT-181-00557
What's special about these wiring ducts?
- Strong fingers prevent unwanted breaking.
- Fingers are easily deflected outward, allowing ready positioning of the wires within the slotted wall duct.
- Restricted opening design in the finger of the duct helps keep wires in place.
- Restricted opening prevents unintended removal of wires and permits any individual wire to be traced without disconnection.
- Supplied with mounting holes to streamline installation.
- Optional covers enhance protection and appearance.
-
HellermannTyton Slotted Wall Wiring Duct features break-away fingers that provide additional access for wire leads. Each section of the duct is provided with two score lines. The upper score line is used to break away fingers when a greater opening is required. The lower score line allows the sidewall to be smoothly cut for joints and T’s.
| 3" Duct - Non-Adhesive - Slotted Wiring Duct | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | Dimensions | Material, Color | Quantity | Price | ||
| HT-181-00557 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-00558 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-05561 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Black | 30ft/box | Manufacturer Direct
|
||
| HT-181-31003 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Intrinsic Blue | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-31004 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-31006 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-31007 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-32004 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-32005 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-32006 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-32007 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Gray | 140ft/Carton | Manufacturer Direct
|
||
| HT-181-32008 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-32009 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-32016 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Black | 30ft/Box | Manufacturer Direct
|
||
| HT-181-33008 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Black | 30ft/Box | Manufacturer Direct
|
||
| HT-181-33009 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-33012 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Intrinsic Blue | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-33014 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-33016 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-33017 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-33018 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-33050 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Gray | 70 ft/carton | Manufacturer Direct
|
||
| HT-181-34002 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-34003 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-34004 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-34006 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-34007 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-34015 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, Gray | 70 ft/carton | Manufacturer Direct
|
||
| HT-181-00560 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 5" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-35001 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 5" | PVC, Black | 30ft/Box | Manufacturer Direct
|
||
| HT-181-35002 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 5" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-35005 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 5" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| 3" Duct - Adhesive - Slotted Wiring Duct | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | Dimensions | Material, Color | Quantity | Price | ||
| HT-181-00584 | Slotted Wall Wiring Duct, Adhesive | 3" x 1" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-00585 | Slotted Wall Wiring Duct, Adhesive | 3" x 1" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-00586 | Slotted Wall Wiring Duct, Adhesive | 3" x 1" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-00026 | Slotted Wall Wiring Duct, Adhesive | 3" x 2" | PVC, Black | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-32010 | Slotted Wall Wiring Duct, Adhesive | 3" x 2" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-32014 | Slotted Wall Wiring Duct, Adhesive | 3" x 2" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-33019 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, Black | 30ft/Box | Manufacturer Direct
|
||
| HT-181-33020 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, Gray | 30ft/Box | Manufacturer Direct
|
||
| HT-181-33021 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-33022 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-33023 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-00590 | Slotted Wall Wiring Duct, Adhesive | 3" x 4" | PVC, White | 120ft/Carton | Manufacturer Direct
|
||
| HT-181-34009 | Slotted Wall Wiring Duct, Adhesive | 3" x 4" | PVC, White | 30ft/Box | Manufacturer Direct
|
||
| HT-181-00156 | Slotted Wall Wiring Duct, Adhesive | 3" x 5" | PVC, Gray | 120ft/Carton | Manufacturer Direct
|
||
| 3in Slotted Wiring Duct | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part # | Description | SIZE DUCT | Material, Color | Quantity | UV Resistant | Operating Temp. | Reach Compliant (Article 33) | Certification/Specification | |
| HT-181-00557 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-00558 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-05561 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Black | 30ft/box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-31003 | Slotted Wall Wiring Duct, Non-Adhesive, PVC | 3" x 1" | PVC, Intrinsic Blue | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-31004 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, Gray | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-31006 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-31007 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 1" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-32004 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-32005 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Gray | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-32006 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-32007 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Gray | 140ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-32008 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-32009 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-32016 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 2" | PVC, Black | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-33008 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Black | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-33009 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-33012 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Intrinsic Blue | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-33014 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Gray | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-33016 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-33017 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-33018 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-33050 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 3" | PVC, Gray | 70 ft/carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-34002 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-34003 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, Gray | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-34004 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-34006 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-34007 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-34015 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 4" | PVC, Gray | 70 ft/carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-00560 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 5" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-35001 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 5" | PVC, Black | 30ft/Box | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-35002 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 5" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-35005 | Slotted Wall Wiring Duct, Non-Adhesive | 3" x 5" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A UL | |
| HT-181-00584 | Slotted Wall Wiring Duct, Adhesive | 3" x 1" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00585 | Slotted Wall Wiring Duct, Adhesive | 3" x 1<" /td> | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00586 | Slotted Wall Wiring Duct, Adhesive | 3" x 1" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00026 | Slotted Wall Wiring Duct, Adhesive | 3" x 2" | PVC, Black | 120ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-32010 | Slotted Wall Wiring Duct, Adhesive | 3" x 2" | PVC, Gray | 30ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-32014 | Slotted Wall Wiring Duct, Adhesive | 3" x 2" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-33019 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, Black | 30ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-33020 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, Gray | 30ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-33021 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-33022 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-33023 | Slotted Wall Wiring Duct, Adhesive | 3" x 3" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00590 | Slotted Wall Wiring Duct, Adhesive | 3" x 4" | PVC, White | 120ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-34009 | Slotted Wall Wiring Duct, Adhesive | 3" x 4" | PVC, White | 30ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00156 | Slotted Wall Wiring Duct, Adhesive | 3" x 5" | PVC, Gray | 120ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
