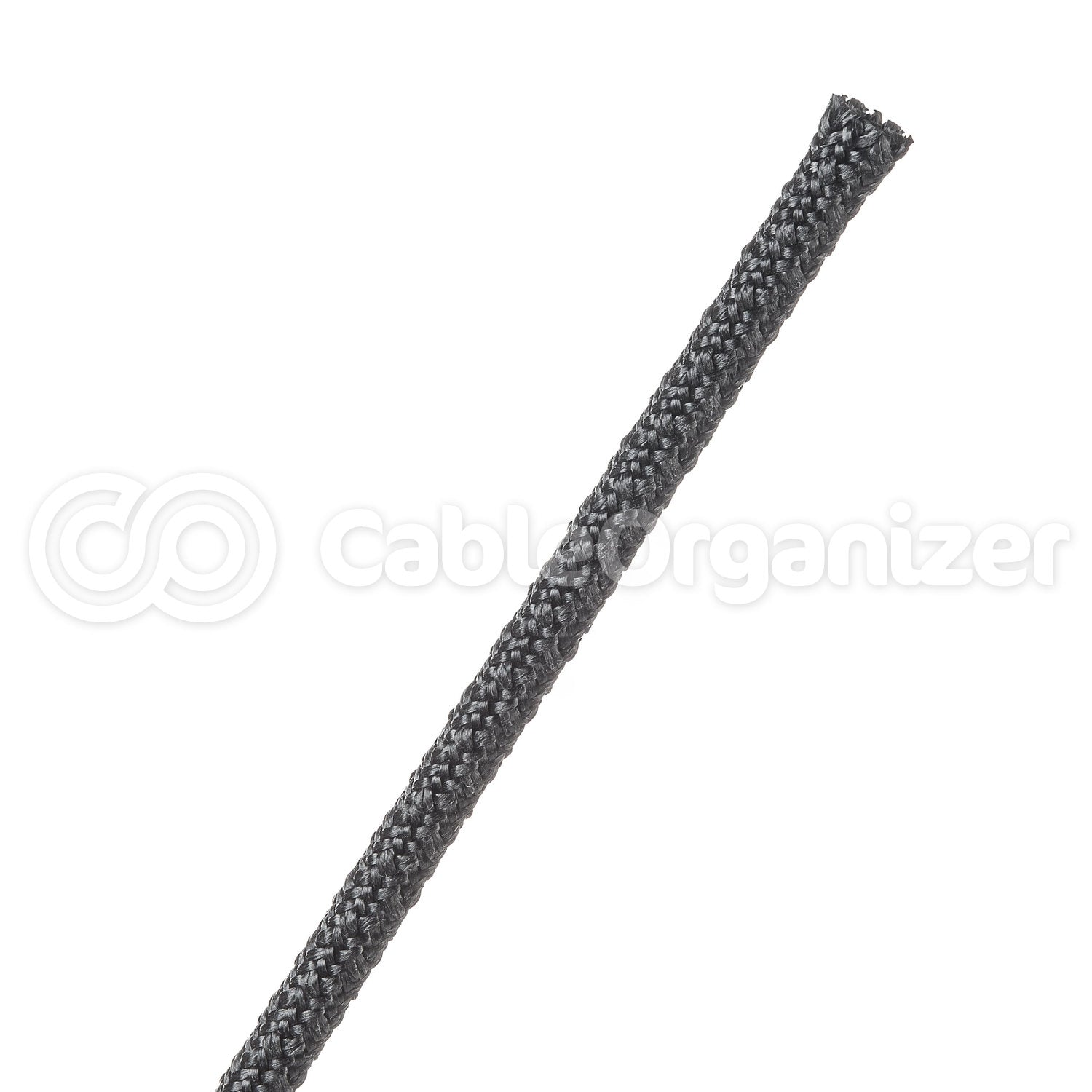

Aramid Armor®

Soft & Pliable But With 5 Times The Strength Of Steel

KVX0.13-5FT
Qty:
TX-SHR0228-AS
Qty:

What's special about Aramid Armor®?

  • Woven from aramid fibers, this sleeving is 5 times stronger than steel for superior cable protection
  • Remains very flexible despite its strength, ensuring easy routing around bends
  • Expands up to 85% to accept large connectors or otherwise irregularly shaped assemblies
  • Resists acids, fuels, solvents, fire and cutting for high performance in the most brutal of environments
  • Ideal for use in marine, military, aerospace, and many other applications
  • Click for More Features
  • RoHS Compliant

Aramid Armor® Heavy Duty Cable Sleeving resists abrasion, cutting, chemicals, and high heat for superior performance in a plethora of applications. Despite its strength, Aramid Armor is very flexible and will have no problem conforming to the curves of your application, whether it's under the hood of a HMMV or behind the cockpit of a commercial airliner.

Please note that Aramid Armor is degraded by ultraviolet light. Do not store in direct sunlight. Fluoescent lighting will cause discoloration, but will not affect fiber mechanical properties.
1/8" Nominal Diameters
ItemPart #DescriptionPrice
KVX0.13-5FTAramid Armor® - 1/8" - 5 ft cuts
Qty:
KVX0.13-10FTAramid Armor® - 1/8" - 10 ft cuts
Qty:
KVX0.13-25FTAramid Armor® - 1/8" - 25 ft cuts
Qty:
KVX0.13-50FTAramid Armor® - 1/8" - 50 ft spool
Qty:
KVX0.13-100FTAramid Armor® - 1/8" - 100 ft spool
Qty:
KVX0.13-250FTAramid Armor® - 1/8" - 250 ft spool
Qty:
KVX0.13-500FTAramid Armor® - 1/8" - 500 ft spool
Qty:
1/4" Nominal Diameters
ItemPart #DescriptionPrice
KVX0.25-5FTAramid Armor® - 1/4" - 5 ft cuts
Qty:
KVX0.25-10FTAramid Armor® - 1/4" - 10 ft cuts
Qty:
KVX0.25-25FTAramid Armor® - 1/4" - 25 ft cuts
Qty:
KVX0.25-50FTAramid Armor® - 1/4" - 50 ft spool
Qty:
KVX0.25-100FTAramid Armor® - 1/4" - 100 ft spool
Qty:
KVX0.25-250FTAramid Armor® - 1/4" - 250 ft spool
Qty:
KVX0.25-500FTAramid Armor® - 1/4" - 500 ft spool
Qty:
1/2" Nominal Diameters
ItemPart #DescriptionPrice
KVX0.50-5FTAramid Armor® - 1/2" - 5 ft cuts
Qty:
KVX0.50-10FTAramid Armor® - 1/2" - 10 ft cuts
Qty:
KVX0.50-25FTAramid Armor® - 1/2" - 25 ft cuts
Qty:
KVX0.50-50FTAramid Armor® - 1/2" - 50 ft spool
Qty:
KVX0.50-100FTAramid Armor® - 1/2" - 100 ft spool
Qty:
KVX0.50-250FTAramid Armor® - 1/2" - 250 ft spool
Qty:
1" Nominal Diameters
ItemPart #DescriptionPrice
KVX1.00-5FTAramid Armor® - 1" - 5 ft cuts
Qty:
KVX1.00-10FTAramid Armor® - 1" - 10 ft cuts
Qty:
KVX1.00-25FTAramid Armor® - 1" - 25 ft cuts
Qty:
KVX1.00-50FTAramid Armor® - 1" - 50 ft spool
Qty:
KVX1.00-100FTAramid Armor® - 1" - 100 ft spool
Qty:
KVX1.00-250FTAramid Armor® - 1" - 250 ft spool
Qty:
1 1/4" Nominal Diameters
ItemPart #DescriptionPrice
KVX1.25-5FTAramid Armor® - 1 1/4" - 5 ft cuts
Qty:
KVX1.25-10FTAramid Armor® - 1 1/4" - 10 ft cuts
Qty:
KVX1.25-25FTAramid Armor® - 1 1/4" - 25 ft cuts
Qty:
KVX1.25-50FTAramid Armor® - 1 1/4" - 50 ft spool
Qty:
KVX1.25-100FTAramid Armor® - 1 1/4" - 100 ft spool
Qty:
KVX1.25-250FTAramid Armor® - 1 1/4" - 250 ft spool
Qty:

Kevlar Shears
Part #DescriptionWeightPrice
TX-SHR0228-ASEconomy Kevlar Shears:
Designed for occasional use of aramid fibers		1 oz (28.35g)
Qty:
Manufacturer Direct
KEVLARSCIHeavy Duty Kevlar Shears:
Provides years of high-volume cutting of aramid fibers		0.625 lb (0.28 kg)
Qty:
Manufacturer Direct
  • Lightweight construction makes for easy handling and will not weigh down harnesses in weight sensitive applications
  • Ample dampening properties make this sleeving great for vibrating applications such as locomotive and automotive
  • High tensile strength prevents damage when pulled or stretched
  • This sleeving may only be cut using Kevlar scissors



PROPERTY VALUE
Physical Properties
Monofilament Thickness ASTM D-204
Recommended Cutters Kevlar Shears
Tensile Strength 39 lbs (173 N) per ASTM D-2265
Abrasion Resistance Medium
Specific Gravity 1.44
Moisture Absorption ASTM D-570
Hard Vacuum Data
TML 3.13
CVCM 0.19
WVR 1.76
Smoke D-Max ASTM E-662
Outgassing High
Oxygen Index 29 per ASTM D-2863
Minimum Continuous -274°F to 320°F (-170°C to 160°C)
Melt Melt-proof per ASTM D-2117
Chemical Resistance
Aromatic Solvents 2
Chlorinated Solvents 2
Strong Bases 2
Hydraulic Fluid 1 per MIL-H-5606
De-Icing Fluid 1 per MIL-A-8243
Strong Oxidants 2
UV Light 4
Fungus 2 per ASTM G-21
Alipahtic Solvents 2
Weak Bases 1
Salt Water 1 per O-S-1926
Lubricating Oil 1 per MIL-A-8243
Strong Acids 2
Esters/Keytones 2
Petroleum 1
Salts 1

Halogen Free Yes
RoHS Yes
UL/CSA No
