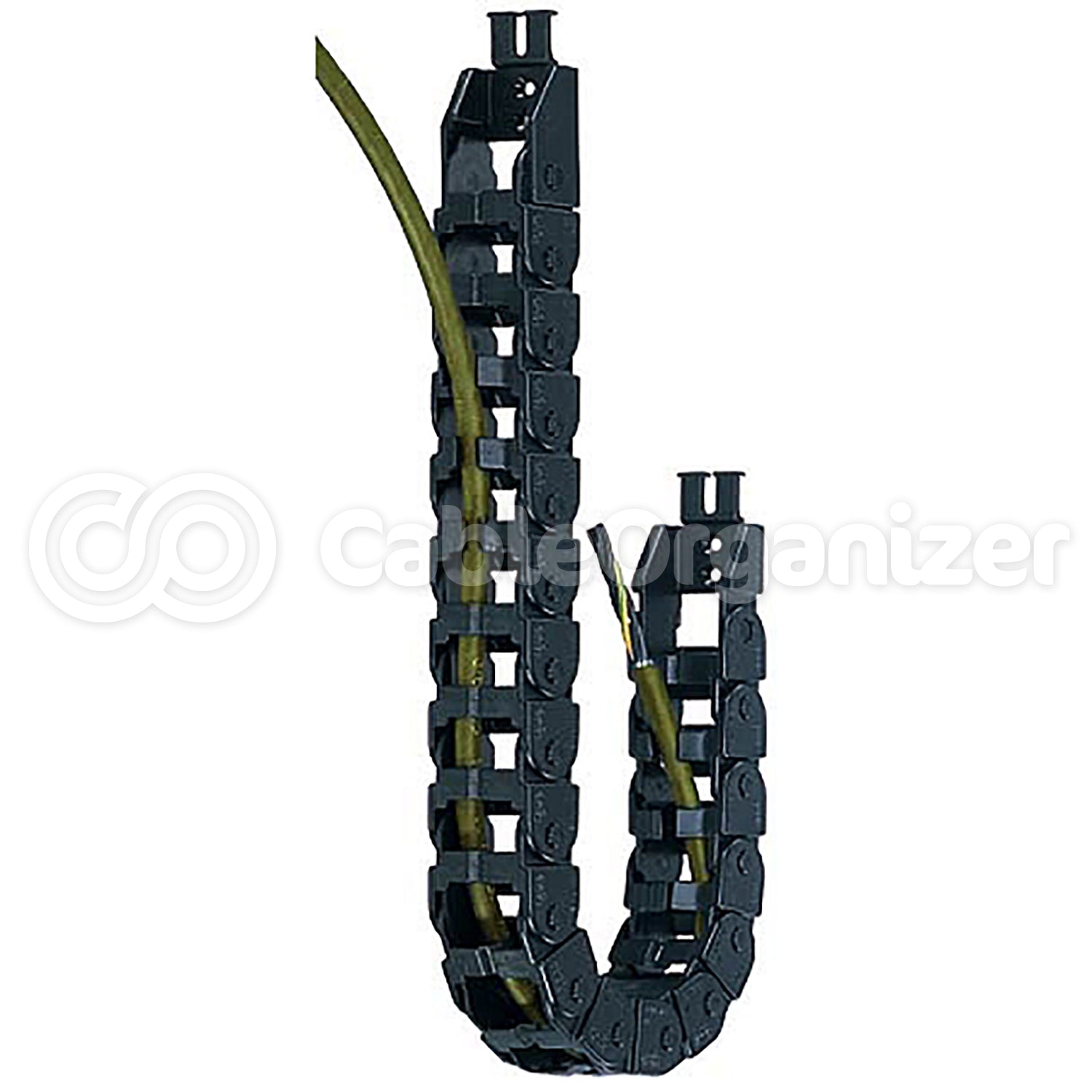

IGUS® Energy Chain® Series E08 "E-Z Chain"

Great Quality Cable and Hose Carriers at an Affordable Price


IGU-E08-10-028-0
Qty:


IGU-080-10-12-PZ
Qty:

What's special about these IGUS® Cable Carriers?

  • Protects hoses and cable from debris such as wood chips or metal shavings, and from being pinched or shut off during use.
  • Water and temperature resistance for extreme applications.
  • Limited bend radius protects cables for optimal performance.
  • No special tools needed - chain and tubes can be opened and adjusted using just a screwdriver.
  • Click for More Features

IGUS® E-Chain® cable track carrier systems are widely used to guide and protect cables and hoses on automated machinery. Over 30 years of experience have proven excellence in performance in various fields such as: medical lab equipment, robot dressout, extendable trailers and tele-handlers, packaging machinery, machine tools and custom machines. E-Chain® is a lightweight, maintenance-free carrier, that prevents cables from breaking, corkscrewing, or tangling.

Inner Width: 0.39"
Part # Inner Width Bend Radii Overall Dimensions Weight / FT Price
IGU-E08-10-028-0 0.39" 1.10" 0.76" x 0.72" 0.141 lb
Qty:
IGU-E08-10-038-0 0.39" 1.50" 0.76" x 0.72" 0.141 lb
Qty:
IGU-E08-10-048-0 0.39" 1.89" 0.76" x 0.72" 0.141 lb
Qty:
Inner Width: 0.63"
Part # Inner Width Bend Radii Overall Dimensions Weight / FT Price
IGU-E08-16-028-0 0.63" 1.10" 0.76" x 0.95" 0.161 lb
Qty:
IGU-E08-16-038-0 0.63" 1.50" 0.76" x 0.95" 0.161 lb
Qty:
IGU-E08-16-048-0 0.63" 1.89" 0.76" x 0.95" 0.161 lb
Qty:
Inner Width: 0.79"
Part # Inner Width Bend Radii Overall Dimensions Weight / FT Price
IGU-E08-20-028-0 0.79" 1.10" 0.76" x 1.11" 0.168 lb
Qty:
IGU-E08-20-038-0 0.79" 1.50" 0.76" x 1.11" 0.168 lb
Qty:
IGU-E08-20-048-0 0.79" 1.89" 0.76" x 1.11" 0.168 lb
Qty:
Inner Width: 1.18"
Part # Inner Width Bend Radii Overall Dimensions Weight / FT Price
IGU-E08-30-028-0 1.18" 1.10" 0.76" x 1.50" 0.188 lb
Qty:
IGU-E08-30-038-0 1.18" 1.50" 0.76" x 1.50" 0.188 lb
Qty:
IGU-E08-30-048-0 1.18" 1.89" 0.76" x 1.50" 0.188 lb
Qty:
Inner Width: 1.57"
Part # Inner Width Bend Radii Overall Dimensions Weight / FT Price
IGU-E08-40-028-0 1.57" 1.10" 0.76" x 1.50" 0.208 lb
Qty:
IGU-E08-40-038-0 1.57" 1.50" 0.76" x 1.50" 0.208 lb
Qty:
IGU-E08-40-048-0 1.57" 1.89" 0.76" x 1.50" 0.208 lb
Qty:
Inner Width: 1.97"
Part # Inner Width Bend Radii Overall Dimensions Weight / FT Price
IGU-E08-50-028-0 1.97" 1.10" 0.76" x 1.50" 0.249 lb
Qty:
IGU-E08-50-038-0 1.97" 1.50" 0.76" x 1.50" 0.249 lb
Qty:
IGU-E08-50-048-0 1.97" 1.89" 0.76" x 1.50" 0.249 lb
Qty:



Full Mounting Bracket Set
Include Tie Wrap Plate w/ Tie Wraps

Part # Inner Width Overall Dimensions Weight / FT Price
IGU-080-10-12-PZ 0.39" 0.72" x 0.76" 0.15 lb
Qty:
IGU-080-16-12-PZ 0.63" 0.95" x 0.76" 0.16 lb
Qty:
IGU-080-20-12-PZ 0.79" 1.11" x 0.76" 0.17 lb
Qty:
IGU-080-30-12-PZ 1.18" 1.50" x 0.76" 0.19 lb
Qty:
IGU-080-40-12-PZ 1.57" 1.90" x 0.76" 0.21 lb
Qty:
IGU-080-50-12-PZ 1.97" 2.29" x 0.76" 0.25 lb
Qty:
  • Small pitch for fast and easy access.
  • Made from strong material (igumid NB) for torsional rigidity and torque resistance.
  • Specifically constructed for quiet operation.
  • Ability to handle high loads for your convenience.
  • Multi-axis movement for a faster operation.
  • Smart design for fast and easy access.
  • Withstands temperatures from -22° to 212° F (-30° to 100° C) for use in extreme conditions.
  • Material (chain) igumid NB
    Material (mounting brackets) igumid G
    Permitted Temperature -22°F/212°F (-30°C/+100°C)
    Gliding Speed Max. Conditionally suitable
    Unsupported V Max. 32.8ft/s (10m/s)
    Flammability Class (chain) VDE 0304 IIC UL94 V2
    Flammability Class (mounting brackets) VDE 0304 IIC UL94 HB



    Dimensional Specifications

    cross section of E-Z Chain

    PART # INNER WIDTH (Bi)
    (inches)
    OUTER WIDTH (Ba)
    (inches)
    RADIUS
    (inches)
    CURVE HEIGHT
    (inches)
    CURVE LENGTH
    (inches)
    WEIGHT
    (lb)
    IGU-E08-10-028-0 0.39 0.71 1.1 3.15 5.12 0.15
    IGU-E08-10-038-0 0.39 0.71 1.5 3.9 6.3 0.15
    IGU-E08-10-048-0 0.39 0.71 1.9 4.72 7.48 0.15

    IGU-E08-16-028-0 0.63 0.95 1.1 3.15 5.12 0.16
    IGU-E08-16-038-0 0.63 0.95 1.5 3.9 6.3 0.16
    IGU-E08-16-048-0 0.63 0.95 1.9 4.72 7.48 0.16

    IGU-E08-20-028-0 0.79 1.11 1.1 3.15 5.12 0.17
    IGU-E08-20-038-0 0.79 1.11 1.5 3.9 6.3 0.17
    IGU-E08-20-048-0 0.79 1.11 1.9 4.72 7.48 0.17

    IGU-E08-30-028-0 1.18 1.5 1.1 3.15 5.12 0.19
    IGU-E08-30-038-0 1.18 1.5 1.5 3.9 6.3 0.19
    IGU-E08-30-048-0 1.18 1.5 1.9 4.72 7.48 0.19

    IGU-E08-40-028-0 1.57 1.89 1.1 3.15 5.12 0.21
    IGU-E08-40-038-0 1.57 1.89 1.5 3.9 6.3 0.21
    IGU-E08-40-048-0 1.57 1.89 1.9 4.72 7.48 0.21

    IGU-E08-50-028-0 1.97 2.29 1.1 3.15 5.12 0.25
    IGU-E08-50-038-0 1.97 2.29 1.5 3.9 6.3 0.25
    IGU-E08-50-048-0 1.97 2.29 1.9 4.72 7.48 0.25



    Installation Dimensions

    drawing of installation
    R 1.10" (028mm) 1.50" (038mm) 1.89" (048mm)
    H* 2.99" (76mm) 3.78" (96mm) 4.57" (116mm)
    D 2.36" (60mm) 2.75" (70mm) 3.15" (80mm)
    K ** 5.12" (130mm) 6.30" (160mm) 7.48" (190mm)

    * The required clearance height is HF = H + 0.59" (15mm) with 0.20 lb/ft (0.3 kg/m) fill weight.
    ** The length of the curve

    Pitch: 0.79" (20mm) per link
    Links per ft (m): 15.254" (50mm)
    Chain length: S/2 + K



    Mounting Brackets

    mounting bracket dimensions

    Chain Type Mount Bracket Part # Bore Locations # of Teeth Dimension A Dimension B
    E08-10 IGU-080-10-12-PZ Center Only 1 - 0.72" (18.2mm)
    E08-16 IGU-080-16-12-PZ Center Only 2 - 0.95" (24.2mm)
    E08-20 IGU-080-20-12-PZ Center Only 2 - 1.11" (28.2mm)
    E08-30 IGU-080-30-12-PZ Outer Only 3 0.87" (22mm) 1.50" (38.2mm)
    E08-40 IGU-080-40-12-PZ Outer Only 4 1.26" (32mm) 1.90" (48.2mm)
    E08-50 IGU-080-50-12-PZ Outer Only 5 1.65" (42mm) 2.29" (58.2mm)



    Igumid G

    Resistance:
    The igus® compound igumid G is partly suitable for inconsistant requirements.
    Resistant to: Fire, radiation, weathering, cold/heat, explosion areas, vacuum, hot chips, dirt/dust, clean-room, chemicals

    Flammability Classifications:

    igumid G
      UL 94 HB

    igumid NB
      UL 94 V2
      UL 94 V0
      VDE 0304 Parts 3-5.70 classifications - llb
      DIN 4102 flammability V0 option

    Weathering, Temperature Resistance
    Temperature range: -40°C to +130°C
