Yellow Jacket Cable Protectors

Avoid Damaged Cords and Cables in High Traffic Areas

CPYJ5-125
Qty:
We Guarantee to Have the Best Price

What's special about a Yellow Jacket?

  • Heavy duty polyurethane construction protects cables and cords from up to 48,000 lbs. per axle of vehicular traffic
  • Built to last; will provide dozens of years of quality cable protection when properly used
  • Low profile design for easy vehicle pass-over
  • Dog bone connectors allow you to customize your own modular set-up
  • Easy set-up and take down
  • Click for More Features

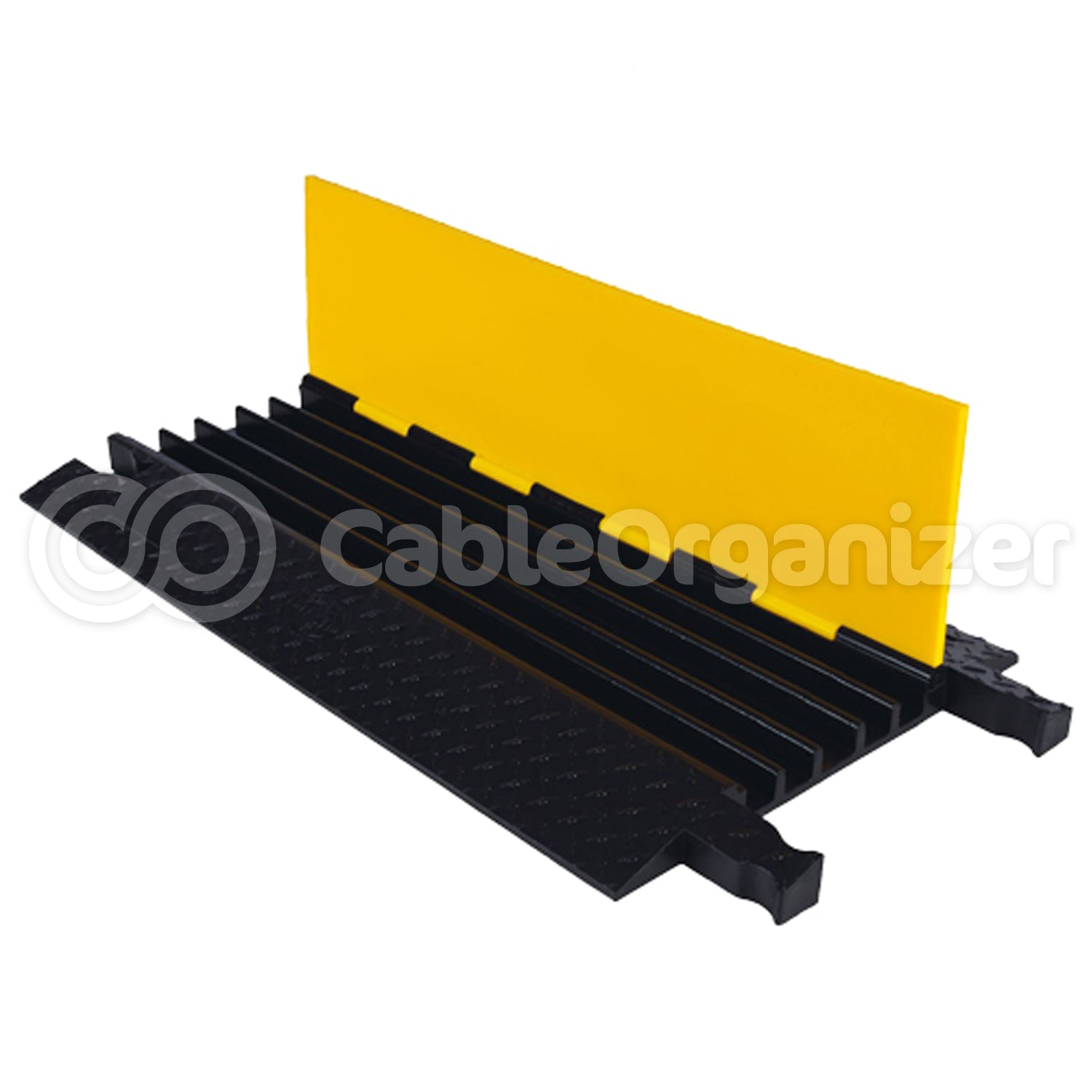

The heavy duty Yellow Jacket is a high load, high capacity cord protector designed to manage and protect cables in tough situations. Perfect for continuous heavy outdoor cable protection in parking lots, jobsites, construction areas, industrial sites and more, the Yellow Jacket offers up to 5 cable channels, and end caps, turns and 4-way crosses allow you to create your own set-up that can span in any direction and length you desire.

NO ASSEMBLY REQUIRED. READY TO USE RIGHT OUT OF THE BOX

5-CHANNEL
Part #DescriptionChannel WidthChannel HeightOverall HeightOverall WidthOverall LengthWeightPrice
CPYJ5-1255-CHANNEL CABLE PROTECTOR1.375"1.00"1.875"19.75"36"28 lbs
Qty:
CPYJEC125END CAPS (PAIR)1.25"1.125"1.875"19.75"7.375"8 lbs
Qty:
CPYJ5T-LLEFT TURN1.25"1.325"1.875"19.75"24"15 lbs
Qty:
CPYJ5T-RRIGHT TURN1.25"1.325"1.875"19.75"24"15 lbs
Qty:
CPYJ5XFOUR WAY CROSS (X)1.339"1.325"1.875"19.75"28.5"20 lbs
Qty:
4-CHANNEL
Part #DescriptionChannel WidthOverall HeightOverall WidthOverall LengthWeightPrice
CP-YJ4-1254-CHANNEL CABLE PROTECTOR1.25"2"17.5"36"26lbs
Qty:
CP-YJ4EB-125END CAPS (PAIR)1.25"2"17.625"7.25"8lbs
Qty:
CP-YJ4-125LLEFT TURN1.25"2"17.5"25"14lbs
Qty:
CP-YJ4-125RRIGHT TURN1.25"2"17.5"25"14lbs
Qty:
3-CHANNEL
Part #DescriptionChannel WidthOverall HeightOverall WidthOverall LengthWeightPrice
CPYJ3EC-225END CAPS (PAIR)2.125"3"18.625"8.375"16 lbs
Qty:
CPYJ3T-225LLEFT TURN2.125"2.875"18.75"23.5"22 lbs
Qty:
CPYJ3T-225RRIGHT TURN2.125"2.875"18.75"23.5"22 lbs
Qty:
1-CHANNEL
Part #DescriptionChannel WidthOverall HeightOverall WidthOverall LengthWeightPrice
CP-YJ1-5005" 1-CHANNEL CABLE PROTECTOR5"5.875"26.75"36"90lbs
Qty:
  • High performance cord cover
  • "Dog-bone" safety connectors are engineered to release before breaking under load or during disassembly
  • Extra wide channels available up to 5 inches in diameter





Part # Channel
Dimension
Overall
Dimensions
Weight Max. Load/Axle Operating Temp Hinge-Pin Material Markings
1 Channel
  YJ1-300
3" W x 3" H 3.875" H x 20.625" W x 36" L 40lbs Exceeds maximum legally allowed axle weight of 23,000 lb at 70° F (21° C)
48,000 lbs per axle rating

-40° F to + 120° F
(-40° C to 48c)

Conforms to UL 94 V-2 flammability test

Reinforced Fiberglass Per ANSI
.Z535-3-1991
  YJ1-500
5" W x 5" H 5.875" H x 26.75" W x 36" L 90lbs
2 Channel
  YJ2-400
  View Tech Drawing
4" W x 4" H 5" H x 21" W x 36" L 130lbs Exceeds maximum legally allowed axle weight of 23,000 lbs at 70° F (21° C)
48,000 lbs per axle rating

-40° F to + 120° F
(-40° C to 48° C)

Conforms to UL 94 V-2 flammability test

Reinforced Fiberglass Per ANSI
.Z535-3-1991
3 Channel
YJ3-225
3-CHANNEL
2.125" W x 2.125" H 2.875" H x 18.5" W x 36" L 32 lbs Exceeds maximum legally allowed axle weight of 23,000 lbs at 70° F (21° C)
48,000 lbs per axle rating

-40° F to + 120° F
(-40° C to 48° C)

Conforms to UL 94 V-2 flammability test

Reinforced Fiberglass Per ANSI
.Z535-3-1991
CPYJ3EC-225 END CAPS (PAIR)
2.125" W x 2.125" H 3" H x 18.625" W x 8.375" L 16 lbs
YJ3T-225L LEFT
2.125" W x 2.125" H 2.875" H x 18.75" W x 23.5" L 22 lbs
YJ3T-225R RIGHT
2.125" W x 2.125" H 2.875" H x 18.75" W x 23.5" L 22 lbs
YJ3-225W (Wide)
3-CHANNEL
2.125" W x 2.125" H 3.25" H x 26.75" W x 34.75" L 48 lbs
YJ3-225H (Hiperthane)
3-CHANNEL
2.25" W x 2.25" H 3" H x 20" W x 36" L 36 lbs
YJ3-225WH (Wide Hiperthane)
3-CHANNEL
2.25" W x 2.25" H 3" H x 27" W x 36" L 54 lbs
4 Channel
YJ4-125
1.25" W x 1.25" H 2" H x 17.5" W x 36" L 26lbs Exceeds maximum legally allowed axle weight of 23,000 lbs at 70° F (21° C)
48,000 lbs per axle rating

-40° F to + 120° F
(-40° C to 48° C)

Conforms to UL 94 V-2 flammability test

Reinforced Fiberglass Per ANSI
.Z535-3-1991

YJ4EB-125 END CAPS (PAIR)

1.25" W x 1.25" H 2" H x 17.625" W x 7.25" L 8lbs
YJ4T-125R RIGHT
1.25" W x 1.25" H 2" H x 17.5" W x 25" L 14lbs
YJ4T-125L LEFT
1.25" W x 1.25" H 2" H x 17.5" W x 25" L 14lbs
5 Channel
YJ5-125
5-CHANNEL
1.375" W x 1.00" H 1.875" 19.75" 36" 28 lbs Exceeds maximum legally allowed axle weight of 23,000 lbs at 70° F (21° C)
48,000 lbs per axle rating

-40° F to + 120° F
(-40° C to 48° C)

Conforms to UL 94 V-2 flammability test

Reinforced Fiberglass Per ANSI
.Z535-3-1991
YJ5EB-125
END CAPS
1.25" W x 1.325" H 1.875" 19.75" 7.375" 8 lbs
YJ5T-125-L   LEFT
1.25" W x 1.325" H 1.875" 19.75" 24" 15 lbs
YJ5T-125-R   RIGHT
1.25" W x 1.325" H 1.875" 19.75" 24" 15 lbs
YJ5X-125   4 WAY CROSS
1.339" W x 1.125" H 1.875" 19.75" 28.5" 20 lbs



YJ1-300 YJ1-500
YJ1-300 technical drawing YJ1-500 technical drawing

YJ2-400 YJ3-225
yj2-400 spec drawing yj3-225 specification drawing

YJ4-125
yj4-125 tech drawing



For more Technical Information Click here

MANUALS & USER GUIDES -



RELATED ARTICLES -



HOW-TO CORNER -



VIEW OUR GLOSSARY



Did you know that we can give you a quote for most of our products, including shipping?


You can also call us toll free 866-222-0030

Questions & Answers

Question:

What is the weight capacity for these units? ie Semi and or trash truck safe?

Asked by Anonymous user on 05/23/2017 7:36 AM

Answer:
  • - Hello, all those cord covers can withstand 48,000 lbs per axle rating. For more information you can either click on the SPECIFICATIONS tab in the middle of the screen, or call us toll free at 866-222-0030 and we can answer any other questions.

    Anonymous user on 05/23/2017 1:03 PM
