Signamax™ Wall Mount Fiber Optic Enclosures

Convenient Fiber Termination Housing for Space-Limited Applications

SX-WFE2S-B
Qty:

What's special about these wallmount optical fiber enclosures?

  • Compact, wall mountable enclosures specifically designed to provide reliable fiber housing when rack and cabinet-style mounting is unattainable.
  • Fully modular design supports a wide range of fiber termination applications such as creating consolidation points, horizontal mini cross-connects, or centralized optical architecture transition points.
  • Available with either a standard hinged door which provides fast, convenient access, or with a lockable security door to limit access and prevent unwanted intrusion.
  • Click for More Features

Signamax™ Wall Mount Optical Fiber Enclosures with Access Door offer installers and technicians a safe, highly reliable fiber termination solution for when space is at a premium. These highly adaptable, wall mountable enclosures support Signamax's full line of modular adapter panels, to provide users with the flexibility to accommodate the specific needs of their fiber optic network.

NOTE: Only Compatible with Signamax adapters, enclosures

Part # Description Capacity Dimensions Weight Price
SX-WFE2S-B Signamax Wall Mount Fiber Optic Enclosure with Security Door 2 Adapter Plates (12- to 48-Fibers) 10.2"H x 12"W x 3.5"D 7.0 lbs
Qty:
Manufacturer Direct

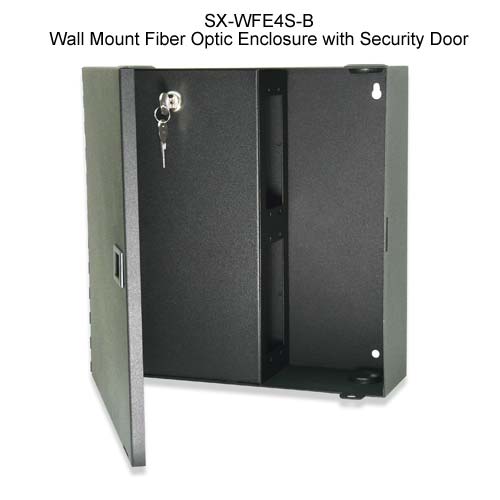

SX-WFE4S-B Signamax Wall Mount Fiber Optic Enclosure with Security Door 4 Adapter Plates (24- to 96-Fibers) 12"H x 12"W x 3.5"D 7.2 lbs
Qty:
Manufacturer Direct
Accessories
Part # Description Weight Price

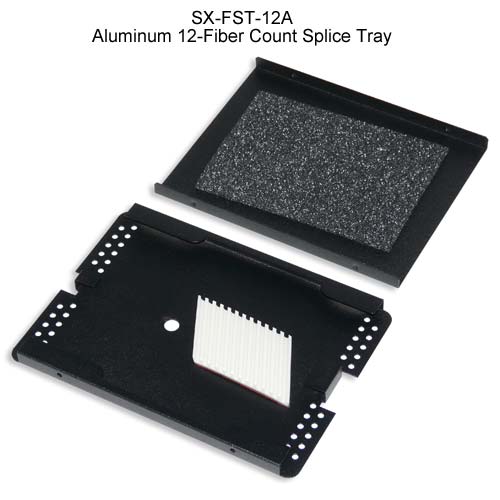

SX-FST-12A Signamax Aluminum 12-Fiber Count Splice Tray for use with Wall and Rack Mount Optical Fiber Enclosures 0.4 lb
Qty:
Manufacturer Direct
Fiber Adapter Plates
Part # Description Fiber/Adapter Count Adapter Type Weight Price
SX-UFE-B-06ST Signamax ST Adapter Plate 6-Fiber (6-Simplex) ST Multimode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-08ST Signamax ST Adapter Plate 8-Fiber (8-Simplex) ST Multimode 0.2 lb
Qty:
Manufacturer Direct
SX-UFE-B-12ST Signamax ST Adapter Plate 12-Fiber (12-Simplex) ST Multimode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-08ST-C Signamax ST Adapter Plate 8-Fiber (8-Simplex) ST Single Mode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-06SC Signamax SC Adapter Plate, Beige Adapters 6-Fiber (6-Simplex) SC Multimode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-08SC Signamax SC Adapter Plate, Beige Adapters 8-Fiber (8-Simplex) SC Multimode 0.2 lb
Qty:
Manufacturer Direct
SX-UFE-B-12SC Signamax SC Adapter Plate, Beige Adapters 12-Fiber (6-Duplex) SC Multimode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-06SC-C Signamax SC Adapter Plate, Blue Adapters 6-Fiber (6-Simplex) SC Single Mode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-08SC-C Signamax SC Adapter Plate, Blue Adapters 8-Fiber (8-Simplex) SC Single Mode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-12SC-C Signamax SC Adapter Plate, Blue Adapters 12-Fiber (6-Duplex) SC Single Mode 0.2 lb
Qty:
Manufacturer Direct
SX-UFE-B-06LC Signamax LC Adapter Plate, Beige Adapters 12-Fiber (6-Duplex) LC Multimode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-08LC Signamax LC Adapter Plate, Beige Adapters 16-Fiber (8-Duplex) LC Multimode 0.2 lb
Qty:
Manufacturer Direct
SX-UFE-B-12LC Signamax LC Adapter Plate, Beige Adapters 24-Fiber (6-Quad) LC Multimode 0.2 lb
Qty:
Manufacturer Direct
SX-UFE-B-06LC-C Signamax LC Adapter Plate, Blue Adapters 12-Fiber (6-Duplex) LC Single Mode 0.2 lb
Qty:
Quick Ship
SX-UFE-B-08LC-C Signamax LC Adapter Plate, Blue Adapters 16-Fiber (8-Duplex) LC Single Mode 0.2 lb
Qty:
Manufacturer Direct
SX-UFE-B-12LC-C Signamax LC Adapter Plate, Blue Adapters 24-Fiber (6-Quad) LC Single Mode 0.2 lb
Qty:
Manufacturer Direct
SX-UFE-B-BL Signamax Blank Filler Adapter Plate Blank - 0.2 lb
Qty:
Quick Ship
  • Supports either 2 or 4 adapter plates to allow flexible, easily adaptable connection patterns based on low- or high-density ST, SC, LC and MT-RJ types.
  • Adapter plates use plunger-style locks to provide fast, tool-less mounting.
  • Internal anchor points and slack management mechanisms are provided to ensure that fibers are securely fixed, while maintaining a safe bend radius and level of tension.
  • Termination density of 12 to 96-fibers, ideal for small to medium installations.
  • Optional splice trays are available for greater flexibility and fiber distribution.
  • Constructed from incredibly durable die-cast steel finished with an high-impact, anticorrosive black epoxy-powder paint, which offers long-lasting quality and strength.

    •

    Dimension
    Height 9.0" (228.6mm) 15" (381.0mm) 10.2" (259.1mm) 12.0" (304.8mm)
    Width 10.0" (254.0mm) 10.0" (254.0mm) 12.0" (304.8mm) 12.0" (304.8mm)
    Depth 3.5" (88.9mm) 3.5" (88.9mm) 3.5" (88.9mm) 3.5" (88.9mm)
    Weight 6.5 lbs. 8.0 lbs. 7.0 lbs. 7.2 lbs.
    Capacity
    Adapter Plates 2 4 2 4
    Fibers 12 to 48 24 to 96 12 to 48 24 to 96
    Construction
    Die steel
    High-impact black epoxy-powder anticorrosive paint
    Clear plastic hinged front cover
    Warranty
    5-year limited component warranty
    10-year Signamax Link/Channel Warranty
    15-year Signamax Extended Component Warranty
    25-year Signamax Cabling System Warranty
