HellermannTyton® High Density Slotted Wall Wiring Duct - 1.5in
HT-184-15101
What's special about these wiring ducts?
- Narrow fingers reduce fanning of the wires to the terminal blocks, presenting a neater appearance.
- Each finger is provided with a double restriction to hold wires in the bottom portion of the duct, allowing for easier installation.
- Mounting holes are uniform in size and are offered every 2 inches to accommodate compact designs and ease installation.
- Optional covers snap on and off easily, and are provided with a non-slip lining that insures the covers remain in place during vibration.
-

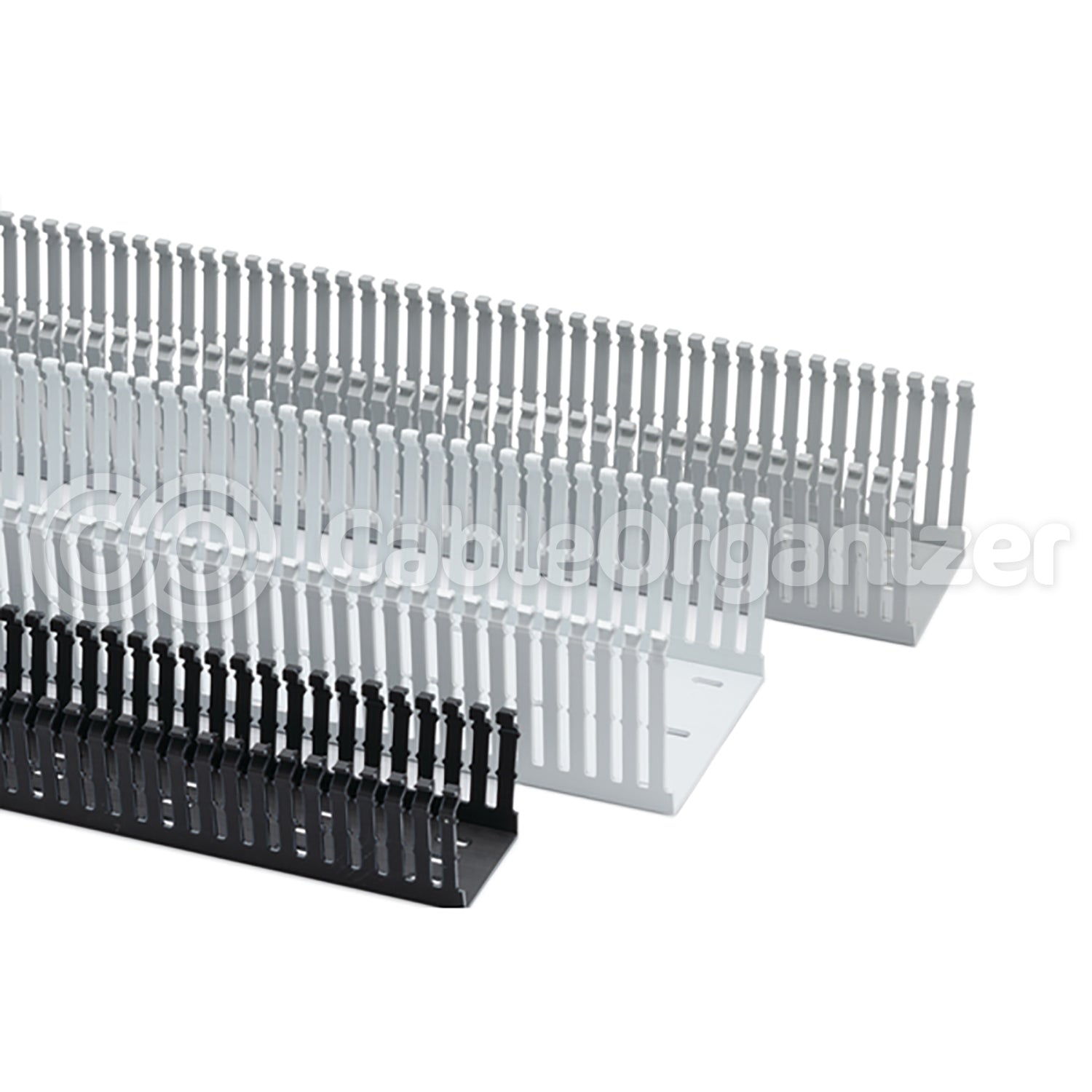

HellermannTyton High-Density Slotted Wall Wiring Duct features narrow fingers equaling a 2-to-1 finger ratio compared to standard slotted wiring duct. With the narrow fingers, compact designs and components are more easily accommodated.
| 1.5" Duct - Non-Adhesive - High Density Slotted Wiring Duct | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | Dimensions | Material, Color | Quantity | Price | ||
| HT-184-15101 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1" | PVC, Gray | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15102 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1" | PVC, White | 120 ft/Carton | Manufacturer Direct
|
||
| HT-181-00603 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, Black | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15150 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, Gray | 30 ft/Box | Manufacturer Direct
|
||
| HT-184-15152 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, Gray | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15154 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, White | 30 ft/Box | Manufacturer Direct
|
||
| HT-184-15155 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, White | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15200 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 2" | PVC, Gray | 30 ft/Box | Manufacturer Direct
|
||
| HT-184-15202 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 2" | PVC, Gray | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15204 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 2" | PVC, White | 30 ft/Box | Manufacturer Direct
|
||
| HT-184-15206 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 2" | PVC, White | 120 ft/Carton | Manufacturer Direct
|
||
| HT-181-00605 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, Black | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15300 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, Gray | 30 ft/Box | Manufacturer Direct
|
||
| HT-184-15302 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, Gray | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15303 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, White | 30 ft/Box | Manufacturer Direct
|
||
| HT-184-15304 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, White | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15305 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, White | 140 ft/Carton | Manufacturer Direct
|
||
| HT-184-15400 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, Gray | 30 ft/Box | Manufacturer Direct
|
||
| HT-184-15401 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, Gray | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15402 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, White | 30 ft/Box | Manufacturer Direct
|
||
| HT-184-15403 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, White | 120 ft/Carton | Manufacturer Direct
|
||
| HT-184-15404 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, White | 140 ft/Carton | Manufacturer Direct
|
||
| 1.5" Duct - Adhesive - High Density Slotted Wiring Duct | |||||||
|---|---|---|---|---|---|---|---|
| Part # | Description | Dimensions | Material, Color | Quantity | Price | ||
| HT-184-15201 | High Density Slotted Wall Wiring Duct, Adhesive | 1.5" X 2" | PVC, Gray | 120 ft/carton | Manufacturer Direct
|
||
| HT-181-00635 | High Density Slotted Wall Wiring Duct, Adhesive | 1.5" X 3" | PVC, Black | 120 ft/carton | Manufacturer Direct
|
||
| HT-181-00636 | High Density Slotted Wall Wiring Duct, Adhesive | 1.5" X 3" | PVC, Gray | 120 ft/carton | Manufacturer Direct
|
||
| HT-184-15301 | High Density Slotted Wall Wiring Duct, Adhesive | 1.5" X 3" | PVC, White | 120 ft/carton | Manufacturer Direct
|
||
| 1.5in High Density Slotted Wiring Duct | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part # | Description | SIZE DUCT | Material, Color | Quantity | UV Resistant | Operating Temp. | Reach Compliant (Article 33) | Certification/Specification | |
| HT-184-15101 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1" | PVC, Gray | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15102 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1" | PVC, White | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00603 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, Black | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15150 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, Gray | 30 ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15152 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, Gray | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15154 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, White | 30 ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15155 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 1.5" | PVC, White | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15200 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 2" | PVC, Gray | 30 ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15202 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 2" | PVC, Gray | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15204 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 2" | PVC, White | 30 ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15206 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 2" | PVC, White | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00605 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, Black | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15300 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, Gray | 30 ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15302 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, Gray | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15303 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, White | 30 ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15304 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, White | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15305 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 3" | PVC, White | 140 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15400 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, Gray | 30 ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15401 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, Gray | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15402 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, White | 30 ft/Box | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15403 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, White | 120 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15404 | High Density Slotted Wall Wiring Duct, Non-Adhesive | 1.5" x 4" | PVC, White | 140 ft/Carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15201 | High Density Slotted Wall Wiring Duct, Adhesive | 1.5" X 2" | PVC, Gray | 120 ft/carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00635 | High Density Slotted Wall Wiring Duct, Adhesive | 1.5" X 3" | PVC, Black | 120 ft/carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-181-00636 | High Density Slotted Wall Wiring Duct, Adhesive | 1.5" X 3" | PVC, Gray | 120 ft/carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
| HT-184-15301 | High Density Slotted Wall Wiring Duct, Adhesive | 1.5" X 3" | PVC, White | 120 ft/carton | No | +122°F (+50°C) | No | UL EN 50085-1:2005 + A1:2013 CSA EN 50085-2-3_1A | |
