Geist Environmental Monitor Plus Display

Monitor Temperature, Humidity, Airflow and More

Low Price Guarantee
Qty:

What's special about this cabinet/enclosure monitor?

  • Monitors environmental properties in and around your network equipment to prevent damage from unsafe temperature variants, airflow, humidity and dew point
  • Round-the-clock measurements provide a detailed look at the usage patterns and effects caused by modification, as well as opportunities for energy savings and uptime maximization
  • Delivers information readings both remotely and on a local display, giving you access to instantaneous results in the office or on the go
  • Click for More Features
ULRoHS Compliant

Providing a reliable and stable data center is absolutely critical to network installers. Monitoring and alerting personnel of environmental conditions is a key factor in protecting the speed, efficiency, longevity and overall quality of their network equipment. The Geist Environmental Monitor with On-Screen Display is a valuable tool for providing installers with reliable environmental control and peace of mind.

Images

PART # DESCRIPTION LENGTH WIDTH HEIGHT WEIGHT PRICE
GM-RSE2X16 Geist Environmental Monitor Plus Display 17" ( 42.2cm) 1.61" (4.1cm) 1.61" (4.1cm) 4 lbs (1.81kg)
Qty:



  • Contains five (5) on-board environmental sensors for temperature, humidity, airflow, light and sound, which show you both real time status and trend data
  • Provides three (3) I/O sensor ports for extra devices that can monitor conditions such as contact closure
  • Interfaces with IP web cameras to provide visual monitoring of the cabinet or server room in which it is installed
  • Easy to install and requires no software downloads; simply log on to view or set parameters via a web browser
  • Conveniently notifies users via email, SNMP traps and/or XML of conditions that fall/rise above preset parameters



GM-RSE2X16
Qty:

Activity LED 1
Idle LED 1
Scrolling Digital Display Yes
Audible Alarm with Silence Reset Button Yes

Power Supply Compatible with these Systems Input: AC 100-240V, 50/60Hz Output:DC 6V, 2A North America (NEMA 5-15)

Internal Temperature Sensor -40°F to 254°F, +/- .9°F from 50°F to 185°F, OR -40°C
Internal Humidity Sensor 0-100% +/- 5%
Internal Dew Point Calculation -40°F to 254°F OR -40°C to 123°C
Internal Air Flow Sensor 0-99, relative
Internal Sound Level Sensor 0-99, relative
Internal Light Level Sensor 0-99, relative
Remote Sensor RJ Connection Jacks 5
I/O Ports Three, 0-5 VDC analog ports

Ethernet Connection RJ45

Remote Sensor RJ Connection Jacks 5
I/O Ports Three, 0-5 VDC analog ports

Network Protocols Supported and Data Access Formats DHCP, HTTP, HTTPS(SSL/TLS), ICMP, TCP/IP, SMTP/POP3 & HTML, SNMP, CSV/Plain Text, Telnet, WAP, PDA Formatted HTML, XML
Software Reset Button Yes

Heavy Steel - Black Powder Coat Yes
Made in the USA Yes

Configuration 19" Horizontal Rackmount
19"/Panel Mount Brackets Yes
SLB-4 Brackets Optional
EZB-1 Brackets Optional
XB-7 Brackets Optional

Product Warranty Three Year

Certification/Agency Approvals UL & c-UL Listed 60950
Certification/Agency Approvals FCC Part 15 Class A Conformance
Certification/Agency Approvals RoHS Compliant

Chassis Dimensions (HxWxD) 1.61" x 17" x 1.61"

Unit Weight 4 lbs.



MANUALS & USER GUIDES -



RELATED ARTICLES -




VIEW OUR GLOSSARY

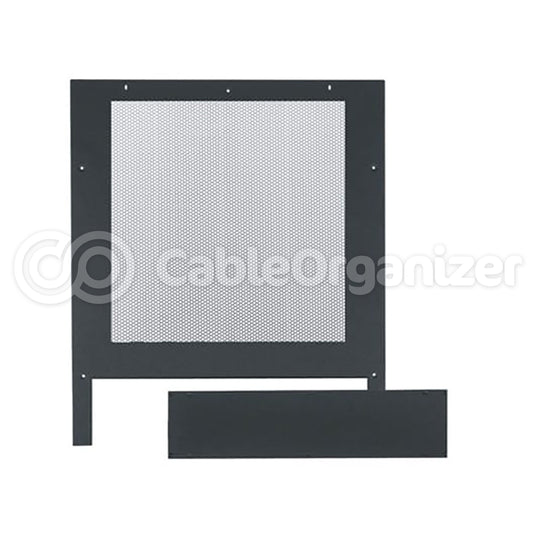

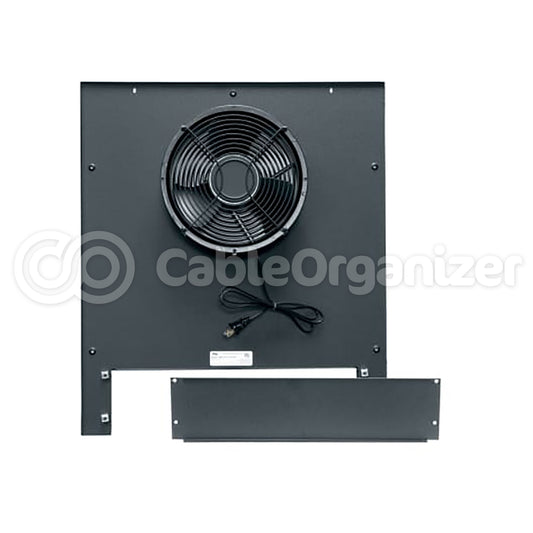

Middle Atlantic Duct Cool Long Pull Vent SystemMiddle Atlantic Duct Cool Long Pull Vent System
From
The Duct Cool™ line is made of a long pull vent system that allows you to manage the heat in confined areas efficiently and with minimal noise

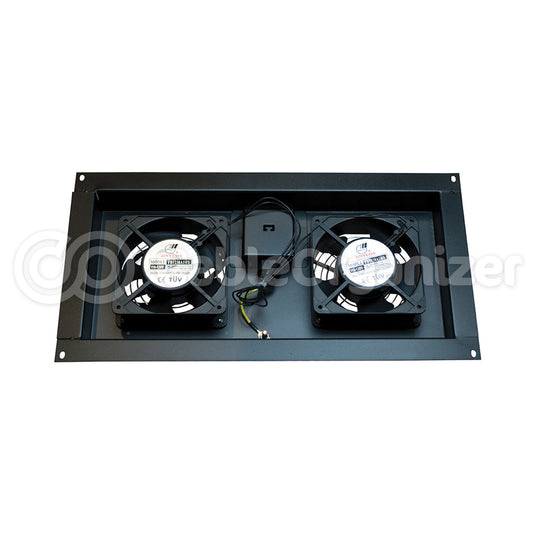

Ultra Quiet Fan PanelsMiddle Atlantic UQFP Series Ultra Quiet Fan Panels
