ERICO Caddy J-Hook CAT Link System

Technologically Advanced Cable Support System

Low Price Guarantee

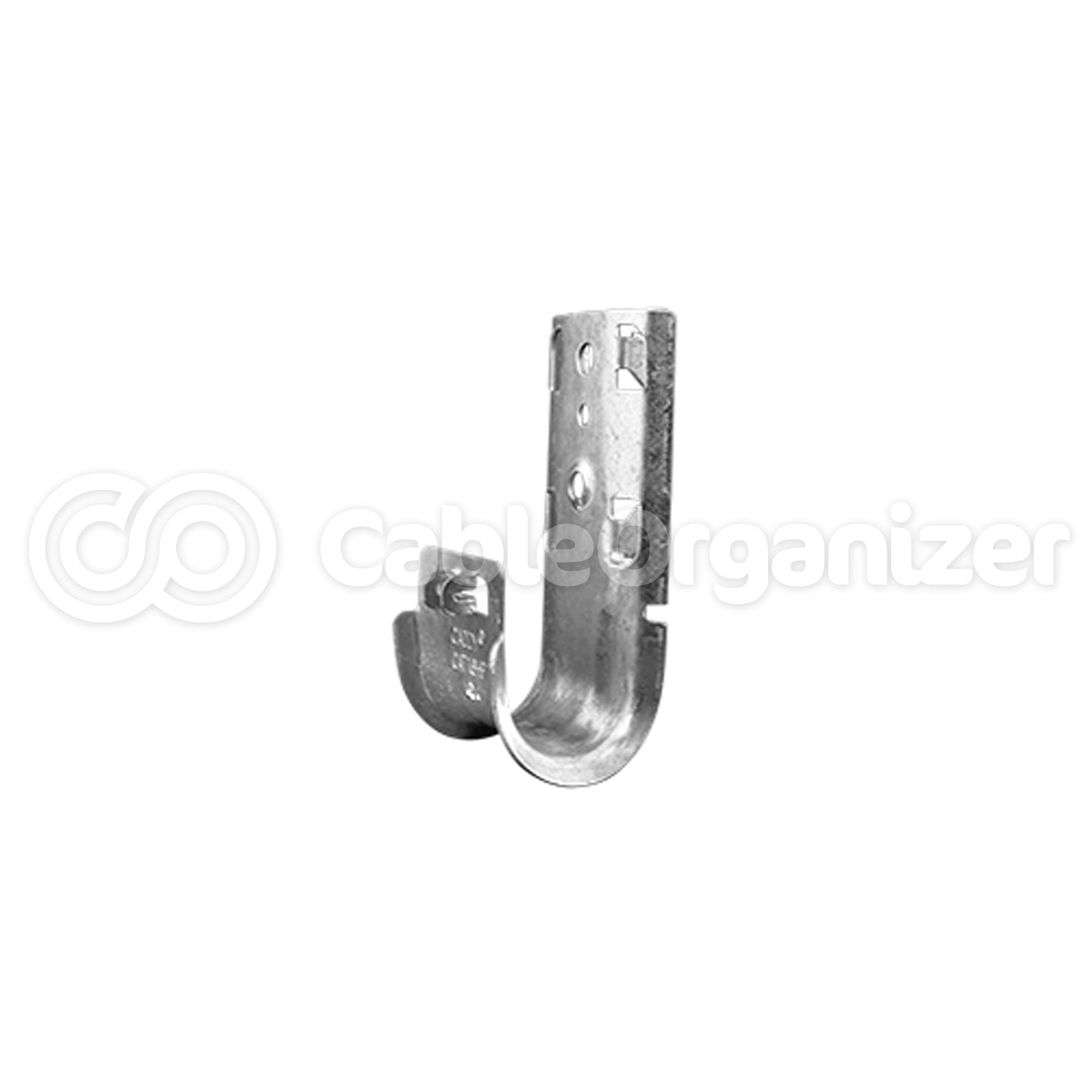

ER-CAT16HP



ER-CATHPAN

What's special about this cable support system?

  • Designed to easily accommodate current and future high-performance cabling upgrades, eliminating the need to replace infrastructures when more cable is added
  • Enhanced J-Hook design reduces friction and offers less vertical cable compaction ensuring stable and secure installation
  • Smooth and beveled edges with a wide based design provide large bending radius for 10Gb systems for all J-Hooks
  • Click for More Features
UL Listed and Made in USA

Caddy Cat Links are a technologically advanced aerial cable support system. They provide a wide bend radius that reduces cables friction and offers less vertical cable compaction. These cable supports come in several sizes so that you can choose the one that best suits your needs, and allows to easily change as your needs change.

Images

PART #
View images below
DESCRIPTION DIMENSIONS WEIGHT PRICE / UNIT
ER-CAT16HP
1" J-Hook
4"H x 1.92"W x 1.9"D 0.172 lb
Qty:
ER-CAT32HP 2" J-Hook 4.83"H x 2"W x 2.7"D 0.274 lb
Qty:
ER-CAT48HP 3" J-Hook 6.5"H x 2"W x 4"D 0.2176 lb
Qty:
ER-CAT64HP
4" J-Hook
7.5"H x 2"W x 5"D 0.2586 lb
Qty:

Bracket Accessories
ER-CATHPAN Angle bracket with 3/16” Mounting Hole 1.4"H x 1.4"W x 5"D 0.34 lb
Qty:
ER-CATHPA4 Angle bracket with 1/4” Threaded Rod Mounting Hole 1.4"H x 1.4"W x1.2 5"D 0.33 lb
Qty:
ER-CATHPA6 Angle bracket  with 3/8” Threaded Rod Mounting Hole
1.4"H x 1.4"W x1.2 5"D 0.33 lb
Qty:

ER-CATHPS4 Straight bracket with .282" Mounting Hole 1.9"H x 1.2"W x 0.1"D 0.21 lb
Qty:

ER-CATHPTM Tree mounting bracket 4.2"H x 1.18"W x 0.18"D 0.54 lb
Qty:

ER-CATHP24 Hammer-on assembly for 1/4”-1/8” flange with 360º rotation 1.42"H x 1.28"W x 0.92"D 0.0426 lb
Qty:
ER-CATHP58
Hammer-on assembly for 5/16”-1/2” flange with 360º rotation
2.65"H x 1.28"W x 0.92"D 0.045 lb
Qty:
ER-CATHP912 Hammer-on assembly for 1/2”-3/4” flange with 360º rotation 3.15"H x 1.75"W x 1.5"D 0.0526 lb
Qty:

ER-CATHPBCB Screw-on beam assembly for 1/8”-1/2” flange with 360º rotation 3.3"H x 1.45"W x 1.7"D 0.0426 lb
Qty:
ER-CATHPBC200B Screw-on beam assembly for 1/8”-5/8” flange with 360º rotation 3.2"H x 1.45"W x 1.7"D 0.072 lb
Qty:
ER-CAT32BCB Screw-on 1/8" - 1/2" flange with 360º rotation - 2" dia loop,
Sold in Packs of 20
  1 lbs
Qty:

ER-CATHP24SM
Hammer-on assembly for 1/8”-1/4” flange
2.52"H x 1.5"W x 1.42"D 0.052 lb
Qty:
ER-CATHP58SM Hammer-on assembly for 5/16”-1/2” flange 2.52"H x 1.5"W x 1.42"D 0.055 lb
Qty:
ER-CATHP912SM Hammer-on assembly for 1/2”-3/4” flange 3"H x 1.75"W x 1.5"D 0.03 lb
Qty:

ER-CATHPBC Screw-on beam assembly for 1/8”-1/2” flange 2.12"H x 1.2"W x 1.22"D 0.07 lb
Qty:
ER-CATHPBC200 Screw-on beam assembly for 1/8”-5/8” flange
2.52"H x 1.2"W x 1.8"D 0.0686 lb
Qty:

ER-CATHPAF14 Z purlin assembly for 1/16”-1/4” flange 3.95"H x 1.12"W x 0.72"D 0.062 lb
Qty:
ER-CATHPESC Easy strut assembly 1.85"H x 1.15"W x 0.8"D 0.044 lb
Qty:
ER-CATHP4Z34 Rod/flange assembly for #12 SWG - 1/4” wire or plain rod, 1/4” threaded rod & 1/8”-3/8” flange 3.7"H x 1.12"W x 0.32"D 0.046 lb
Qty:
ER-CATHP6Z34 Rod/flange assembly for 3/8” threaded rod & 3/8”-9/16” flange 3.7"H x 1.12"W x 0.5"D 0.045 lb
Qty:

ER-CATHPCD0B Underfloor assembly for 3/4” round pedestal 2"H x 1.35"W x 2.5"D 0.0356 lb
Qty:
ER-CATHPCD1B Underfloor assembly for 7/8”-1” round pedestal or 3/4” square pedestal 2"H x 1.35"W x 2.5"D 0.048 lb
Qty:
ER-CATHPCD2B Underfloor assembly for 7/8” square pedestal 2"H x 1.35"W x 2.5"D 0.057 lb
Qty:
ER-CATHPCD2.5B Underfloor assembly for 1” square pedestal 2"H x 1.35"W x 2.5"D 0.061 lb
Qty:

ER-CATHPPLR Cable puller for CATHP 6"H x 1.7"W x 2.65"D 0.036 lb
Qty:

ER-4H24 CADDY H Clip - for attaching or suspending services by chains or wires. 100/pack for 1/8" - 1/4" flange -
Qty:
  • Available in several sizes: 1, 2, 3 and 4 inch to suit the needs of your application
  • Can be used with a wide variety of cable, including CAT 6a, CAT 7, large diameter optical fiber  and coax cable
  • User friendly, easy to install and remove as they require no grounding, screws, rivets or special tools for installation so time and labor are reduced compared to cable tray systems
  • Bendable locking tabs help retain cables and provide security and rigidity for any J-hook configuration
  • Accommodates a wide variety of interchangeable attachment methods for multiple configurations such as threaded rods, beams and walls, angle brackets, mounting brackets, and more
  • Environmentally friendly and completely recyclable product, it is manufactured from up to 80% recycled steel and uses less material than traditional methods of equal capacity
  • Meets worldwide standards because it uses code-compliant materials and all-metal construction, making it ideal for use in multiple environments and applications
  • Made in USA USA



This product has starred in our Product Showcase Blog! Click here to check it out.

  • cULus® Listed: E165703
  • Meets ISO/IEC 18010, TIA-569-B
  • Naturally plenum rated because they are not combustible



Recommended Cable Fill

PART # DESCRIPTION Cross Sectional Area (sq. inch) Cat. 5e & Fiber Cat. 6 Cat. 6a
min.
Cat. 6a
max.
Cat. 7 PRICE / UNIT
  Cable Diameter   0.207 0.261 0.300 0.354 0.354
ER-CAT16HP 1" J-Hook
1.07 20 15 10 7 7
Qty:
ER-CAT32HP 2" J-Hook 3.97 90 60 35 25 25
Qty:
ER-CAT48HP 3" J-Hook 9.26 200 150 80 60 60
Qty:
ER-CAT64HP
4" J-Hook
15.48 330 220 140 100 100
Qty:



cULus is a registered trademark of Underwriters Laboratories, Inc.
IEC is a registered service mark of International Electrical Contractors, Inc.
ISO is a registered service mark of the International Organization for Standardization.
TIA is a service mark of Telecommunications Industry Association.



MANUALS & USER GUIDES -



TREE BRACKET INSTALLATION

J-Hook
Hook the Tree Mounting Bracket into the locking tabs
Hook the Locking Tabs of the second
Step 1:
Firmly hold the J-Hook to prepare
for assembly
Step 2:
Hook the Tree Mounting Bracket into
the Locking Tabs and press-fit into
position. The Tree Mounting Bracket
should be mounted flush to the J-Hook
Step 3:
Hook the Locking Tabs of the second
J-Hook to the other end of the Tree
Mounting Bracket





ANGLE BRACKET ASSEMBLY

J-Hook and Angle
Hook the Angle Bracket assembly into
Using a screwdriver
Step 1:
Firmly hold the J-Hook and Angle
Bracket for assembly
Step 2:
Hook the Angle Bracket assembly into
the J-Hook and press-fit into position
Step 3:
Using a screwdriver, bend the Locking
Tabs to firmly secure the J-Hook
Assembly



This product has starred in our Product Showcase Blog! Click here to check it out.



VIEW OUR GLOSSARY



bridle ring for cableBridle Rings for Low-Voltage Cable Support
From
Featuring a loop-shaped design that accommodates both horizontal and vertical cable runs, these bridle rings are available in four easy-to-install styles that work with virtually any low-voltage cable, including fiber, UTP, and electrical wire under 600V.

Snake Tray cable traysSnake Tray® Systems
Snake Tray® is the world’s only hand bendable steel cable tray that bends by hand in any direction without cutting/clipping for use to convey cables overhead, wall mount or installations below computer access floors. Snake Tray is a cost effective alternative to J-Hooks, conduit and ladder rack.



Panduit FiberRunnerPanduit FiberRunner Cable Routing System
Consists of various channels and distribution attachments to route your fiber optic and high performance copper throughout a data center. Typically used along with racks & enclosures in server rooms to distribute, segregate and protect cables, this system features limitless accessories to obtain a safe and effective wire run.

Arlington Loop cable hangerThe Loop - Cable Hanger
From
These non-metallic cable hangers are more economically priced than traditional methods, as they are more cost effective than cable trays or J-hooks. With The Loop, you can hold a maximum bundle diameter of 5" in the largest loop, or up to 300 CAT5 cables.

Q:J-Hook Cabling

How many CAT6 cables can safely be installed using a 4" J-Hook?

Asked by Anonymous user on

A:Answers

  • - Thank you for your question. Depends on the circumference of the cable, but you can safely assume around 100 cables on a 4" J-Hook.

    Fernando M. on

Q:Weight Capactiy

Do you have any specs for how much weight these can hold?

Asked by Anonymous user on

A:Answers

  • - Thank you for your question. Unfortunately this is not a spec provided by the manufacturer. It is however designed to hold a certain amount of cables, so I would say not a substantial amount of weight.

    Fernando M. on
