HellermannTyton® Spiralwrap Protective Sheathing & Metal-Content Wrap
HT-3FRP0C
What's special about these wraps?
- Sheathing allows flexible routing and lead-out of cables - The inner edges are beveled preventing damage to cables - Sheathing is reusable and resistant to most chemicals - Spiralwrap is U.L. Recognized

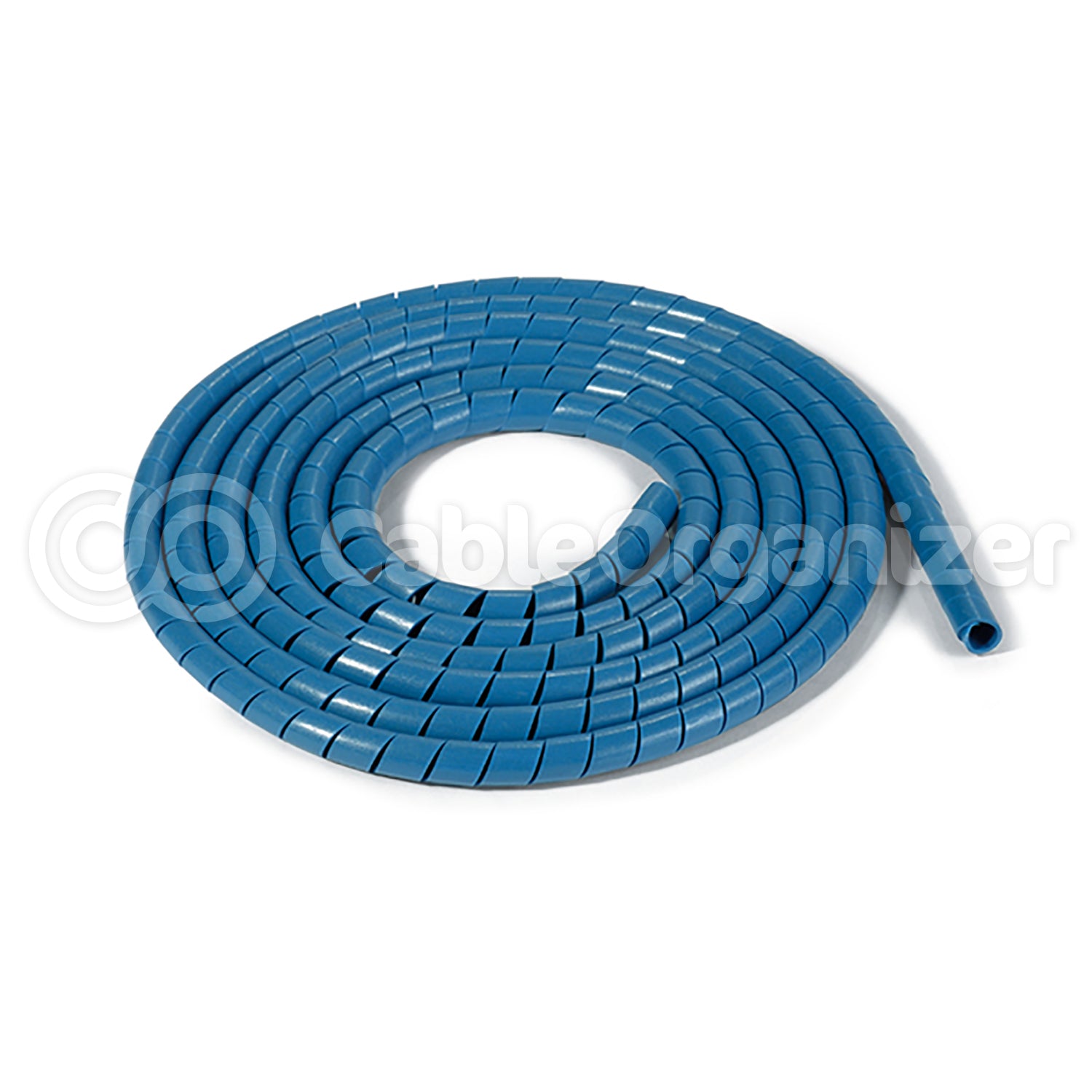

- Industry standard blue color assists with visual detection and reduces the risk of contamination. - High stainless-steel content is both detectable and corrosion resistant. - Open design accommodates breakouts at any point along the bundle. - Spiral design makes it suitable for retro-fitting.
-
HellermannTyton’s Spiralwrap protective sheathing provides cable protection and flexible routing. Spiralwrap is wrapped around a group of cables to shield and organize. Polyethylene is ideal for general applications that are not affected by ordinary solvents. Ultraviolet resistant black polyethlene is for outdoor use. It has the same qualities as clear polyethylene, but also contains an ultraviolet absorber which permits it to be used in direct sunlight for long periods of time. Available in colors. SBPEMC provides flexible, durable cable and hose protection. It is ideal for food-processing machines and related environments. Protects against abrasion, making it appropriate for applications where movement is an issue.
| Part # | Description | Diameter | Material, Color, Qty. | Price |
|---|---|---|---|---|
| HT-3FRP0C | Spiralwrap Protective Sheathing | 0.5" Diameter | PE-FR, Black, 100 ft/roll | Quick Ship
|
| HT-3FRP9C | Spiralwrap Protective Sheathing | 0.5" Diameter | PE-FR, Natural, 100 ft/roll | Quick Ship
|
| HT-3N0C | Spiralwrap Protective Sheathing | 0.5" Diameter | PA6, Black, 100 ft/roll | Quick Ship
|
| HT-3N9C | Spiralwrap Protective Sheathing | 0.5" Diameter | PA6, Natural, 100 ft/roll | Quick Ship
|
| HT-3NFP0C | Spiralwrap Protective Sheathing | 0.5" Diameter | PE, Black, 100 ft/roll | Quick Ship
|
| HT-3NFP9C | Spiralwrap Protective Sheathing | 0.5" Diameter | PE, Natural, 100 ft/roll | Quick Ship
|
| HT-3P9C | Spiralwrap Protective Sheathing | 0.5" Diameter | PTFE, Natural, 100 ft/roll | Quick Ship
|
| HT-4FRP0C | Spiralwrap Protective Sheathing | 0.75" Diameter | PE-FR, Black, 100 ft/roll | Quick Ship
|
| HT-4FRP9C | Spiralwrap Protective Sheathing | 0.75" Diameter | PE-FR, Natural, 100 ft/roll | Quick Ship
|
| HT-4N0C | Spiralwrap Protective Sheathing | 0.75" Diameter | PA6, Black, 100 ft/roll | Quick Ship
|
| HT-4N9C | Spiralwrap Protective Sheathing | 0.75" Diameter | PA6, Natural, 100 ft/roll | Quick Ship
|
| HT-4NFP0C | Spiralwrap Protective Sheathing | 0.75" Diameter | PE, Black, 100 ft/roll | Quick Ship
|
| HT-4NFP9C | Spiralwrap Protective Sheathing | 0.75" Diameter | PE, Natural, 100 ft/roll | Quick Ship
|
| HT-4P9C | Spiralwrap Protective Sheathing | 0.75" Diameter | PTFE, Natural, 100 ft/roll | Quick Ship
|
| HT-161-05088 | Spiralwrap Protective Sheathing | 0.88" Diameter | Polyamide, Black, 500ft/roll | Quick Ship
|
| HT-161-05089 | Spiralwrap Protective Sheathing | 0.75" Diameter | PA6, Black, 500ft/roll | Quick Ship
|
| HT-161-05090 | Spiralwrap Protective Sheathing | 0.38" Diameter | PE, Black, 500ft/roll | Quick Ship
|
| HT-161-05084 | Spiralwrap Protective Sheathing | 1" Diameter | PE-FR, Black, 100 ft/roll | Quick Ship
|
| HT-5FRP9C | Spiralwrap Protective Sheathing | 1" Diameter | PE-FR, Natural, 100 ft/roll | Quick Ship
|
| HT-5N0C | Spiralwrap Protective Sheathing | 1" Diameter | PA6, Black, 100 ft/roll | Quick Ship
|
| HT-5N9C | Spiralwrap Protective Sheathing | 1" Diameter | PA6, Natural, 100 ft/roll | Quick Ship
|
| HT-5NFP0C | Spiralwrap Protective Sheathing | 1" Diameter | PE, Black, 100 ft/roll | Quick Ship
|
| HT-5NFP9C | Spiralwrap Protective Sheathing | 1" Diameter | PE, Natural, 100 ft/roll | Quick Ship
|
| HT-5P9C | Spiralwrap Protective Sheathing | 1" Diameter | PTFE, Natural, 100 ft/roll | Quick Ship
|
| HT-161-46000 | Spiralwrap Metal-Content | 0.06" Diameter | PE/SS, Blue, 98 ft/roll | Quick Ship
|
| HT-161-46100 | Spiralwrap Metal-Content | 0.16" Diameter | PE/SS, Blue, 98 ft/roll | Quick Ship
|
| HT-161-46200 | Spiralwrap Metal-Content | 0.35" Diameter | PE/SS, Blue, 98 ft/roll | Quick Ship
|
| HT-161-46300 | Spiralwrap Metal-Content | 0.63" Diameter | PE/SS, Blue, 98 ft/roll | Quick Ship
|
| Part # | Description | Diameter | Material, Color, Qty. | Bundle Dia. (Imperial) | Flammability | Operating Temp. | Halogen Free | UV resistnat | Reach Compliant (Article 33) |
|---|---|---|---|---|---|---|---|---|---|
| HT-3FRP0C | Spiralwrap Protective Sheathing | 0.5" Diameter | PE-FR, Black, 100 ft/roll | 0.37 - 4.0 | UL 94 V-2 | -4°F to +176°F (-20°C to +80°C) | No | No | Yes |
| HT-3FRP9C | Spiralwrap Protective Sheathing | 0.5" Diameter | PE-FR, Natural, 100 ft/roll | 0.37 - 4.0 | UL 94 V-2 | -4°F to +176°F (-20°C to +80°C) | No | No | Yes |
| HT-3N0C | Spiralwrap Protective Sheathing | 0.5" Diameter | PA6, Black, 100 ft/roll | 0.37 - 4.0 | UL 94 HB | -40°F to +250°F (-40°C to +121°C) | Yes | No | Yes |
| HT-3N9C | Spiralwrap Protective Sheathing | 0.5" Diameter | PA6, Natural, 100 ft/roll | 0.37 - 4.0 | UL 94 HB | -40°F to +250°F (-40°C to +121°C) | Yes | No | Yes |
| HT-3NFP0C | Spiralwrap Protective Sheathing | 0.5" Diameter | PE, Black, 100 ft/roll | 0.37 - 4.0 | - | -76°F to +190°F (-60°C to +88°C) | No | No | Yes |
| HT-3NFP9C | Spiralwrap Protective Sheathing | 0.5" Diameter | PE, Natural, 100 ft/roll | 0.37 - 4.0 | - | -76°F to +190°F (-60°C to +88°C) | Yes | No | Yes |
| HT-3P9C | Spiralwrap Protective Sheathing | 0.5" Diameter | PTFE, Natural, 100 ft/roll | 0.37 - 3.0 | UL 94 V-0 | -449°F to +500°F (-267°C to +260°C) | No | No | Yes |
| HT-4FRP0C | Spiralwrap Protective Sheathing | 0.75" Diameter | PE-FR, Black, 100 ft/roll | 0.75 - 5.0 | UL 94 V-2 | -4°F to +176°F (-20°C to +80°C) | No | No | Yes |
| HT-4FRP9C | Spiralwrap Protective Sheathing | 0.75" Diameter | PE-FR, Natural, 100 ft/roll | 0.75 - 5.0 | UL 94 V-2 | -4°F to +176°F (-20°C to +80°C) | No | No | Yes |
| HT-4N0C | Spiralwrap Protective Sheathing | 0.75" Diameter | PA6, Black, 100 ft/roll | 0.5 - 5.0 | UL 94 HB | -40°F to +250°F (-40°C to +121°C) | Yes | No | Yes |
| HT-4N9C | Spiralwrap Protective Sheathing | 0.75" Diameter | PA6, Natural, 100 ft/roll | 0.5 - 5.0 | UL 94 HB | -40°F to +250°F (-40°C to +121°C) | Yes | No | Yes |
| HT-4NFP0C | Spiralwrap Protective Sheathing | 0.75" Diameter | PE, Black, 100 ft/roll | 0.75 - 5.0 | - | -76°F to +190°F (-60°C to +88°C) | No | No | Yes |
| HT-4NFP9C | Spiralwrap Protective Sheathing | 0.75" Diameter | PE, Natural, 100 ft/roll | 0.75 - 5.0 | - | -76°F to +190°F (-60°C to +88°C) | Yes | No | Yes |
| HT-4P9C | Spiralwrap Protective Sheathing | 0.75" Diameter | PTFE, Natural, 100 ft/roll | 0.5 - 4.0 | UL 94 V-0 | -449°F to +500°F (-267°C to +260°C) | No | No | Yes |
| HT-161-05088 | Spiralwrap Protective Sheathing | 0.88" Diameter | Polyamide, Black, 500ft/roll | 0.5 - 5.0 | - | -40°F to +250°F (-40°C to +121°C) | Yes | No | Yes |
| HT-161-05089 | Spiralwrap Protective Sheathing | 0.75" Diameter | PA6, Black, 500ft/roll | 0.5 - 5.0 | UL 94 HB | -40°F to +250°F (-40°C to +121°C) | Yes | No | Yes |
| HT-161-05090 | Spiralwrap Protective Sheathing | 0.38" Diameter | PE, Black, 500ft/roll | 0.31 - 3.0 | - | -76°F to +190°F (-60°C to +88°C) | - | No | No |
| HT-161-05084 | Spiralwrap Protective Sheathing | 1" Diameter | PE-FR, Black, 100 ft/roll | 1.0 - 7.0 | UL 94 V-2 | -4°F to +176°F (-20°C to +80°C) | No | No | Yes |
| HT-5FRP9C | Spiralwrap Protective Sheathing | 1" Diameter | PE-FR, Natural, 100 ft/roll | 1.0 - 7.0 | UL 94 V-2 | -4°F to +176°F (-20°C to +80°C) | No | No | Yes |
| HT-5N0C | Spiralwrap Protective Sheathing | 1" Diameter | PA6, Black, 100 ft/roll | 1.0 - 7.0 | - | -40°F to +250°F (-40°C to +121°C) | Yes | No | Yes |
| HT-5N9C | Spiralwrap Protective Sheathing | 1" Diameter | PA6, Natural, 100 ft/roll | 1.0 - 7.0 | - | -40°F to +250°F (-40°C to +121°C) | Yes | No | Yes |
| HT-5NFP0C | Spiralwrap Protective Sheathing | 1" Diameter | PE, Black, 100 ft/roll | 1.0 - 7.0 | - | -76°F to +190°F (-60°C to +88°C) | No | No | Yes |
| HT-5NFP9C | Spiralwrap Protective Sheathing | 1" Diameter | PE, Natural, 100 ft/roll | 1.0 - 7.0 | - | -76°F to +190°F (-60°C to +88°C) | Yes | No | Yes |
| HT-5P9C | Spiralwrap Protective Sheathing | 1" Diameter | PTFE, Natural, 100 ft/roll | 0.75 - 5.0 | UL 94 V-0 | -449°F to +500°F (-267°C to +260°C) | No | No | Yes |
| HT-161-46000 | Spiralwrap Metal-Content | 0.06" Diameter | PE/SS, Blue, 98 ft/roll | 0.06 - 0.31 | UL 94 HB | -76°F to +176°F (-60°C to +80°C) | Yes | No | Yes |
| HT-161-46100 | Spiralwrap Metal-Content | 0.16" Diameter | PE/SS, Blue, 98 ft/roll | 0.20 - 0.79 | UL 94 HB | -76°F to +176°F (-60°C to +80°C) | Yes | No | Yes |
| HT-161-46200 | Spiralwrap Metal-Content | 0.35" Diameter | PE/SS, Blue, 98 ft/roll | 0.39 - 3.94 | UL 94 HB | -76°F to +176°F (-60°C to +80°C) | Yes | No | Yes |
| HT-161-46300 | Spiralwrap Metal-Content | 0.63" Diameter | PE/SS, Blue, 98 ft/roll | 0.79 - 5.91 | UL 94 HB | -76°F to +176°F (-60°C to +80°C) | Yes | No | Yes |
