Hoffman® COMLINE® OSP Wall Mount Cabinet Packages - Accessories

• Mounting bracket kits include four brackets and associated mounting hardware. Sealing washers provided with each kit maintain Type 4, 4X, or 12 rating after installation.
• Made of 12 gauge, self-grounding plated steel. They are grounded to the cabinet through the mounting bolts. The square mounting holes meet the EIA standard. (Each COMLINE cabinet package already includes one pair).

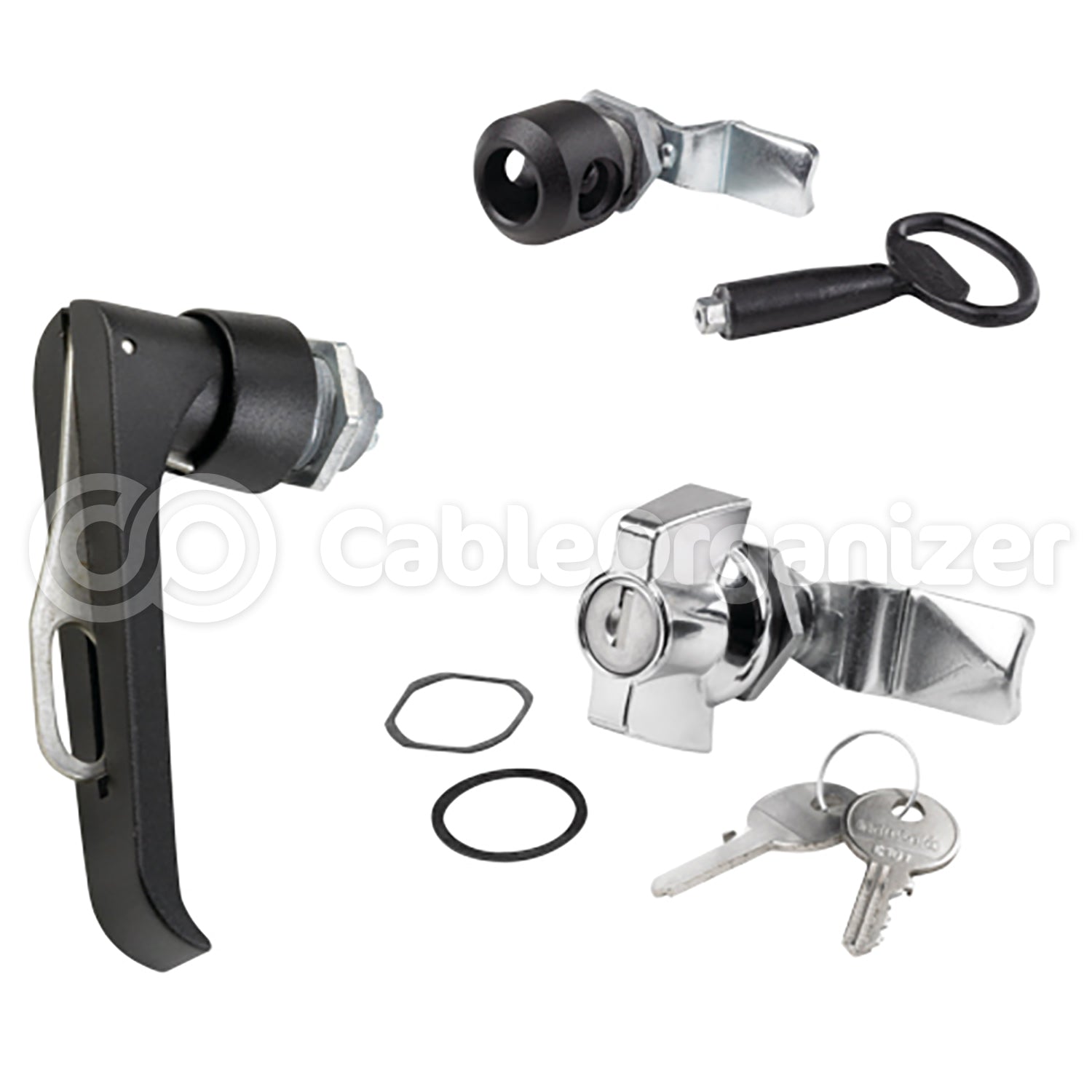

• The padlocking L handle provides a secure door and tight seal.
• Stainless steel fasteners resist corrosion and give a professional appearance.
• Mounting kitsare available as an optional accessory.

Designed to Industry Standards:

• UL508A Type 3, 3R, 4,4X.12
• CSA Type 3, 3R, 4,4X, 12
• NEMA/EEMAC Type 3, 3R, 4,4X, 12
• EC60529, IP66
• Designed to meet Telcordia NEBS™ GR-487, GR-63, and IEC 48D
• EIA 310-D with 19” spacing for rack equipment
• Meets BICSI TDMM, Tenth Edition Chapter 7 Telecommunications Enclosures (TE)
• RoHS compliant

All COMLINE OSP Wall-Mount Ready-to-Use Packages include:

• Top mounted solar shield
• One set of Rack angles
• Rear panel mounting studs for optional wood panel
• Solid gland plate on latch side
• Sturdy padlocking L-Handle
• Door alarm switch
• Package of twenty 10-32-cage nuts
• Grounding provisions
