Cobia® Cable Tray Assembler
Material Features & Benefits
-
Powder Coated
The powder coated cable tray features a smooth finish that helps minimize corrosion and zinc whiskers, which can damage sensitive equipment and increase the risk of short circuits. It is an excellent choice for applications where reliability and appearance are important.
-
Galvanized
The galvanized cable tray is a budget-friendly alternative that offers reliable performance for a variety of applications. It is hot-dip galvanized after fabrication for added corrosion resistance and durability.
-
Electrozinc
The electrozinc cable tray is made from electro zinc-plated galvanized steel to help prevent corrosion from chemicals and humidity. Its smooth, clean finish also provides a polished look.

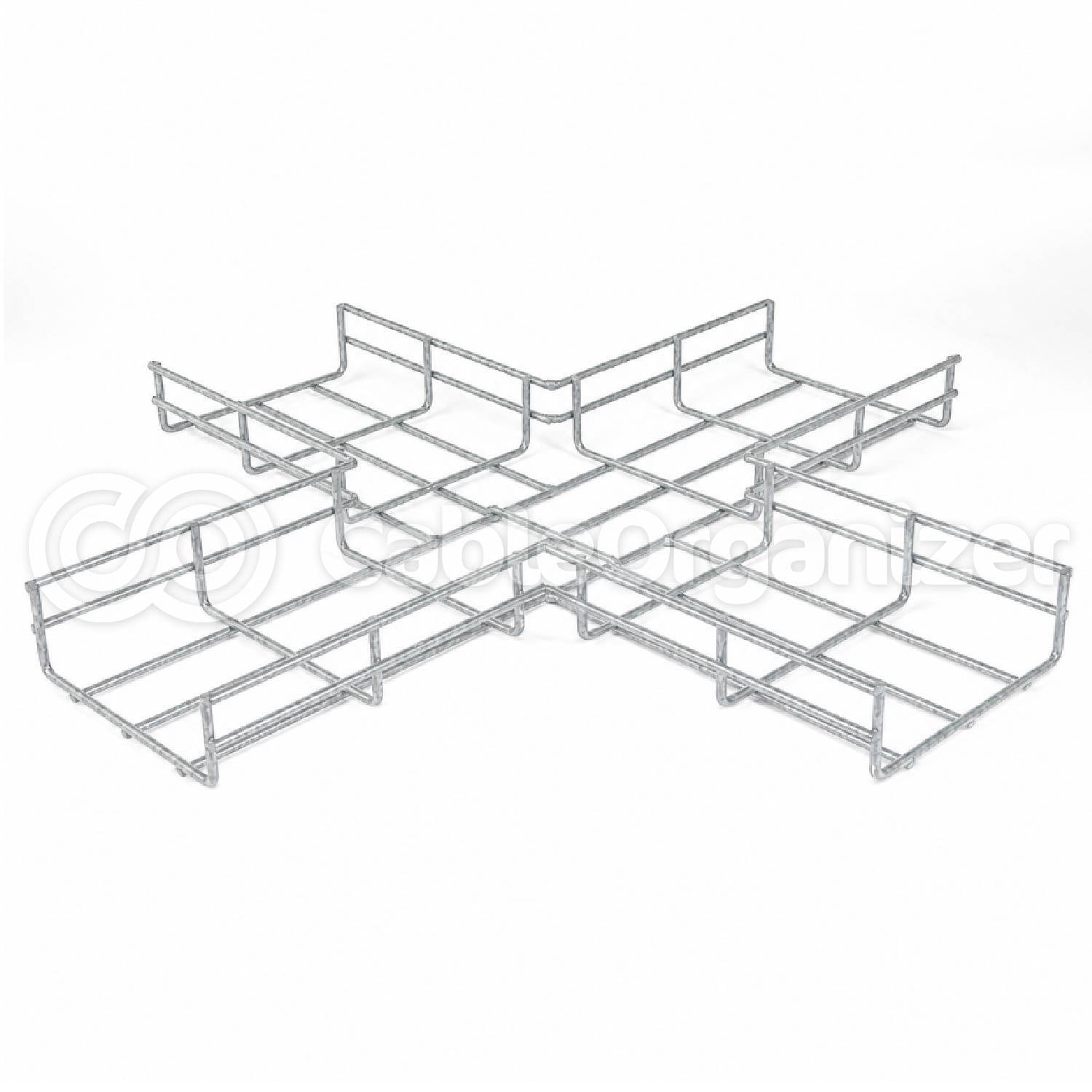

Straight Sections & Junctions
-

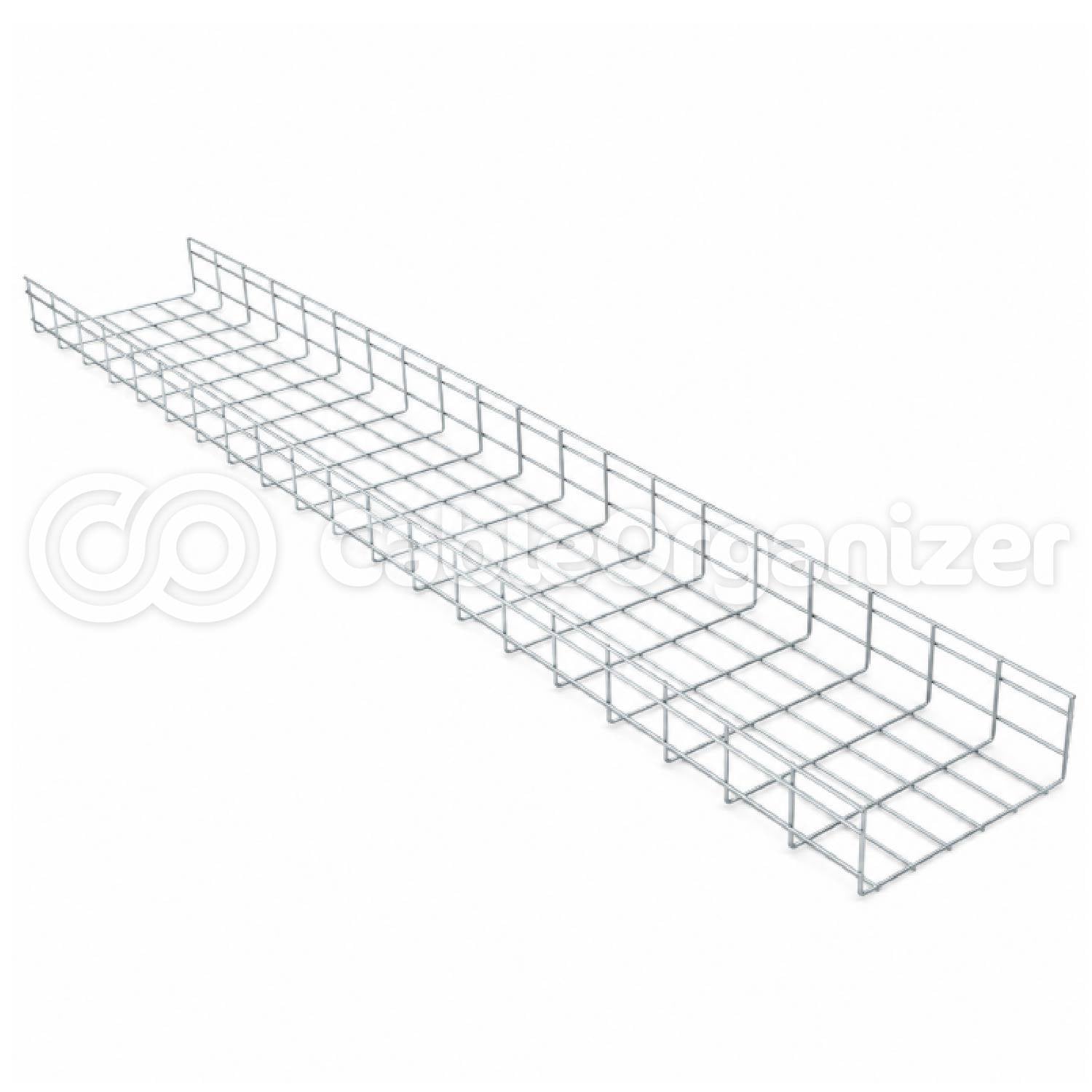

Straight Sections

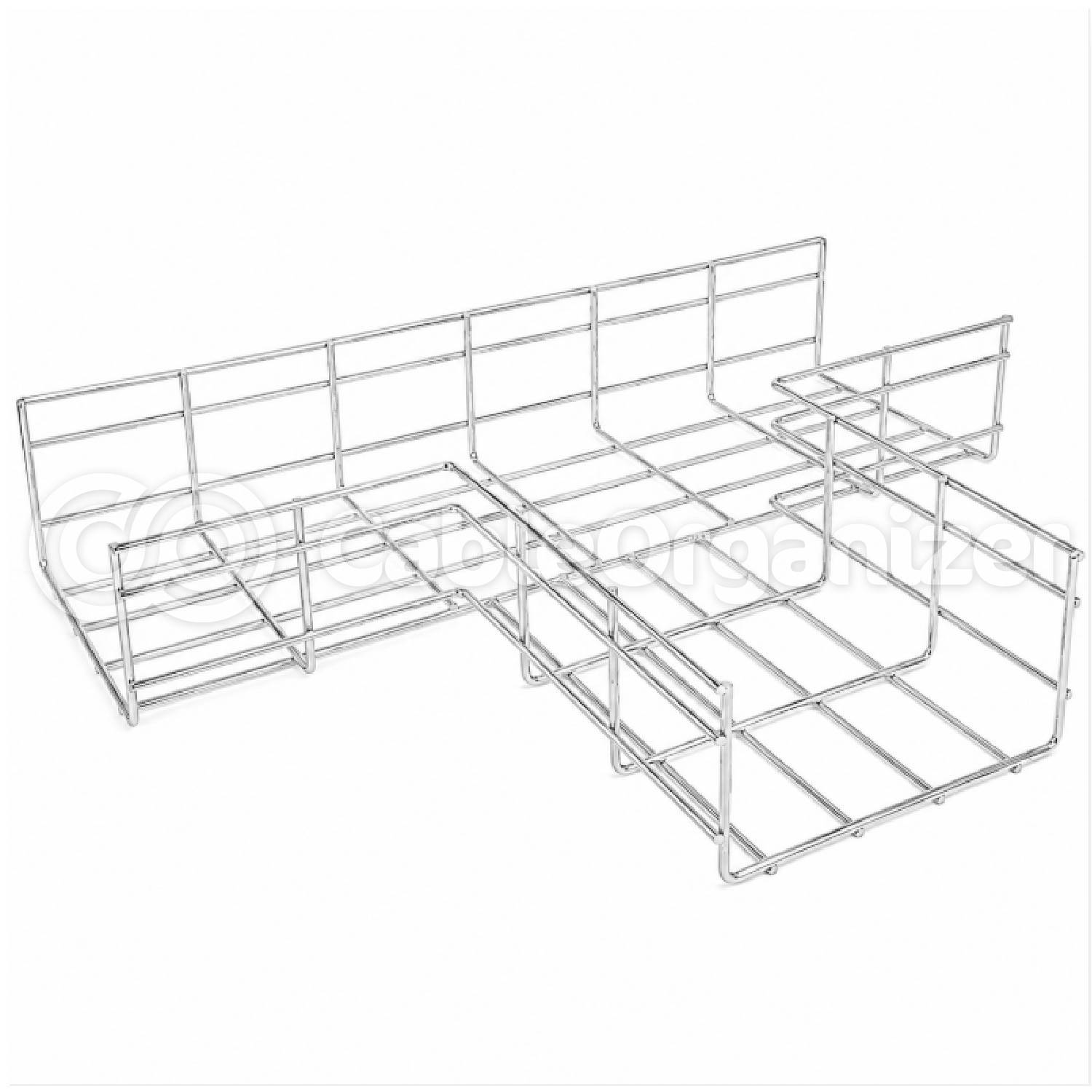

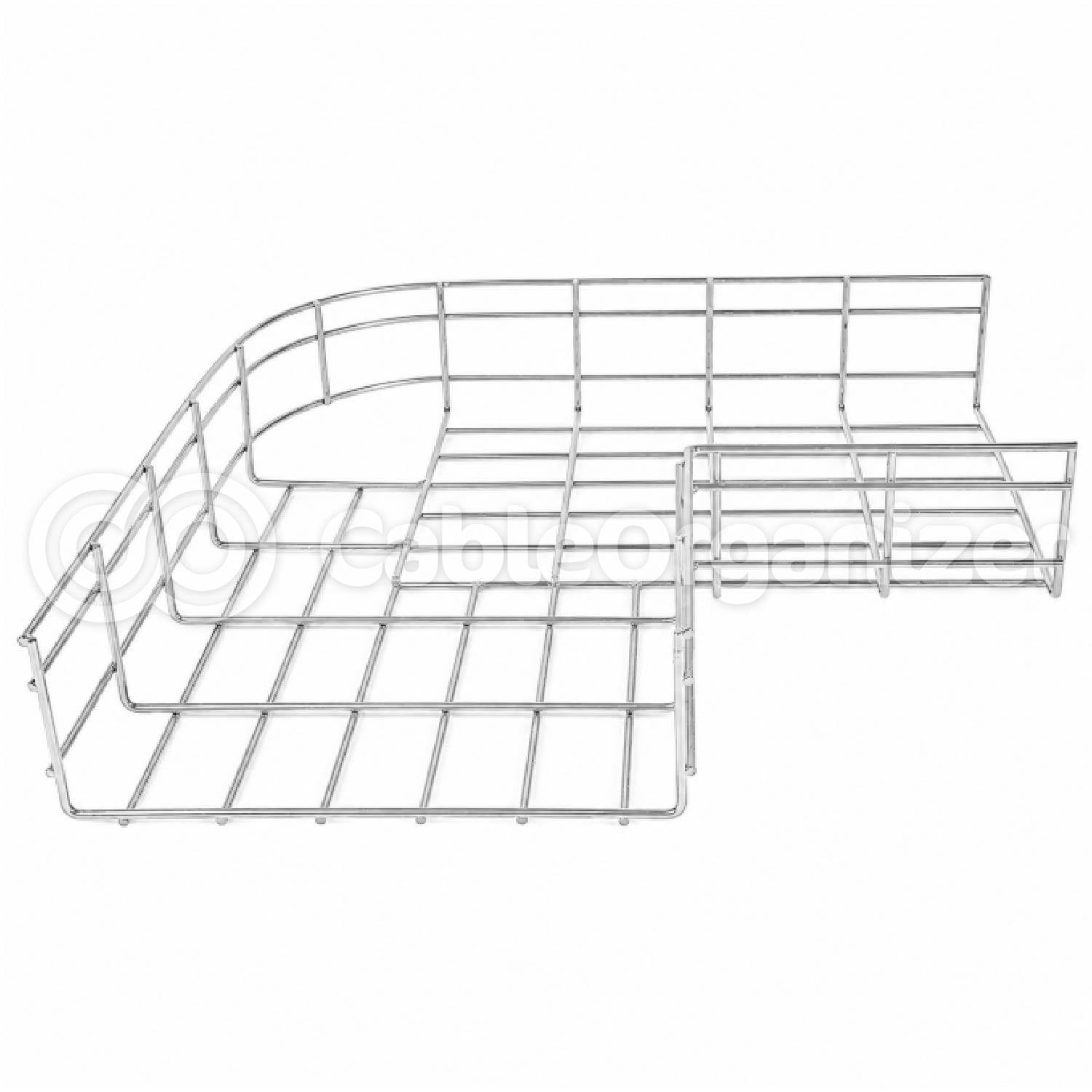

Shop NowMain sections of the tray can also be used to make turns, T’s, 4-ways and elevation changes.
-
-
-
| Cable Tray Supports (Hanger Kit or Other Suspension Solutions) |
|---|
| Recommended every five (5) feet to promote the durability of your tray system. |
| Tray Width | Lighter Load | Heavy Load | Quick Light Load |
|---|---|---|---|

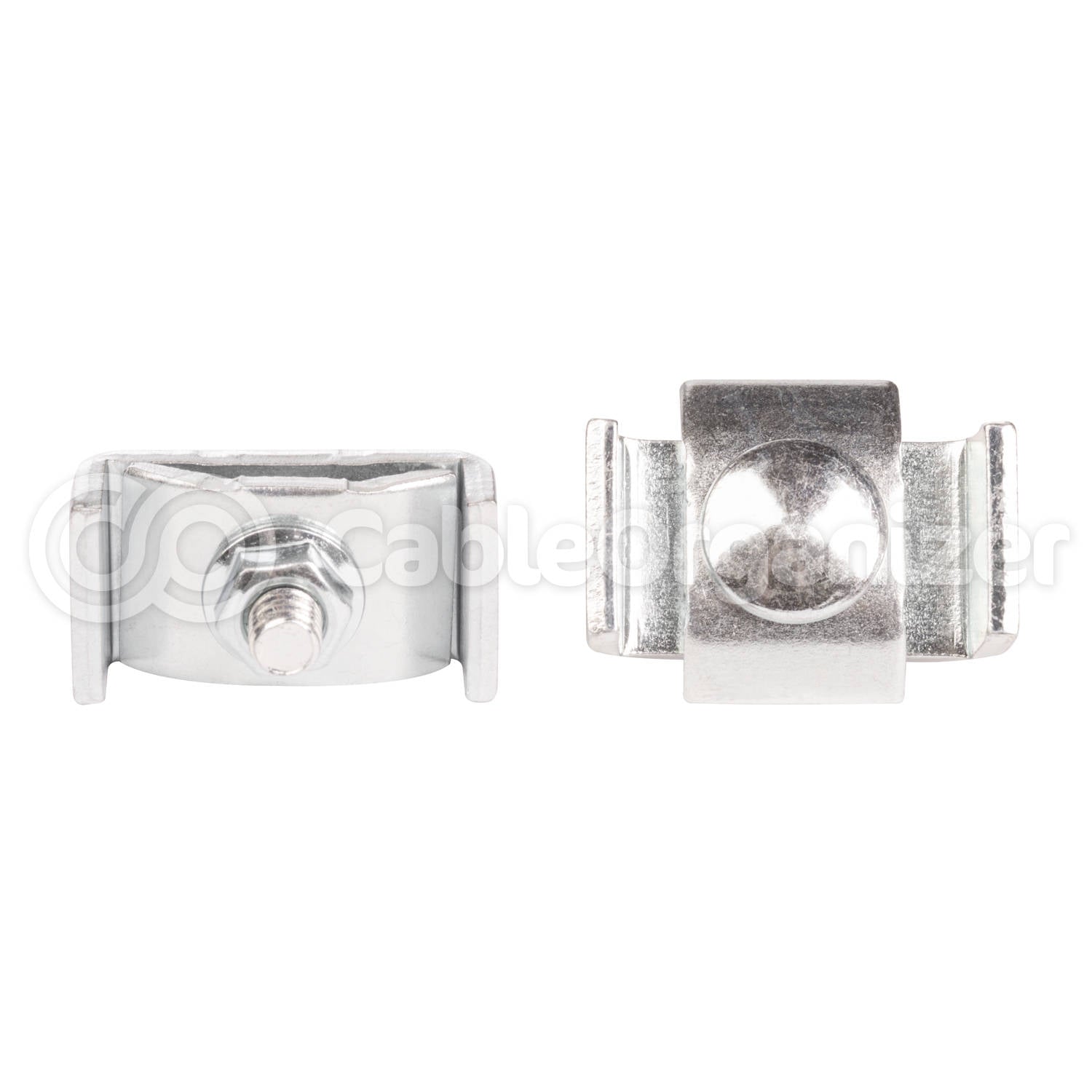

| 4" | 3 couplers (WR-CPLR-BK/EZ) 2 on sides + 1 on bottom | 2 Strengthening Splice Bars (WR-STRBAR-BK/EZ) on each side + 1 Coupler (WR-CPLR-BK/EZ) on bottom | 2 Fast Fix Splices (WR-FASTSPL-BK/EZ) on each side + 1 Coupler (WR-CPLR-BK/EZ) on bottom |
| 6" | 3 Couplers (WR-CPLR-BK/EZ) 2 on sides + 1 on bottom | 2 Strengthening Splice Bars (WR-STRBAR-BK/EZ) on each side + 1 Coupler (WR-CPLR-BK/EZ) on bottom | 2 Fast Fix Splices (WR-FASTSPL-BK/EZ) on each side + 1 Coupler (WR-CPLR-BK/EZ) on bottom |
| 8" | 4 Couplers (WR-CPLR-BK/EZ) 2 on sides + 2 on bottom | 2 Strengthening Splice Bars (WR-STRBAR-BK/EZ) on each side + 2 Coupler (WR-CPLR-BK/EZ) on bottom | 2 Fast Fix Splices (WR-FASTSPL-BK/EZ) on each side + 1 Coupler (WR-CPLR-BK/EZ) on bottom |
| 12" | 5 Couplers (WR-CPLR-BK/EZ) 2 on sides + 3 on bottom | 2 Strengthening Splice Bars (WR-STRBAR-BK/EZ) on each side + 3 Coupler (WR-CPLR-BK/EZ) on bottom | 2 Fast Fix Splices (WR-FASTSPL-BK/EZ) on each side + 1 Coupler (WR-CPLR-BK/EZ) on bottom |
Connector Bars
-
-

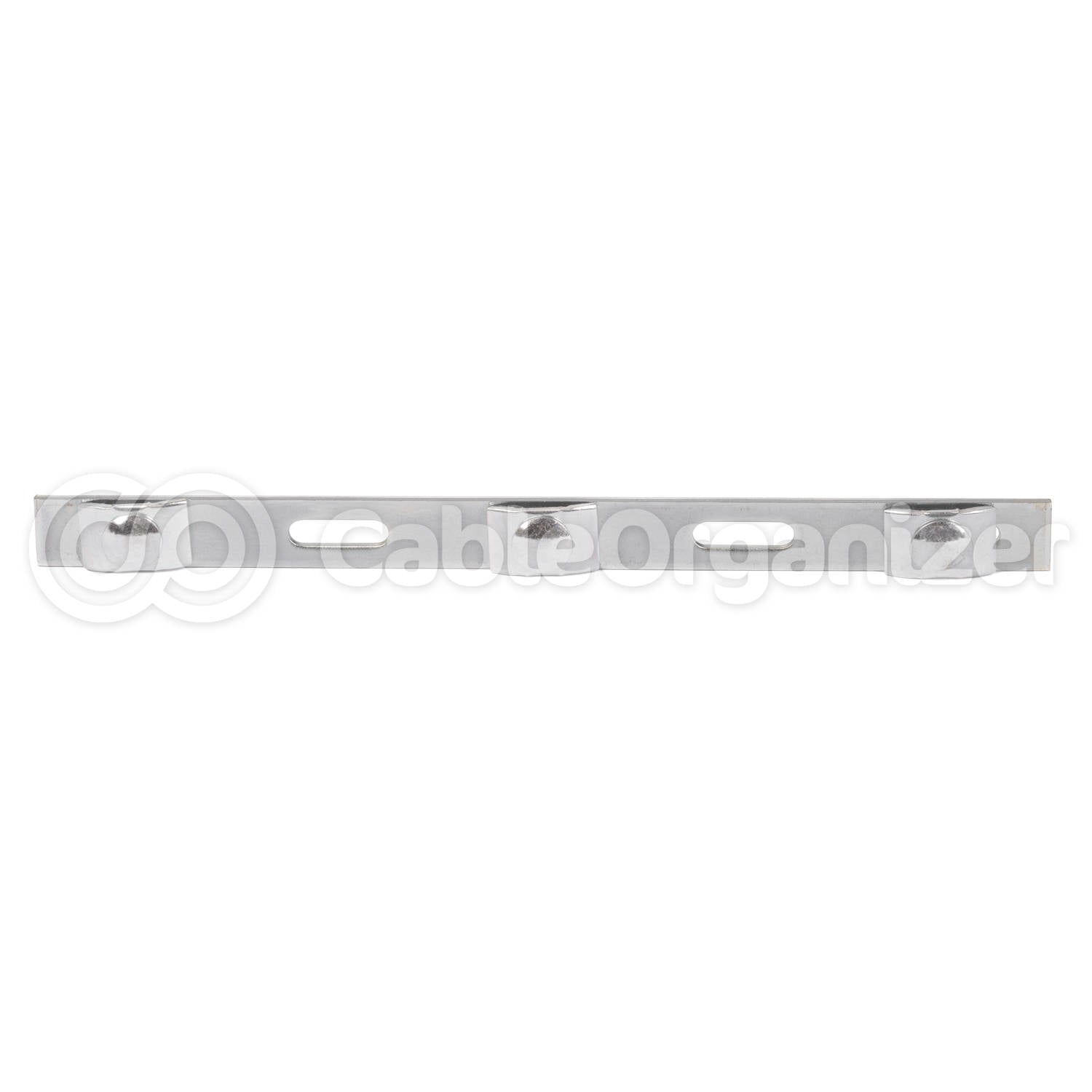

Straight Section Splice w/ 3 Couplers
Shop NowUsed to join a pair of straight sections or create reductions; much stronger connection than Coupler or Fast Fix Splicer.
-

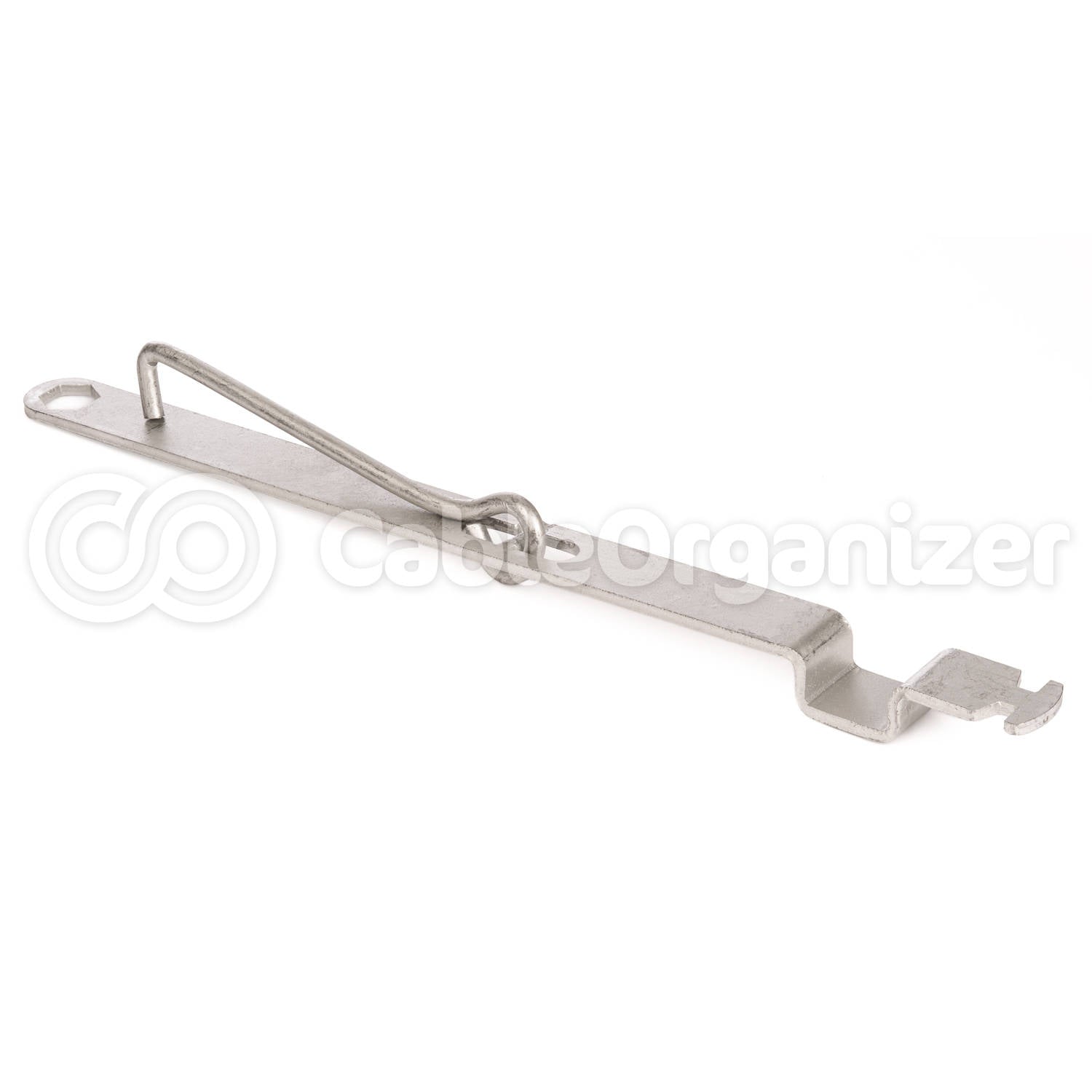

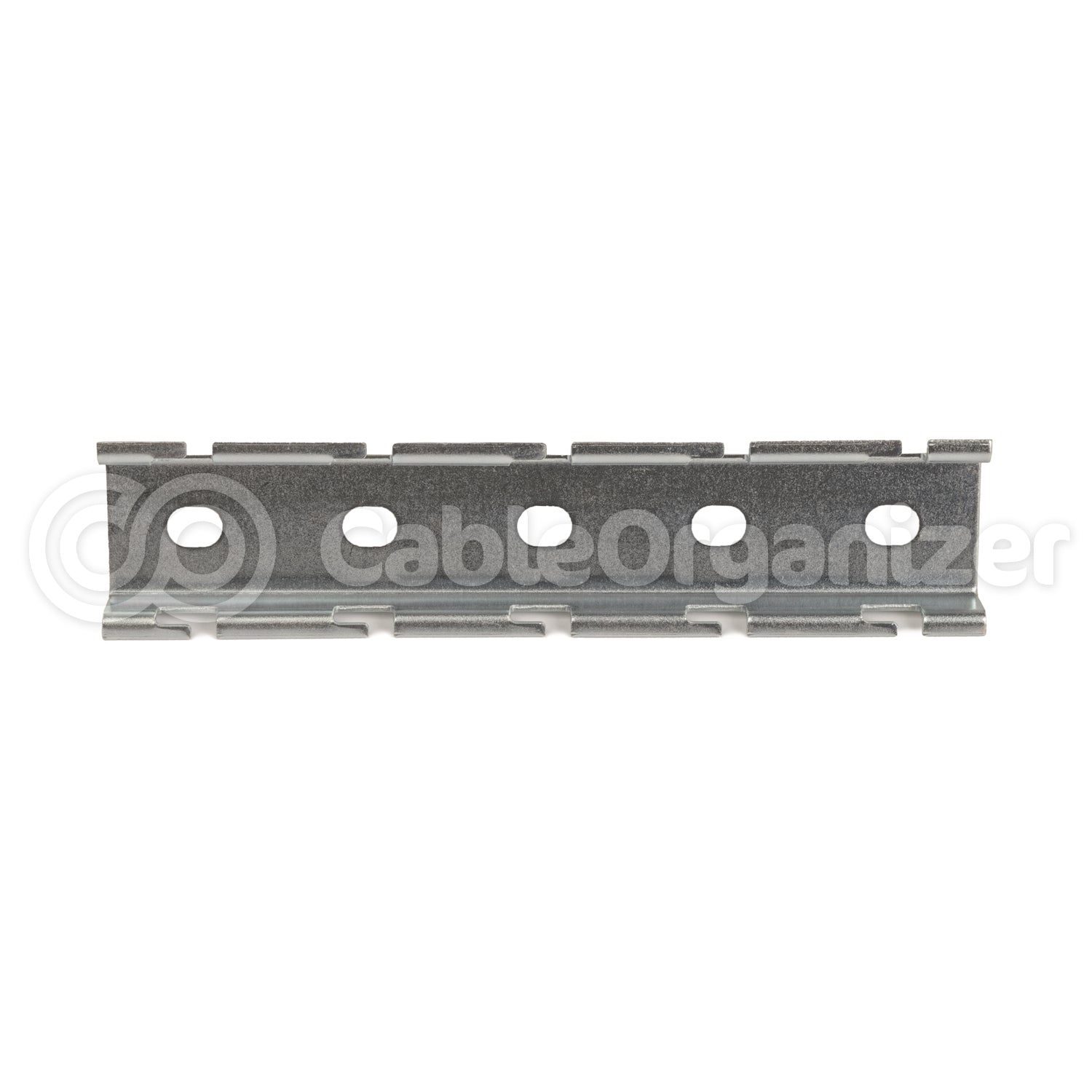

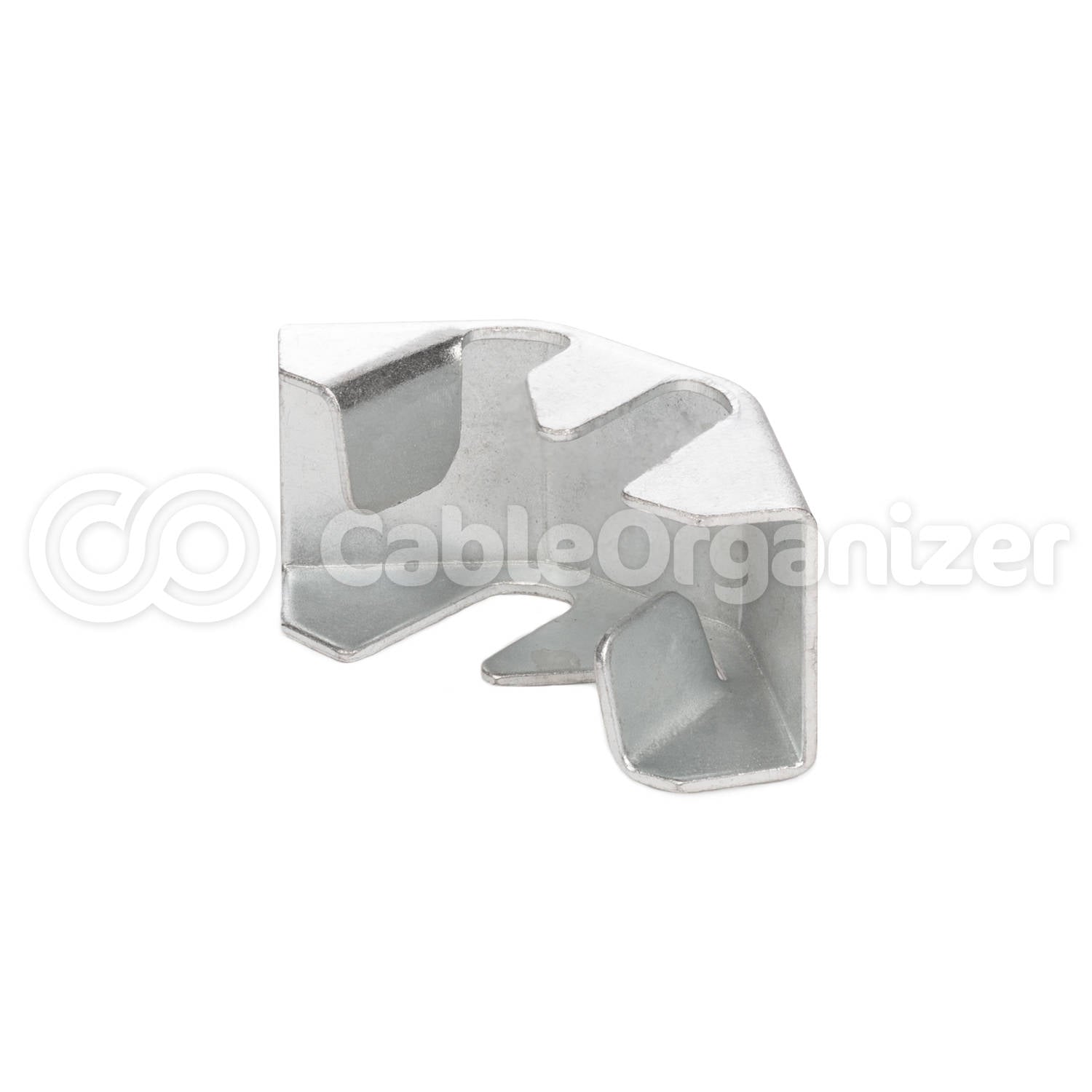

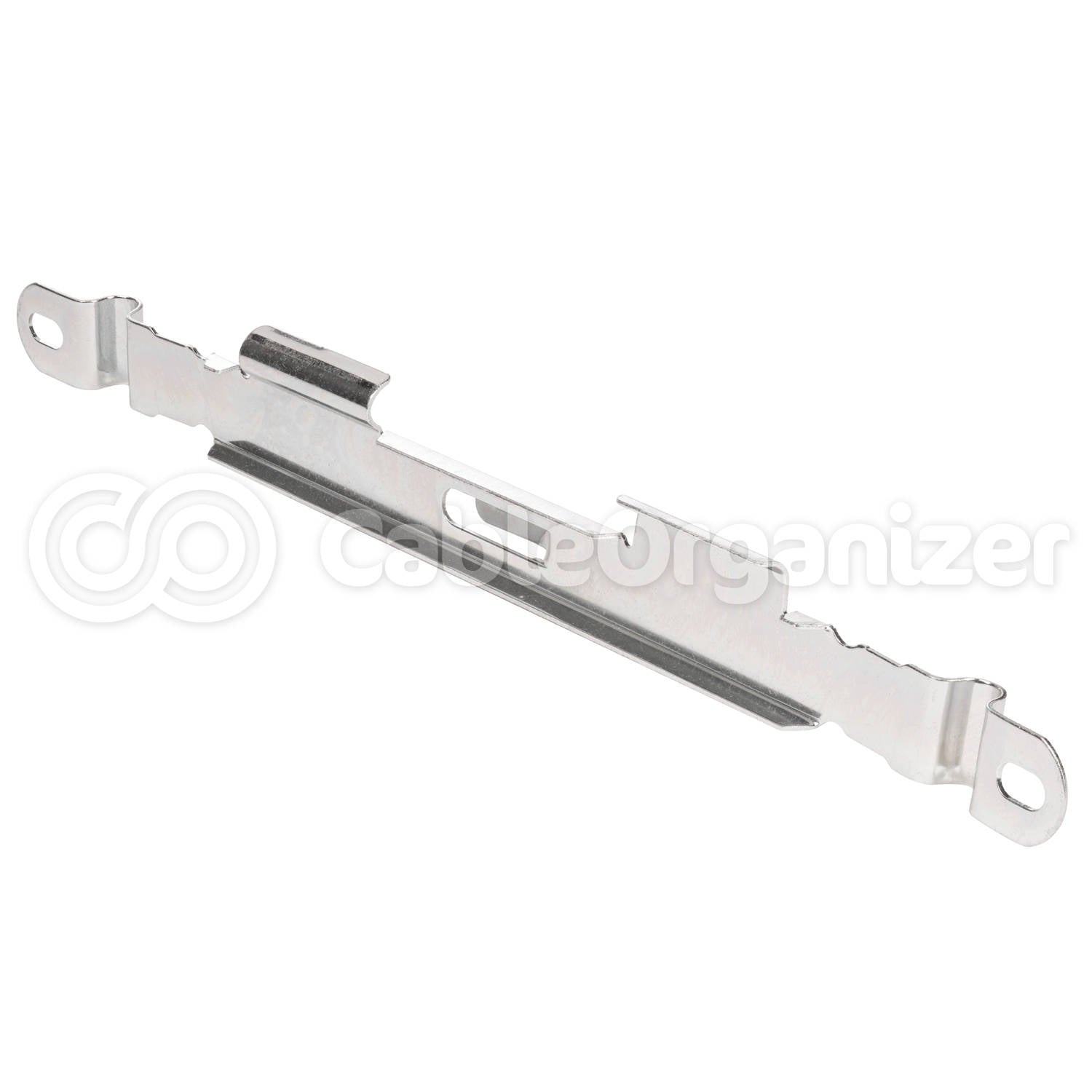

Fast Fix Splice
Shop NowUsed for a quick connection of 2 straight sections. Fastest connection, recommended for light loads only.
-
-
-

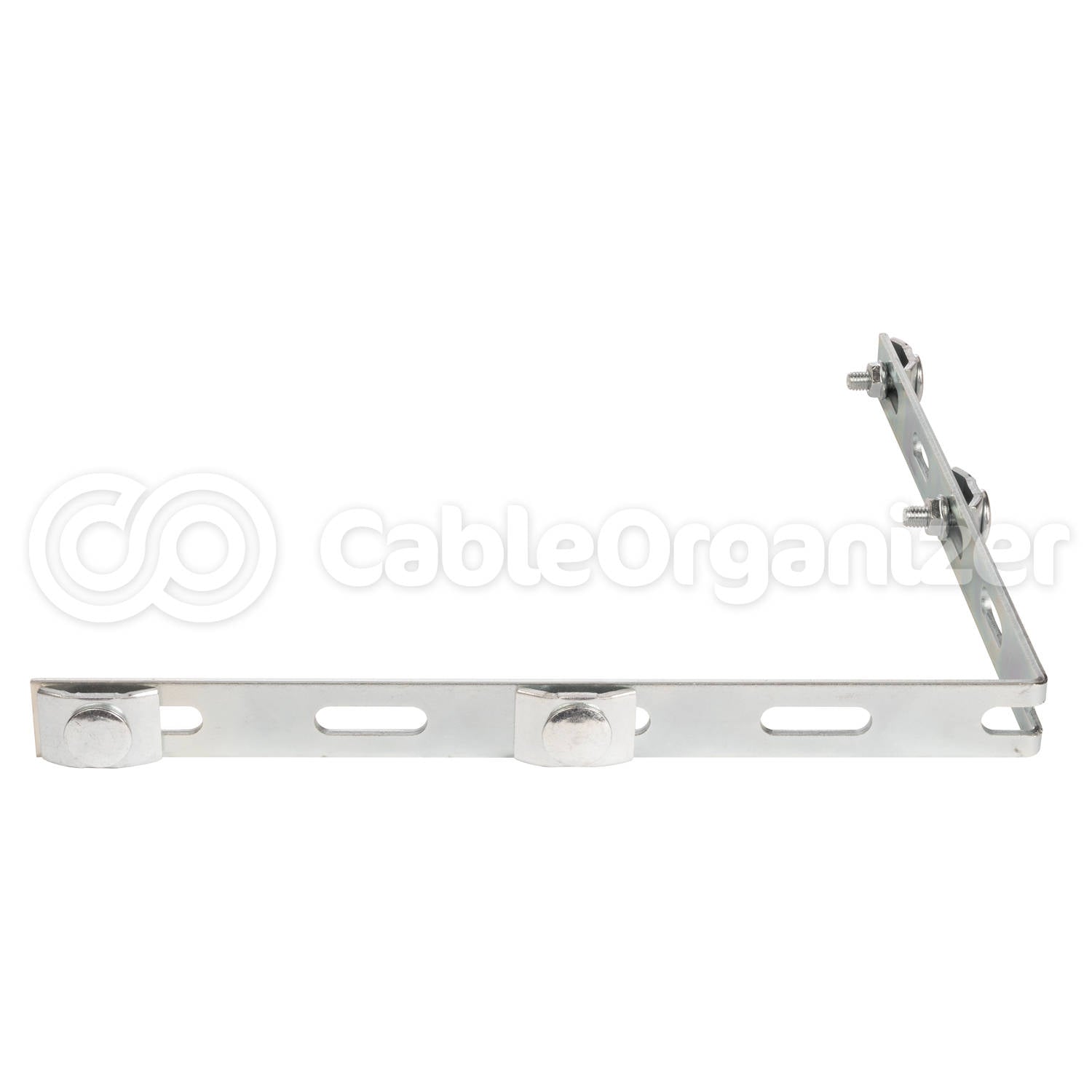

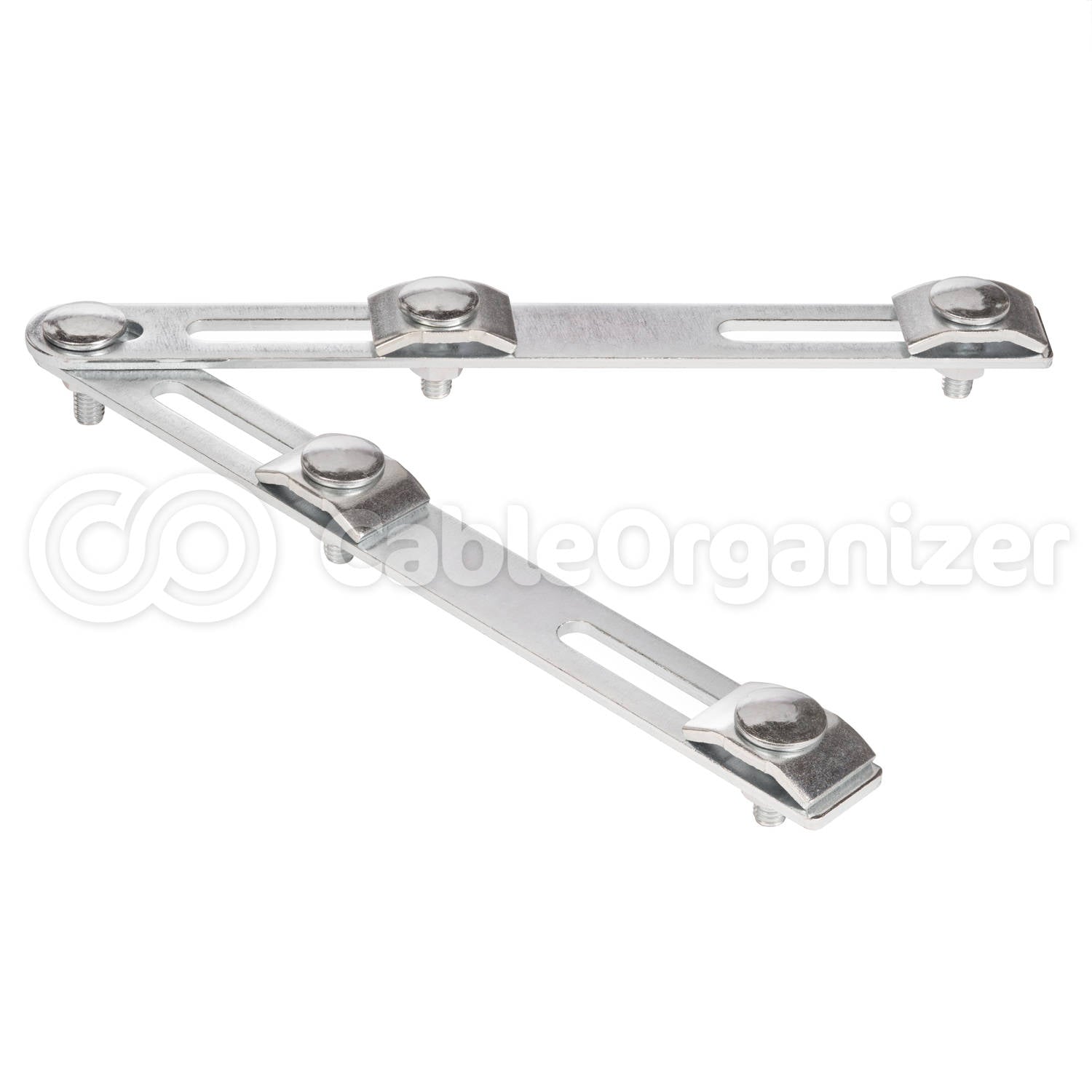

Elevation Change Support Bar
Shop NowReinforces tray that is cut and bent to make elevation changes; adjusts to your desired angle. Includes hardware.
-
Cable Management
-

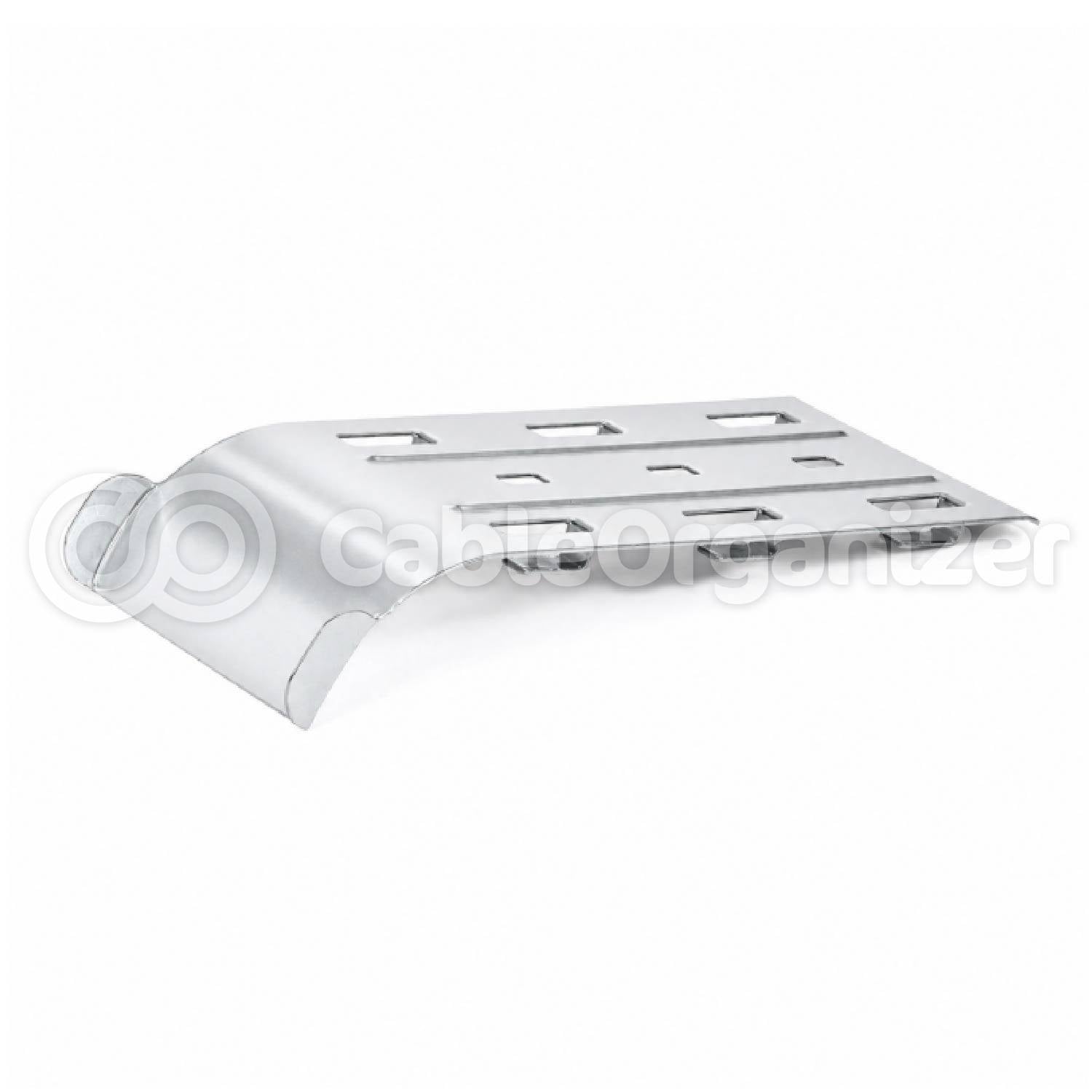

Waterfall Cable Drop
Shop NowCarefully guides cables into a drop, maintaining bend radius; 3.5” wide to fit one rung spacing
-

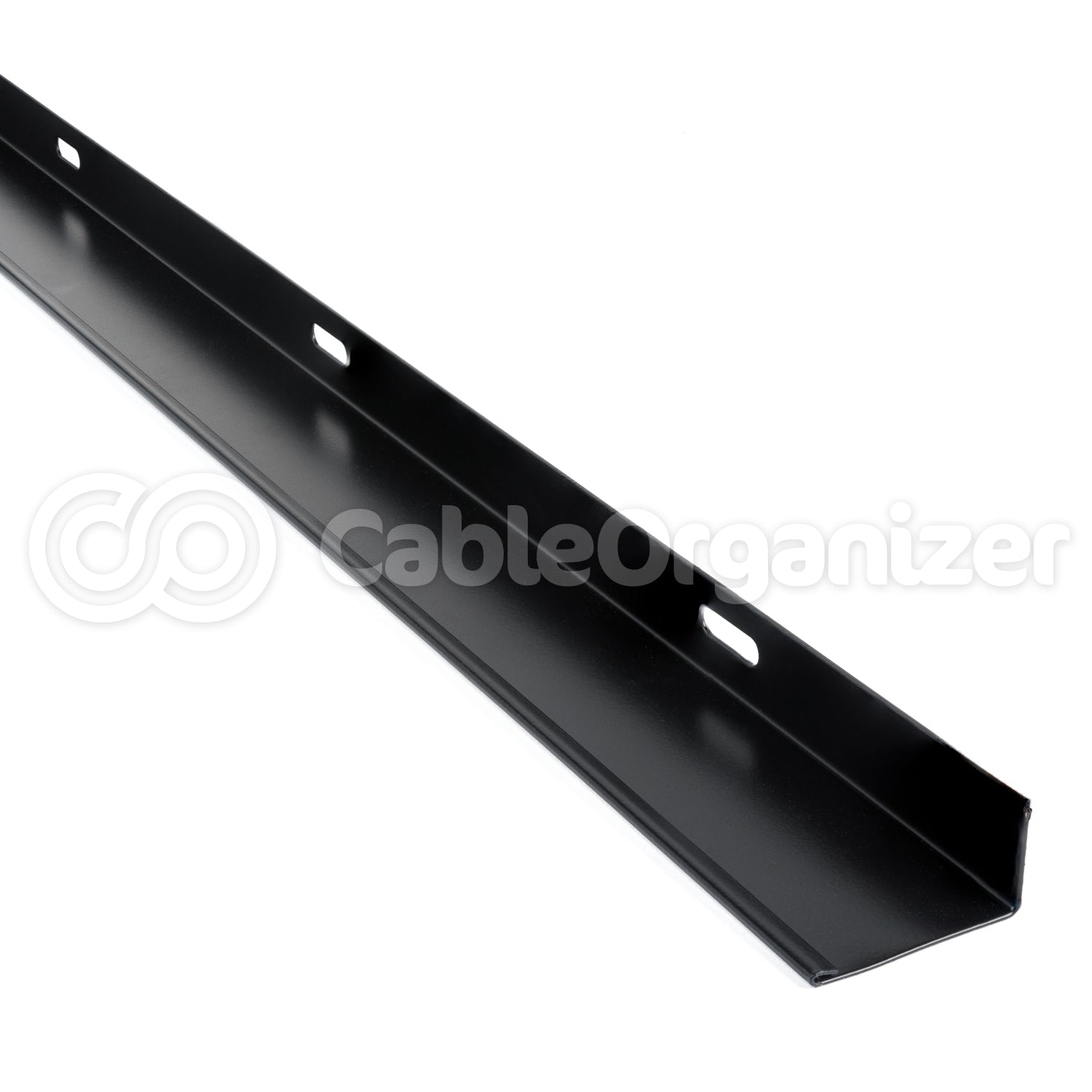

Tray Divider
Shop NowUsed to separate cable bundles within the tray. Dimensions: 2” high by 3.28 ft long
-
-
-

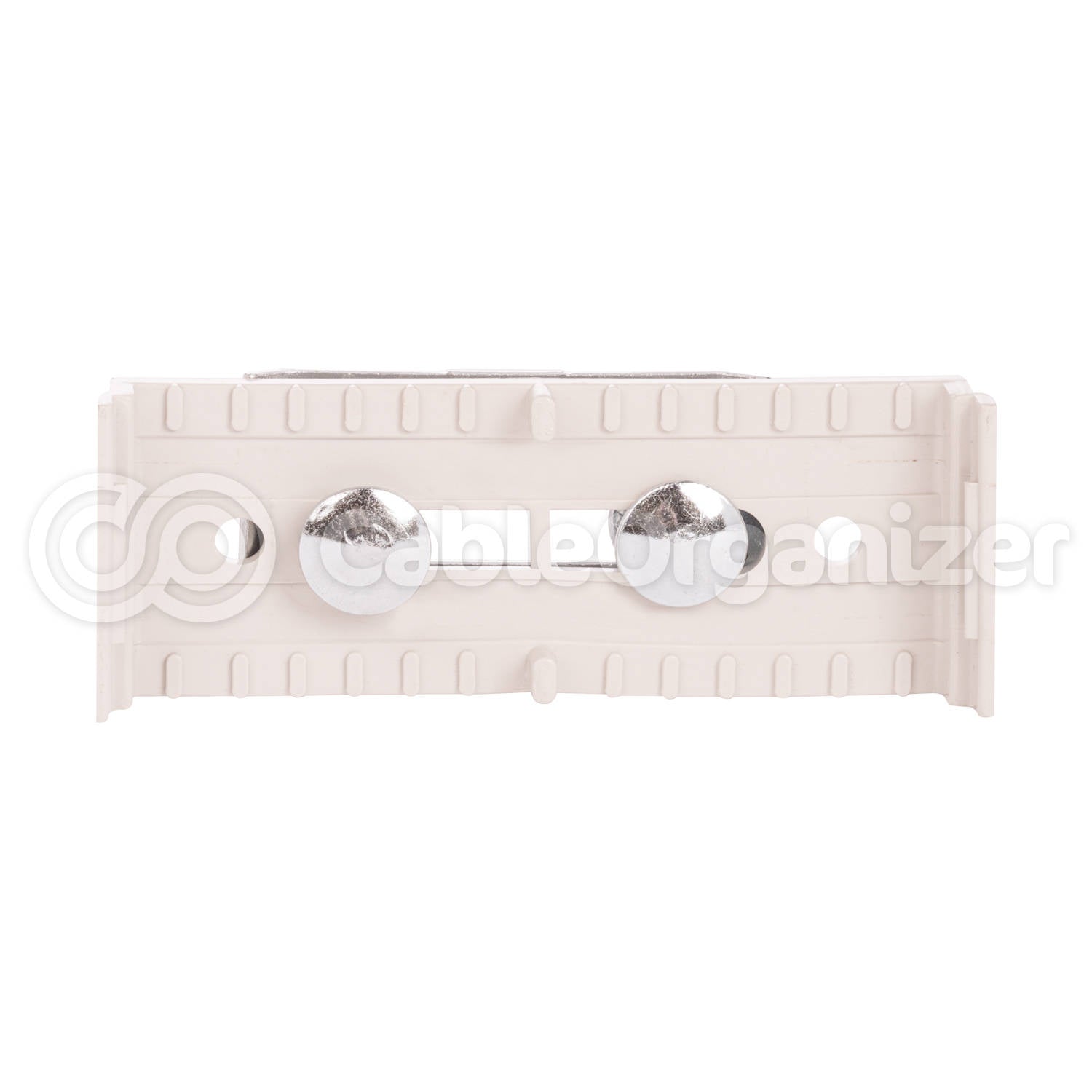

Cable Sectioner Base

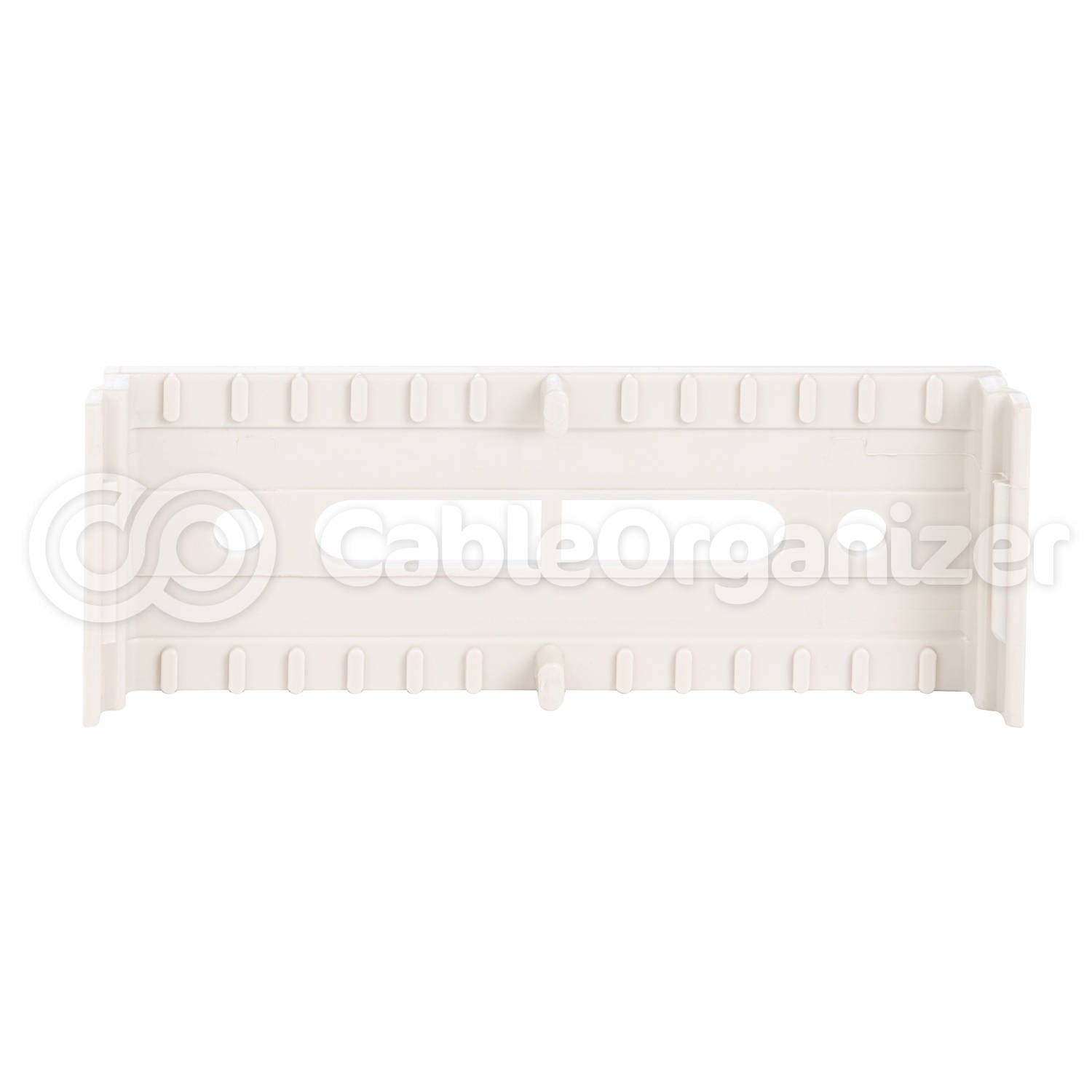

Shop NowUsed to separate sections of cable; stack a few runs, then top off with the Cable Sectioner Top
Supports
-

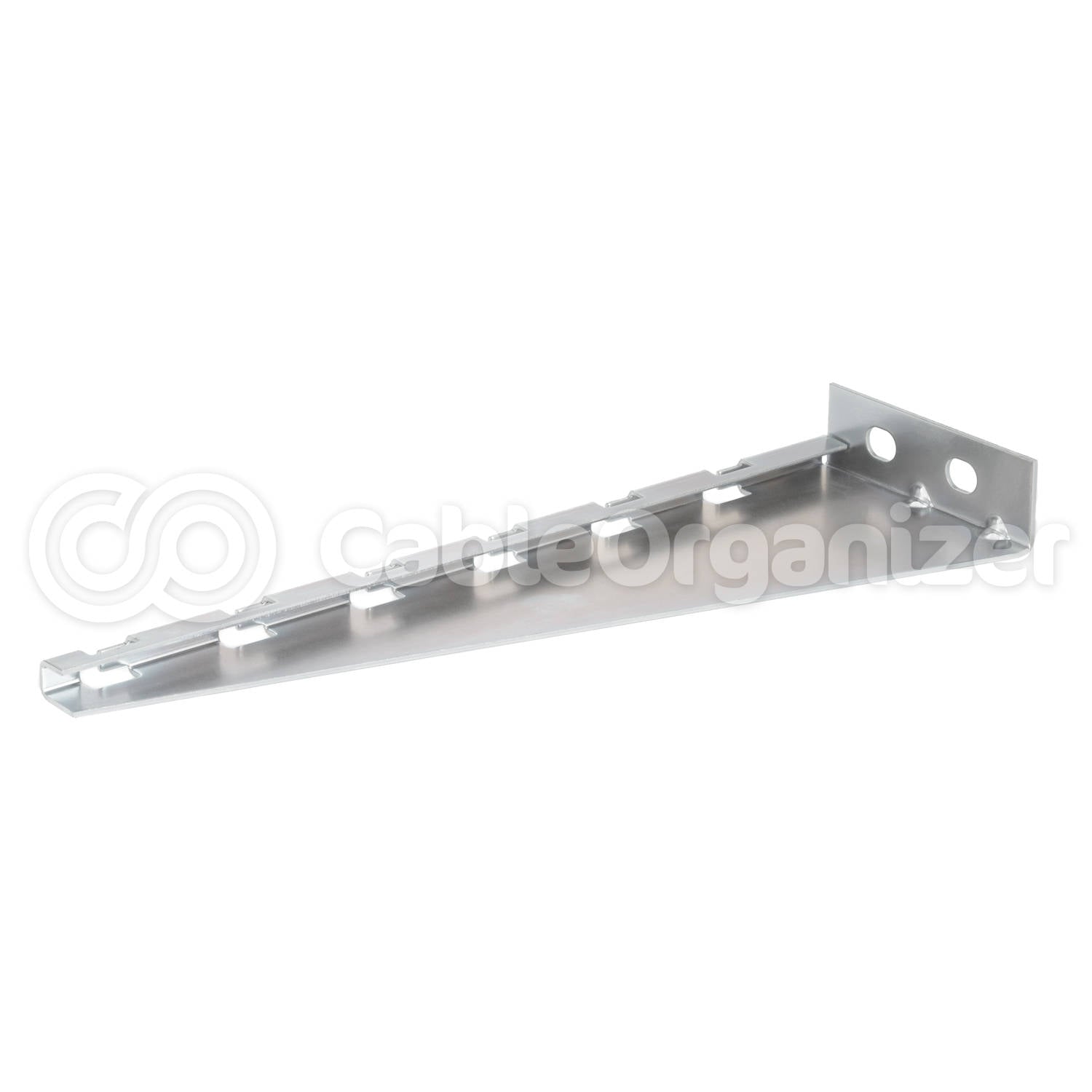

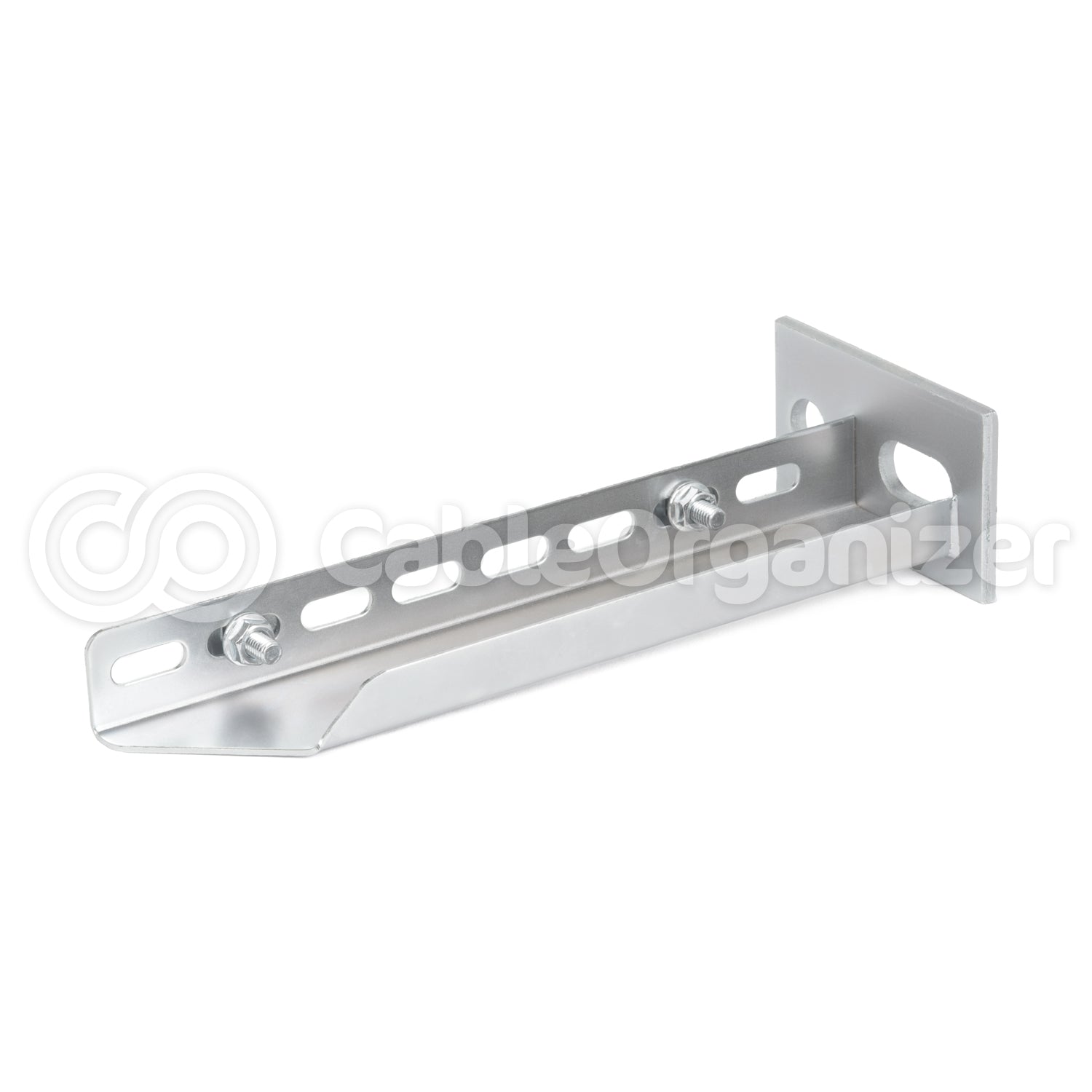

(T) Wall Bracket
Shop NowQuicker install than D-bracket; tray sits on top and is bolted with (2) couplers (included)
-
(D) Wall Bracket
Shop NowMost secure wall bracket, locks into wires of tray; longer install than T-bracket
-
-
-
-
-

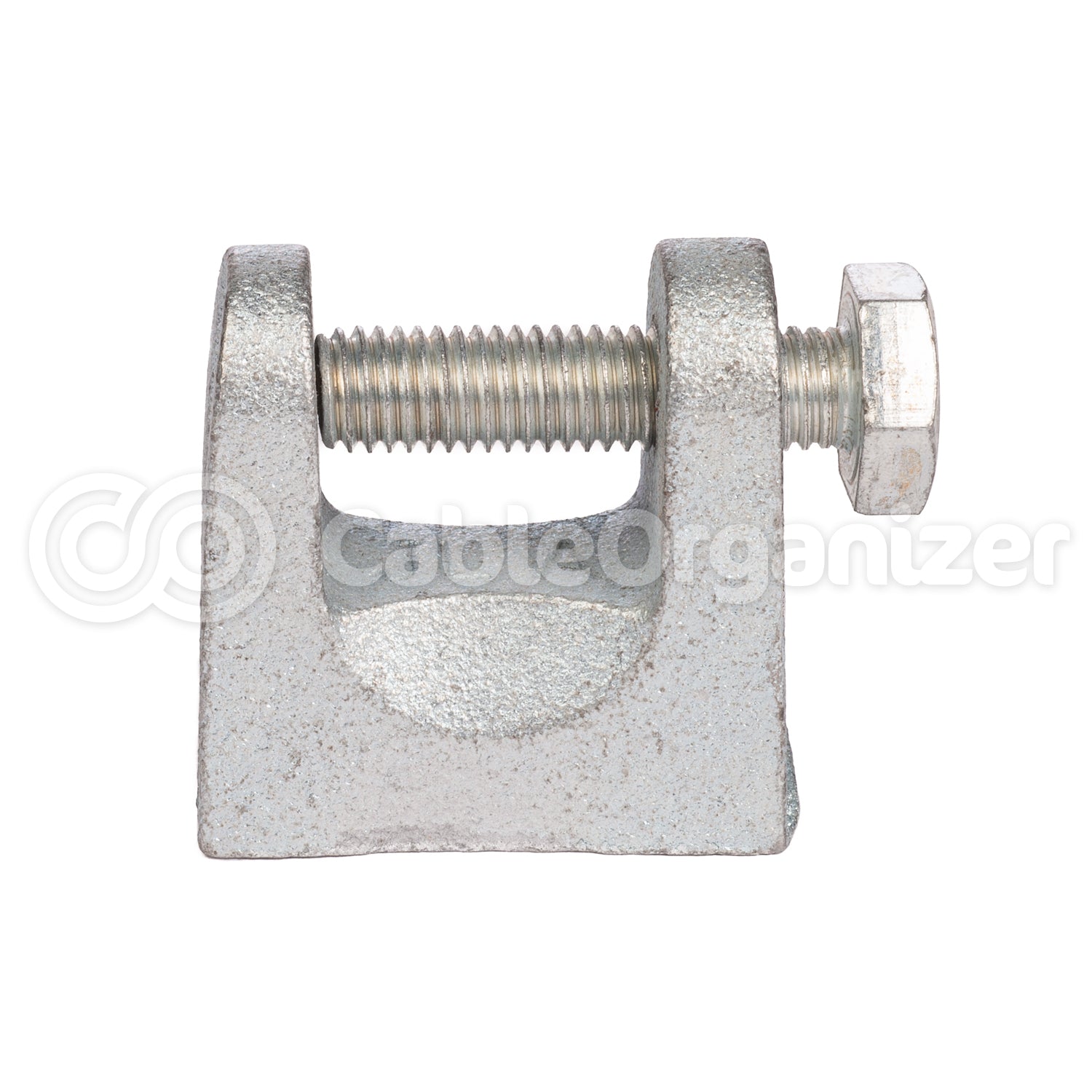

I-Beam Clamp
Shop NowEach clip accepts a threaded rod and can be clamped to an overhead I-Beam or U-Channel

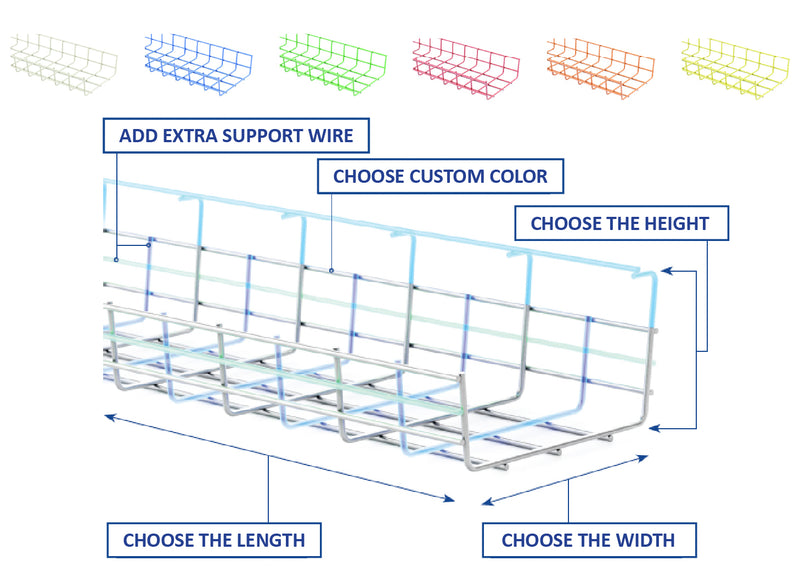

Custom Cable Trays
The Cobia® Cable Tray is already a trusted solution for keeping cables organized, protected, and out of the way, but some projects require a more tailored approach. That's why we offer custom Cobia® Cable Trays built to your exact specifications, whether you need a single unit or a large production run. From custom powder-coated colors and non-standard lengths or depths to specialized mounting hole spacing, wire supports, and loop configurations, we can create a cable management solution designed specifically for your application. You'll get the same reliable performance and cable organization benefits of the standard WireRun® Cobia® Cable Tray, customized to fit your workspace, equipment, and installation requirements, with self-tapping screws included for easy installation.
