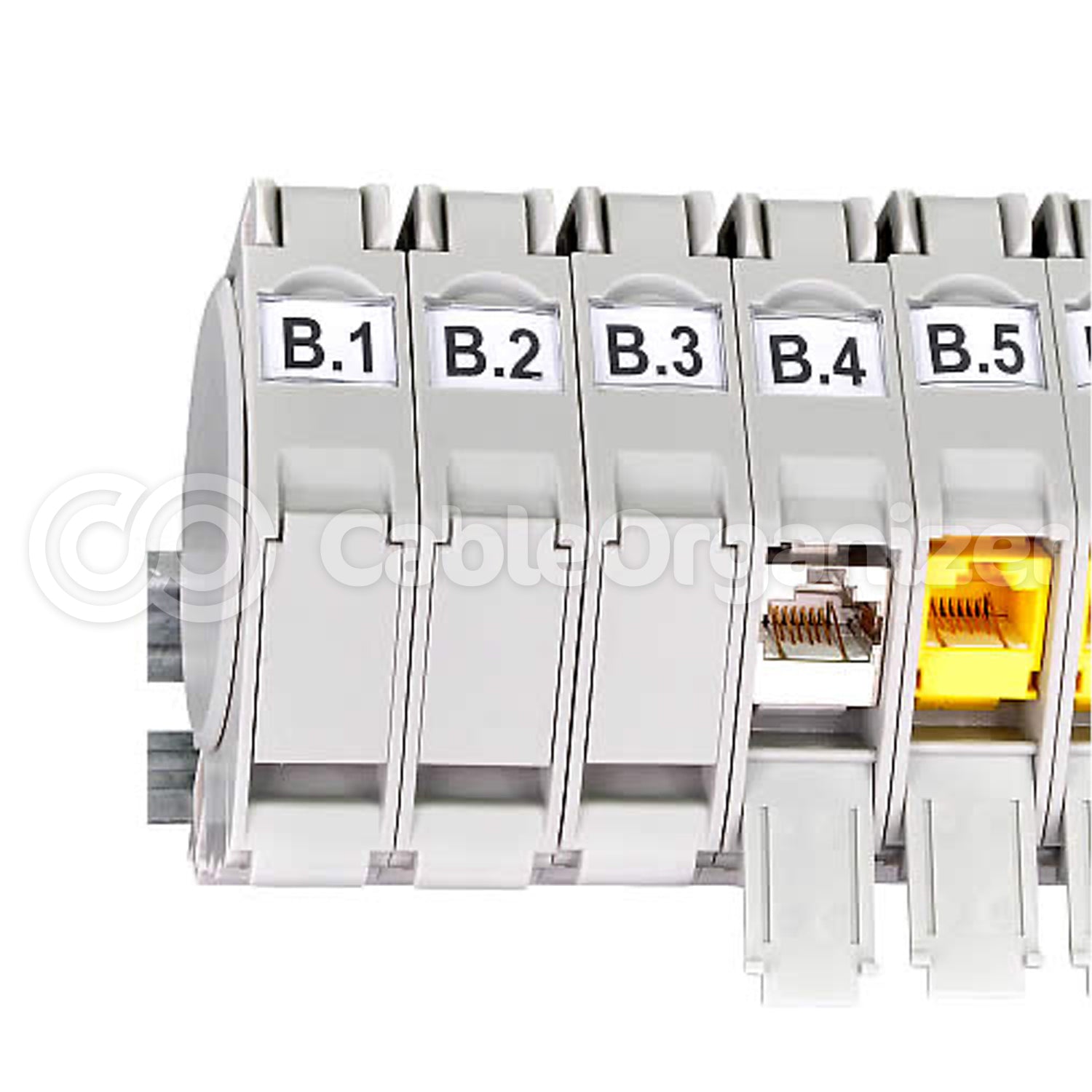

Signamax™ Keystone DIN-Rail Mounting Module

Signamax™ Keystone DIN-Rail Mounting Module

Industrial Grade Keystone Mounting Solution

With all the patch panels, wallmount racks, and floor enclosures available on today’s market, it’s hard to not find a suitable solution for your networking application. But if you’re looking for a fast, modular, and easy to install solution that requires minimal space and expense, Signamax™ Connectivity Systems are the perfect choice. The Keystone DIN-Rail Module combines all the advantages of modular keystone jacks with the simplicity, affordability, and usability of industrial DIN-Rail. These modules offer labeling, protective covers, front access, gravity compensation, and ease of installation by simply snapping onto any 35mm ‘hat style’ DIN-rail.

$4.96
$4.96 $4.96
Sale Sold out

Part Number: SX-KI-DIN-RMM-EA


Name: Signamax Keystone Industrial DIN-Rail Mounting Module, with out Side Lids

$4.96
$4.96 $4.96
Sale Sold out
  • Full-feature keystone jack module housing has all the same conveniences found in office work area solutions, and without the expense of costly data centers and enclosure systems.
  • Easy-to-install, cost effective design is compatible with all standard 35-mm wide DIN rails for easy mounting on almost any type of solid, flat surface such as a backboard or utility wall.
  • Removable side lids facilitate installation of multiple modules in a continuous row without hindering access to the keystones or their wiring.
  • Versatile design accommodates a wide range of CAT5, CAT5e, and CAT 6 keystone jacks up to 17 mm (0.67 in.) wide.
  • Features a multifunctional bronze alloy spring, which provides secure retention for the keystone jack, while serving as a grounding contact and path for screened jacks as well.
  • Provides space and a protective clear plastic window for labeling each module for easy recognition.
  • Hinged front hatch keeps jack protected from unwanted contact and contamination when not in use.
  • Swinging cassette-style housing and latching mechanism offer convenient frontal access to the keystone jack terminal to make installation, termination, removal or maintenance of the jack as quick and easy as possible.
  • No special tools or threaded fasteners required for installation - simply snap module on to the DIN rail.
  • Cable entry point accommodates proper bend radius of patch cords to prevent damage or deformation of the cable and its inner conductors.
  • Angles the keystone jack to compensate for the cord's weight, alleviating patch cord stress.
  • UL94V-0 fire retardant
KI DIN RMM specs Signamax Keystone DIN Rail Mounting Module
