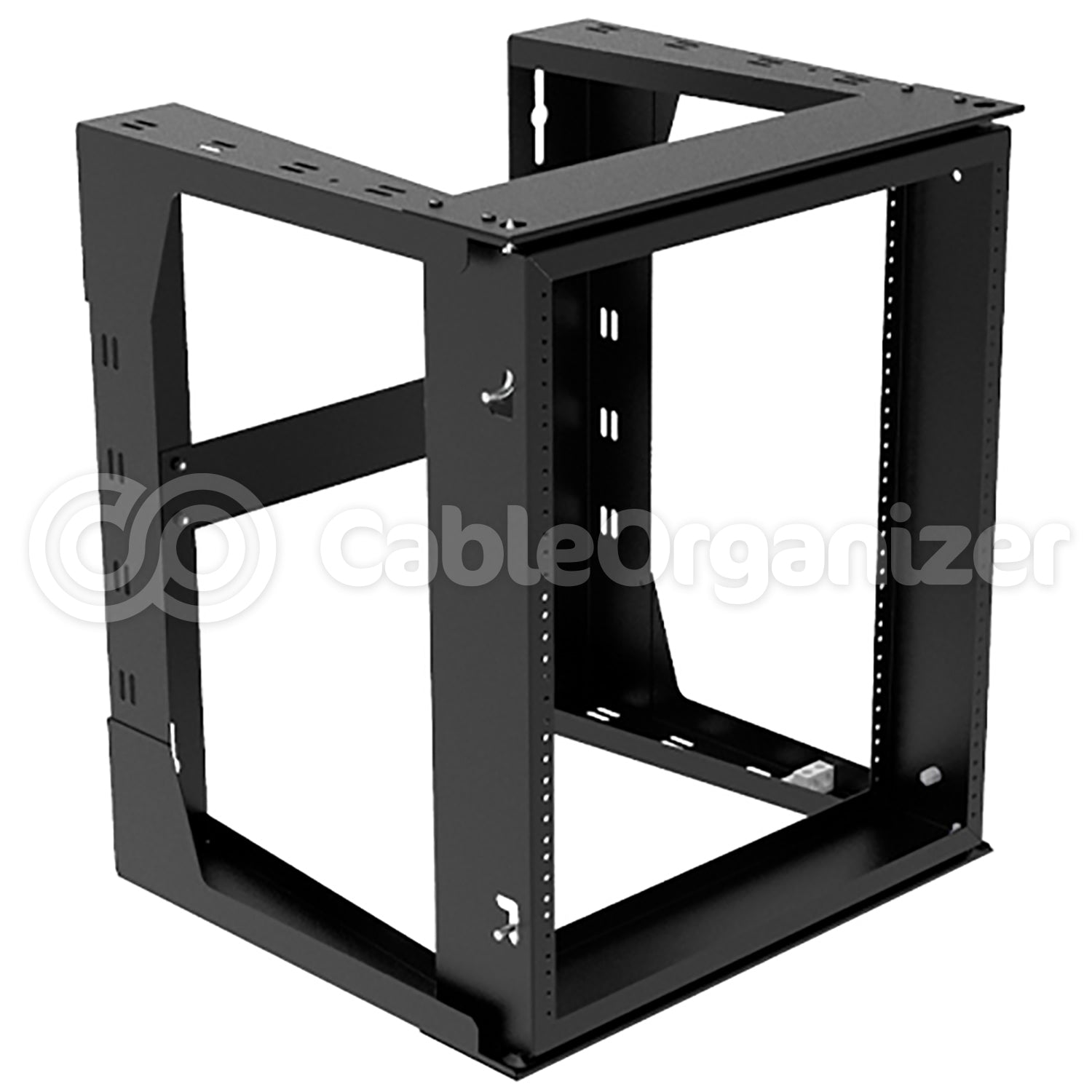

Great Lakes Wall Mount Swing Open Rack
Great Lakes Wall Mount Swing Open Rack
Great for Small Applications with Limited Floor Space
This quality swing out rack by Great Lakes is designed to provide easier access and greater ventilation with a lower clearance. For areas where space may not permit a full floor rack or enclosure, this wall mounted rack provides an efficient space-saving solution, without sacrificing accessibility
Regular price
$431.67
Regular price
$431.67
Sale price
$431.67
Unit price
/
per
Part Number: QGL-24WMOSR-EA
Couldn't load pickup availability
What's Special
What's Special
- Swings open 180° to allow access to all sides for easy maintenance and alterations.
- 18" depth works great for tighter areas.
- Choose from three sizes to fit your application: 12U, 19U and 26U.
- Fully welded steel construction for maximum durability.
Features
Features
- Top & bottom brace assembly: 16 gauge cold rolled steel
Swing frame assembly:
- GL24SR and 36SR: 14 gauge cold rolled steel
- GL48SR: 12 gauge cold rolled steel
19" EIA 310-E compliant frame tapped #10-32 front and rear
More vertical rack space
Hinge pins hold rack open when desired
50 lbs weight capacity
180° positive stop
Screws for installation included
UL rated: 2416
Requires minimal assembly for easy set-up
