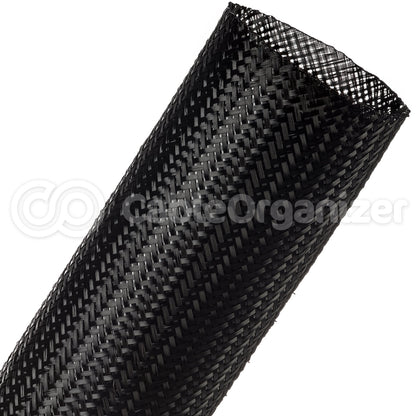

Flexo® Clean Cut®

Flexo® Clean Cut®

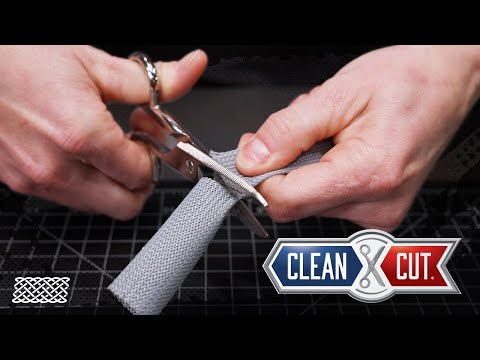

Fray Resistant When Cut With Scissors

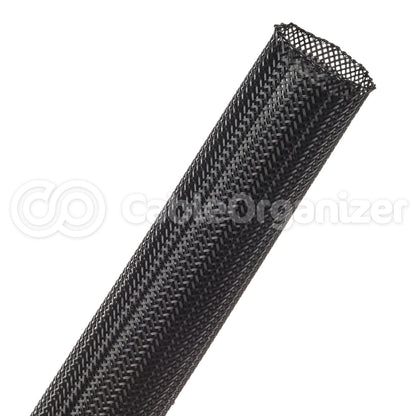

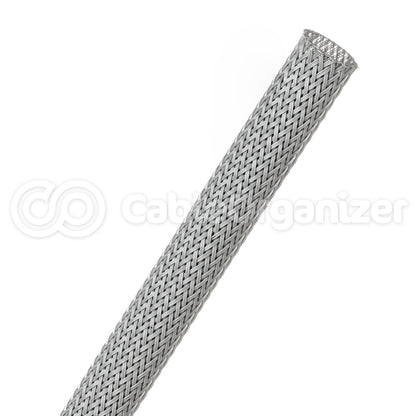

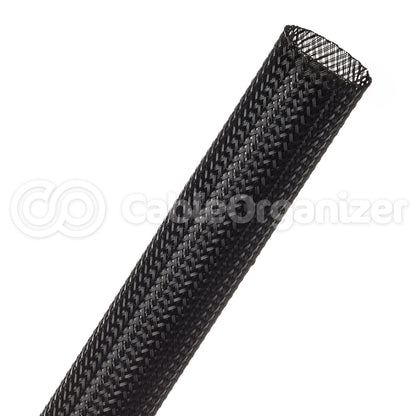

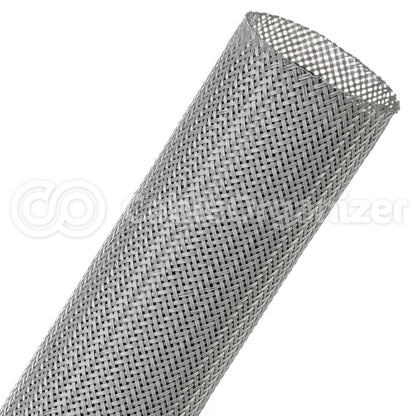

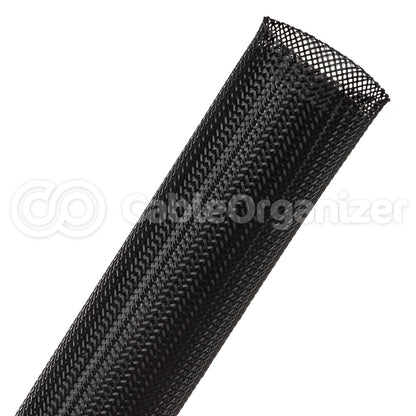

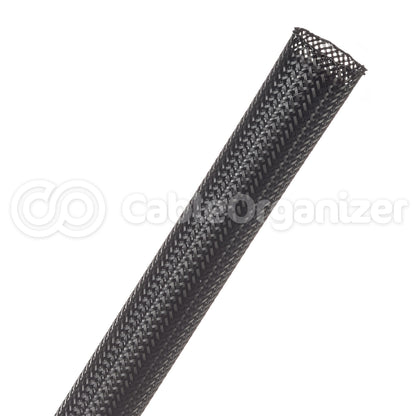

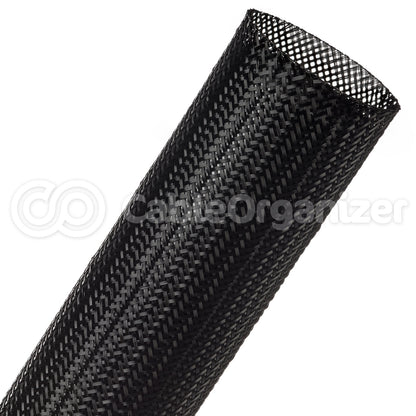

Techflex® Flexo® Clean Cut® is an innovative fray resistant coverings for wires, cables, and hose assemblies. This sleeving is ideal for field installers and other situations where access to a hot knife is impossible.The fray resistant properties allows frequent expansion of the cut end without unraveling and when cut with a hot knife, it produces a clean, smooth and virtually frayless end.

$9.20
$9.20 $9.20
Sale Sold out

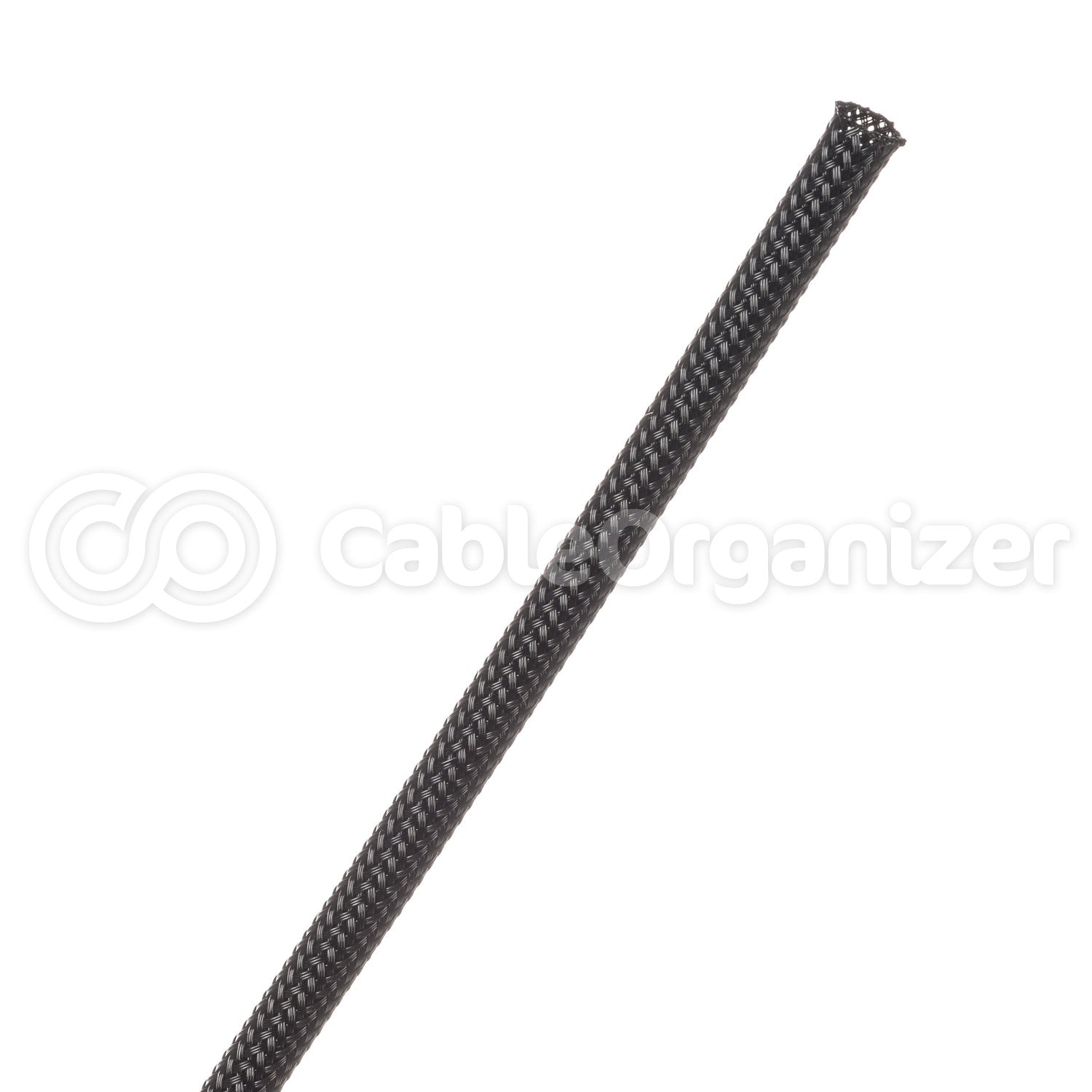

Part Number: CCP0.13BK-10

Certifications
  • RoHS Compliant
  • CSA Approved
  • UL Recognized Component Mark

What's Special

  • Available in standard PET and FR (Fire Retardant) grades.

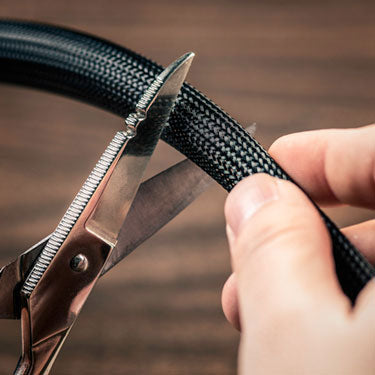

  • Cuts cleanly with scissors for easy installation in the field or when a hot knife is unavailable
  • Monofilament size: 0.008" FR version meets UL VW-1
  • Max. continuous operating temp.: 257°F (125°C)

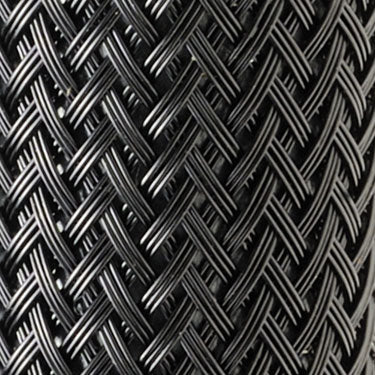

  • High abrasion resistance and increased braid density for fuller coverage.

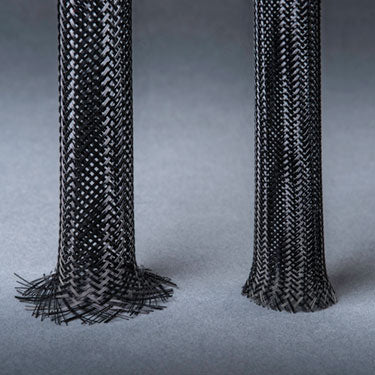

  • Fray resistant construction

Features

  • Monofilament Diameter: 0.008"
  • Flammability Rating: UL94
  • Recommended Cutting: Scissor/Hot Knife

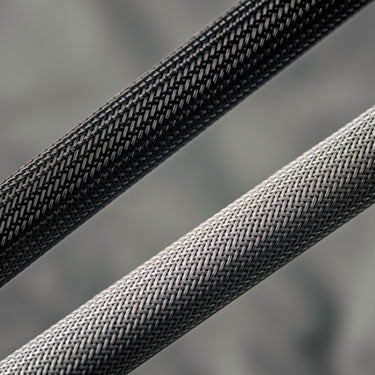

  • Colors: 3 (Black, Carbon, Gray)
  • Minimum Continuous Temp: -94 ºF / -70 ºC
  • Maximum Continuous Temp: 257 ºF / 125 ºC
  • Melt Temp: 482 ºF / 250 ºC

What Makes Clean Cut® Different From Other Sleeving Products?

By adjusting the physical characteristics of the polyethylene terephthalate (PET) filaments, the engineers at Techflex® have produced a product with the same specifications as our PET sleeving with the unique advantage of being able to cut the material with ordinary scissors and still maintain an extraordinarily fray-resistant end without the addition of chemical binders or adhesives.

Specifications

CCP Flexo Clean Cut
