IGUS® Chainflex® CF10 Shielded TPE Control Cables

High Performance Control Cables for Today’s Demanding Automated Equipment and Machinery

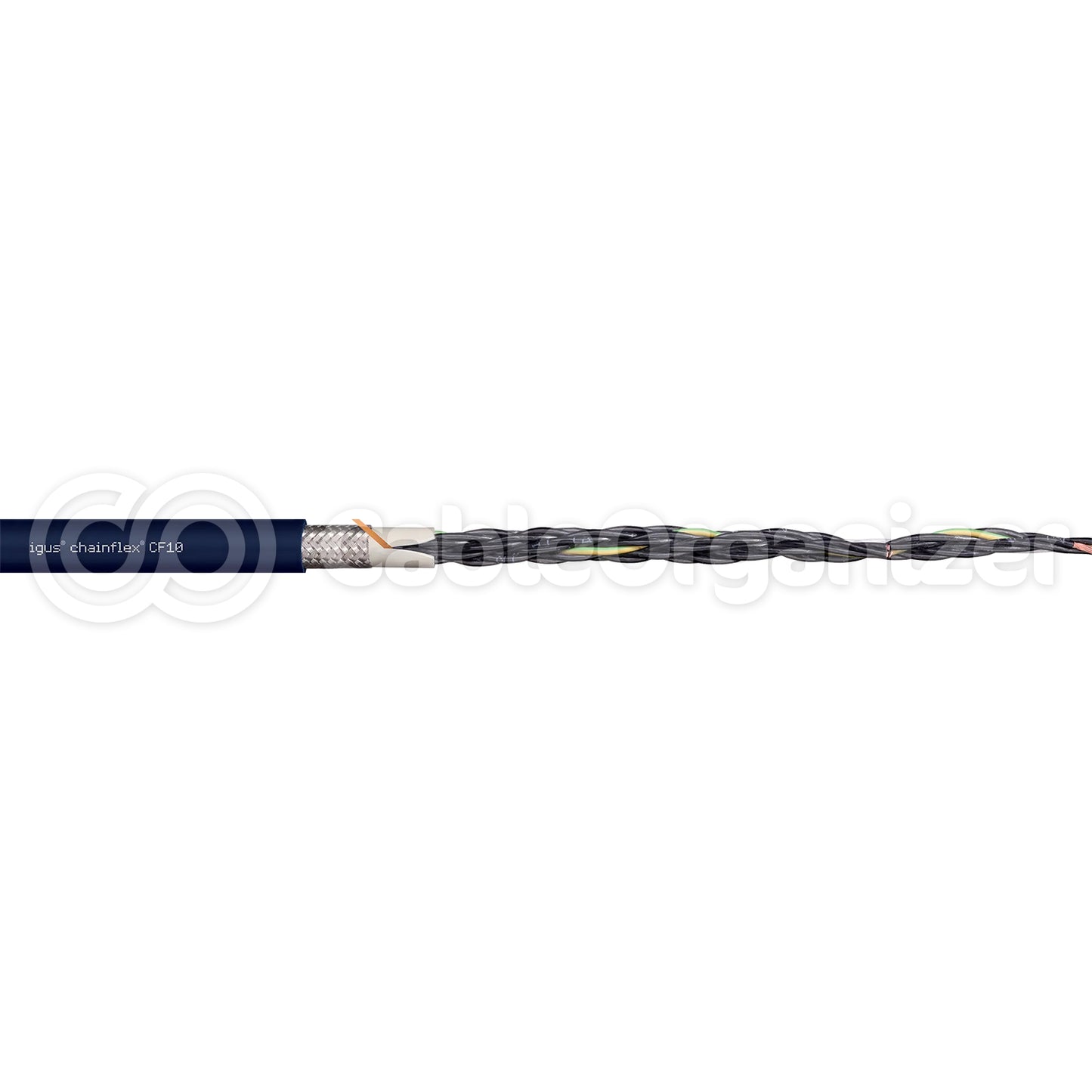

Chainflex CF10 TPE Control Cable

view more images

IGUS® Chainflex® CF10 Shielded TPE Control Cables Image Viewer Close Window

IGUS® Chainflex® CF10 Shielded TPE Control Cables

    Additional Images
  • layers of igus chainflex cf10 shielded tpe control cable - icon
  • layers of igus chainflex cf10 shielded tpe control cable with labels - icon

This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player
Copyright ©2012 CableOrganizer.com

What's special about these shielded multi-conductor cables?

  • Premium-grade construction includes internal copper conductors with multiple layers of protection against EMI, abrasion, oil, UV, and coolants
  • CE logoStrain relief center core increases tensile strength, limiting the amount of stress applied to internal conductors  when used inside moving machinery or cable management, such as cable/hose carrier systems
  • RoHS CompliantConductors are individually insulated with a thin-walled TPE coating, which provides an extra degree of protection without sacrificing flexibility
view prices

As automated machinery evolves technologically into faster, harder working and more efficient tools, it's common to find cables prematurely breaking down and deteriorating under the increased stress and friction. More

IGUS®, a world leader in Energy Chain® cable management systems, has developed a complementary line of cables specially designed to withstand the grueling rigors of fast-paced equipment. The Chainflex® CF10 line of Shielded Control Cables provides installers and machine operators with a premium quality cabling solution for all types of equipment and applications requiring the utmost protection and reliability.

  • Weather and environmental resistant TPE construction is suitable for use in both indoor and outdoor applications, while remaining highly flexible in cold environments and maintaining internal integrity when exposed to temperatures ranging from -31°F to 212°F (-35°C to 100°C)
  • Highly flexible conductors are constructed from very fine bare copper stranding that is in accordance with EN 60228, and meets the performance requirements for maximum mechanical loads
  • Intermediate jacket is made from a pressure extruded, gusset-filled TPE blend that maintains flexibility while keeping the conductors braided in short pitches for extremely low torsion
  • Tinned copper shielding flexes easily within the cable, and provides approximately 90% optical coverage to reduce the effects of EMI and cross-talk interference
  • Outer jacket is molded from a pressure extruded TPE blend that is particularly abrasion-resistant, oil-resistant, bio-oil resistant, and coolant-resistant
  • Silicon-free in compliance with PV 3.10.7 – status 1992
  • Halogen-free
  • PVC-free
  • CE Rated
  • RoHS compliant
  • Available in multiple wire gauges (12-26 AWG) and conductor counts sizes, for use in a wide range of applications, such as:
    • Storage and retrieval units for high-bay warehouses
    • CNC and milling machinery
    • Cleanrooms
    • Ship-to-shore
    • Outdoor construction equipment and cranes
    • Low temperature environments





TECHNICAL DATA
Minimum Bending Radius, moving 5 x outer cable diameter
Minimum Bending Radius, fixed 3 x outer cable diameter
Permissible Temperature, moving -31° F to 212° F (-35° C to 100° C)
Permissible Temperature, fixed -40° F to 212° F (-40° C to 100° C)
Voltage 300V
Testing Voltage 2000 Volts
Oil Resistance High
UV Resistance High
REGULATIONS
CE Compliant
RoHS Compliant
Conductor Colors 18-12 AWG: Black with White numbers, one conductor green/yellow
20-26 AWG: DIN 47100



PART # AWG Number of Conductors and
Rated Cross-Section in mm²		 OUTER DIAMETER (approx) Copper Index Weight Price per Foot
inches mm lbs/mft kg/km lbs/mft kg/km
IGU-CF10-01-12 26 12 x 0.14 0.30" 7.5 24.4 36 54.4 80
$3.55 Qty:
IGU-CF10-01-18 26 18 x 0.14 0.39" 10 45.5 67 74.8 110
$5.57 Qty:
IGU-CF10-02-04 24 4 x 0.25 0.25" 6.5 17 25 27.2 40
$2.14 Qty:
IGU-CF10-02-08 24 8 x 0.25 0.30" 7.5 27.2 40 46.9 69
$3.84 Qty:
IGU-CF10-02-12 24 12 x 0.25 0.35" 9 38.1 56 68 100
$5.60 Qty:
IGU-CF10-05-04 20 4 x 0.5 0.26" 6.5 25.8 38 42.1 62
$2.08 Qty:
IGU-CF10-05-05 20 5 x 0.5 0.28" 7 28.6 42 47.6 70
$2.28 Qty:
IGU-CF10-05-07 20 7 x 0.5 0.30" 7.6 35 52 59 88
$2.64 Qty:
IGU-CF10-05-12 20 12 x 0.5 0.45" 11.5 62.6 92 105.4 155
$5.18 Qty:
IGU-CF10-05-18 20 18 x 0.5 0.51" 13 87 128 146.2 215
$7.04 Qty:
IGU-CF10-05-25 20 25 x 0.5 0.55" 14 113.6 167 190.4 280
$10.58 Qty:
IGU-CF10-07-04 18 4 x 0.75 0.28" 7 32 47 49.6 73
$2.62 Qty:
IGU-CF10-07-05 18 5 x 0.75 0.30" 7.5 38.8 57 57.1 84
$2.72 Qty:
IGU-CF10-07-07 18 7 x 0.75 0.33" 9 51 75 74.8 110
$3.56 Qty:
IGU-CF10-07-12 18 12 x 0.75 0.49" 12.5 93.8 138 123.8 182
$6.96 Qty:
IGU-CF10-07-20 18 20 x 0.75 0.59" 15 139.4 205 235.3 346
$9.18 Qty:
IGU-CF10-07-24 18 24 x 0.75 0.59" 15 150.2 221 224.4 330
$9.60 Qty:
IGU-CF10-10-02 17 2 x 1 0.26" 6.5 25.8 38 47.6 70
$1.98 Qty:
IGU-CF10-10-03 17 3 x 1 0.28" 7 32 47 49.6 73
$2.25 Qty:
IGU-CF10-10-04 17 4 x 1 0.30" 7.5 40.1 59 59.1 87
$2.62 Qty:
IGU-CF10-10-05 17 5 x 1 0.31" 8 48.3 71 68.9 101
$3.10 Qty:
IGU-CF10-10-07 17 7 x 1 0.39" 10 48.3 71 68.9 101
$4.93 Qty:
IGU-CF10-10-12 17 12 x 1 0.51" 13 106.1 156 157.8 232
$7.10 Qty:
IGU-CF10-10-18 17 18 x 1 0.59" 15 150.2 221 219 322
$11.47 Qty:
IGU-CF10-10-24 17 24 x 1 0.71" 18 207.4 305 344.1 506
$12.32 Qty:
IGU-CF10-15-04 16 4 x 1.5 0.35" 9 65.3 96 89.8 132
$5.06 Qty:
IGU-CF10-15-07 16 7 x 1.5 0.45" 11.5 105.4 155 136 200
$6.75 Qty:
IGU-CF10-15-12 16 12 x 1.5 0.61" 15.5 150.2 221 226.4 333
$9.55 Qty:
IGU-CF10-15-18 16 18 x 1.5 0.79" 20 245.5 361 397.8 585
$12.30 Qty:
IGU-CF10-25-04 14 4 x 2.5 0.39" 10 85.7 126 122.4 180
$5.81 Qty:
IGU-CF10-25-07 14 7 x 2.5 0.49" 12.4 139.4 205 204 300
$9.98 Qty:
IGU-CF10-25-12 14 12 x 2.5 0.72" 18.5 253.6 373 359 528
$12.58 Qty:
IGU-CF10-40-04 12 4 x 4 0.45" 11.5 127.8 188 173.4 255
$6.43 Qty:
IGU-CF10-40-05 12 5 x 4 0.53" 13.5 167.3 246 240 353
$8.51 Qty:

All Cuts Under 200 FEET in length are Non-Returnable / Non-Refundable
All returns are subject to a restocking fee. Goods not in resaleable condition will not be accepted

PART # CONDUCTOR
AWG		 NUMBER OF
CONDUCTORS		 VOLTAGE OUTER DIAMETER
(approx)		 WEIGHT PRICE PER FOOT
IGU-CF10-01-12 26 12 300V 0.30" 0.054 lb
$3.55 Qty:
IGU-CF10-01-18 26 18 300V 0.39" 0.074 lb
$5.57 Qty:

IGU-CF10-02-04 24 4 300V 0.25" 0.027 lb
$2.14 Qty:
IGU-CF10-02-08 24 8 300V 0.30" 0.056 lb
$3.84 Qty:
IGU-CF10-02-12 24 12 300V 0.35" 0.068 lb
$5.60 Qty:

IGU-CF10-05-04 20 4 300V 0.26" 0.042 lb
$2.08 Qty:
IGU-CF10-05-05 20 5 300V 0.28" 0.047 lb
$2.28 Qty:
IGU-CF10-05-07 20 7 300V 0.30 0.059 lb
$2.64 Qty:
IGU-CF10-05-12 20 12 300V 0.45" 0.105 lb
$5.18 Qty:
IGU-CF10-05-18 20 18 300V 0.51" 0.146 lb
$7.04 Qty:
IGU-CF10-05-25 20 25 300V 0.55" 0.190 lb
$10.58 Qty:

IGU-CF10-07-04 18 4 300V 0.28" 0.049 lb
$2.62 Qty:
IGU-CF10-07-05 18 5 300V 0.30" 0.057 lb
$2.72 Qty:
IGU-CF10-07-07 18 7 300V 0.33" 0.074 lb
$3.56 Qty:
IGU-CF10-07-12 18 12 300V 0.49" 0.123 lb
$6.96 Qty:
IGU-CF10-07-20 18 20 300V 0.59" 0.235 lb
$9.18 Qty:
IGU-CF10-07-24 18 24 300V 0.59" 0.224 lb
$9.60 Qty:

IGU-CF10-10-02 17 2 300V 0.26" 0.047 lb
$1.98 Qty:
IGU-CF10-10-03 17 3 300V 0.28" 0.049 lb
$2.25 Qty:
IGU-CF10-10-04 17 4 300V 0.30" 0.059 lb
$2.62 Qty:
IGU-CF10-10-05 17 5 300V 0.31" 0.068 lb
$3.10 Qty:
IGU-CF10-10-07 17 7 300V 0.39" 0.068 lb
$4.93 Qty:
IGU-CF10-10-12 17 12 300V 0.51" 0.157 lb
$7.10 Qty:
IGU-CF10-10-18 17 18 300V 0.59" 0.219 lb
$11.47 Qty:
IGU-CF10-10-24 17 24 300V 0.71" 0.344 lb
$12.32 Qty:

IGU-CF10-15-04 16 4 300V 0.35" 0.089 lb
$5.06 Qty:
IGU-CF10-15-07 16 7 300V 0.45" 0.136 lb
$6.75 Qty:
IGU-CF10-15-12 16 12 300V 0.61" 0.226 lb
$9.55 Qty:
IGU-CF10-15-18 16 18 300V 0.79" 0.397 lb
$12.30 Qty:

IGU-CF10-25-04 14 4 300V 0.39" 0.122 lb
$5.81 Qty:
IGU-CF10-25-07 14 7 300V 0.49" 0.204 lb
$9.98 Qty:
IGU-CF10-25-12 14 12 300V 0.72" 0.359 lb
$12.58 Qty:

IGU-CF10-40-04 12 4 300V 0.45" 0.173 lb
$6.43 Qty:
IGU-CF10-40-05 12 5 300V 0.53" 0.240 lb
$8.51 Qty:
All Cuts Under 200 Feet are Non-Returnable / Non-Refundable
